Printer Relocation

Printer Driver Installation

Basic Guide

Large-Format Printers

Preparing to Transfer the Printer ......................2

Reinstalling the Printer .....................................6

Installing the Printer Driver (Windows) .............9

Installing the Printer Driver (Mac OS X) ......... 11

Convenient Printer Driver Features................13

Troubleshooting................................................2

If Roll Paper Jams ..........................................18

If a Sheet Jams...............................................21

If Paper is Soiled ............................................23

If Printing is Faint............................................25

If Vertical Lines are Warped or Colors are

Misaligned ..................................................26

If Banding Occurs...........................................28

If Line Length Does Not Match.......................30

Error Messages ..............................................32

Safety Precautions........................................2

Types of Manuals .............................................5

Documentation Conventions ............................6

Parts .................................................................8

Loading Rolls on the Roll Holder....................14

Loading Rolls in the Printer ............................16

Removing the Roll from the Printer ................18

Loading Sheets in the Printer .........................20

Removing Sheets ...........................................25

Consumables..................................................27

Replacing Ink Tanks .......................................28

Replacing the Maintenance Cartridge ............32

Replacing the Printhead .................................36

Menu Map.......................................................41

It is not possible to prepare the printer for transfer if the Display Screen requests you to replace the Maintenance

Cartridge or check the remaining capacity. Replace the Maintenance Cartridge before transfer preparations. In

this case, you will need one new Maintenance Cartridge.

(→, Replacing the Maintenance Cartridge)

•

Depending on the state of the printer, part replacement may be necessary when preparing to transfer the printer

(that is, when you execute the printer menu item to prepare for transfer).

•

If the Tab Selection screen is not displayed, press the Menu button.•

Be sure to contact your Canon dealer before transferring the printer to a new location. Ink may leak and damage

the printer if you do not prepare the printer correctly and it is tipped or stood on end in transit.

•

To protect the internal parts in transit, always follow these steps before transferring the printer to a new location.

Refer to the Setup Guide for details on packing the printer and installing it after transfer.

Remove the paper.

Press the OK button.

Press ▲or ▼to select Prep.MovePrinter, and then

press the OK button to display the conﬁrmation screen.

On the Tab Selection screen of the Control Panel, press

◄or ►to select the Settings/Adj. tab ( ).

Remove paper

Access the Prep.MovePrinter menu

Rolls: (→, Removing the Roll from the Printer)

Sheets: (→, Removing Sheets)

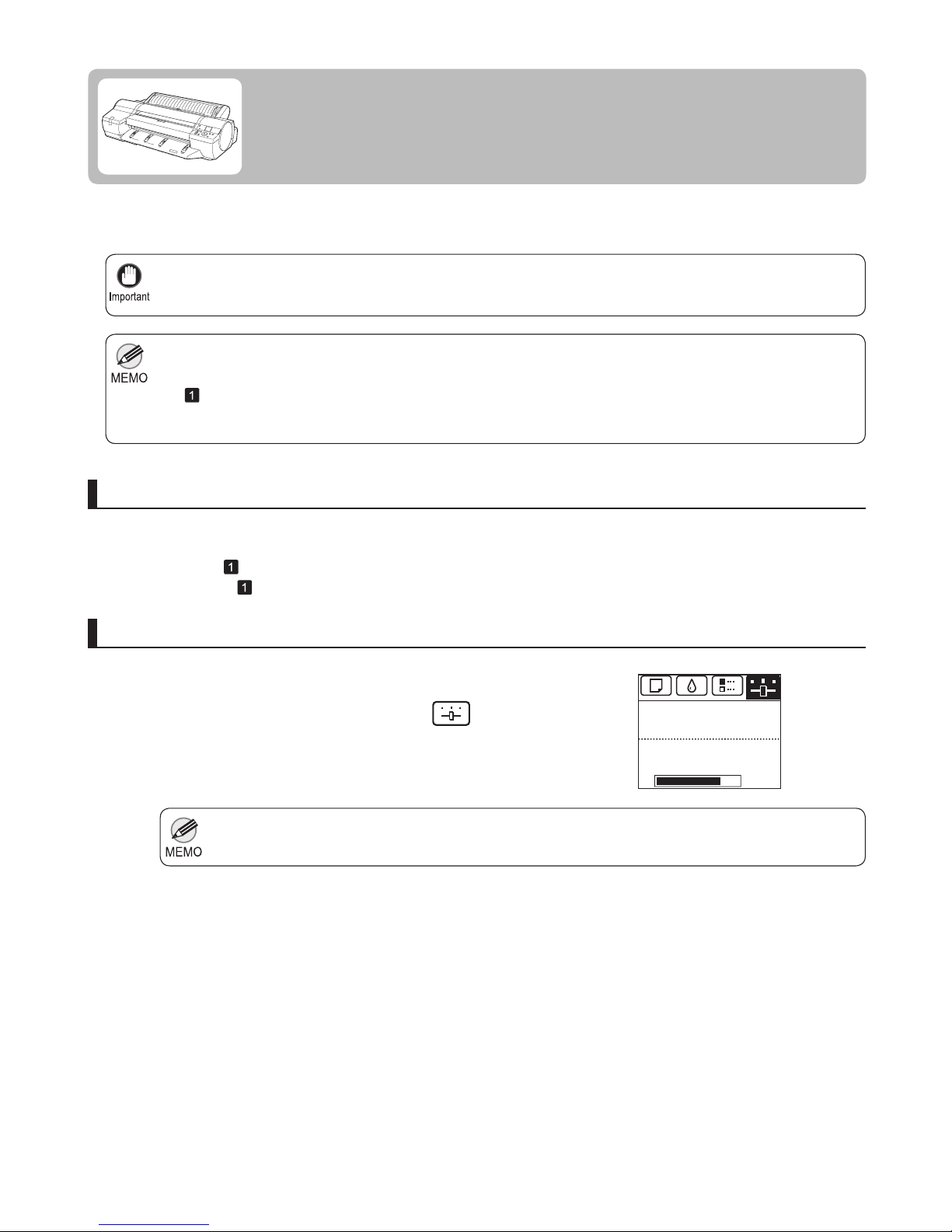

Preparing to Transfer the Printer

Prepare to transfer the printer as follows.

The Set./Adj. Menu is displayed.

㪏㪇㩼

Remaining Amount

Maint. cart.

Ready

OK:Setting/Adj. Menu

Preparing to Transfer the Printer

If consumables must be replaced, the message Consumables must be replaced. Call for service. is

shown on the Display Screen and preparation is not possible. If this message is displayed, press the

OK button and contact your Canon dealer for assistance.

•

Store the ink tanks you removed with the ink holes (a)

facing up. Otherwise, ink may leak and cause stains.

•

4Once preparations are ﬁnished, a message on the Display

Screen requests you to open the Ink Tank Cover.

Open the Ink Tank Cover.

Lift the ink tank lock levers and remove all ink tanks.

Remove the ink tanks

Put the ink tanks in a plastic bag and seal it.

Press ▲or ▼to select Yes, and then press the OK

button.

Preparing to Transfer the Printer

Turn off the printer before you unplug it. It may damage the printer if you unplug it before it is off and

transfer it in that state. If you accidentally unplug the printer, plug it in again, reinstall the ink tanks, and

follow this procedure again.

•

Do not remove the Maintenance Cartridge during this process.•

Disconnect the power cord and interface cable.

Open the Top Cover.

Press the Power button and turn off the printer.

Pack the printer

Close all ink tank lock levers, and then close the Ink Tank

Cover.

At this point, ink is drawn out from inside the tubes.

When the process is ﬁnished, Completed! Turn Power

Off!! is displayed.

Preparing to Transfer the Printer

Here, the Belt Stopper is the one that was removed and stored after initial installation.•

Pinch the Belt together, insert it between the Belt

Stopper, and afﬁx the Belt Stopper to the Carriage

Shaft.

Close the Top Cover.

Tape down printer covers to secure them, in the reverse

order of tape removal during installation.

Repack the Roll Holder, Holder Stopper, and printer in

shipping materials, and then package them in a shipping

box.

The Stand must be assembled by at least two people on a ﬂat surface. Attempting assembly by yourself poses a

risk of injury or bending the Stand.

•

Because the printer weighs 51 kg (112.4 lb), moving it requires at

least three people, holding it ﬁrmly by the Carrying Handles (a) on

both sides under the printer.

•

When assembling the Stand, lock the casters.•

In addition, always unlock the casters before moving the assembled Stand. Attempting to move the stand when the

casters are locked poses a risk of injury or damage to the location site.

Reinstalling the Printer

The basic workﬂow for reinstalling the printer is as follows.

For detailed instructions, see the Setup Guide.

Install the printer

Referring to the Printer Stand Setup Guide, assemble the Stand.

Install the printer on a table or other ﬂat surface.

Assemble the stand (optional)

If you will use the printer on an optional Stand, assemble the

Stand before mounting the printer on it, and then secure it with the

Main Unit Securing Bolts.

Reinstalling the Printer

Remove the packaging material

Remove tape and packaging material attached to the printer.

Connect the power cord

Connect one end of the power cord to the Power Supply

Connector on the back of the printer and plug the other end into

the outlet.

Install the ink tanks

Open the Ink Tank Cover and install the ink tanks.

Turn the printer on

Press the Power button to turn the printer on.

Reinstalling the Printer

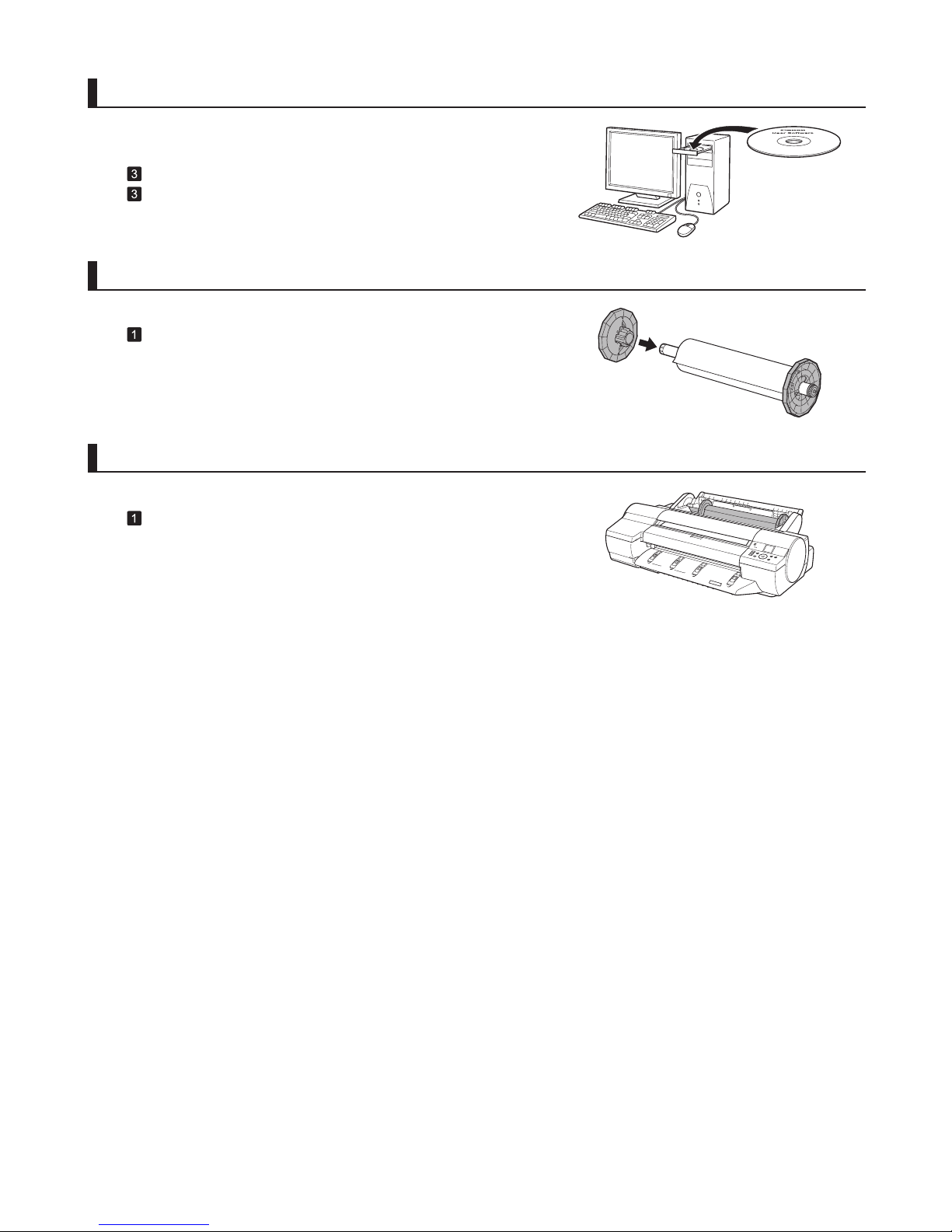

Load rolls on the roll holder

Load rolls in the printer

Load the Roll Media on the Roll Holder.

(→, Loading Rolls on the Roll Holder)

Load the Roll Media in the printer.

(→, Loading Rolls in the Printer)

Install the printer driver and manual

Note that the driver installation procedure varies depending on the

type of connection.

(→, Installing the Printer Driver (Windows))

(→, Installing the Printer Driver (Mac OS X))

When setting up a USB connection, connect the USB cable during printer driver installation following the

instructions displayed.

•

When the printer is connected to a network (via TCP/IP), the printer's IP address may be changed if you reinstall

the printer. In this case, be sure to reconﬁgure the printer's IP address.

•

If you accidentally connect the USB cable ﬁrst, the printer driver may not be installed correctly.

The printer driver works over USB or network (TCP/IP) connections.

Supported connection methods

Installing the Printer Driver (Windows)

The basic instructions for installing the printer driver are as follows.

Installing the printer driver and user manual

For detailed instructions, see the Setup Guide.

The driver installation procedure varies depending on the type of connection.

Windows 7, Windows Vista, Windows Server 2008, Windows Server 2003, Windows XP, and Windows 2000

Turn the computer on.

Insert the provided User Software CD-ROM for the

appropriate operating system in the CD-ROM drive.

Compatible operating systems

Follow these steps to install the printer driver and User Manual.

When setting up a TCP/IP (network) connection, after

making sure the printer is on, connect the LAN cable to

the Ethernet port on the back of the printer and to your

network hub port.

Installing the Printer Driver (Windows)

For USB connections, when the dialog box at right is displayed,

make sure the printer is on and connect the printer and computer

with the USB cable.

•

Follow the instructions displayed to complete installation.

On the Finish window, select Restart my computer now

and click Restart.

Next, install the User Manual.

Printer driver settings take effect after the computer

restarts.

When the Install User Manual dialog box is displayed,

insert the provided User Manuals CD-ROM in the CD-

ROM drive and follow the instructions displayed to

complete installation.
