Canon Bubble Jet Printer i450 Manuel utilisateur

i450

SIMPLIFIED MANUAL

1 PRODUCT LIST

2 PRODUCT SPECIFICATIONS

3 ERROR CODE

4 SERVICE MODE

5 EXTERNALVIEW / PARTS LIST

6 TROUBLESHOOTING FLOWCHART

7 SERVICE INFORMATION

QY8-1386-000

Rev 00

April 21, 2003

Canon Inc

1. PRODUCT LIST

1.1 Main Units

Product name Product code Sales territories Accessories

Canon Bubble Jet Printer i450 8517A001AA US

8517A002AA CAN

8517A003AA LAM LVT

8517A004AA LAM HVT

8517A005AA EUR

8517A006AA DE

8517A007AA FR

8517A008AA ASA HVT

8517A009AA AU

8517A010AA KR

8517A011AA GB

8517A013AA TW

8517A014AA HK

8517A015AA CN

PIXUS 450i 8517A012AA JPN

1.2 Consumables

Product name Product code Sales territories Remarks

Canon Ink Tank

BCI-24BK 6881A001AA to

6881A004AA

BCI-24CL 6882A001AA to

6882A004AA

001: JPN

002: EUR

003: USA / CAN

004: ASIA / AUST

BCI-24BK Twin Pack 6881A008AA to

6881A011AA

BCI-24CL Twin Pack 6882A008AA to

6882A011AA

008: JPN

009: EUR

010: USA / CAN

011: ASIA / AUST

In common with the

S300, S330, and i320

2. SPECIFICATIONS

2.1. Printer Specifications

Type Desktop serial color bubble jet printer

Paper feeding

method Auto sheet feed (no manual feeding)

Resolution 4,800 dpi x 1,200 dpi (Max.)

Throughput

(Target value) Draft Standard High

Black (New Black) 18 ppm 12 ppm -----

Color (New Color) 12 ppm 4.8 ppm 0.8 ppm

Printing direction Bidirectional, uni-directional

Print width Max. 203.2 mm (220.9 mm in borderless printing)

Line feed speed 215.9 mm/s

Interface USB 2.0 Full Speed

ASF stacking

capacity Plain paper (75 g/m2): Max. 10 mm (Approx. 100 sheets)

Paper weight 64 to 105 g/m2

Detection

functions - Cover open - Presence of print head

- Remaining ink amount (dot count) - Paper out (Paper end sensor)

- Waste ink amount - Pick-up roller

- Carriage position - Head-to-paper distance

Acoustic noise 45 dB (high quality mode)

Environmental

requirements During operation Temperature 5C to 35C (41F to 95F)

Humidity 10%RH to 90%RH (no condensation)

Non operation Temperature 0C to 40C (32F to 104F)

Humidity 5%RH to 95%RH (no condensation)

Power supply Input voltage Frequency Power consumption Standby

AC 100 to 127 V 50/60 Hz 32W 2.5W

AC 220 to 240 V 50/60 Hz 30W 2.6W

External

dimensions Approx. 393 (W) x 254 (D) x 202 (H) mm

Weight Approx. 3.7 kg, not including print head and optional device

Related standards Electromagnetic radiance:

VCCI, FCC, IC, CE Mark, Taiwan EMC, Korea EMC, CCIB, C-tick, CCEE

Electrical safety:

Electrical Appliance and Material Control Law (DENTORI), UL, C-UL,

CB Report, GS, CE Mark, FIMKO, CCIB (EMC), AS, CCEE, PSB, Electrical

Safety Regulations of Korea, SASO

Environmental regulations:

Energy Star, Blue Angel, Environment label

Serial number

location On the carriage ribbon cable holder (visible when the front cover is open).

Remaining ink

amount detection Available (by dot count. Reset by user operation. Enabled at default.)

Print head

alignment Available (11 types)

2.2. Print Head Specifications

Print heads

Type 4-color removable ink tanks, single head for black and color (YMC) ink tanks

Print head BK: 320 nozzles in 2 vertical lines, 30 pl

Color: 256 nozzles in 2 vertical lines (128 nozzles each) per color, alternate

5 pl and 2 pl nozzles in line, horizontal zigzag nozzle allocation

Ink color Pigment-based black, Dye-based cyan, magenta, yellow

Ink tank BCI-24Black, BCI-24Color

Weight (Net) Print head, 60g

Supply method As a service part (not including ink tanks)

Part number QY6-0047-000

Note: This print head is usable only for the new models of i450 and i470D, and not

usable for the S300 or S330.

3. ERROR LIST

3.1. Errors by LED Blinking in Orange

User recoverable errors

LED

blinking in

orange

Panel display Error Code Error Solution

2 times 301 1000 No paper. Set the paper, and press the

Resume/Cancel button.

3 times 302 1300 Paper jam. Remove the jammed paper, and

press the Resume/Cancel button. If

the error is not resolved, check that

no foreign material is inside the

printer.

6 times 402 1401 The print head is not

installed. Install the print head, and close the

access cover.

7 times 403 1405 The print head is not

installed properly.

(EEPROM data of the

print head is faulty.)

Re-install the print head, or with the

print head installed, turn the printer

off and on. If the error is not

resolved, replace the print head.

8 times 202 1700 Warning: The waste ink

absorber becomes almost

full (to approx. 95% to

100% of the maximum

capacity).

Pressing the Resume/Cancel button

will exit the error.

(The waste ink absorber full error

occurs at 100% capacity, making it

impossible to perform printing.

611 2001 Digital camera

transmission time-out

error (When the printer

cannot communicate with

a digital camera, the

time-out error occurs.)

Disconnect the USB cable to the

digital camera, and press the

Resume/Cancel button.

11 times

612 2001 Digital camera

non-supporting device

error (When a digital

camera or device other

than a digital camera, not

supporting Direct Printing

is connected to the printer

with the USB cable, the

error occurs.)

Disconnect the USB cable, and press

the Resume/Cancel button.

*1:The error code is stored in the operator / service call history of the EEPROM information.

3.2. Errors by LED Blinking in Orange and Green Alternately, or Lit in Orange

User unrecoverable errors

LED

alternate

blinking in

orange and

green

Panel display Error Code Error Solution

2 times 802 5100 Carriage error 1. Check that no foreign material

is inside the printer.

2. Replace the timing slit strip

film.

3. Replace the purge unit.

4. Replace the logic board ass’y.

4 times 804 5C00 Purge unit error 1. Check that no foreign material

is inside the printer.

2. Replace the purge unit.

3. Replace the logic board ass’y.

6 times 806 5400 Internal temperature error 1. Turn the printer off, and after a

short period of time, turn the

printer on again.

2. Replace the logic board ass’y.

7 times 807 5B00 Waste ink absorber full error 1. Replace the ink absorber.

2. Replace the logic board ass’y.

8 times 808 5200 Print head temperature rise

error 1. Turn the printer off, and after a

short period of time, turn the

printer on again.

2. Replace the print head.

3. Replace the logic board ass’y.

9 times 809 6800 EEPROM error Replace the logic board ass’y.

Lights in

orange No display 6800 RAM error Replace the logic board ass’y.

*1:The error code is stored in the operator / service call history of the EEPROM information.

4. Service mode

4.1 Service mode function

Function Procedures Remarks

Service test print

See “Service mode operatio

procedures” below. Set a sheet of A4/LTR- or larger-sized paper.

For print sample, see page 9

EEPROM information print See “Service mode operatio

procedures” below. Set a sheet of A4/LTR- or larger-sized paper.

For print sample, see page 10.

EEPROM initialization See “Service mode operatio

procedures” below. The following items are not initialized:

- USB serial number

- Destination settings (Japan / Overseas)

- Cleaning flag on arrival

- Waste ink counter

Waste ink counter reset See “Service mode operatio

procedures” below. Both the main and the borderless print waste

ink counters are reset at the same time.

Destination settings See “Service mode operatio

procedures” below. Overseas: i450

Japan: PIXUS 450i

Print head deep cleaning Cleans black and color, simultaneously.

Operation panel display

confirmation See “Operation panel operatio

confirmation procedures” below. Confirm the operations of operation panel

display and operation buttons. Perform the

confirmation at operation panel replacement.

4.2. Service mode operation procedures

1) Close the access cover, and turn off the printer. While pressing the Resume/Cancel button, press and

hold the Power button. (The LED lights in green to indicate that a function is selectable.)

2) While holding the Power button, release the Resume/Cancel button.

3) While holding the Power button, press the Resume/Cancel button 2 times, and then release the Power

and Resume/Cancel buttons. (In the operation panel, “02” will be displayed. Each time the

Resume/Cancel button is pressed, the LED lights alternately in either orange or green. During

initialization, the LED blinks in green.)

4) When the LED stops blinking and lights in green, press the Resume/Cancel button the specified number

of time(s) according to the function listed in the table below. (Each time the Resume/Cancel button is

pressed, the LED lights alternately in either orange or green.)

Time(s) LED Function Remarks

0 times Green Power off When the print head is not installed, the carriage returns

and locks in the home position.

1 time Orange Service test print When the Power button is pressed during printing, printing

stops, and the mode returns to step 4) above.

2 times Green EEPROM information print When the Power button is pressed during printing, printing

stops, and the mode returns to step 4) above.

3 times Orange EEPROM initialization

4 times Green Waste ink counter resetting

5 times Orange Destination settings Proceed to the following steps 5) and then 6) to set the

destination.

6 times Green Print head deep cleaning Cleans black and color, simultaneously.

7 times Orange Not used in servicing

8 times

or more Green Return to the menu selection Return to step 4) above.

5) After the function (menu) is selected, press the Power button. The LED lights in green, and the selected

function is performed. (When the operation completes, the printer returns to step 4) above.)

6) Press the Resume/Cancel button the specified number of time(s) according to the destination listed in

the table below, and then the Power button.

Time(s) LED Destination

1 time Orange Overseas: i450

2 times Green Japan: PIXUS 450i

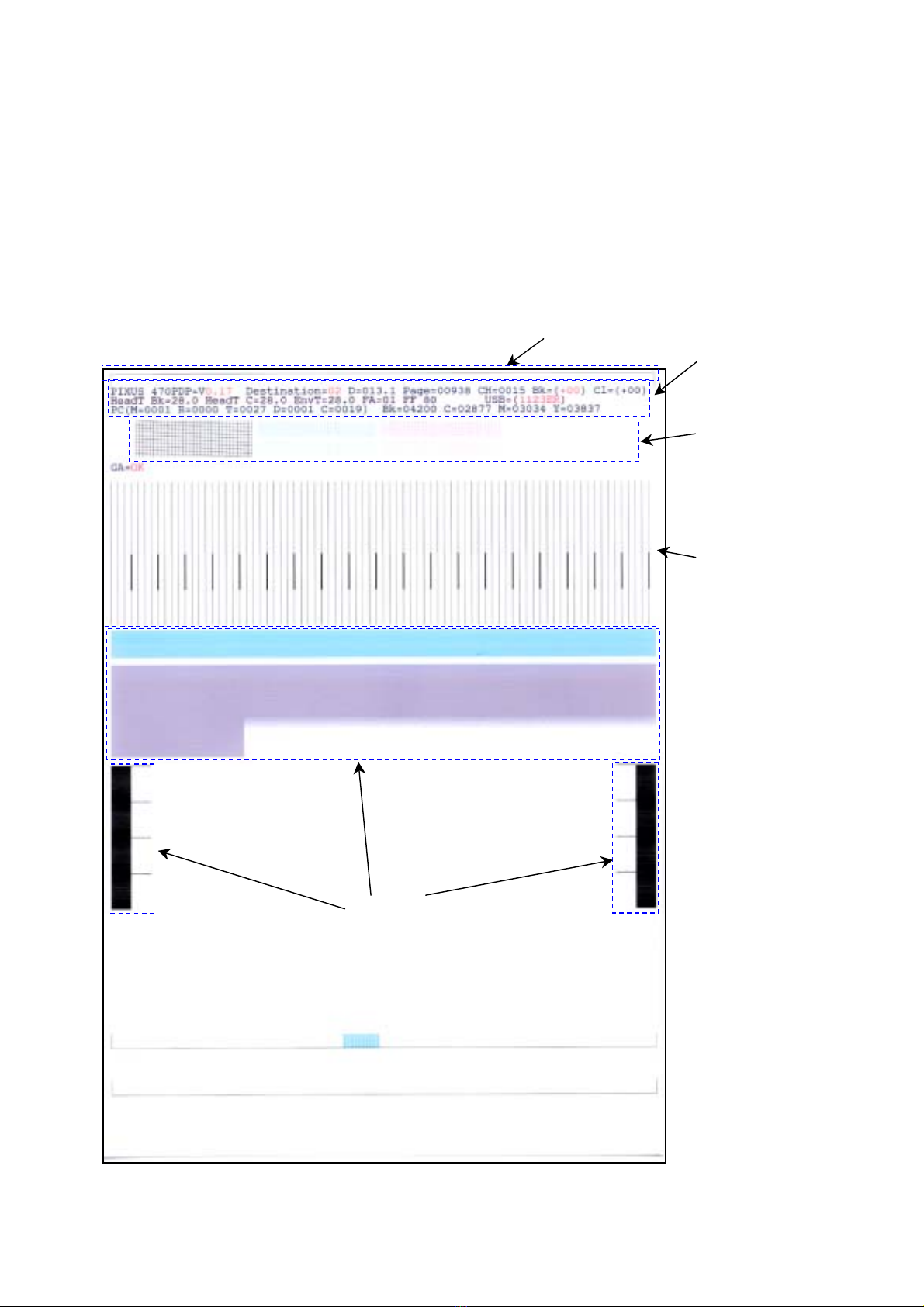

4.3. Service test print

After repair, print the service test print, and confirm the following items:

- Check 1, top of form accuracy: The line shall be within the paper.

- Check 2, EEPROM information: Destination and waste ink counter shall be checked.

- Check 3, nozzle check pattern: Ink shall be ejected from all nozzles.

- Check 4, vertical straight lines: The lines shall not be broken.

- Check 5, halftone: There shall be no remarkable streaks or unevenness.

Check3:

Nozzle check pattern

Check 2:

EEPROM information

(Refer to page 1-13.)

Check 5:

Halftone

Check 1:

Top of form accuracy

Check 4:

ertical straight lines

4.4. EEPROM information contents

On the EEPROM information print, the printer usage conditions can be confirmed. Refer to the sample

print given below.

PIXUS 470PDP=V1.00 Destination=02 D=004.8 Page=00562 CH=0002 Bk(00) Cl(00)

HeadT Bk=25.5 HeadT C=25.0 EnvT=30.0 FA=01 87 80 USB(1000AQ)

PC(M=0000 R=0000 T=0000 D=0000 C=0000) Bk=00000 C=00000 M=00000 Y=00000

ER(TIME=2002/10/21-21:48 ER0=5100 ER1=5C00 ER2=1000 ER3=1401)

TotalINK(Bk=00057098 C=00008108 M=00006992 Y=00007666)

CLTime=2002/10/15-15:36 PC(M=0028 R=0015 T=0000 D=0020 C=0009)

IC(Bk=1 C=1 M=1 Y=1) WP=0025 SetUsrReg=NONE

UR1(A:Bkeo=000 B:Ce0=000 C:Meo=000(Yeo=000) D:Lceo=000 E:Lmeo=000(Lyeo=000)

UR2(F:BkBi=000 G:ClBi=000 H:BkCl=000 I:LCBi=000 J:C_LC=000 K:M_LM=000)

ST=2002/9/15-20:15 PW(ON=0009 OFF=00005) BORDERLESS=00000

PAGE(ALL=00562 PP=00025 PC=0000 PR=00050 MP=0000 SP=0258)

CAMERA(BORDERLESS=0030 NORMAL=0028)

HDEEPROM

V0000

SN=0318-A43D

LN(04 05 01 06 00 00 03)

DI(Bk=+001 CL=+001)

IL=(Bk=-08 C=-08 M=-08 Y=-08)

WLA=-08 WLB=-08

NGBk=000 NGC=000 NGM=000 NGY=000

*1: The information surrounded by a blue border is printed in the service test print, also.

1Model name, ROM version, destination, waste ink amount, number of pages printed, number of times

the head was installed, bi-directional registration (black, color)

2Head temperature (black, color), internal temperature, process inspection information, USB serial

number

3Number of times cleaning was performed (manual, deep cleaning, timer, dot count, head/ink tank

replacement), dot count of each color

4 Operator/ service call history (occurrence time*2, ER0, 1, 2, 3)

5Total ink consumption (Bk=00000000mg, C=00000000mg, M=00000000mg, Y=00000000mg)

6Cleaning time, number of times cleaning was performed (manual, deep cleaning, timer, dot count,

head/ink tank replacement), dot count of each color

7Ink sponge recognition flag, number of times wiping was performed

8User’s print head alignment values

9User’s print head alignment values

0Installation date, number of times printer was turned on/off, number of borderless printing pages

1Number of pages fed (all, plain paper, postcard, Photo Paper Pro, Matte Photo Paper, Photo Paper Plus

Glossy)

2Number of pages in Digital Camera Direct Printing (borderless, bordered)

HEAD EEPROM

3Version

4Serial number

5Lot number

6DI sensor adjustment value

7Ink ejection level

8Overlay level

9Number of unusable nozzles (Bk, C, M, Y)

*2: The time the user last performed printing before the error occurred.

5. EXTERNALVIEW / PARTS LIST

5 6

Key Part Number Rank Q'ty Description Remark

1 0023U60701 N 1 WHOLE UNIT, W/O POWER SUPPLY UNIT PIXUS 450i

2 QM2-0485-000 N 1 OUTPUT TRAY UNIT

QH3-3618-000 1 AC Adapter:100-120V 50/60Hz3 QH3-3619-000 1 AC Adapter:220-240V 50/60Hz

WT3-5119-000 1 CORD, POWER 220V-240V

WT3-5120-000 1 CORD, POWER 220V-240V (AU)

WT3-5121-000 1 CORD, POWER 220V-240V (GB/HK)

WT3-5123-000 1 CORD, POWER 100V-120V

WT3-5124-000 1 CORD, POWER 220V-240V (CN)

WT3-5158-000 1 CORD, POWER 220V-240V (LAM LV)

WT3-5159-000 1 CORD, POWER 220V-240V (KR)

5 XB1-2300-607 1 SCREW,MACHINE,BIDING HEAD,M3x6

6 XB4-7300-807 1 SCREW,TAP TIGHT,BIDING HEAD,M3x8

7 QY6-0047-000 K 1 PRINT HEAD

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante

Canon

Canon FedEx Office imagePRESS C750 Guide rapide

Canon

Canon iP4200 - PIXMA Photo Printer Manuel utilisateur

Canon

Canon BJC-2100 Series Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE DX C357iF Guide d'installation

Canon

Canon i455 Series Manuel utilisateur

Canon

Canon PIXMA G3910 Manuel utilisateur

Canon

Canon S 820 Manuel utilisateur

Canon

Canon PIXMA MP198 Manuel utilisateur

Canon

Canon imagePROGRAF GP-540 Manuel utilisateur

Canon

Canon image Prograf iPF680 Series Manuel utilisateur

Canon

Canon GX5050 Guide de configuration

Canon

Canon Color imageCLASS LBP712Cdn Manuel utilisateur

Canon

Canon iPF650 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon GX6040 Guide de configuration

Canon

Canon Pixma IP4950 Manuel utilisateur

Canon

Canon imageRUNNER 3245 Series Manuel utilisateur

Canon

Canon iPF650 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon iPF760 series Manuel utilisateur

Canon

Canon imageCLASS LBP7680Cx Manuel utilisateur

Canon

Canon Pixma MG6821 Guide de configuration

Canon

Canon MG6600 Series Guide de configuration

Canon

Canon 3432B007 Manuel utilisateur

Canon

Canon imagePROGRAF iPF8400 Manuel utilisateur

Canon

Canon LASER CLASS 650i Instructions d'installation

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
