Canon CP-10 Manuel utilisateur

Card Photo Printer

CP-10 Printer Driver

User Guide

Windows

SAFETY PRECAUTIONS ...........................................................................3

Read This First ..........................................................................................4

About the Manuals............................................................................ 4

About the Connection Cable............................................................. 6

Installing/Uninstalling the Software on the Solution Disk ....................7

Installing the Software....................................................................... 7

Uninstalling the Software.................................................................. 9

Connecting the CP-10 to Your Computer .............................................10

Installing/Uninstalling the Printer Driver ..............................................12

For Windows 98.............................................................................. 13

Installing..................................................................................... 13

For Windows Me............................................................................. 17

Installing..................................................................................... 17

Troubleshooting the Printer Driver Installation................................ 21

For Windows 2000.......................................................................... 24

Installing..................................................................................... 24

Uninstalling ..................................................................................... 28

Printing .....................................................................................................31

Starting ZoomBrowser EX .............................................................. 32

Selecting an Image for Printing....................................................... 32

Selecting a Print Mode.................................................................... 33

Setting the Printer Driver for Printing.............................................. 34

Printing Duplicate Images on an 8-Label Sheet.............................. 37

Printing Different Images on an 8-Label Sheet............................... 39

Printing Part of an Image (Trimming).............................................. 40

Other Printing Functions................................................................. 42

Appendices ..............................................................................................44

About the Print Area and the Number of Pixels.............................. 44

Print Area................................................................................... 44

Number of Pixels ....................................................................... 45

Troubleshooting.............................................................................. 46

Error Messages............................................................................... 48

Contents

Computer Connection Kit

CCK-CP100

SAFETY PRECAUTIONS

The precautions noted within this guide are intended to instruct you in the safe and

correct use of the products and to prevent injuries or damage to yourself, other

persons and property. Please read and ensure that you understand them before

proceeding to other sections of the guide.

Trademark Acknowledgments

• Canon and PowerShot are trademarks of Canon Inc.

• Adobe is trademark of Adobe Systems Incorporated.

• CompactFlash is a trademark of SanDisk Corporation.

• iBook and iMac are trademarks of Apple Computer, Inc.

• Macintosh, PowerBook, Power Macintosh and QuickTime are trademarks of Apple Computer Inc.,

registered in the United States and other countries.

• Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

• Other names and products not mentioned above may be registered trademarks or trademarks of their

respective companies.

This symbol indicates topics that could lead to death or serious injury if ignored

or handled incorrectly.

Do not play the supplied CD-ROM(s) in any CD player that does not support data CD-ROMs. Playing the

CD-ROM(s) in an audio CD player (music player) could damage the speakers. It is also possible to suffer

from hearing loss from listening with headphones to the loud sounds of a CD-ROM played on a music CD

player.

Disclaimer

• While every effort has been made to ensure that the information contained in this guide is accurate and

complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change

the specifications of the hardware and software described herein at any time without prior notice.

• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language in any form, by any means, without the prior written permission of Canon.

• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken

operation or malfunction of the camera, the software, the CompactFlash™ cards (CF cards), personal

computers, peripheral devices, or use of non-Canon CF cards.

Symbols Used inThis Document

Indicates important items or prohibited actions that should always be observed when

operating the machine. These should always be read to avoid damage to the

machine or improper operation.

Indicates items for reference or supplementary information that should be noted by

users.

Warning

Read This First

About the Manuals

This user guide describes how to connect the CP-10 to your computer and

install the printer driver. It provides information on functions of the CP-10

printer and how to operate it.

For information on how to prepare the CP-10, notes on handling it, and

details about using other software, use the following manuals.

■

Meaning of Illustrations

Indicates a printed manual.

Indicates a manual in the form of a PDF ﬁle stored on the Canon Digital

Camera Solution Disk.

Detailed explanations of operating procedures are given in the [Help]

accompanying each software application.

About the CP-10 unit

• Notes on safety

• Notes on handling

• Notes on ink cassette and ink sheet

• Notes on paper cassette and paper

• Names of parts

Refer to the

CP-10 User Guide

(included with the CP-10 Printer Kit)

Preparing the CP-10

• Inserting the paper cassette

• Inserting the ink cassette Refer to the

CP-10 User Guide

(included with the CP-10 Printer Kit)

Installing/Uninstalling the necessary software

• Installing/Uninstalling the printer

driver See

Installing/Uninstalling the Printer

Driver

in this user guide.

• Installing/Uninstalling

ZoomBrowser EX and PhotoRecord

See

Installing/Uninstalling the

Software on the Solution Disk

in this

user guide.

Printing

• Connecting the CP-10 to your

computer See

Connecting the CP-10 toYour

Computer

in this user guide.

• Loading images into

ZoomBrowser EX Refer to the

ZoomBrowser EX

Software Guide

• Printing procedure See

Printing

in this user guide.

• Learning details about using

ZoomBrowser EX and PhotoRecord Refer to the

ZoomBrowser EX

Software Guide

If a Problem Occurs

• Problems related to the CP-10

• Error messages related to the CP-10

that appear on the display of a

camera Refer to the

CP-10 User Guide

(included with the CP-10 Printer Kit)

• Problems related to printing See

Troubleshooting

and

Error

Messages

in this user guide.

• Problems related to ZoomBrowser

EX and PhotoRecord Refer to the

ZoomBrowser EX

Software Guide

About the Connection Cable

To connect the CP-10 to your computer, you must use a USB cable. A USB

cable is provided with the Computer Connection Kit CCK-CP100, but you

can also purchase a USB cable separately as indicated below.

Product name: Interface Cable PIF-100

Installing/Uninstalling the

Software on the Solution Disk

The Canon Digital Camera Solution Disk contains software necessary for

printing to the CP-10 from your computer.This section describes how to

install and uninstall the software.

Installing the Software

Close any programs that are running.

Place the Canon Digital Camera Solution Disk in the CD-ROM

drive.

The installer panel will automatically display.

• If the installer panel does not automatically display, use the following

procedure to start it.

1. Double-click the [My Computer] icon on the desktop, and double-click the

CD-ROM icon in the next window.

2. Double-click the [Setup.exe] icon.

With Windows 2000, be sure to log on with Administrator privileges when

installing the software.

Installer panel

Click [Software Installation].

Read the product license agreement. If you agree to all of its

conditions, click the [Yes] button.

You must agree to the product license agreement before you can install the

software.

Verify the installation destination, and then click the [Next] button.

Select the software to install, and then click the [Next] button.

To install ZoomBrowser EX and PhotoRecord, select the “ZoomBrowser EX/

PhotoRecord”.

Verify the contents of the installation, and then click the [Next]

button.

Installation starts.

Follow the messages on the screen to proceed.

When the installation is completed and the installer panel appears

again, click the [Finish] button.

You can click the [Using the Software] and then click [ZoomBrowser EX]

to open the guide (PDF), which gives details about using ZoomBrowser

EX and PhotoRecord.

Uninstalling the Software

This section describes how to uninstall applications, using ZoomBrowser EX

as an example.

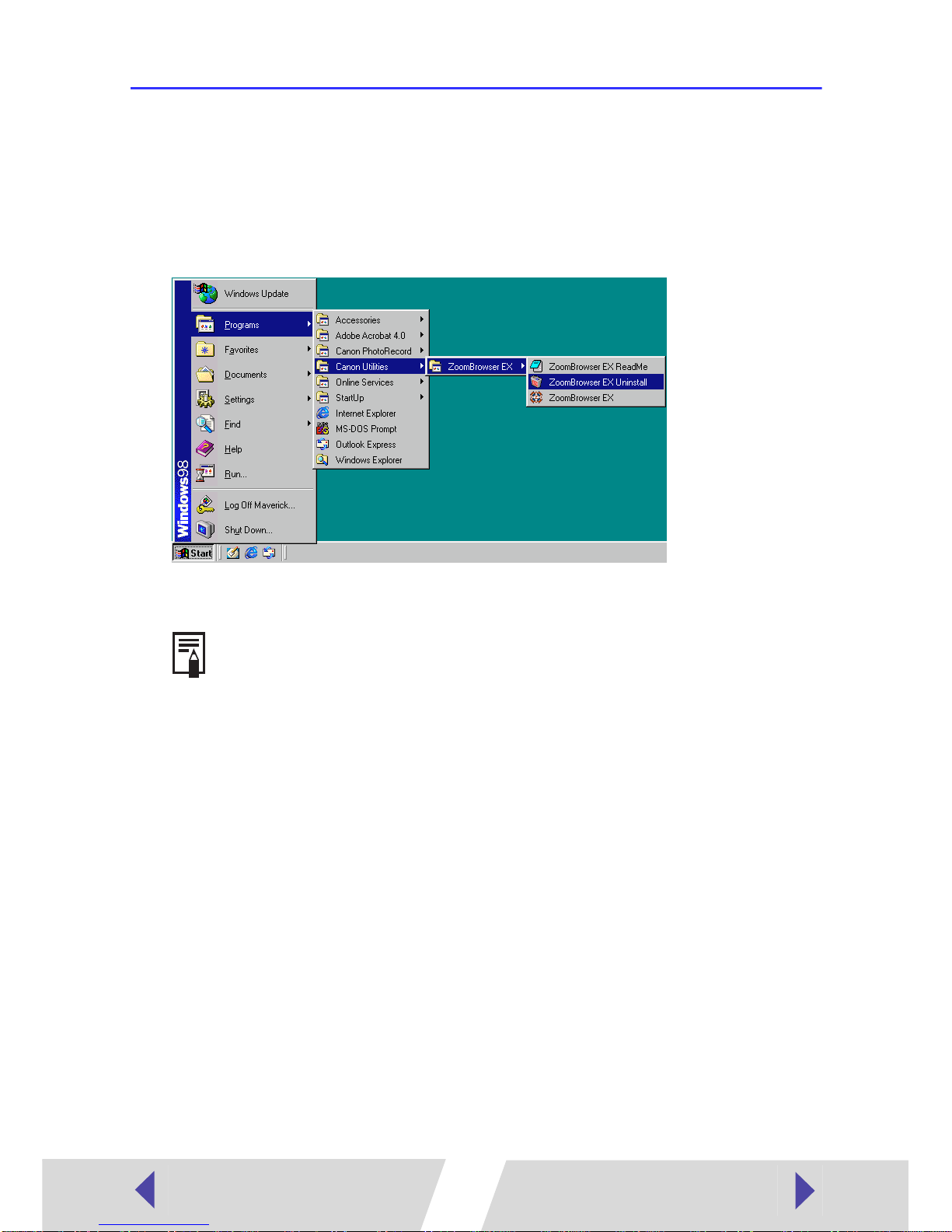

Click the [Start] button and select [Programs], [Canon Utilities],

[ZoomBrowser EX], and [ZoomBrowser EX Uninstall].

Uninstallation begins and ZoomBrowser EX is removed.

• If you uninstall ZoomBrowser EX for any reason, such as because of a

problem with the database, please delete the [Database] folder from

the [C:\Program Files\ZoomBrowser EX] folder on the hard disk.

• You can use the same procedure to uninstall PhotoStitch or

RemoteCapture.

Connecting the CP-10 to Your

Computer

■

Notes about connection

• Using the USB cable, be sure to connect the CP-10 directly to your computer. If

you connect it via a USB hub, the printer may not function properly.

• Do not use the CP-10 together with other USB devices (except a USB mouse or

keyboard); otherwise the printer may not function properly. If this happens,

disconnect the other USB devices from your computer and then reconnect the

printer.

• Do not connect two or more CP-10 printers to the same computer; otherwise the

printers may not function properly.

Do not put your computer into the standby mode while the CP-10 is

connected to a USB port.

If you accidentally do so, do not disconnect the USB cable from your

computer while it is in the standby mode; instead, leaving the USB cable

connected, first return your computer to its normal mode. If you remove the

USB cable while your computer is in the standby mode, your computer may

not be able to return to its normal mode. For details on your computer’s

standby mode, refer to the documentation provided with your computer.

Autres manuels pour CP-10

Table des matières

Autres manuels Canon Imprimante

Canon

Canon MAXIFY GX3070 Mode d’emploi

Canon

Canon imagePROGRAFi iPF840 series Guide de l'utilisateur

Canon

Canon Color imageCLASS MF8050Cn Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon Pixma MX338 Manuel utilisateur

Canon

Canon iP6600D - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon FAX-L900 Mode d’emploi

Canon

Canon CX-G2400 Manuel utilisateur

Canon

Canon Color Bubble Jet BJC-2000 Series Manuel utilisateur

Canon

Canon iP6210D - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon MAXIFY MB2320 Mode d’emploi

Canon

Canon iPF500 - imagePROGRAF Color Inkjet Printer Manuel

Canon

Canon PIXMA MX7600 Manuel utilisateur

Canon

Canon image Prograf iPF 685 Series Manuel utilisateur

Canon

Canon SELPHY CDI-E370-010 Manuel utilisateur

Canon

Canon Oce PlotWave 300 Mode d’emploi

Canon

Canon PIXMA MG8120 Manuel utilisateur

Canon

Canon TS6400 Series Guide de configuration

Canon

Canon imageCLASS MF5600 Series Manuel utilisateur

Canon

Canon iP100 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon imageRUNNER 1750i Manuel utilisateur

Canon

Canon PIXMA MG4120 Manuel utilisateur

Canon

Canon 3295B002 Manuel utilisateur

Canon

Canon i70 Series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
