Chapter 1: Basic Printing

Congratulations on purchasing your new Canon

S820 Color Bubble Jet

Photo Printer!

This chapter describes basic features of your S820 photo printer and provides

instructions on how to set up and print documents and photographs.

The following topics are presented in this chapter:

•

What Is a Printer Driver?

•

Selecting the S820 Photo Printer for Use

•

Printing Photographs

•

Using Specialty Media

•

Cancelling a Print Job

•

Setting Driver Options

•

Changing the Page Setup

What Is a Printer Driver?

Most computers require special software to link the programs you use to create

documents or images with the printer. This special software, called a

printer

driver

, converts the information from the software application into a format that

the printer can understand, and provides other handy features, such as

monitoring the levels of ink in the printer.

•

This Quick Start Guide describes some of the features of your

S820 photo printer and how to use them. For more detailed

information, view and/or print the

S820 User’s Guide

on the

Setup Software & User’s Guide CD-ROM.

•

Driver features and screen captures described in this guide may

be and/or look different for Windows NT

4.0, Windows 2000

and Windows XP.

S820QSG.book Page 1 Thursday, October 18, 2001 1:41 PM

Basic Printing

Selecting the S820 Photo Printer for Use

If the S820 is the only printer connected to your computer, it will automatically be

used every time you print. However, if your computer has access to multiple

printers, you can set the S820 as the default (main) printer. In Windows

, you can

also select a printer for one-time use within an application.

To set the S820 as the default printer in Windows

Click

Start

, then

Settings

, then

Printers

Right-click the

Canon S820

printer icon, then click

Set as Default

. The Canon

S820 printer icon will now display with a check mark that indicates it is the

default printer.

To select the S820 from within a Windows application:

For Windows users, if another printer is set as the default printer, you can still

select the Canon S820 for a speciﬁc print job from within most applications.

From the

File

menu, click

Select

Canon S820

from the Name drop-down list, then click

To select the S820 in Mac

OS:

Click

Apple

, then

Chooser

Click the

S820

printer icon. The S820 will remain the default printer until

another is selected.

Windows XP users:

Click

Start

, select

Control Panel

, then

Printers

and Other Hardware

, then

Printers and Faxes

Menus vary from application to application. Consult your

application user documentation if the Printer Setup menu option

is not listed.

S820QSG.book Page 2 Thursday, October 18, 2001 1:41 PM

Basic Printing

Printing Photographs

Canon Photo Paper Pro is recommended for highest quality results. See “Using

Specialty Media” on page 4 for more information.

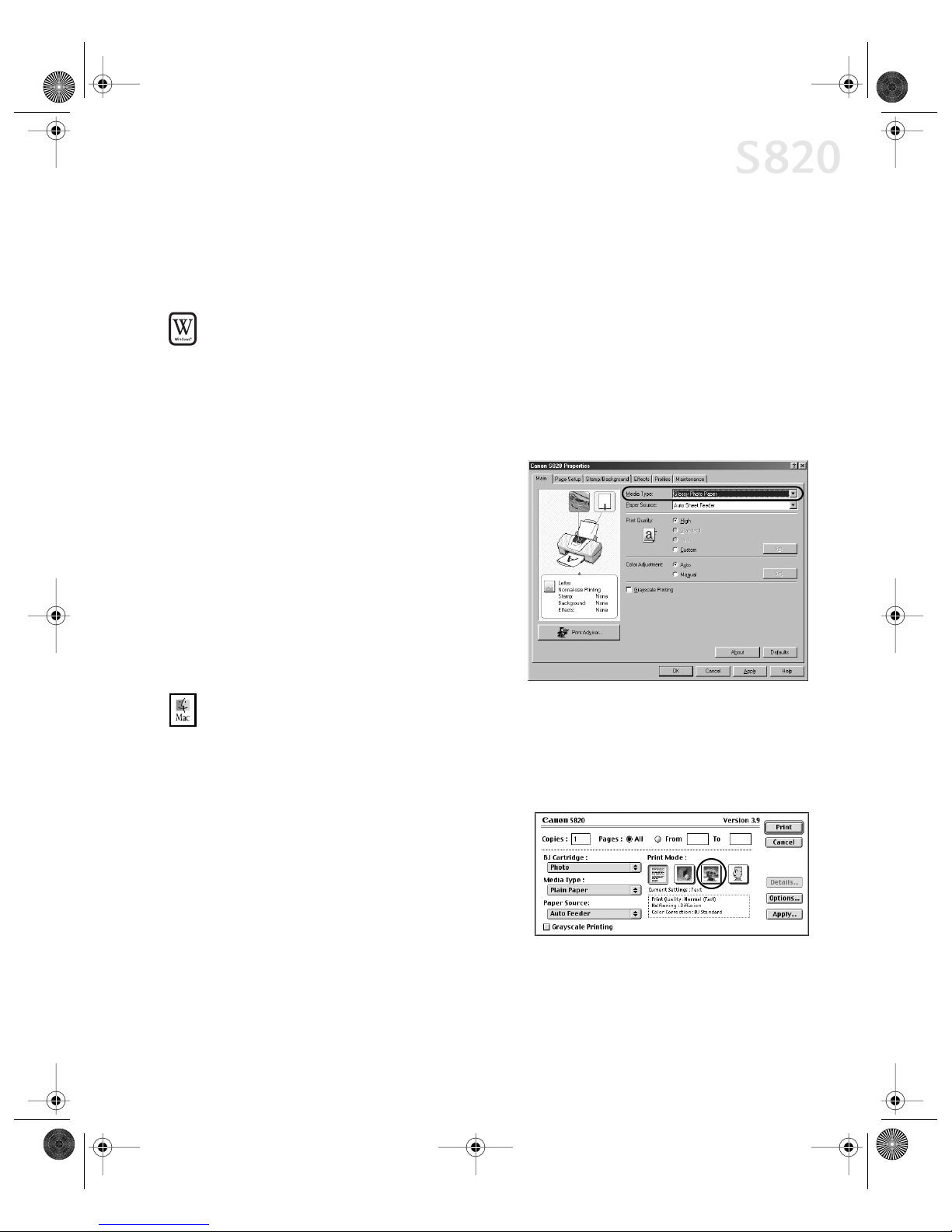

To print photographs from a Windows application:

Load the printer with specialty media. See “Using Specialty Media” on page 4

to learn how to load various media types.

Open the digital photograph to be printed in a software application.

From the software application

File

menu, select

, then

Properties

The Canon S820 Properties dialog

box will appear.

On the

Main

tab, select the

appropriate media type, and the

print quality will automatically

change to the appropriate quality.

Click

to close the dialog box.

Click

again to print your digital

photograph.

To print photographs from a Mac OS application:

Load the printer with specialty media. See “Using Specialty Media” on page 4

to learn how to load various media types.

Open your digital photograph to be printed in a software application.

From the software application

File

menu, select

. The Canon S820

print dialog will appear.

Select


as the print mode, then

select the appropriate media type.

Click

print your digital

photograph.

S820QSG.book Page 3 Thursday, October 18, 2001 1:41 PM

Basic Printing

Caring for Your Photographs

The Canon S820 photo printer will generate spectacular results for printing

photographs, especially when used with Canon specialty media. All images are

susceptible to fading over time, but proper care of prints made from your S820

photo printer will ensure that print quality lasts long into the future.

Many environmental factors can impact how long a printout will last before

noticeable image fading occurs. Exposure to sunlight or other light sources,

humidity, temperature, exposure to cigarette smoke and ozone are just some of

the factors that can impact image permanence. While many of these variables

cannot be controlled, there are basic measures that you can take to prolong

image quality:

•

Use Canon Photo Paper Pro and genuine Canon inks. Canon Photo Paper Pro

is available in both letter size (8

x 11

) and photo size (4

x 6

). Canon

Photo Paper Pro for Borderless Printing is available in photo size (4

x 6

Both papers are speciﬁcally designed to work with genuine Canon inks.

•

Mount images under glass to reduce exposure to ozone, cigarette smoke and

other environmental factors that can degrade images.

•

Keep printed images out of direct sunlight or other intense light sources.

Using Specialty Media

For optimal results, Canon recommends that you use genuine Canon media with

your S820 photo printer. Be sure to follow all instructions on storing, handling

and printing on the media.

For General Printing

For everyday paper printing, use Canon Brilliant White Paper, Canon High

Resolution Paper, or plain paper (17 to 28 lb.).

Use standard #10 envelopes with your S820 photo printer.

For Quality Image Printing

Canon Photo Paper Pro:

Thick paper coated with a glossy surface. Ideal for

reproducing the natural color of photographic images, this is the best choice for

printing photographs with the S820.

S820QSG.book Page 4 Thursday, October 18, 2001 1:41 PM

Basic Printing

Canon High Gloss Photo Film:

A ﬁlm sheet with a higher gloss than Canon Glossy

Photo Paper. Use this media to obtain high quality reproduction of photo color or to

reproduce photographic images of highly reﬂective surfaces, like metal or glass.

Canon Glossy Photo Paper:

Covered with a glossy coating on the print side of the

sheet to provide near-photographic quality with the gloss feel of a photographic

print. This media is slightly heavier than Canon High Resolution Paper.

Canon High Resolution Paper:

Coated paper that produces more vivid color than

plain paper. Ideal for printing business documents that include large numbers of

color illustrations and graphs.

Canon Photo Paper Pro (4" x 6"):

A 4

" x

size of the same stock as Canon Photo

Paper Pro. Print over the perforated borders then remove the borders to trim away

white margins.

Canon Photo Paper Pro for Borderless Printing (4" x 6"):

A 4

" x

size of the

same stock as Canon Photo Paper Pro, this paper is intended for printing images

that cover the entire surface of the card without a white border.

Canon Glossy Photo Cards (4" x 6"): A 4" x 6"size of the same paper stock as

Canon Glossy Photo Paper. Print over the perforated borders, then remove the

borders to trim away unwanted white margins. Use this media when you want to

print an image over the entire card.

For Creative Media

Canon T-Shirt Transfers: Easy-to-use T-Shirt Transfers can be ironed on to cotton or

cotton/poly blend fabric. You can personalize T-Shirts or even create team uniforms.

Canon Magnet Sheets: Canon Magnet Sheets turn your personalized messages

and images into unique magnets in seconds. Create a fun, useful magnet using

images, photos and text.

Canon Transparencies: Use to prepare presentations for an overhead projector.

Never attempt to use photocopier or laser printer OHP ﬁlm with the S820.

Canon Banner Paper: Allows you to print on up to six connected sheets of letter-

size paper to create party or advertising banners.

For instructions on loading these creative media, see “Loading

Media into the S820” on page 7 or see the S820 User’s Guide on

the Setup Software & User’s Guide CD-ROM.

S820QSG.book Page 5 Thursday, October 18, 2001 1:41 PM

Basic Printing

Media to Avoid

Never load the following types of media into your S820 photo printer. These

media could produce poor quality and jam or damage the printer:

•Folded paper

•Excessively curled or wrinkled paper

•Damp paper

•Excessively thin paper

•Excessively thick paper

•Paper with adhered photos, stickers, etc.

•Envelopes with an embossed or treated surface

•3-hole punched paper

•Paper with any type of attached fasteners, ribbons, etc.

Printing on Thick Paper

Paper Thickness

Keep these points in mind when selecting media for your S820 photo printer.

Feed Method Thickness Range Comment

Automatic 17 – 65 lb. Load plain paper or other media that is within this thickness range.

S820QSG.book Page 6 Thursday, October 18, 2001 1:41 PM

Autres manuels pour BJC-S820

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante

Canon

Canon i70 Series Manuel utilisateur

Canon

Canon iPF8000 series Manuel utilisateur

Canon

Canon iP90v - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon S520 Manuel utilisateur

Canon

Canon imagePROGRAF MFP Manuel utilisateur

Canon

Canon image Prograf iPF680 Series Guide de l'utilisateur

Canon

Canon PIXMA MP499 Instructions d'installation et d'entretien

Canon

Canon Pixma Pro9500 Series Manuel

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon TS3500 Series Guide de configuration

Canon

Canon SELPHY ES3 Manuel utilisateur

Canon

Canon MAXIFY MB5020 Manuel utilisateur

Canon

Canon imagePROGRAF iPF8300S Manuel utilisateur

Canon

Canon BJ-W3000 Manuel utilisateur

Canon

Canon LBP654C Series Manuel utilisateur

Canon

Canon PIXMA TR4500 Series Manuel utilisateur

Canon

Canon image Prograf iPF680 Series Manuel utilisateur

Canon

Canon imageFORMULA RS40 Manuel utilisateur

Canon

Canon FAX-L170 Guide de sécurité

Canon

Canon Color image RUNNER LBP5360 Manuel utilisateur

Canon

Canon CLBP360PS Ver-up Manuel utilisateur

Canon

Canon BJC-610 Manuel utilisateur

Canon

Canon PIXMA TS9140 Manuel utilisateur

Canon

Canon Pixma MG2450 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
