CAME BPT XTS 5IP WH Manuel
Video intercoms for the IP360 system
XTS 5IP WH - XTS 5IP BK
INSTALLATION AND SETTINGS MANUAL
EN
English
FB01187-EN
4
2
1
3
p. 2- Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions
General Precautions
• Read the instructions carefully before beginning the installation and carry out the actions as specified by the
manufacturer.
• The installation, programming, commissioning and maintenance of the product must only be carried out by
qualified technicians, properly trained in compliance with the regulations in force, including health and safety
measures and the disposal of packaging.
• Before carrying out any cleaning or maintenance operation, disconnect the device from the power supply.
• The equipment must be destined solely for the use for which it was expressly designed.
• The manufacturer declines all liability for any damage as a result of improper, incorrect or unreasonable use.
DESCRIPTION
Full-touch video intercom for the IP360 system, with TFT five-inch touch-screen, featuring Graphic User Interface.
Description of parts
Front view
1Signaling LED
2Loudspeaker
3Touch-screen display
4Microphone.
Rear view
5Socket for connecting the device to the LAN or
LAN PoE network.
Green LED, network activity:
on steady = active link,
blinking = data activity.
Yellow LED, data transmission speed:
o 10Mbps,
on 100Mbps.
The device automatically recognises the local
or PoE power supply.
5
F
p. 3- Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions
F Reset button. When pressed it reboots the device; this operation DOES NOT require any deleting of program-
ming.
Function of terminals
Local power supply input
Landing call input
Alarm input
Technical data
Type XTS 5IP
local power supply (V DC) 14 to 18
PoE power supply IEEE 802.3af-PD
Maximum draw (mA) 330
Consumption in stand-by mode (mA) 270
Stocking temperature °C -25 to +70
Operating temperature °C 0 to +40
Protection rating (IP) 30
Video codec H.264
Capacitative TFT Touch-screen Display (pixels) 800 x 480
98 mm
138 mm
24 mm
1
83,5 mm
3
2
4
H= 155 -165 cm
H= 125 -135 cm
p. 4- Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions
INSTALLING
5
p. 5- Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions
To make the device's installation more solid, use
the supplied screws and dowels to fasten the frame
to the wall.
MTMV/IP VAS/101
VAS/101
Modem router Wi-Fi
MTMV/IP
Modem router Wi-Fi
Switch PoE
p. 6- Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions
Single-household system with onsite power supply units
Examples of installation
Single-household system with PoE power-supply
MTMV/IP MTMV/IP
APARTMENT 4
APARTMENT 3
APARTMENT 1
APARTMENT 4
APARTMENT 2
SWITCH PoE
SWITCH PoE
MODEM
ROUTER Wi-Fi ETI/MiniSER
VAS/100.30
Master
Slave
p. 7- Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

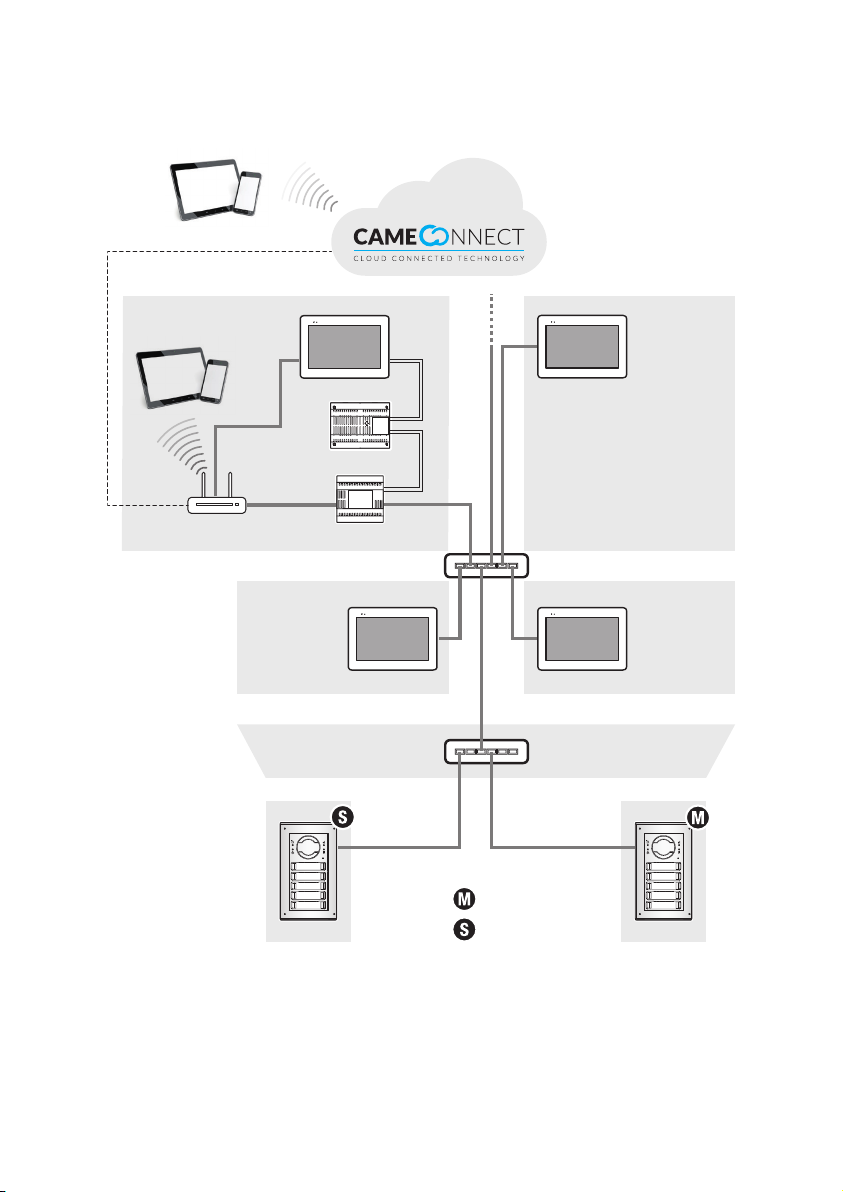

Multi-household system with indoor receivers in each apartment; one of these indoor receivers can
be managed over smartphones and Tablet PCs
p. 8- Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions
Maintenance
Advanced sengs
Conguring the user interface
Tones
Automac door opener
Display
SIP Sengs
Backdrops
Network
Auxiliary seng
Sengs
Info Back Home
21:20 Thursday
15 Mar 2018
Info Back Home
21:20 Thursday
15 Mar 2018
Info Back Home
21:20 Thursday
15 Mar 2018
COMMISSIONING
Once the wiring is complete, the functions essential for the device to work properly need to be programmed.
Scroll the available pages.
Select item A.
Scroll the list.
Select menu item B.
Advanced settings
This section requires speci-
fic know-how in operating the
video-intercom system. Wrong
settings may cause partial or
even total malfunctions; that is
why the editing of some parame-
ters is allowed only after entering
the installer password; the default
password is 112233).
B
A
1
p. 9- Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions
StacDHCP
MAC address
DNS
Gateway
Netmask
IP address
Mode
Type of connecon
Save
Info Back Home
21:20 Thursday
15 Mar 2018
Network
This section is for configuring the
network connection.
A Lets you choose the type of address from:
DHCP
The device's IP address is assigned by the DHCP server; if there are no special needs, this mode lets you
continue with the settings without adding any additional data.
Static
The device's IP address is manually assigned.
B IF you have chosen a static IP address, enter the device's IP, which must belong to the same subnet as that of
the router and of the other connected devices.
C If the netmask is dierent from the default one, provide the proper netmask.
D Provide the default gateway for your network.
E Type the DNS from where the device acquires the correct time.
To save the setting press button F.
A
B
C
D
E
F
p. 10 - Manual FB01187 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions
21:20 Thursday
15 Mar 2018 HomeBackInfo
Server type
Server address
Display name
Password
Mode
Flat ID
Username
D In this space enter the server's IP address.
Example of CAME server IP addresses:
ETI/MiniSER Xip, ETI/DOMO Xip - 192.168.0.3 (port 0) - 192.168.1.3 (port 1)
ETI/SER Xip, 192.168.1.1
Serverless IP entry panel, 192.168.1.5
E Select the type of server to which the device is connected.
Automatic mode
By choosing the automatic SIP setting and pressing the SAVE button, a guided procedure is launched which lets
you choose the server or master device, to which to connect your device. One you have entered the Flat ID call
code assigned to your indoor receiver through the PCS/Xip, during programming, the procedure is complete.
Save
NoneGeneric
AutomacManual
XIP server
Manual Mode
A In this space enter the “SIP Us-
ername” assigned to the device by
PCS Xip.
B In this space type any password
assigned in the receiver's creden-
tials in the server's setup window.
C Name assigned to the device.
SIP Settings
A
B
C
D
E
