CAME BPT MTM AUDIO ENTRY KIT Manuel utilisateur

Installation Instructions

Technical Documentation

MTM AUDIO & VIDEO ENTRY KITS

CONTENTS

03 MTM AUDIO > AGATA AUDIO

17 MTM VIDEO KEYPAD > OPALE VIDEO 2 WAY

18 MTM VIDEO > XTS 7 VIDEO

19 MTM VIDEO KEYPAD > XTS 7 VIDEO

20 MTM VIDEO > XTS 7 VIDEO 2 WAY

21 MTM VIDEO KEYPAD > XTS 7 VIDEO 2 WAY

23 PRE-COMMISSIONING CHECKS

24 PROGRAMMING RECEIVERS

30 MTM NA ‘QUICK’ START INSTRUCTIONS

22 QUICK START -

MANUAL PROGRAMMING GUIDE

04 MTM AUDIO KEYPAD > AGATA AUDIO

05 MTM AUDIO > AGATA AUDIO 2 WAY

06 MTM AUDIO KEYPAD > AGATA AUDIO 2 WAY

07 MTM VIDEO > AGATA VIDEO

08 MTM VIDEO > AGATA VIDEO 2 WAY

09 MTM VIDEO KEYPAD > AGATA VIDEO 2 WAY

10 MTM VIDEO > PERLA VIDEO

11 MTM VIDEO KEYPAD > PERLA VIDEO

12 MTM VIDEO > PERLA VIDEO 2 WAY

13 MTM VIDEO KEYPAD > PERLA VIDEO 2 WAY

14 MTM VIDEO > OPALE VIDEO

15 MTM VIDEO KEYPAD > OPALE VIDEO

16 MTM VIDEO > OPALE VIDEO 2 WAY

DRAWING SUITABLE

FOR SYSTEM 200 KITS

DRAWING SUITABLE

FOR X1 KITS

VRWSAG1

VRWFAG1

MTMSAG1

MTMFAG1

MTMSVRAG1

MTMFVRAG1

Technical Support: 01442 230 800 Email: [email protected] Drawing No. KIT-1M1A1LC(AUD)

MTM AUDIO > AGATA AUDIO

DRAWING SUITABLE FOR X1 KITS

DRAWING SUITABLE

FOR X1 KITS

VRWSKAG1

VRWFKAG1

MTMSKAG1

MTMFKAG1

MTMSVRKAG1

MTMFVRKAG1

Technical Support: 01442 230 800 Email: [email protected] Drawing No. KIT-1MA1LCK(AUD)

MTM AUDIO KEYPAD > AGATA AUDIO

DRAWING SUITABLE FOR SYSTEM 200 KITS

DRAWING SUITABLE

FOR X1 KITS

VRWSAG2

VRWFAG2

MTMSAG2

MTMFAG2

MTMSVRAG2

MTMFVRAG2

Technical Support: 01442 230 800 Email: [email protected] Drawing No. KIT-2MA2LC(AUD)

MTM AUDIO > AGATA AUDIO 2 WAY

DRAWING SUITABLE FOR SYSTEM 200 KITS

DRAWING SUITABLE

FOR X1 KITS

VRWSKAG2

VRWFKAG2

MTMSKAG2

MTMFKAG2

MTMSVRKAG2

MTMFVRKAG2

Technical Support: 01442 230 800 Email: [email protected] Drawing No. KIT-2M1A2LCK(AUD)

MTM AUDIO KEYPAD > AGATA AUDIO 2 WAY

DRAWING SUITABLE

FOR X1 KITS

DRAWING SUITABLE

FOR X1 KITS

VRWSAGCV1

VRWFAGCV1

MTMSAGCV1

MTMFAGCV1

MTMSVRAGCV1

MTMFVRAGCV1

Technical Support: 01442 230 800 Email: [email protected] Drawing No. KIT-1M1A1C

MTM VIDEO > AGATA VIDEO

DRAWING SUITABLE FOR X1 KITS

DRAWING SUITABLE

FOR X1 KITS

VRWSAGCV2

VRWFAGCV2

MTMSAGCV2

MTMFAGCV2

MTMSVRAGCV2

MTMFVRAGCV2

Technical Support: 01442 230 800 Email: [email protected] Drawing No. KIT-2M1A2C

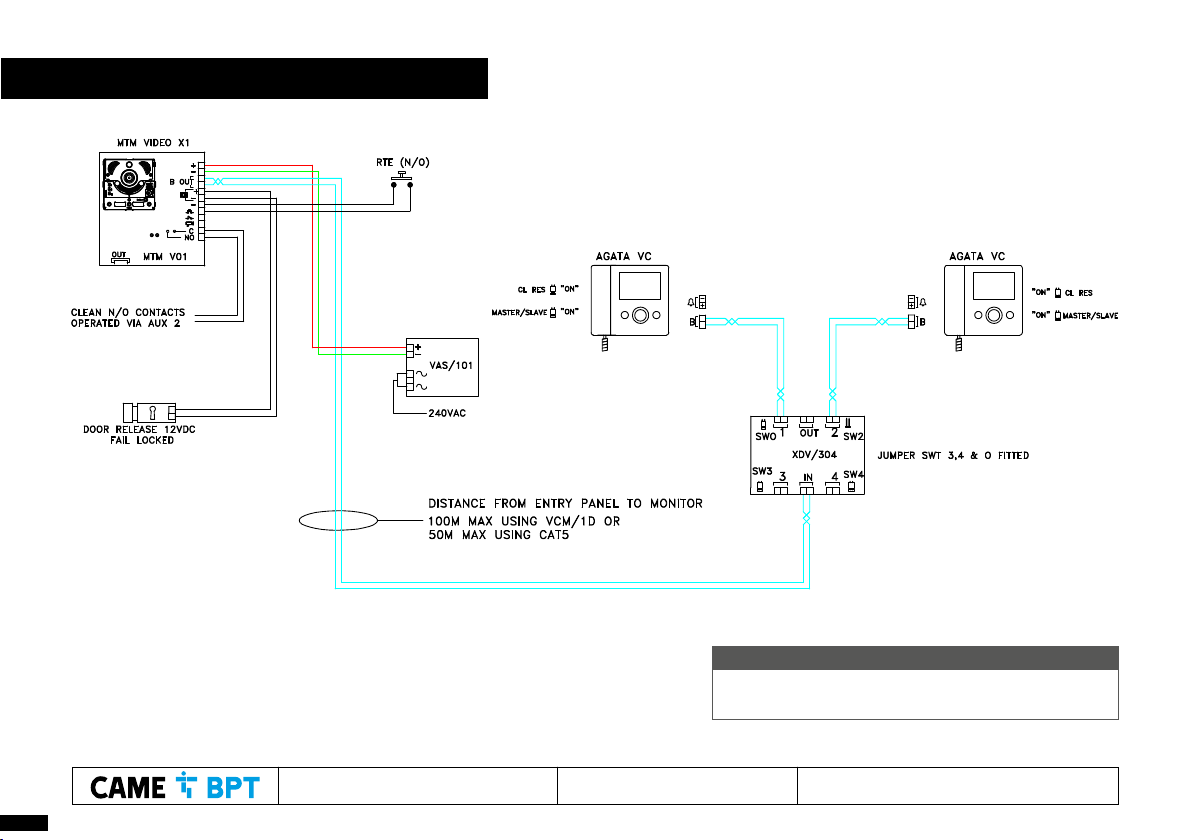

MTM VIDEO > AGATA VIDEO 2 WAY

DRAWING SUITABLE FOR X1 KITS

DRAWING SUITABLE

FOR X1 KITS

VRWSKAGCV2

VRWFKAGCV2

MTMSKAGCV2

MTMFKAGCV2

MTMSVRKAGCV2

MTMFVRKAGCV2

Technical Support: 01442 230 800 Email: [email protected] Drawing No. KIT-2M1A2CK

MTM VIDEO KEYPAD > AGATA VIDEO 2 WAY

DRAWING SUITABLE FOR X1 KITS

DRAWING SUITABLE

FOR X1 KITS

VRWSPWV1

VRWFPWV1

VRWSPBV1

VRWFPBV1

MTMSPWV1

MTMFPWV1

MTMSPBV1

MTMFPBV1

MTMSVRPWV1

MTMFVRPWV1

MTMSVRPBV1

MTMFVRPBV1

Technical Support: 01442 230 800 Email: [email protected] Drawing No. KIT-1M1S1C

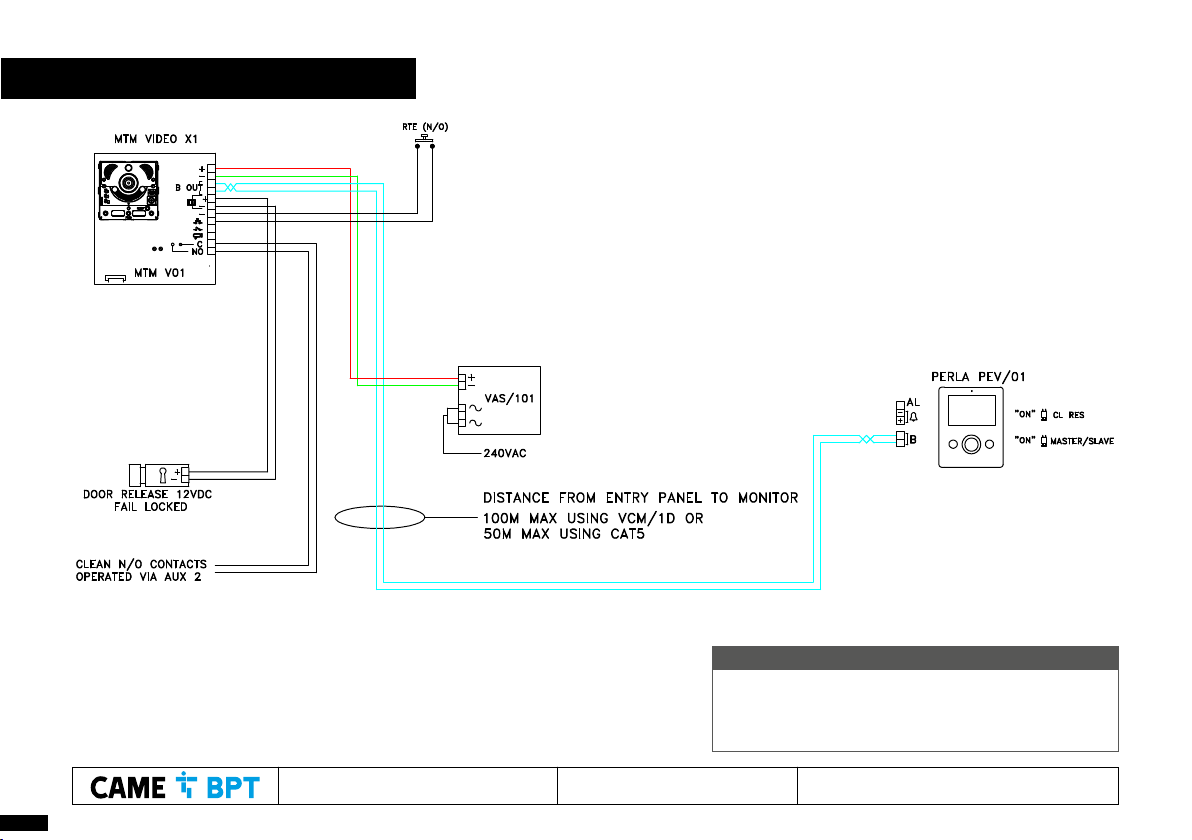

MTM VIDEO > PERLA VIDEO
