CUSTOMER CONVENIENCE/PERSONALIZATION GUIDE

3384 DeVille 9/3/03 6:47 PM Page 1

D E V I L L E

DRIVER INFORMATION

•Instrument Panel

(DeVille and DHS)

•Instrument Panel (DTS)

•Digital Cluster

•Analog Cluster (DHS/DTS)

AUDIO SYSTEMS

•Audio System Control

Designations and Functions

•Preset Stations

•Setting the Time

•Loading CD Changer

COMFORT/CONVENIENCE

•Tri-zone Climate Control System

•Driver Information Center

Controls

•Driver Memory Settings

•Heated Seats, Heated and

Cooled Seats

•Ultrasonic Rear Parking Assist

(URPA)

•Night Vision

PERSONALIZATION GUIDE

MAINTENANCE/OWNER

PRIVILEGES

TABLE OF CONTENTS

3384 DeVille 9/3/03 6:47 PM Page 2

Refer to your Owner Manual for further information.

20 19

18 17 16 1513 13

4 5 6 7 9 8

14 11

1 1 1

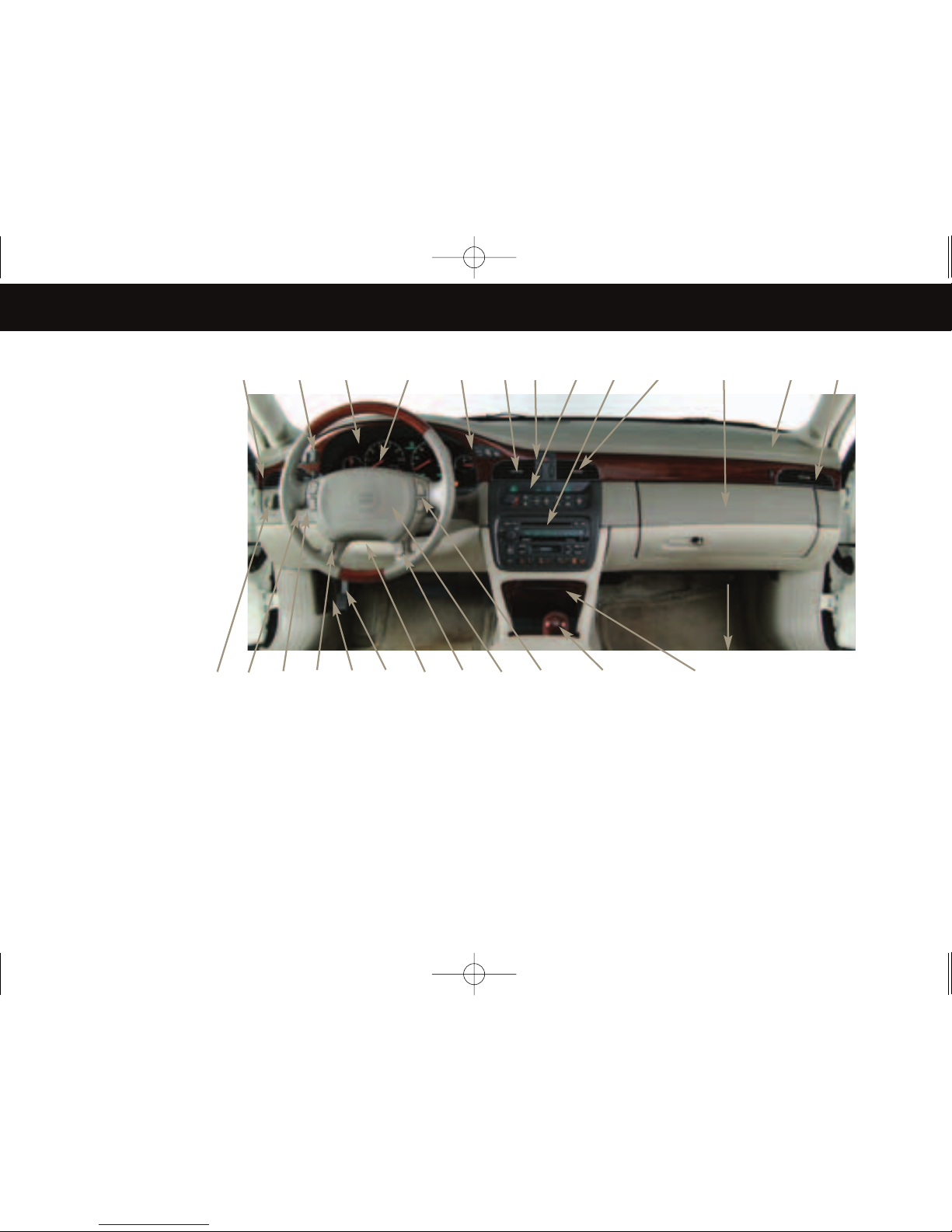

INSTRUMENT PANEL DeVille and DHS

1. Air Outlets

2. Driver Information Center

Controls

3. Digital Instrument Cluster

(available on DHS)

Analog Instrument Cluster (DHS)

4. Driver Information Center Display

5. Shift Lever

6. Hazard Warning Flasher

7. Electronic Climate Controls

8. Glove Box

9. Passenger-Side Air Bag

10. Audio System

11. Ashtray/Lighter

12. Steering Wheel Audio System

Controls

13. Cruise Control

14. Driver-Side Air Bag/Horn

15. Tilt Wheel Lever (DeVille)

Power Tilt/Telescope Wheel

Control (DHS)

16. Parking Brake Pedal

17. Hood Release

18. Steering Wheel Climate System

Controls or optional Phone

Controls

19. Turn Signal/Multifunction Lever

20. Lighting Controls

21. 12V Power Outlet

(On front of Passenger seat, near

umbrella tray)

Driver

Information

Audio Systems Comfort/

Convenience Personalization

Guide

Maintenance/

Owner Privileges

Driver

Information

3384 DeVille 9/3/03 6:47 PM Page 3

D E V I L L E

Driver

Information

1. Air Outlets

2. Driver Information Center Controls

3. Digital Instrument Cluster

4. Driver Information Center Display

5. Hazard Warning Flasher

6. Electronic Climate Controls

7. Audio System

8. Glove Box

9. Passenger-Side Air Bag

10. Ashtray/Lighter

11. Console Shift Lever

12. Steering Wheel Audio System

Controls

13. Driver-Side Air Bag/Horn

14. Cruise Control

15. Tilt Wheel Lever

(Power Tilt/Telescope Wheel Control

if equipped)

16. Parking Brake Pedal

17. Hood Release

18. Steering Wheel Climate System

Controls or optional Phone Controls

19. Turn Signal/Multifunctional Lever

20. Lighting Controls

21. 12V Power Outlet

(On front of Passenger seat, near

umbrella tray)

INSTRUMENT PANEL DTS

20 19 18 17 16 1514 13 10

14 11 21

13 4 5 6 7 9

82 1 1 1

3384 DeVille 9/3/03 6:47 PM Page 4

❏Reviewed with Customer (Please Check Box)

Refer to your Owner Manual for further information.

21 4 5 6 7 93 8

DIGITAL CLUSTER DeVille (available on DHS)

1. Odometer

2. Trip Odometer

3. Engine Coolant Temperature Gauge

4. PRND321 Indicator

5. Speedometer

6. High Beam Indicator Light

7. Turn Signal Indicator

8. Fuel Data Center

9. Traction Control System

Warning Light

10. Air Bag Ready Light

11. Brake System Warning Light

12. Seat Belt Reminder Light

13. Service Engine Soon Light

14. Antilock Brake System

Warning Light

15. Cruise Control Light

16. The Driver Information Center (DIC)

shows the status of many of your

vehicle’s systems; the DIC also

displays driver personalization

features and warning/status

messages

17. Charging System Light

18. Security Light

19. Oil Pressure Light

20. Engine Coolant Temperature

Warning Light

21. Exterior Lamps Indicator Light

20 19 18 17 16 15 14 13 101112

Driver

Information

Audio Systems Comfort/

Convenience Personalization

Guide

Maintenance/

Owner Privileges

3384 DeVille 9/3/03 6:47 PM Page 5

Driver

Information

D E V I L L E

ANALOG CLUSTER DHS/DTS

1. Engine Coolant Temperature

2. Tachometer

3. PRND321 Indicator

4. Digital Speed Display

5. Turn Signal Indicator

6. Speedometer

7. Fuel Gauge

8. Traction Control System Warning

Light

9. Air Bag Ready Light

10. Parking Brake Indicator Light

11. Safety Belt Reminder Light

12. Antilock Brake System

Warning Light

13. Service Engine Soon Light

14. Cruise Control Light

15. Odometer

16. The Driver Information Center (DIC)

shows the status of many of your

vehicle’s systems; the DIC also

displays driver personalization

features and warning/status

messages

17. High Beam Indicator Light Location

18. Trip Odometer

19. Charging System Light

20. Security Light

21. Oil Pressure Light

22. Engine Coolant Temperature

Warning Light

23. Fog Lamp Indicator Light

(if equipped)

24. Exterior Lamps Indicator Light

13456 7 8

17 16 15 14 13 9

1112

20 19 18

22 2124 23

3384 DeVille 9/3/03 6:47 PM Page 6

❏Reviewed with Customer (Please Check Box)

Refer to your Owner Manual for further information.

Driver

Information

Comfort/

Convenience Personalization

Guide

Maintenance/

Owner Privileges

Navigation/Radio System

AM/FM Stereo with Cassette and

Compact Disc Player

AM/FM Stereo with Cassette and

Compact Disc Player/RDS/DSP

(DHS & DTS if equipped)

AM/FM Stereo with Compact

Disc Player (Base System)

Audio Systems

Note: If your

vehicle is

equipped with the

Radio/Navigation

System, please

see your

NAVIGATION

SYSTEM

SUPPLEMENT for

operating

instructions.

Audio Systems

3384 DeVille 9/3/03 6:47 PM Page 7

D E V I L L E

Audio Systems

AUDIO SYSTEM CONTROL

DESIGNATIONS AND

FUNCTIONS

PWR – Press to turn system

ON or OFF.

VOL – Turn to control

volume.

RDS – Press to activate an

RDS function.

TA – Press to seek traffic

announcement.

MSG – Press to see

message when MSG is

displayed.

TUNE/SEEK – Press up

arrow to seek next station,

tape selection or disc track.

Press down arrow to seek

previous station, tape

selection or CD track.

SCAN – Press to scan

stations, tape selections or

CD tracks.

SOURCE – Press to select

tape or disc source.

BAND – Press to select

AM, FM or XM band.

– Press to eject tape

or disc.

SIDE – Press to play other

side of tape.

TONE – Up-level system:

Press and release to display

BALANCE, FADE, BASS,

TREBLE or MIDRANGE.

TONE ( ) – Base system:

Press TONE to select BASS,

TREBLE, or MIDRANGE.

Press speaker symbol to

select BALANCE or FADE.

- LEVEL + — Press to

select tone or speaker

level.

DSP – Press to turn DSP on

and continue to press and

release until desired

listening experience

appears in display. To turn

DSP off, press and hold

button until DSP OFF is

displayed.

1-6 – Base system: Press

to select discs loaded in

changer.

PTY – Press to select RDS

or XM listening category.

See Owner Manual for

complete instructions.

RDM – Press to listen to

CD tracks in random order.

DISC – Press to select next

disc if equipped with

changer.

RW (<< >>) – Press to

rewind tape or reverse

through track.

FF (<< >>) – Press to fast-

forward tape or advance

through track.

NEXT – Press to select next

tape selection or CD track.

PREV – Press to select

previous tape selection or

CD track.

3384 DeVille 9/3/03 6:47 PM Page 8

❏Reviewed with Customer (Please Check Box)

Refer to your Owner Manual for further information.

PRESET STATIONS

• Turn radio on.

• Select band.

• Tune to desired station.

• Press one of six-numbered buttons

for two seconds.

SETTING THE TIME

All radios:

• Press and hold HR button until

correct hour appears in display.

• Press and hold MN button until

correct minute appears in display.

• Display time when ignition is off

by pressing either HR or MN

button.

RDS radio only: To synchronize time

with RDS broadcast information:

• Press and hold HR and MN

buttons at same time until TIME

UPDATED is displayed. If time is

not available from station, NO

STATION TIME will be displayed.

LOADING CD CHANGER

• Slide the door of the changer

open. The magazine will eject only

when the door is completely open.

• Press the EJECT button to remove

the magazine. (The EJECT button is

on the upper left after the door is

opened. In this view, the button is

hidden by the closed door.)

• Load the trays into the magazine

from the bottom to the top,

placing the label side of the

CD up.

• To remove a tray, press the button

on the back of the magazine.

• Push the magazine into the

changer, following the direction of

the arrow marked on top of

the magazine.

Driver

Information

Audio Systems Comfort/

Convenience Personalization

Guide

Maintenance/

Owner Privileges

3384 DeVille 9/3/03 6:47 PM Page 9

FRONT CLIMATE CONTROL

SYSTEM

Your climate control system

can operate automatically or

manually. In the automatic

mode, the system

automatically controls the

temperature and fan speed.

1. Driver-Side Temperature

Knob

Press the knob to turn the

system on.

Turn the knob to increase

or decrease the

temperature.

2. Outside Temperature

Display

3. Auto

Press the AUTO button to

switch from manual to

automatic operation.

4. Passenger-Side

Temperature

Press the PASS TEMP

button to turn the system

on. Press the up or down

arrow to increase or

decrease the

temperature.

5. PASS OFF

Press button to deactivate

the dual zone system.

6. AC

Press this button to turn the

air conditioning on and off.

7. Recirculation

Press this button to limit

the amount of outside air

entering the vehicle.

8. Fan

During AUTO operation,

the fan is automatically

controlled. In the manual

mode, to increase or

decrease fan speed, press

the up or down arrow.

9. Mode

Press the button to

deliver air through the

floor, middle or

windshield outlets.

Settings include heater,

bi-level, upper and defog.

10. Rear Window

Defogger

Press this button to defog

the rear window and both

outside mirrors.

11. Defrost

Press this button to quickly

remove fog

or frost from the

windshield.

REAR CLIMATE CONTROL

1. Mode

Press this button to enter

MANUAL mode, and to

adjust airflow direction up

or down.

1. To enter AUTO mode,

press the button down

until the display indicates

AUTO.

2. Fan Speeds

Press this button to adjust

blower speed.

3. Temperature

Press the TEMP up or

down button to adjust the

temperature.

D E V I L L E

21 3671011 89 45

Comfort/Convenience

132

Display

Tri-zone Climate

Control System

3384 DeVille 9/3/03 6:47 PM Page 10

Autres manuels pour 2004 DeVille

Table des matières

Autres manuels Cadillac Automobile

Cadillac

Cadillac CTS 2008 Guide de référence

Cadillac

Cadillac Escalade EXT 2013 Manuel utilisateur

Cadillac

Cadillac 2007 XLR ROADSTER Manuel utilisateur

Cadillac

Cadillac 2008 Escalade EXT Manuel utilisateur

Cadillac

Cadillac 2010 DTS Manuel utilisateur

Cadillac

Cadillac 2000 Eldorado Manuel utilisateur

Cadillac

Cadillac 2017 CT6 Manuel utilisateur

Cadillac

Cadillac 2009 SRX Manuel utilisateur

Cadillac

Cadillac 2011 Cadillac DTS Manuel utilisateur

Cadillac

Cadillac 2013 XTS Manuel utilisateur

Cadillac

Cadillac ESCALADE ESV 2005 Manuel utilisateur

Cadillac

Cadillac XT4 2019 Manuel utilisateur

Cadillac

Cadillac ESCALADE HYBRID - BROCHURE 2009 Manuel utilisateur

Cadillac

Cadillac 2006 Escalade EXT Manuel utilisateur

Cadillac

Cadillac 2012 Cadillac Escalade Manuel utilisateur

Cadillac

Cadillac Escalade 2016 Manuel utilisateur

Cadillac

Cadillac 2016 ELR Manuel utilisateur

Cadillac

Cadillac 1967 VVI Guide produit

Cadillac

Cadillac CATERA 1999 Manuel utilisateur

Cadillac

Cadillac CTS 2018 Manuel utilisateur

Cadillac

Cadillac 2011 Escalade EXT Manuel utilisateur

Cadillac

Cadillac 2011 SRX CROSSOVER Manuel de la liste des pièces

Cadillac

Cadillac 2014 Escalade Manuel utilisateur

Cadillac

Cadillac 2009 STS Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur

Seat

Seat toledo Manuel utilisateur
