About This Manual

This manual is intended for use by field service personnel either directly

employed by orcontracted by Cabletron Systems,Inc.Themanualprovides

information that will aid in troubleshooting and maintaining an FRX4000.

You should also have a Netlink FRX4000/FRX6000 User Guide for ref-

erence.

Some of the operations described in this manual can lead to

damage to the hardware and/or software if not performed

correctly. This manual should be used only byqualified

service personnel.

Revision History

Rev Date Reason for Update

01 December 1996 Initial release (included FRX6000)

02 April 1997 Separate FRX4000 and FRX6000manuals

03 March 1998 Release 4.0

Terminology and Conventions

This typeface represents general text. This typeface represents computer

input and output.

In on-screen versions of the manual, items in blue are links to other places

inthe manual.

This symbol points to an informational noterelating to the text,

table, or figure that immediately precedes orfollows it.

This symbol and text identifies a cautionary note, the

content ofwhich is more criticalto heed than an informa-

tional note.

This symbol and text identifies a warning, intended to

prevent either injury to the user or major damage to

hardware, software, or system operation.

References to these keyboard keys appear in the manual and/or on the

screen:

"[N]"—is a reference to a key on yourkeyboard (where “N” is thekey).

"Enter"—means that you should type in the information,then press the

[Enter] key.

"Type"—is similar to "Enter", except that the word “[Enter]” follows

the information to be typed (e.g., "type n [Enter]").

"Press"—means press (hit, strike)the key once. Pressing the[Enter]

key afterwards is not necessary.

"[Ctrl]"—followed by oneortwo otherkey designations,mustbe struck

simultaneously with the other keys shown.

If a statement ends with a reference to a key—for example, “....then press

[Enter].”—the period is not part ofthe data to beentered.Ifa period should

be entered, it will be shown as "[.]." The same applies to all other punctu-

ation.

Wheninstructedto, for example, “press[A],[B] from the Main Menu,” this

meanspress[A], then [B], not [A] comma [B].

Screen displaysare provided to show thegeneral appearance of

actual screens. Theyareonly examples—they do not neces-

sarily represent an operational system.

Related Documents

The Netlink FRX4000/FRX6000 User Guide is shipped with every

FRX6000, and is an option with FRX4000. Copies of this and other

Cabletron documents can be ordered from Cabletron Systems or your local

distributor of Cabletron products.

vi FRX4000 Maintenance Guide, Rev 03

Table of Contents

Chapter 1— Product Overview

LAN Interfaces ..............................................................1-2

Operator Interfaces ........................................................1-2

Chapter 2—Diagnostic Procedures

Reviewing Boot Messages .............................................2-4

BootMessages ...........................................................2-5

Chapter 3—Testing & ReplacingComponents

Removing theChassis Cover .........................................3-3

Testing Component Voltages .........................................3-4

Replacing Memory Modules .........................................3-5

Adding or Replacing an Expansion Card ......................3-6

Adding or Replacing a DSU/CSUCard ......................3-11

Appendix A—Configuration Drawings

I/O Cables .....................................................................A-2

Cables for WAN Ports 0 and 1 .................................A-2

Cables for WAN Ports 2 and 3 .................................A-3

Cables for WAN Ports 4–7 .......................................A-7

Auxiliary Console Cables ...........................................A-10

Appendix B—Installing Software

Backing Up and Restoring Files ................................... B-1

Backing Up and Restoring a Database...................... B-1

Backing Up and Restoring Local Files ..................... B-3

RemoteFileTransfer ....................................................B-7

RemoteSoftware Update .............................................. B-8

Index

vi FRX6000 Maintenance Guide, Rev 03

List of Figures

1-1 I/O Ports on theFRX4000...............................................1-1

2-1 Port Status Display.......................................................... 2-2

2-2 Main Menu......................................................................2-3

3-1 FRX4000, Front View..................................................... 3-1

3-2 FRX4000, Rear View...................................................... 3-1

3-3 FRX4000, Interior View.................................................. 3-2

3-4 FRX4000, Bottom View.................................................. 3-3

3-5 Removing theFRX4000 Cover.......................................3-4

3-6 SIMM.............................................................................. 3-5

3-7 Expansion and Connector Cards ..................................... 3-7

3-8 FRX4000 Motherboard ...................................................3-8

3-9 Connector Card Mounting Post.......................................3-9

3-10 Installing a Connector Card............................................. 3-9

3-11 Installing an Expansion Card ........................................ 3-10

3-12 Connector Card Mounting Post..................................... 3-11

3-13 Installing a DSU/CSU Card .......................................... 3-12

A-1 I/O Ports on theFRX4000.............................................. A-1

A-2 RS-232 Cables for Ports 0, 1..........................................A-2

A-3 RS-232 Cables for Ports 2, 3..........................................A-3

A-4 V.35 Cables for Ports 2, 3 .............................................. A-4

A-5 RS-449 Cables for Ports 2, 3..........................................A-5

A-6 X.21 Cables for Ports 2, 3 .............................................. A-6

A-7 RS-232 Cables for Ports 4–7.......................................... A-7

A-8 V.35 Cables for Ports 4–7 ..............................................A-8

A-9 X.21 Cables for Ports 4–7 ..............................................A-9

A-10 Auxiliary Console Cable, FRX4000 to PC .................. A-10

A-11 Console Cable Converter,FRX4000 to Terminal........ A-10

A-12 Auxiliary Console Cable, FRX4000 to Modem........... A-11

List of Tables

B-1 Database Files..................................................................B-4

Chapter 1

Product Overview

The NetlinkTM FRX4000 is used to provide concentration and access

to remote devices. Each FRX4000 supports up to eight serial inter-

faces. (The FRX6000 isgenerally used where more than eight serial

interfaces are required.) The FRX4000 provides local and remote

switching, and (on devices with video interfaces) features an intu-

itive, menu-based management structure that allows complete local

and remote control of other Cabletron frame relay devices in the

family ofFRX4000,FRX6000, SmartSwitch 1800, and 9W004.

Detailed product descriptions can be found in the Netlink FRX4000/

FRX6000 User Guide.

AbasicFRX4000 containsfour serialports forconnection toa frame

relay or X.25network,user devices, and/or other Cabletron frame

relay devices (FRX4000, FRX6000, SmartSwitch 1800, 9W004).

Each FRX4000 also contains one LANinterface, either Ethernet or

Token Ring. An optional serial expansion card offers four more

WAN ports.

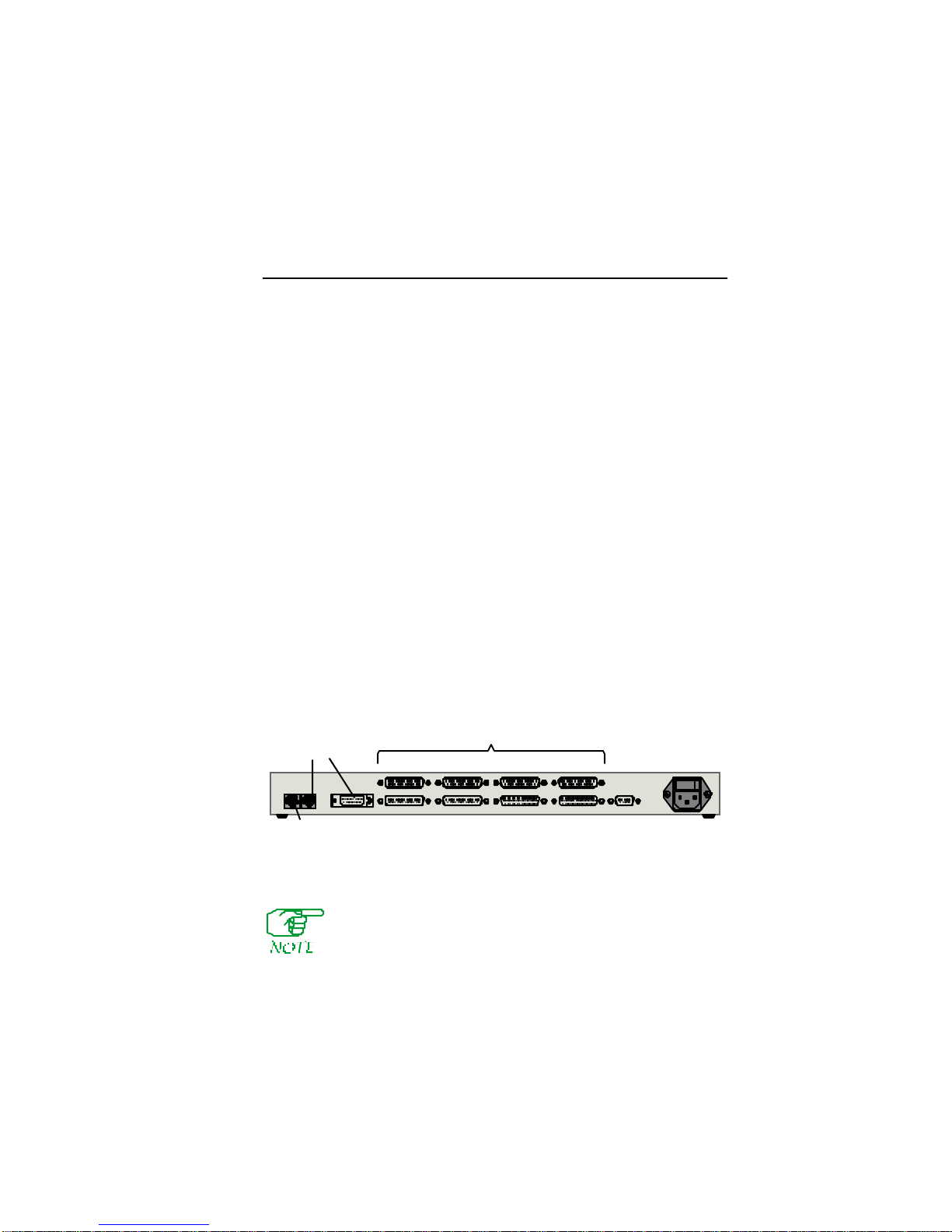

Figure 1-1 I/O Ports on theFRX4000

The main board on the FRX4000 supports four serial

ports. If the CSU/DSU port is used, WAN port 1 is dis-

abled.

I/Ocables are available for WAN ports 0–7 in several configura-

tions, described in Appendix A.

Ports 4–7are on optional

expansion module

Optional

CSU/DSU port

LAN port

WAN 0 WAN 1 WAN 2 WAN 3

WAN 4 WAN 5 WAN 6 WAN 7

1-2 FRX4000MaintenanceGuide,Rev 03

LAN Interfaces

The Ethernet model of FRX4000 contains an Ethernet interface, pro-

videdin RJ-45 (fortwistedpair) and15-pin“D” (AUI, for Thicknet)

configurations. The Ethernet cable and, if AUI, the tranceiver, must

be provided by the customer.

The Token Ring model of FRX4000 contains a Token Ring

interface, provided in RJ-45 (for unshielded twisted pair) and 9-pin

“D” (for shielded twisted pair) configurations. A Token Ring cable,

Cabletron number FRX-TR-CAB, is available.

Operator Interfaces

The FRX4000 doesnot require anyoperator intervention for normal

operation. However, a keyboard and video device are necessary for

initial configuration, and can be helpful later for monitoring.

Each FRX4000 is shipped with cables that allow connection to an

ASCII terminal by any of three methods: direct connection to ter-

minal, connection to terminal via modems, or direct connection to

PC running terminal emulation software.

A keyboard and video device can also be connected via one of these

methods:

●ASCII terminal/keyboard (or PC with terminal emulation

software) connected to an async PAD portin the local

FRX4000.

●ASCII terminal/keyboard (or PC with terminal emulation

software) connected to an async PAD portin a remote

Cabletron frame relay device (FRX4000, FRX6000,Smart-

Switch1800,9W004),through anetwork,into anX.25portin

the local node.

●Keyboard and videodeviceon aremoteCabletron framerelay

device.

Autres manuels pour Netlink FRX4000

Table des matières

Autres manuels Cabletron Systems Matériel réseau

Cabletron Systems

Cabletron Systems WPIM-S/T Manuel utilisateur

Cabletron Systems

Cabletron Systems MMAC-M8FNB Manuel utilisateur

Cabletron Systems

Cabletron Systems 3Com PortSwitch Hub Manuel utilisateur

Cabletron Systems

Cabletron Systems DLM6C-AA Manuel utilisateur

Cabletron Systems

Cabletron Systems BRIM-W6 Manuel utilisateur

Cabletron Systems

Cabletron Systems ATX Manuel

Cabletron Systems

Cabletron Systems Netlink FRX4000 Instructions de montage

Cabletron Systems

Cabletron Systems CRBRIM-W/T Manuel d'installation

Cabletron Systems

Cabletron Systems 9F241-12 Document technique

Cabletron Systems

Cabletron Systems WPIM T1 Manuel utilisateur

Cabletron Systems

Cabletron Systems KBU64 Rackmount Manuel utilisateur

Cabletron Systems

Cabletron Systems 9E429-36 Guide de démarrage rapide

Cabletron Systems

Cabletron Systems ELS10-26 Manuel utilisateur

Cabletron Systems

Cabletron Systems FE-100 Manuel utilisateur

Cabletron Systems

Cabletron Systems SPECTRUM FRX6000 Manuel d'utilisation

Cabletron Systems

Cabletron Systems Netlink FRX4000 Manuel utilisateur

Cabletron Systems

Cabletron Systems SPECTRUM TRMMIM Manuel utilisateur

Cabletron Systems

Cabletron Systems 6E122-26 Manuel utilisateur

Cabletron Systems

Cabletron Systems EPIM-3PS Manuel utilisateur

Cabletron Systems

Cabletron Systems Device Management Module Dec GigaSwitch Manuel utilisateur

Cabletron Systems

Cabletron Systems Netlink FRX8000 Instructions de montage

Cabletron Systems

Cabletron Systems Spectrum EMM-E6 Manuel utilisateur

Cabletron Systems

Cabletron Systems 3F00-01 Manuel utilisateur

Cabletron Systems

Cabletron Systems HSIM HSIM-G01 Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
