Bticino Classe100 X16E Manuel d'utilisation

User and installation manual

www.bticino.com

Classe100 X16E

344682

RA00169AC-11/21-PC

Classe100 X16E

User and installation manual

Contents

Classe100 X16E

User and installation manual

Quick guide 5

Answer a call 5

Auto-switching on and camera scrolling 7

Call another room or apartment (intercom) 9

Dissociate a smartphone 11

Dissociate an user 12

Customise the home page of the Door entry Classe100X App 14

General information 16

Warnings and recommendations 16

Warnings and consumer rights 17

Front view 18

Function keys and status LEDs 18

Rear view 20

Installation 21

Dimensional data and recommended installation heights 21

Wall-mounted installation 21

Installation on the tabletop bases 344692 (optional) 23

Configuration 25

Programming of the programmable keys 26

Use from the device 33

Functions 33

Answer a call 33

Call another room or apartment (intercom) 34

PE or cameras direct auto-switching on 36

NETATMO cameras 38

Door lock release 41

Paging 42

Services 43

Inductive loop 43

Door status 44

Professional Studio (Office) 45

Safe door lock 46

Device adjustments and settings 47

Use of the joystick 47

Wi-Fi adjustments and settings 48

Settings 59

Use with the Door entry Classe100X App 62

Introduction 62

Account registration 63

Authentication 65

Forgotten password 66

Help 67

FAQ 68

Sending log 68

Association of the device 69

Home page 78

Display the cameras or Entrance Panels 79

Open door locks 81

Staircase Lights 81

To receive a video door entry call 82

Call home: Call your Classe100 X16E 86

Classe100 X16E

User and installation manual

Menu 88

Users 89

Settings 94

Account 108

NETATMO cameras 117

Quick guide

Classe100 X16E

User and installation manual

Quick guide

Answer a call

Touch to answer the call.

If necessary, during the call press the joystick to display the audio/video parameter adjustment

icons.

Move the joystick up/down to select the type of parameter for which you want to modify the

value (see the following table) among:

–

Speaker volume (Parameter that can be adjusted only with active audio);

– Image brightness;

–

Image contrast;

–

Image colour.

Quick guide

Classe100 X16E

User and installation manual

Touch to end the call.

Touch to open the main Entrance Panel door lock

Quick guide

Classe100 X16E

User and installation manual

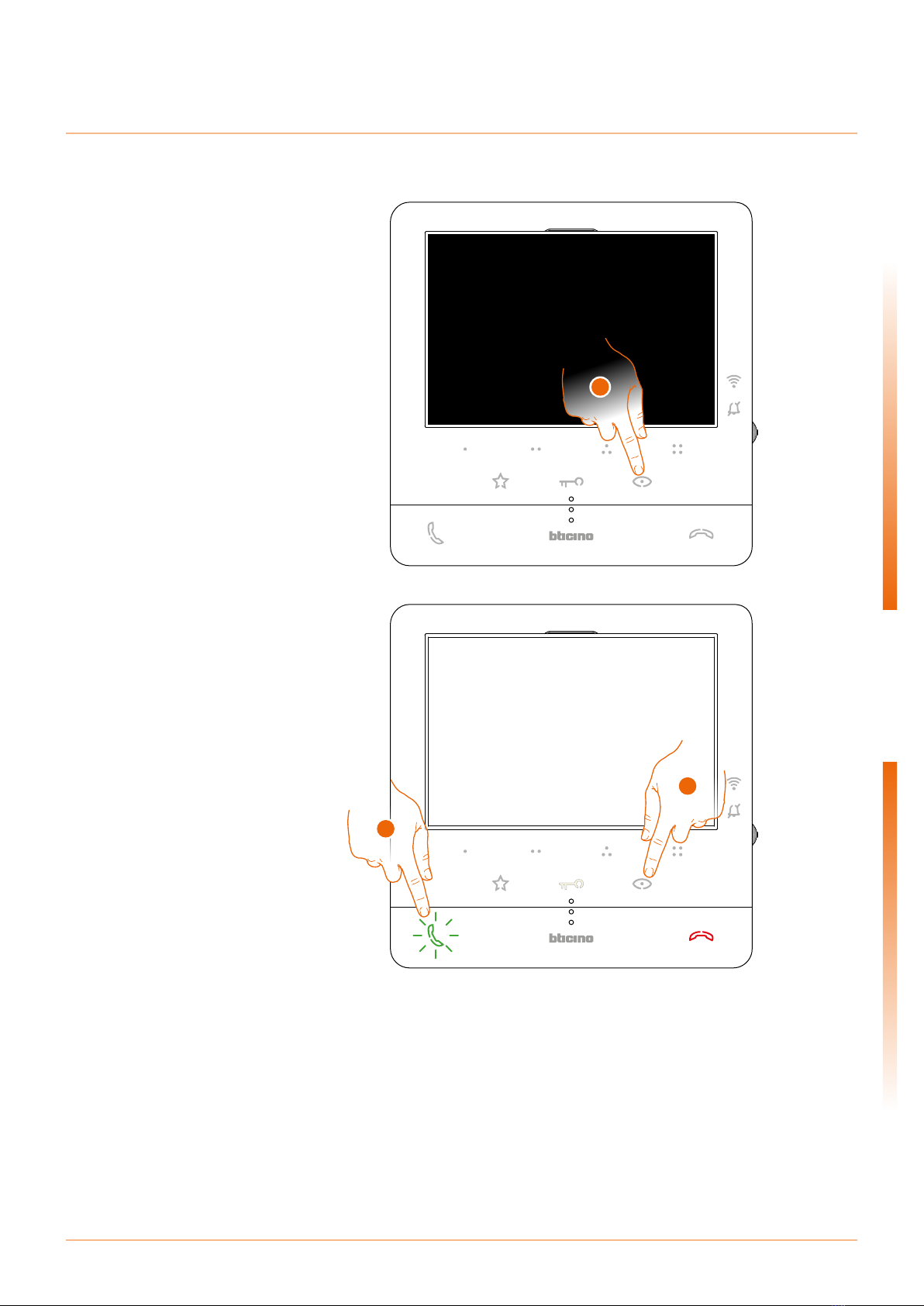

Auto-switching on and camera scrolling

Note: switching from one camera to another is also possible without enabling the audio.

2. If necessary, touch to activate the audio communication

3. Touch to display another Entrance Panel or camera (using the scrolling service). When

switching from one camera to the next the key lights up.

1. Touch to display the Entrance Panels or the cameras in your system.

Quick guide

Classe100 X16E

User and installation manual

4. Touch to end camera display mode, or wait for the automatic switch off time to elapse.

Quick guide

Classe100 X16E

User and installation manual

Call another room or apartment (intercom)

Key (A) lights up to indicate that the call is active.

1. For example, touch programmable key to activate the communication with the Internal Unit

(e.g. configured as 2)

Note: the programmable key to use for calling a certain Internal Unit is set by the installer (see

Programming of the programmable keys).

Quick guide

Classe100 X16E

User and installation manual

When the Internal Unit answers, the key starts flashing. Touch it to end the call or establish

communication with the Internal Unit.

Note: if during the conversation a call is received from the Entrance Panel, the conversation is

interrupted in order to answer the Entrance Panel call.
