Bticino Sfera Series Guide de l'utilisateur

352500

Sfera Display Module

Installer manual

05/16-01 PC

Sfera Display Module

Installer manual

Contents

1 Introduction 4

1.1 Warnings and recommendations 4

2 Description 5

2.1 Front view 5

2.2 Back view 6

3 Configuration using the keypad 7

3.1 Access to the Settings menu 7

3.2 Configuration 8

3.3 LCD Setup 17

3.4 Riser base address 19

3.4 Door Codes 20

3.5 Address book – Alphanumeric mode 23

3.6 Address book – Numeric BFA mode 28

4 Configuration using the software 35

4.1 The TiSferaDesign software 35

4.2 Connection to the PC 35

5 Using the display module 36

5.1 Alphanumeric mode call 36

5.2 Numeric BFA mode call 38

5.3 Keypad module call 40

6 Appendix 41

6.1 Technical data 41

1 Introduction

1.1 Warnings and recommendations

Before proceeding with the installation we recommend that you read the content of this manual

very carefully.

The warranty will automatically become void in case of negligence, improper use, and tampering

by unauthorised personnel.

The Sfera display Module must only be used with BTicino 2 wire digital systems.

Devices of the BTicino Sfera series require attractive/functional finishes; BTicino proposes the Sfera

New line in 3 colours and the Robur anti-vandal line.

Sfera Robur 352505 front cover

Sfera New 352501/02/03 front cover

Sfera Display Module

Installer manual

2 Description

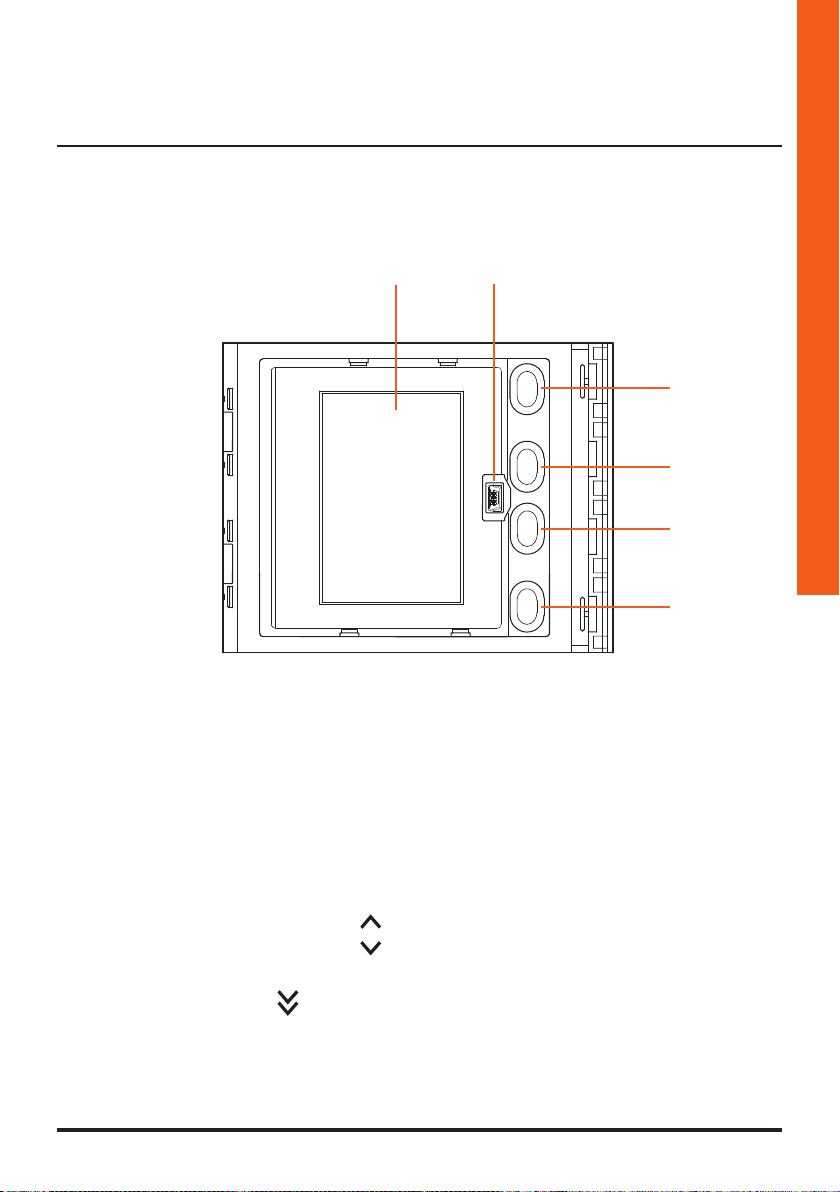

2.1 Front view

1 - Graphic display

2 - Mini_USB connector for configuration using the software (recommended),

residents’ address book programming, and firmware update

3 - Residents names scroll pushbutton

4 - Residents names scroll pushbutton

5 - Confirmation pushbutton – call forwarding OK

6 - Quick scroll pushbutton

1 2

2.2 Back view

1 - Connector for the connection to subsequent modules

2 - Connector for the connection to previous modules

2 Description

Sfera Display Module

Installer manual

3 Configuration using the keypad

3.1 Access to the Settings menu

Settings

Configuration

LCD settings

Riser base addr.

Door codes

Address book

Service menu

Exit

Enter

Password

*****

Press and hold down the keys for

more than 10 seconds

3 Repeat the procedure at point 2 for the other 4 digits

2 Using the keys select the first digit of the

password and confirm using OK

4 If the password is correct, access to the Settings menu is

granted

The password gives the installer access to the settings menu.

The default password is 00000.

We recommend that the default password is replaced with

one of your choice to prevent unwanted access.

3 Configuration using the keypad

3.2.1 Password

Configuration

Password

Language

Add Book Form

Multiple call

Tune setup

Exit

Password

*****

Press OK to access the Configuration menu

Press OK to change the password

3.2 Configuration

4 Repeat the procedure at point 3for the other digits

3 Using the keys select the first digit of the new

password and press OK to confirm

Press this key to return to the Configuration menu

without changing the previous password

Exit

Settings

Configuration

LCD settings

Riser base addr.

Door codes

Address book

Service menu

Exit

Sfera Display Module

Installer manual

Password

Repeat

*****

6 The new password has now been confirmed

5 Repeat to confirm the new password

Password

Confirmed

Exit Press this key to return to the Configuration menu

without changing the previous password

3 Configuration using the keypad

3.2.2 Address Book format

Configuration

Password

Add Book Form

Language

Multiple call

Tune setup

Screen

Exit

Add Book Form

* Alphanumerical

Numeric BFA

Exit

Add Book Form

Block 1

Floor 2

Apartment 3

5 Repeat the procedure for the other fields

3 Using the keys select the mode and press OK to

confirm.

The format can only be changed if the address book

does not contain any contacts.

1 Using the keys select the Address book format

The display module gives the possibility of creating

the residents address book in two different formats,

Alphanumeric (name, surname, etc.) or Numeric BFA (Block,

Floor, Apartment). This setting will define the procedure

for entering the corresponding details and the search

procedure used by visitors.

Select Numeric BFA mode to display another screen where

it will be possible to set the number of digits for each field;

the overall maximum number of digits is 8

4 Using the keys set the number of digits for the

Block field and press OK to confirm

2 Press OK to confirm

NOTE: it is possible to change the length of the BFA fields

if the address book is empty, otherwise the TiSferaDesign

software must be used
