BST MD48 Series Manuel utilisateur
USER MANUAL A1
For residential energy storage
Scan for more informaon
MD48 Series
Utilizing clean energy efficiently to keep the earth infinitely green
Content
TABLE OF CONTENT
SAFETY PRECAUTIONS 01
1.1 BEFORE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
1.2 DURING OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02
INTRODUCTION TO MD48 SERIES 02
2.1 KEY FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .03
2.2 APPLICATION TOPOLOGY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
2.3 INTERFACE INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
2.4 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
SAFE HANDLING GUIDE 03
3.1 TOOLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .07
3.2 SAFTY GEARS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .07
3.3 INSTALLATION LOCATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .07
INSTALLATION AND OPERATION 04
4.1 PACKING LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .08
4.2 ELECTRICAL WIRING CONNECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.3 COMMUNICATION CONNECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.4 ROUTINE OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.5 PARALLEL USE OF BATTERIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
OTHERS 05
5.1 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5.2 EMERGENCY SITUATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3 CONTACT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Precautions
01 SAFETY PRECAUTION
•It is very important and necessary to read the user manual carefully before in-
stalling or using the battery. Failure to follow any of the instructions or warnings in
this document can result in electrical shock, serious injury, death, or may dam-
age the battery and the whole system.
•If the batteries are stored for a prolonged time, it is requirement that they are
charged every three to six months, and the SOC should be no less than 80%.
•The battery needs to be recharged within 12 hours, after fully discharging.
•All battery terminals must be disconnected before maintenance.
•Do not use cleaning solvents to clean the battery.
•Do not expose the battery to flammable or harsh chemicals or vapors.
•Do not paint any part of the battery; include any internal or external compo-
nents.
•Do not connect battery with PV solar wiring directly.
•Any foreign object is prohibited to be inserted into any part of the battery.
•Any warranty claims are excluded for direct or indirect damage due to items
above.
1.1 BEFORE CONNECTION
•After unpacking, please check the battery and packing list first, if the battery is
damaged or spare parts are missing, please contact us.
•Before installation, be sure to cut off the external power and make sure the bat-
tery is in the turned-off mode.
•Wiring must be correct, do not mix-connect the positive and negative cables,
and ensure no short circuit with the external device.
•It is prohibited to connect the battery with AC power directly.
•It is forbidden to connect batteries in series.
•It is forbidden to connect batteries of different manufacturers or models.
•Please ensure the electrical parameters of battery system are compatible to
inverter.
•Keep the battery away from fire or water.
01
Precautions
1.2 DURING OPERATION
•If the battery system needs to be moved or repaired, the power must be cut off
first and the battery is completely shut down.
•It is prohibited to put the batteries working with faulty or incompatible inverter.
•In case of fire, only dry powder fire extinguisher can be used, liquid fire extin-
guishers are prohibited.
•Please do not open, repair or disassemble the battery. We do not undertake
any consequences or related responsibility due to violation of safety operation
or violating of design, production and equipment safety standards.
02
02 INTRODUCTION TO MD48 SERIES
The MD48 series includes two products, MD48-50-2U and MD48-100-3U. They are
high-performance energy storage battery systems independently developed by
BST, which are suitable for T4 Internet Data Center and residential energy storage
and other application scenarios.
2.1 KEY FEATURES
•LiFePO4 cathode material with excellent safety and life performance.
•2.4kWh 2U height, 5.12kWh 3U height.
•19 inch module design, easy to install.
•Integrates the most advanced BMS. It can collect battery information, such as
voltage, current and temperature, and manage the battery system to extend
its service life.
•Compatible with Most Inverters.
•Up to 15 in parallel.
2.2 APPLICATION TOPOLOGY
The following figure shows the common topology of the product in the home
energy storage application.
Introduction
03
Introduction

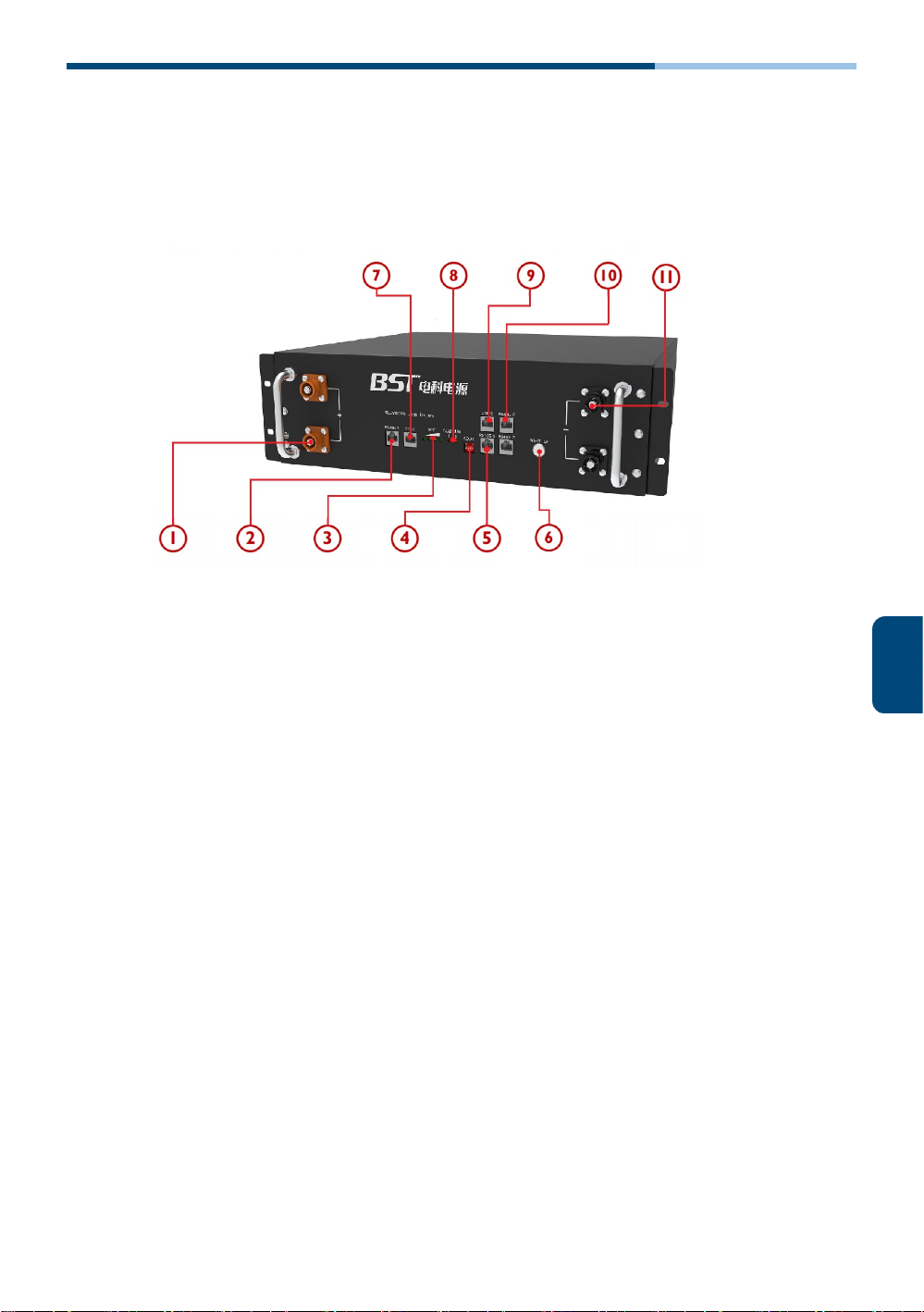

2.3 INTERFACE INTRODUCTION
This section details the interface functions of the front panel.
Front interface:
①:Positive pole connector x 2 —For batteries parallel and power output.
②: RS485 port —For communication with inverter or EMS.
③: SOC Indicators —State of charge indicator, showing battery capacity.
④: Dial-up switch —Set the batteries as master or slaves in parallel model.
⑤: RS485-3 port —For communication with Growatt inverters.
⑥: ON/OFF button —To start or shut down the battery.
⑦: CAN-1 port —For communication with BST, Sofar, Sermatec, Goodwe, Solis and
Deye inverters.
⑧: Status Indicators —Includes RUN and ALARM indicator.
⑨: CAN2- port —For communication with Victron and SMA inverters.
⑩: RS485-2 port —For inner communication between parallels batteries and
communication with Voltronic inverters.
⑪: Negative pole connector x 2 —For batteries parallel and power output.
04
2.4 SPECIFICATIONS
Introduction
Model MD48-50-2U MD48-100-3U
General
Nominal Energy ( kWh ) 2.4 5.12
Usable Energy ( kWh ) 2.4 5.12
Scalability Max. 15 in parallel (36 kWh) Max. 15 in parallel (76.8 kWh)
Design Life 10 Years at 25℃
Mechanical
Dimension ( W x H x D, mm ) 440 x 410 x 88.5 440 x 420 x 133
Weight ( kg ) ~24 ~44kg
Loading Quantity
32 pcs / pallet 25 pcs / pallet
320 pcs / 20’GP, 704 pcs / 40’GP 250 pcs / 20’GP, 550 pcs / 40’GP
Electrical
Nominal Voltage ( V ) 48 51.2
Operating Voltage Range ( V ) 40.5 ~ 53.5 43.2 ~ 56.8
Recommend Charge/Discharge
Current ( A ) 25 / 25 50 / 50
Maximum Charge/Discharge
Current ( A ) 50 / 50 100 / 100
Operating
Charge Temperature (℃) 0 ~ 50
Discharge Temperature (℃) -10 ~ 50
Storage Temperature (℃) -20 ~ 45
Humidity 5%~95% RH ( No Condensation )
Altitude ≤ 4000m
Ingress Protection IP20
Communication Interface CAN, RS485 ( Optional WIFI, BLE)
Certification UN38.3, EN 61000-6-1, EN 61000-6-3, IEC62619
Compatible Inverters BST/SMA/Deye/GOODWE/Growatt/Sofar/Solis/Victron/Voltronic/
Sermatec
05
*When the temperature is not in the range of 0 ~ 40℃, the performance will be limited.
Introduction
06
Figure 2.4.1 Overall dimensions of MD48-50-2U
484mm
440mm
88.5mm
484mm
440mm
133mm
Figure 2.4.2 Overall dimensions of MD48-100-3U
Handling guide
03 SAFE HANDLING GUIDE
3.1 TOOLS
The following tools are required to install the battery pack:
•Cross screwdriver.
•Wire cutter.
•RJ45 crimping plier.
•Hydraulic cable plier.
•Multimeter.
Note:
1) Use properly insulated tools to prevent accidental electric shock or short circuits.
2) If insulated tools are not available, cover the entire exposed metal surfaces of the availa-
ble tools, except their tips, with electrical tape.
3.2 GEARS
It is recommended to wear the following safety gear when dealing with the bat-
tery pack:
•Insulated gloves
•Safety goggles
•Safety shoes
3.3 Location
Make sure that the installation location meets the following conditions:
•The installation site must be suitable for the size and weight of the battery.
•The battery must be installed on a firm surface to sustain the weight.
•The area is dry and ventilated.
•There are no inflammables and explosives nearby.
•The ambient temperature is within the range from 0°C to 50°C.
•There is minimal dust and dirt in the area.
Note:
If the ambient temperature is outside the operating range, the battery pack stops operating
to protect itself. Frequent exposure to harsh temperatures may deteriorate the performance
and life of the battery pack.
07
Installation
04 INSTALLATION AND OPERATION
4.1 PACKING LIST
Unpack and check the packing list. If you find that the outer package is damaged
or the equipment is damaged or the goods are lost, please contact us
immediately.
08
Item Part Name Description Unit Quantity
1 Battery MD48-50-2U pcs 1
2 User Manual For MD48 series pcs 1
3 Positive pole
parallel cable Orange/0.16m/4AWG pcs 1
4 Negative pole
parallel cable Black/0.16m/4AWG pcs 1
5 RJ45
communication
cable
For CAN communication / 2m pcs 1
6 For RS485 communication / 0.2m pcs 1
7 Grounding wire Black/1.5m/10AWG pcs 1
Battery User Manual
Parallel Cable Communication
Cable
Grounding Wire
Table 4.1.1 Packing list of MD48-50-2U
