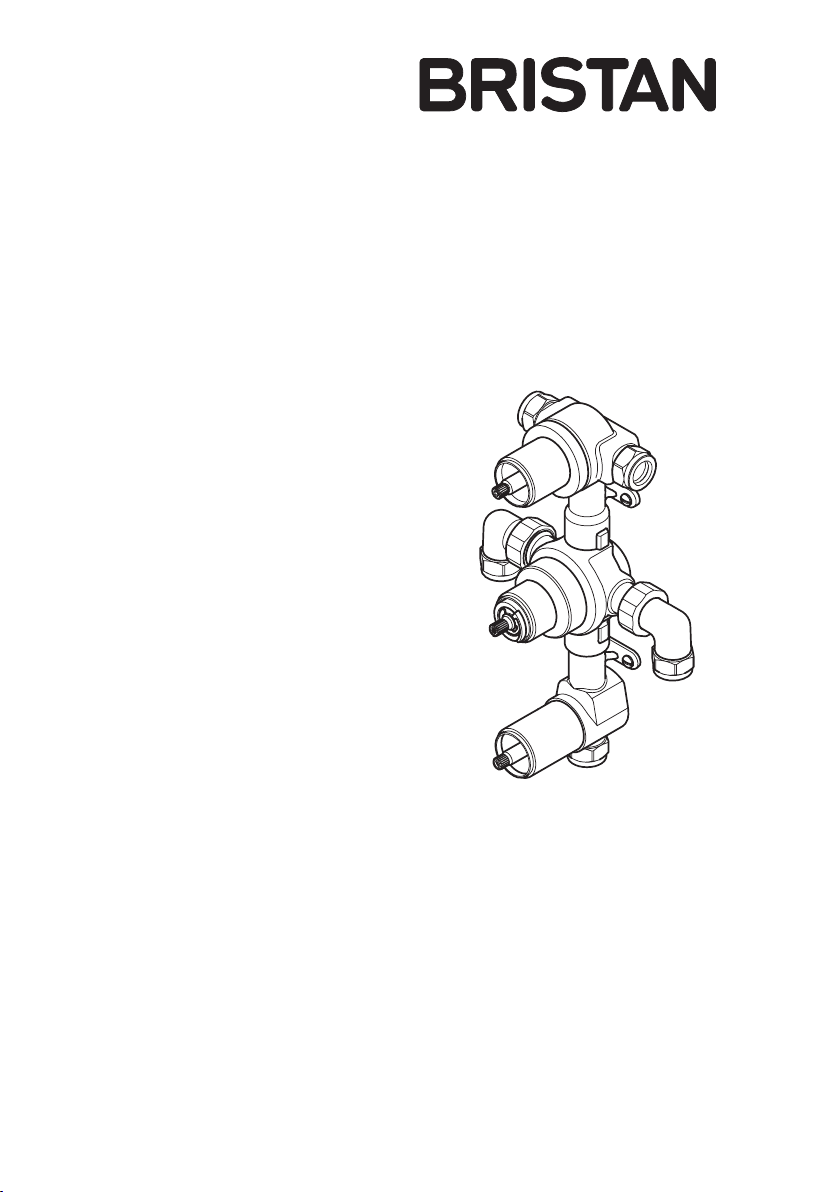

Bristan PM2 SHC3DIV C Instructions de montage
Installation Instructions
and User Guide
Thermostatic Recessed
Three Control Shower
Valve with Stopcock &
Two outlet Diverter
Models covered: CAS SHC3DIV C,
PM2 SHC3DIV C, TRI SHC3DIV C,
PIV SHC3DIV C, ORB SHC3DIV C,
GLR SHC3DIV C, BRG SHC3DIV C,
DSC SHC3DIV C, HOU SHC3DIV C &
SAI SHC3DIV C
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
Thank you for choosing Bristan, the UK’s leading showers and taps expert. We have
designed this product with your enjoyment in mind. To ensure that it works to its full
potential, it needs to be fitted correctly. These fitting instructions have been created to
give you all of the information you need and, if you need any further help, please do not
hesitate to give us a call on 0844 701 6273.
Important Safety Information …………………………………………………..…………..
General Information ……………………………………………………………………………..
Product Features ………………………………………………………………………………….
Specifications ……………………………………………………………………………………….
Dimensions ………………………………………………………………………………….……….
Pack Contents ………………………………………………………………………………………
Prior to Installation …………………………………………………………..………............
Installation …………………………………………………………………………………..……….
Front Access …………………………………………………..……................
Rear Access .…………………………………………………………….………….
Wall Outlet ……………………………………………………………………………
Operating the Shower ………………………………………………………………….……….
Maintenance ………………………………………………………………………………..……….
Adjusting the Temperature …………………………………………………………………..
Troubleshooting …………………………………………………………………………..……….
Notes …………………………………………………………………………………………………...
Guarantee ……………………………………………………………………………………………..
Contents
2 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
3
4
5
6
7-9
10-16
17
18-22
18-19
20-21
22
23
24
25
26-27
28-29
30-31
Important Safety Information
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. 3
• Please read these instructions thoroughly and retain for future use.
• All products manufactured and supplied by Bristan are safe provided they are
installed, used correctly and receive regular maintenance in accordance with these
instructions.
• If you are in any doubt about your ability to install this product safely you must
employ the services of an experienced qualified plumber.
• These fittings need to be installed in accordance with, and meet the requirements of
the Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
• Remove all packaging and check there are no missing or damaged parts.
• Before starting any installation please consider the following:
• Before drilling into walls, check that there are no hidden electrical wires, cables or
water supply pipes. This can be checked with the aid of an electronic detector.
• If power tools are used do not forget to: - Wear eye protection
- Unplug equipment after use
• Warning: Before installing the new shower valve it is essential that you thoroughly
flush through the pipework in order to remove any remaining swarf, solder, etc. Failure
to carry out this procedure could cause problems or damage to the workings of the
shower valve.
• Fitting isolation valves to the inlet feeds is required for ease of maintenance.
• Access must be made available to the shower valve / mixer body for maintenance /
servicing purposes.
• Warning: Do not operate this product if you suspect it is frozen. Do not site the
Mixing Valve where it might be subjected to freezing conditions.
• These shower valves must not be modified in any way as this will invalidate the
guarantee.
General Information
4 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Recommended Usage
Domestic Heavy
Commercial
Light
Commercial Health Care
This product has been tested to the Water Regulations Advisory Scheme (WRAS) and
satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and
current bylaws.
For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory.
BS7600 recommends the temperature of stored water should never exceed 65ºC. A
stored water temperature of 60ºC is considered sufficient to meet all normal
requirements and will minimise the build up of lime scale in hard water areas.
If the shower valve is installed at low pressure (tank fed), then the minimum distance
from the highest installed position of the showerhead to the underside of the cold tank
should be at least 1 metre to ensure adequate performance.
Note: Nominally equal (balanced) inlet supply pressures are recommended for optimum
performance.
This shower valve should be installed in compliance with the Water Supply (Water
Fittings) Regulations1999 and the Scottish Bylaws 2004.
If in doubt, contact a registered plumber or your Local Water Authority or the Secretary
of The Institute of Plumbing, address as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB
Tel: 01708 472791
Product Features
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. 5
1. Two outlet diverter
This outlet allows the user to divert the
flow of water from one water outlet to
another. E.g. Fixed rigid riser or an
adjustable riser.
2. Temperature control
Adjustable temperature control.
Turn the handle clockwise for a cooler
temperature.
Turn the handle anti-clockwise for a hotter
temperature.
3. Single outlet stopcock
Allows the user to operate another water
outlet e.g. body jets while one outlet from
the top diverter is also being used.
This outlet also allows the user to use this
outlet independantly.
Note: Both the bottom stopcock and one
of the top diverter outlets can be used
together. If both of these outlets are used
together the flow will be shared between
both outlets.
1
2
3
CAS SHC3DIV C shown
Specifications
Inlet connections: 15mm compression with 150mm between centres.
Minimum working pressure: 0.2 bar
Note: This product has been designed to deliver a high flow of water on low pressure
systems, however depending on the installation, type of system and shower accessories
used, a higher pressure maybe required to optimise the showering experence.
Maximum working pressure: 5 bar
Maximum static pressure: 10.0 bar
Note: Static pressure is the build up of pressure when the valve is closed.
Supply requirements:
Minimum cold water supply temperature: 5ºC.
Maximum cold water supply temperature: 25ºC.
Maximum hot water supply temperature: 80ºC.
Note: The inlet hot water temperature must be at least 10ºC above the required blend
temperature (e.g. shower temperature 43ºC: minimum hot water temperature 53ºC).
System requirements:
Gravity fed hot & cold (Equal pressures)
Gravity fed hot & mains cold (Differential pressure, maximum ration 5:1)
Unvented systems
Instantaneous water heater (Combination boiler)
Pumped system
Note: When using a pumped system we recommend that an essex flange is used.
Important: Minimum wall cavity depth: 35mm
6 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Pack Contents - CAS SHC3DIV C
1
3 4
5
6
7
21. Concealing plate x1
2. Valve body x1
3. Handles x3
4. Shroud extension screws x3
5. Shroud extensions x3
6. Valve body fixings x4/4
7. Inserts x2
8. Flow regulators x2
9. Filter washers x2
10. Wall outlet
9
10
8
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. 7
1
3
4
7
2
5
8
6
9
10
Pack Contents - PM2 SHC3DIV C
1. Concealing plate x1
2. Valve body x1
3. Handles x3
4. Extension screws x3
5. Spline adaptors x3
6. Valve body fixings x4/4
7. Inserts x2
8. Flow regulators x2
9. Filter washers x2
10. Wall outlet
8 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Pack Contents- TRI SHC3DIV C
1
3
4
7
2
5
8
6
9
10
1. Concealing plate x1
2. Valve body x1
3. Handles x3
4. Extension screws x3
5. Spline adaptors x3
6. Valve body fixings x4/4
7. Inserts x2
8. Flow regulators x2
9. Filter washers x2
10. Wall outlet
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. 9
Pack Contents - PIV SHC3DIV C
1
3
4
7
2
5
8
6
9
10
1. Concealing plate x1
2. Valve body x1
3. Handles x3
4. Extension screws x3
5. Spline adaptors x3
6. Valve body fixings x4/4
7. Inserts x2
8. Flow regulators x2
9. Filter washers x2
10. Wall outlet
10 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
