Important Information

5970-100-03

Universal Thermostat Guard

• Read this manual thoroughly prior to installing thermostat guard.

•

Verify dimensions given in this manual and on the product to ensure product is suitable for your application.

• Prior to ﬁnishing installation, refer to applicable thermostat manual and test thermostat operation.

•

This thermostat guard should only be used as described in this manual. Any other use is not recommended

and will void the warranty.

• For a replacement key, please contact our Customer Service Department at 1-866-268-5599.

5970

Read All Instructions Before Proceeding

User Manual

Warning

The Braeburn 5970 Thermostat Guard is a universal thermostat guard that covers and protects wall

thermostats by reducing the risk of damage, tampering and unauthorized adjustment of thermostat

settings. The 5970 thermostat guard includes a clear plastic guard cover and base, opaque plastic

wall plate, screws, anchors and tumbler lock with two keys. This thermostat guard is ideal for

ofﬁces, lobbies, hospitals, schools, supermarkets, restaurants, convenience stores and other public

areas to help prevent unauthorized personnel from adjusting the temperature. This thermostat

guard can be used in new and existing thermostat applications.

• The Braeburn 5970 Thermostat Guard can be used in virtually all new or existing thermostat applications. The enclosed

wall plate can also be used with a wide range of commercial thermostat models.

• For most existing thermostat applications, the thermostat guard can be installed without removing the thermostat from

the wall. In existing applications, only the cover and base will be used, NOT the wall plate. Some existing installations

may require the thermostat to be removed from sub-base to install base.

• In new thermostat applications, the thermostat guard can be used with or without the wall plate. The wall plate is

usually used to cover scratches or marks from the old thermostat installation.

Installing Thermostat Guard with Existing Thermostat

1. Place the base over the existing thermostat on the wall with curved edge of the base facing down.

NOTE: Some thermostats will need to be removed from the sub-base before installing the base.

2. Align the base with the existing thermostat and level.

3. Mount the base on the wall using the four provided anchors and screws.

4. Mount the thermostat guard cover by placing the hinged edge of the thermostat guard cover over the top edge of

the base and lowering the cover to the base. NOTE: The key must be in the UNLOCKED position.

5. Lock the thermostat guard by turning the provided key counterclockwise. The key can ONLY be removed when it

is in the LOCKED position.

Installation

WALL

THERMOSTAT

BASE

MOUNTING

SCREWS (4)

MOUNTING

HOLES (4)

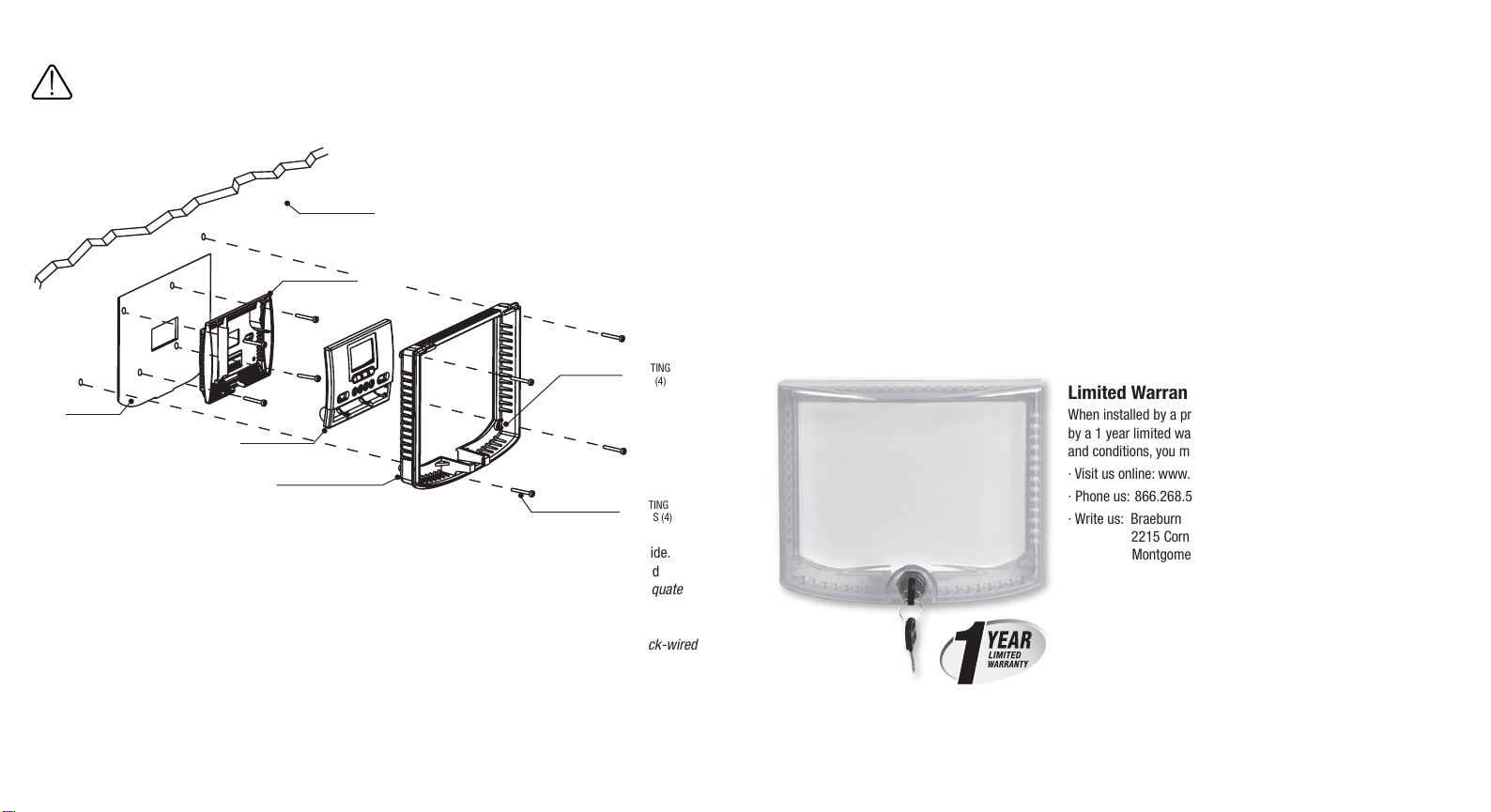

Installing Thermostat Guard with New Thermostat

Disconnect power supply to prevent electrical shock or equipment damage.

WALL

THERMOSTAT

BASE

MOUNTING

SCREWS (4)

MOUNTING

HOLES (4)

SUBBASE

GUARD

ALL PLATE

1. Place the thermostat sub-base on the thermostat guard wall plate and use the thermostat sub-base as a guide.

2. Mark and drill the necessary 5/32 inch mounting holes. Take care to align wire opening in both wall plate and

sub-base. NOTE: The curved edge of the wall plate should face down. Ensure mounting position allows adequate

clearance to open doors and covers.

3. Run the system wires through the wiring hole in the thermostat guard wall plate.

4. Mount the thermostat sub-base and the thermostat guard wall plate to the wall. NOTE: If thermostat is a back-wired

thermostat, wire the thermostat before mounting it to the wall.

5. Refer to thermostat manual to wire thermostat.

6. Mount the thermostat on the sub-base.

7. Place the base over the mounted thermostat and wall plate and mount using the four anchors and

screws provided.

Removing Thermostat Guard Cover

• Unlock the thermostat guard by inserting the key and turning clockwise.

• Remove the thermostat guard cover by lifting cover away from the base and off the hinges.

Important Safety Information

Warning

8. Mount the thermostat guard cover by placing the hinged edge of the thermostat guard cover over the top

edge of the base and lowering the cover to the base. NOTE: The key must be in the UNLOCKED position.

9. Lock the thermostat guard by turning the provided key counterclockwise. The key can ONLY be removed when

it is in the LOCKED position.

Limited Warranty

When installed by a professional contractor, this product is backed

by a 1 year limited warranty. Limitations apply. For limitations, terms

and conditions, you may obtain a full copy of this warranty:

· Visit us online: www.braeburnonline.com/warranty

· Phone us: 866.268.5599

· Write us: Braeburn Systems LLC

2215 Cornell Avenue

Montgomery, IL 60538

5970-100-03

Store this manual for future reference.

Technical Assistance: www.braeburnonline.com

Call us toll-free: 866-268-5599 (U.S.) • 630-844-1968 (Outside the U.S.)
