Braeburn Premier Series Instructions de montage

Detailed

Installer Guide

Non-Programmable Thermostats

Speciﬁcations

Installation and Wiring

Quick Reference

Installer Settings

System Testing

• Possible electric shock or damage to equipment can occur.

• Disconnect power before beginning installation.

Caution

This thermostat requires 24 Volt AC Power or 2 properly installed “AA” Alkaline

batteries for

proper operation. When connecting 24 Volt AC Power the batteries may

be installed as a backup.

For use only as described in this manual. Any other use will void warranty.

3020

Up to 2 Heat / 1 Cool Heat Pump

1 Heat / 1 Cool Conventional

3220

Up to 3 Heat / 2 Cool Heat Pump

Up to 2 Heat / 2 Cool Conventional

Warning

For installation by experienced service technicians only.

This thermostat is compatible with:

• Single stage heat / cool conventional and heat pump systems

• Single stage heat pumps with auxiliary heat

• Conventional systems up to 2 stages of heating and 2 stages of cooling (3220 only)

• Heat pump systems up to 3 stages of heating and 2 stages of cooling (3220 only)

• 250 – 750 millivolt heating only systems

• 2 or 3 wire hydronic zone systems

Electrical and control speciﬁcations:

• Electrical Rating: 24 Volt AC

• 1 amp maximum load per terminal

• AC Power: 18 – 30 Volts AC

• DC Power: 3.0 Volt DC (2 “AA” Alkaline Batteries Included)

• Control Range: 45° – 90° F (7° – 32° C)

• Temperature Accuracy: +/- 1° F (+/- .5° C)

• Outdoor Temperature Display Range: -40° - 120° F (-40° - 49° C)

Terminations

• 3020: G, Rc, Rh, W1/E, O/B/V3, Y1, C, S1, S2

• 3220: G, Rc, Rh, W1/E/W3, W2, O/B/V3, Y1, Y2, C, L, S1, S2

Speciﬁcations

3020W-100-03

Model number is located on back of thermostat.

PREMIER

SERIES

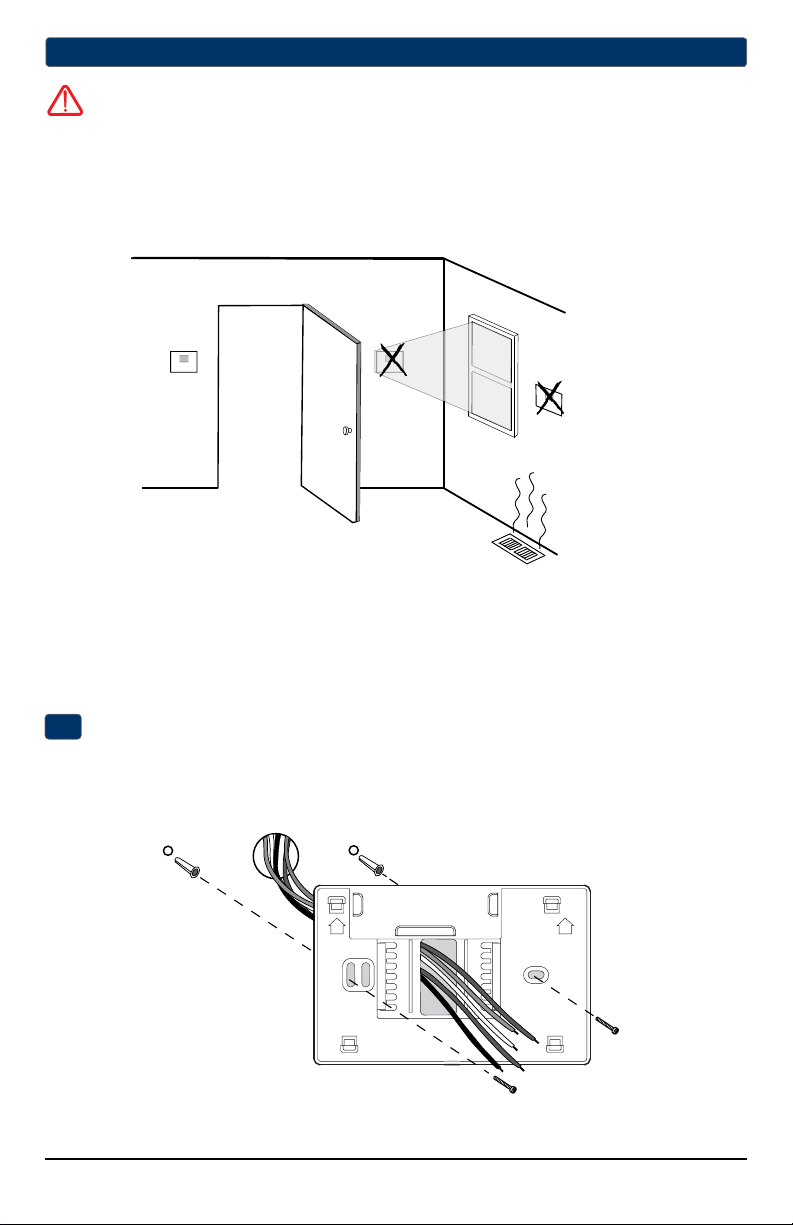

Thermostat Location

Install the thermostat approximately 5 feet (1.5m) above the ﬂoor in an area that has a good amount of air

circulation and maintains an average room temperature.

Avoid installation in locations where the thermostat can be affected by drafts, dead air spots, hot or cold air

ducts, sunlight, appliances, concealed pipes, chimneys and outside walls.

Installer Guide 2

Install your new Braeburn thermostat in 4 basic steps:

1Install the Sub-Base

2Provide Power

3Connect Your Wires

4Attach Thermostat to Sub-Base

Install the Sub-Base:

• Remove the sub-base from the body of the thermostat.

• Mount the sub-base as shown below:

Warning

Disconnect power before beginning installation.

Installation and Wiring

UP UP

Drill 3/16” pilot holes in your

desired location. Use supplied

anchors for drywall or plaster.

3 Installer Guide

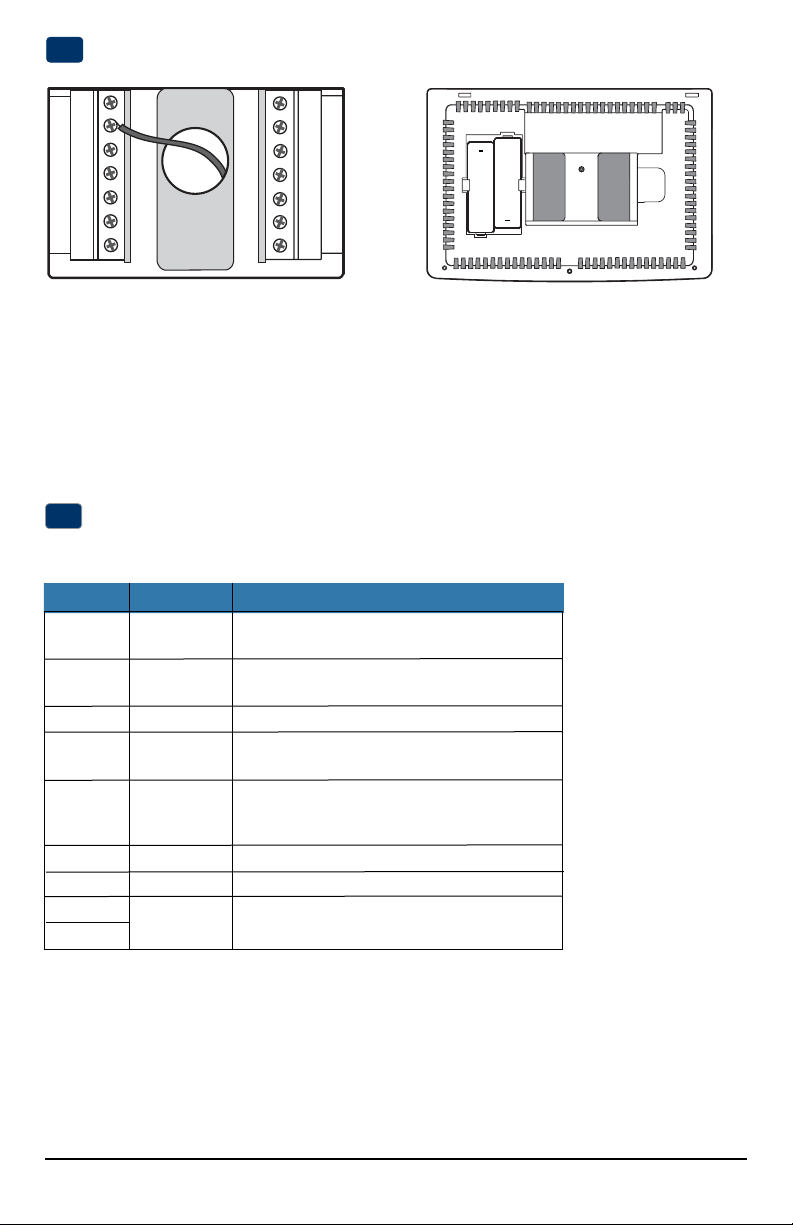

Provide Power

24VAC Power Terminal (C)

Wiring Terminations for model 3020

Terminal Function Description

Rc Input 24 Volt AC Cooling Transformer

(Dual Transformer Systems Only)

Rh Input Power Connection (24 Volt AC Heating

Transformer or Millivolt Power Source)

G Output Fan Control

W1 / E Output (W1) Conventional Heat Relay

(E) Auxiliary/Emergency Heat

O / B / V3 Output (O) Cool Active Reversing Valve

(B) Heat Active Reversing Valve

(V3) Zone Valve Power Close

Y1 Output Compressor Relay

C Input 24 Volt AC Transformer Common

Connect Your Wires

Input Optional Remote Sensor (indoor or outdoor)

• For 24 Volt AC power, you must connect the common side of the transformer to the C terminal on the thermostat sub-base. In

dual transformer installations, the transformer common must come from the cooling transformer.

• For battery power, insert the 2 supplied “AA” type alkaline batteries into the battery compartment located in the rear

housing of the thermostat. Make sure to position the Positive (+) and Negative (-) sides of the batteries correctly with

the +/- symbols in the battery compartment.

Batteries Installed as Shown

Installer Guide 4

Wiring Terminations for model 3220

Terminal Function Description

Rc Input 24 Volt AC Cooling Transformer

(Dual Transformer Systems Only)

Rh Input Power Connection (24 Volt AC Heating

Transformer or Millivolt Power Source)

G Output Fan Control

W1 / E / W3 Output (W1) 1st Stage Conventional Heat,

(E) Emergency Heat,

(W3) 3rd Stage Auxiliary Heat

W2 Output 2nd Stage Conventional Heat

O / B / V3 Output (O) Cool Active Reversing Valve

(B) Heat Active Reversing Valve

(V3) Zone Valve Power Close

Y1 Output 1st Stage Compressor

Y2 Output 2nd Stage Compressor

L Input System Malfunction Indicator

C Input 24 Volt AC Transformer Common

Connecting Your Wires (continued)

Input Optional Remote Sensor (indoor or outdoor)

5 Installer Guide

Typical Wiring Conﬁgurations

NOTE: The “System Type” option will be conﬁgured in the Installer Settings section. Shaded areas do not

apply to the 3020.

Conventional Systems

NOTE: Additional options are conﬁgured in the

Installer Settings section.

NOTES - Additional Wiring Options

[1] These terminals can be used to connect a

Braeburn

indoor or outdoor remote sensor.

Additional Wiring Options

Indoor or Outdoor Remote Sensor [note 1]

NOTES - Conventional Systems

[1] Optional 24 Volt AC common connection.

[2] Remove factory installed jumper for dual

transformer systems.

[3] In dual transformer systems, transformer

common must come from cooling transformer.

[4]

If needed for system.

Provide disconnect and overload protection

as required.

2 HEAT / 2 COOL Single or Dual Transformer

Set System Type to 22CONV (3220 Only)

24 Volt AC Power (heating transformer) [note 2]

24 Volt AC Power (cooling transformer) [note 2]

W1 Heat Relay Stage 1

W2 Heat Relay Stage 2

Y1 Compressor Relay Stage 1

Y2 Compressor Relay Stage 2 [note 4]

G Fan Relay

C 24 Volt AC Transformer Common [note 1, 3]

Hydronic Heat Only

Set System Type to 1HD

24 Volt AC Power (heating transformer)

W1 Zone Valve Power Open

V3 Zone Valve Power Close

G Fan Relay [note 4]

C 24 Volt AC Transformer Common [note 1]

Hydronic Heat / 1 Cool

Set System Type to 11HD

24 Volt AC Power (heating transformer) [note 2]

24 Volt AC Power (cooling transformer) [note 2]

W1 Zone Valve Power Open

V3 Zone Valve Power Close

Y1 Compressor Relay

GFan Relay (cooling fan only)

C 24 Volt AC Transformer Common [note 1, 3]

Heat Only or Millivolt

Set System Type to 11CONV

Rh Power Connection

W1 Heat Relay

GFan Relay [note 4]

C24 Volt AC Transformer Common

[note 1]

1 HEAT / 1 COOL Single or Dual Transformer

Set System Type to 11CONV

24 Volt AC Power (heating transformer) [note 2]

24 Volt AC Power (cooling transformer) [note 2]

W1 Heat Relay

Y1 Compressor Relay

G Fan Relay

C 24 Volt AC Transformer Common [note 1, 3]

Installer Guide 6

Typical Wiring Conﬁgurations

NOTE: The “System Type” option will be conﬁgured in the Installer Settings section. Shaded areas do not

apply to the 3020.

Heat Pump Systems

NOTE: Additional options are conﬁgured in the

Installer Settings section.

NOTES - Additional Wiring Options

[1] These terminals can be used to connect a

Braeburn

indoor or outdoor remote sensor.

Additional Wiring Options

Indoor or Outdoor Remote Sensor [note 1]

1 HEAT / 1 COOL - No Auxiliary Heat

Set System Type to 11HP

Rh 24 Volt AC Power

Rc Connected to Rh with supplied Jumper Wire

O/B

Changeover Valve [note 2]

Y1 Compressor Relay

GFan Relay

C24 Volt AC Transformer Common [note 1]

3 HEAT / 2 COOL – Including Auxiliary Heat

Set System Type to 32HP (3220 Only)

Rh 24 Volt AC Power

Connected to Rh with supplied Jumper Wire

O/B Changeover Valve [note 2]

Compressor 1 Relay (1st stage heating/cooling)

Compressor 2 Relay (2nd stage heating/cooling)

E/W3

Auxiliary Heat Relay (3rd stage heating) [note 5]

GFan Relay

C24 Volt AC Transformer Common [note 1]

LOptional System Fault Monitor [note 4]

2 HEAT / 1 COOL - Including Auxiliary Heat

Set System Type to 22HP (3220 Only)

Rh 24 Volt AC Power

Rc Connected to Rh with supplied Jumper Wire

O/B

Changeover Valve [note 2]

Y1 Compressor Relay (1st stage heating/cooling)

Auxiliary Heat Relay (2nd stage heating) [note 3]

E Emergency Heat Relay [note 3]

G Fan Relay

C 24 Volt AC Transformer Common [note 1]

L Optional System Fault Monitor [note 4]

2 HEAT / 2 COOL - No Auxiliary Heat

Set System Type to 32HP (3220 Only)

Rh 24 Volt AC Power

Rc Connected to Rh with supplied Jumper Wire

O/B

Changeover Valve [note 2]

Compressor 1 Relay (1st stage heating/cooling)

Compressor 2 Relay (2nd stage heating/cooling)

GFan Relay

C24 Volt AC Transformer Common [note 1]

LOptional System Fault Monitor [note 4]

NOTES - Heat Pump Systems

[1] Optional 24 Volt AC common connection.

[2] O (cool active) or B (heat active) is selected in

the Installer Settings menu.

[3] Install a ﬁeld supplied jumper between the

W2 and W1/E/W3 terminals if there is

no separate emergency heat relay installed.

[4] If the L terminal is used, the 24 Volt AC common

must be connected (C terminal).

[5] If a separate emergency heat relay is installed, the

W1/E/W3 terminal should have both the auxiliary

heat 1 relay and emergency heat relay connected.

[6] If a separate emergency heat relay is installed, the

W1/E terminal should have both the auxiliary

heat 1 relay and emergency heat relay connected.

2 HEAT / 1 COOL - Including Auxiliary Heat

Set System Type to 21HP (3020 Only)

Rh 24 Volt AC Power

Rc Connected to Rh with supplied Jumper Wire

O/B

Changeover Valve [note 2]

Compressor Relay (1st stage heating/cooling)

Auxiliary/Emergency Heat Relay [note 6]

G Fan Relay

C 24 Volt AC Transformer Common [note 1]

Provide disconnect and overload protection as required.

INSTRUCTIONS

7 Installer Guide

NOTE: This thermostat ships conﬁgured as a 1H/1C conventional

thermostat. Conﬁrm installer settings. See page 9.

UP UP

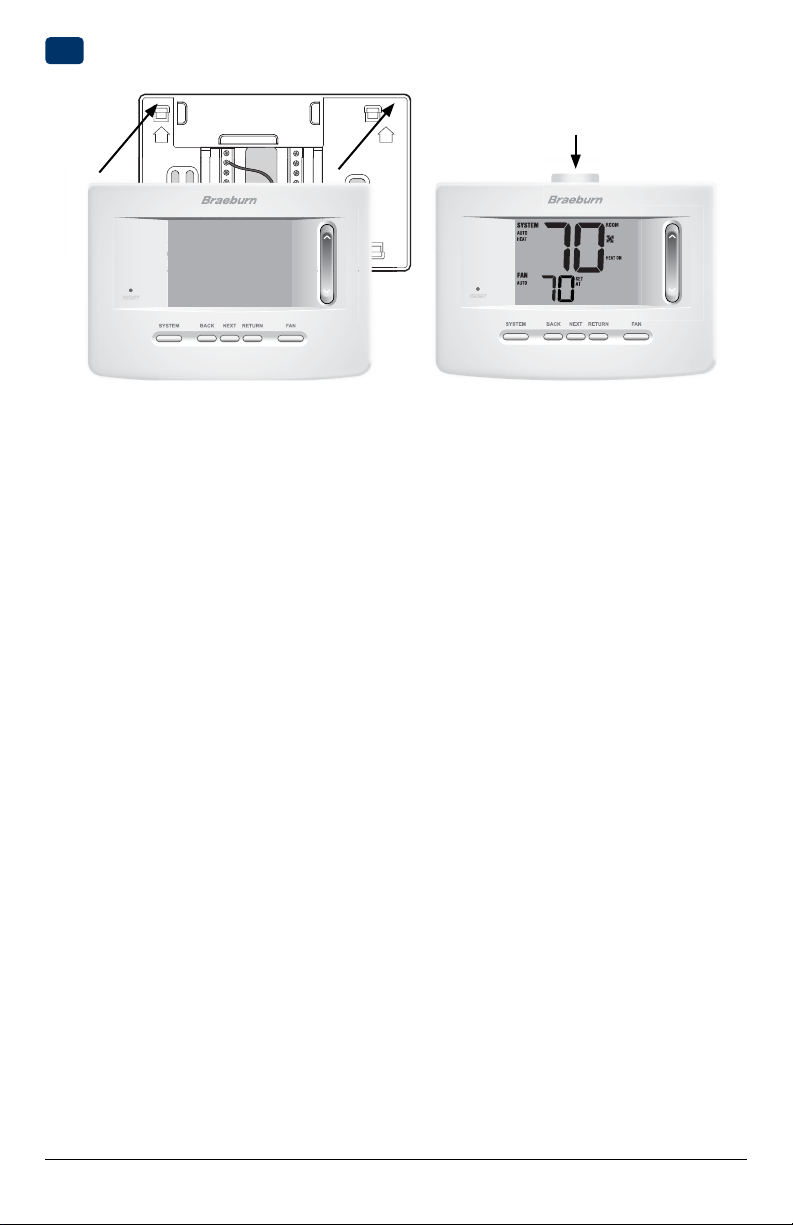

Attach Thermostat to Sub-Base

3) Insert Quick Reference Card into slot

on top of thermostat.

1) Line up the thermostat body with the sub-base.

2) Carefully push the thermostat body against the

sub-base until it snaps in place.

Installer Guide 8

INSTRUCTIONS

Room Temperature ...................... Displays the current room temperature

Set Temperature .......................... Displays the current set point temperature

Reset Button ............................... Resets current time, program and user settings

SYSTEM Button ............................ Selects the system you want to control

BACK Button.................................Moves back in installer/user setup modes

NEXT Button................................. Moves forward in installer/user setup modes

RETURN Button ............................ Returns to normal mode from installer/user setup modes

Service Indicators ...................... Displays various service/maintenance information

FAN Button ................................... Selects the system fan mode

Quick Reference Instructions...... Stored in slot located at top of thermostat

Low Battery Indicator.................. Indicates when the batteries need to be replaced

Fan Indicator................................ Indicates when the system fan is running

System Status Indicator ............. Displays information about the status of the system

Lock Mode Indicator ................... Indicates if the thermostat is locked

SpeedBar®................................... Increases or decreases settings (time, temperature, etc.)

Outdoor Temperature Indicator....

Displays along with the outdoor temperature reading (see note below)

Battery Compartment ................. Located in the back of thermostat

Quick Reference

Thermostat and Display

4 9

NOTE: If a Braeburn®outdoor sensor was connected you can view the outdoor temperature by

pressing the BACK and NEXT buttons at the same time.

INSTRUCTIONS

The Installer Settings must be properly conﬁgured in order for this thermostat to operate correctly. The Installer

Settings are menu driven. The portion of these settings that do not apply to your setup will be skipped. These

settings are indicated below with comments. More detail on each setting follows this table.

1. Press and hold down the RETURN and

buttons for 3 seconds.

2. Release both buttons and the ﬁrst installer

setting will be displayed.

3. Change settings as required using the

or portion of the SpeedBar®.

4. Press NEXT or BACK to move to the next

or previous setting, press RETURN to exit.

No. Installer Setting Factory Setting Comments

(Notes follow this table) Default Options (More information follows this table)

1 Temperature Scale F DEG F DEG Select for Fahrenheit display

C DEG Select for Celsius display

2 Auto Changeover oF AUTO oF AUTO Disables Auto Changeover mode

ON AUTO Enables Auto Changeover mode

11CONV Select for 1H/1C Conventional system

22CONV Select for 2H/2C Conventional system

3 System Type 11CONV 11HP Select for 1H/1C Heat Pump system

21HP Select for 2H/1C Heat Pump system (3020 only)

22HP Select for 2H/2C Heat Pump system

32HP Select for 3H/2C Heat Pump system

1HD Select for Heat Only Hydronic system

11HD Select for Hydronic Heat/1C system

4 1st Stage Differential 0.5 DIF1 0.5, 1.0 or Select a 1st stage temperature differential of .5°,

2.0 DIF1 1° or 2° F (0.2°, 0.5° or 1° C)

5 2nd Stage Differential 2.0 DIF2 1.0, 2.0, 3.0, Select a 2nd stage temperature differential of 1°,

[note 1] 4.0, 5.0 or 2°, 3°, 4°, 5° or 6° F (0.5°, 1°, 1.5°, 2°, 2.5° or 3° C)

6.0 DIF2

6 3rd Stage Differential 2.0 DIF3 1.0, 2.0, 3.0, Select a 3rd stage temperature differential of 1°, 2°,

[note 1] 4.0, 5.0 or

3°, 4°, 5° or 6° F (0.5°, 1°, 1.5°, 2°, 2.5° or 3° C)

6.0 DIF3

7 1st Stage Fan Control HG FAN 1 HG FAN 1 Select for 1st stage Gas heating

[note 2] HE FAN 1 Select for 1st stage Electric heating

8 Emergency Heat] HE EMER HE EMER Select for Electric Emergency Heat

Fan Control [note 3] HG EMER Select for Gas Emergency Heat

9 Reversing Valve REVO REVO Select for cool active Reversing Valve (O terminal)

(O/B Terminal) [note 4] REVB Select for heat active Reversing Valve (B terminal)

10 Fossil Fuel AE AUX AE AUX Select for Electric Auxiliary heat (with compressor)

Backup Heat [note 3] AG AUX Select for Gas Auxiliary heat (without compressor)

Installer Settings

9 Installer Guide

NOTE: Shaded areas below do not apply to the 3020.

No. Installer Setting Factory Setting Comments

(Notes follow this table) Default Options (More information follows this table)

ompressor Power Outage

oF CPOP oF CPOP Disables Power Outage Lockout Delay

Protection [notes 3, 5] on CPOP Enables Power Outage Lockout Delay

12 AC Power Interrupt

AC oF MONR

AC oF MONR Disables AC Power Interrupt Warning

Warning [note 5] AC on MONR Enables AC Power Interrupt Warning

13 Compressor Short 5 CSCP 5, 4, 3, 2 or Select a compressor short cycle protection delay

Cycle Protection [note 6] 0 CSCP of 5, 4, 3, 2 or 0 minutes

14 Residual Cooling 60 FAN 90, 60, 30 Select a Residual Cooling Fan Delay of 90, 60,

Fan Delay [note 6] or 0 FAN 30 or 0 seconds.

15 Circulating Fan Lock oF CIRC oF CIRC Disables Circulating Fan Lock mode

on CIRC Enables Circulating Fan Lock mode

16 Indoor Remote Sensor I SENS I SENS Temperature is sensed from thermostat only.

Control* [note 7] E SENS Temperature is sensed from remote sensor only.

A SENS Temperature is combined with the thermostat

and the remote sensor.

17 Lockout Security Level 2 LOCK 2 LOCK If locked – Complete lockout is enabled

1 LOCK If locked – Partial lockout is enabled (SpeedBar

is still functional)

18 Auto Changeover 3 BAND 2, 3, 4 or 5Select a Dead Band of 2°, 3°, 4° or 5˚ F

Dead Band [note 8] BAND

(1.0°, 2.0° or 3.0° C) for Auto Changeover mode.

19 Compressor Balance NO BALC NO BALC Disables Balance Points

Point [notes 3, 9] 15-50 BALC Select a Compressor Balance Point of 15°- 50°F

(-9°-10° C)

20 Auxiliary Heat Balance NO BALA NO BALA Disables Balance Points

Point [notes 3, 9]

70-40 BALA

Select a Auxiliary Heat Balance Point of 70°- 40° F

(21°- 4.0° C)

Heat Set Point Upper Limit

90LIM 90-60 LIM

Select a Heat Set Point Upper Limit of 90°-60° F

(32°-10° C)

Cool Set Point Lower Limit

45LIM 45-80 LIM

Select a Cool Set Point Lower Limit of 45°-80° F

[note 6] (7.0°-27° C)

*When a Braeburn

outdoor sensor is connected, the thermostat automatically recognizes it. Press BACK and NEXT at the same

time to display outdoor temperature.

NOTE: Additional options such as Service Monitors, Setting the lock code, etc. are located in the User Settings –

See User manual for information on setting these options.

NOTES - Installer Settings

1Only available if a 2 or 3 stage system type was selected in option 3.

2Only available if a Conventional system was selected in option 3.

3Only available if a 2 or 3 stage Heat Pump system was selected in option 3.

4Only available if a Heat Pump system was selected in option 3.

5Only available if the 24 Volt AC common wire is connected to the C terminal.

6Not available if a Heat Only Hydronic system is selected in option 3.

7Only available if a Braeburn®indoor remote sensor was connected.

8Only available if auto changeover was enabled in option 2.

9Only available if a Braeburn outdoor sensor was connected.

Detailed Explanation of Installer Settings (also see NOTES above):

1Temperature Scale – Selects a temperature scale of either °F or °C.

2Auto Changeover – Selects auto changeover on or off. When auto changeover mode is enabled and

selected, the system automatically switches between heating and cooling modes. There is a 5 minute delay

when switching from heating to cooling or cooling to heating in auto changeover mode.

NOTE: Also see “Auto Changeover Dead Band” in option 18.

Installer Guide 10

Autres manuels pour Premier Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Braeburn Thermostat

Braeburn

Braeburn Premier Series Manuel utilisateur

Braeburn

Braeburn 6100 Instructions de montage

Braeburn

Braeburn Builder 1000NC Manuel utilisateur

Braeburn

Braeburn Builder Series Manuel utilisateur

Braeburn

Braeburn 5200 Manuel utilisateur

Braeburn

Braeburn Premier 5400 Manuel utilisateur

Braeburn

Braeburn 3000 Manuel utilisateur

Braeburn

Braeburn 4030 Manuel utilisateur

Braeburn

Braeburn Premier Series Manuel utilisateur

Braeburn

Braeburn 5970 Manuel utilisateur

Braeburn

Braeburn 3220 Manuel utilisateur

Braeburn

Braeburn 7320 Manuel utilisateur

Braeburn

Braeburn Economy Series Guide de l'utilisateur

Braeburn

Braeburn 2020NC Manuel d'utilisation et d'entretien

Braeburn

Braeburn BlueLink 7205 Instructions de montage

Braeburn

Braeburn 2100 Manuel utilisateur

Braeburn

Braeburn Premier 5100 Manuel utilisateur

Braeburn

Braeburn 1020 Instructions d'utilisation

Braeburn

Braeburn Builder 1010 Manuel utilisateur

Braeburn

Braeburn Builder 1200NC Manuel d'utilisation et d'entretien

Braeburn

Braeburn 3020 Manuel utilisateur

Braeburn

Braeburn 1025NC Manuel d'utilisation et d'entretien

Braeburn

Braeburn 5970 Manuel utilisateur

Braeburn

Braeburn 3020 Instructions de montage

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
