BOXLIGHT Pro5000SL Manuel utilisateur

NE 151 Highway 300, Suite A

PO Box 2609

Belfair, WA 98528

360.464.2119

www.boxlight.com

Pro5000SL

About this manual .....................1

Contents........................................2

Projector features.......................3

Preparations.................................3

Contents of package.........................3

Part names....................................4

Projector............................................4

Control panel ....................................5

Remote control .................................5

Picture menu(PC mode)......................21

Picture menu(Video mode).................22

Audio menu.........................................23

Setting menu(PC mode).....................24

Setting menu(Video mode).................25

Advanced menu..................................26

Logo Setting.................................26-A

Logo Capture................................26-B

Presentation menu..............................27

Security menu......................................28

Auto filter alert..................................30

PIN Key in operation...........................31

Setting up......................................6

Arrangement.....................................6

Connecting your devices..................8

Connecting power supply................10

Using the security anchor................10

Using the hiding-style Handle..........11

Remote control..........................12

Putting batteries..............................12

About the remote control signal......13

Using as a simple PC mouse &

keyboard.........................................13

Power on/off...............................14

Turning on the power......................14

Turning off the power......................14

Operating....................................15

Adjusting the volume......................15

Adjusting the mute..........................15

Selecting an input signal.................15

Searching an input signal...............16

Selecting an aspect ratio................16

Adjusting the image position..........17

Adjusting the zoom and focus........17

Correcting the keystone

distortions

........................................18

Stilling the Screen...........................19

Temporarily blanking the screen.....19

Using the menu function.................20

Maintenance...................................32

Lamp....................................................32

Lamp Warning...................................33

Air filter................................................34

Other care...........................................35

Troubleshooting............................36

Appendix

Contents

Regarding the indicator lamps............36

Mistaken for machine defects.............37

List of supported Monitor Display.......39

Ceiling Mounted Installation Guide.....40

PIN code number memo.....................41

1. Design with 3LCD optical system, provide you：Bright image, natural color,

smooth video playback and gentle for your eyes.

2. Design with high efficiency dust air filter and Auto Filter Alert. (See P30)

3. Easy to maintenance design function.(See P32~35)

4. Security PIN Lock function. (See P29)

5. Progressive scans accommodating for High-definition 1080i form.

6. Auto V keystone function, +/- 30 degrees.

7. Auto brightness control.

8. Auto ceiling function.

9. Support DVI ,YPbPr ,Composite Video and S-Video signal. (See P8)

10. Hiding-Style Handle to carry the projector easily. (See P11)

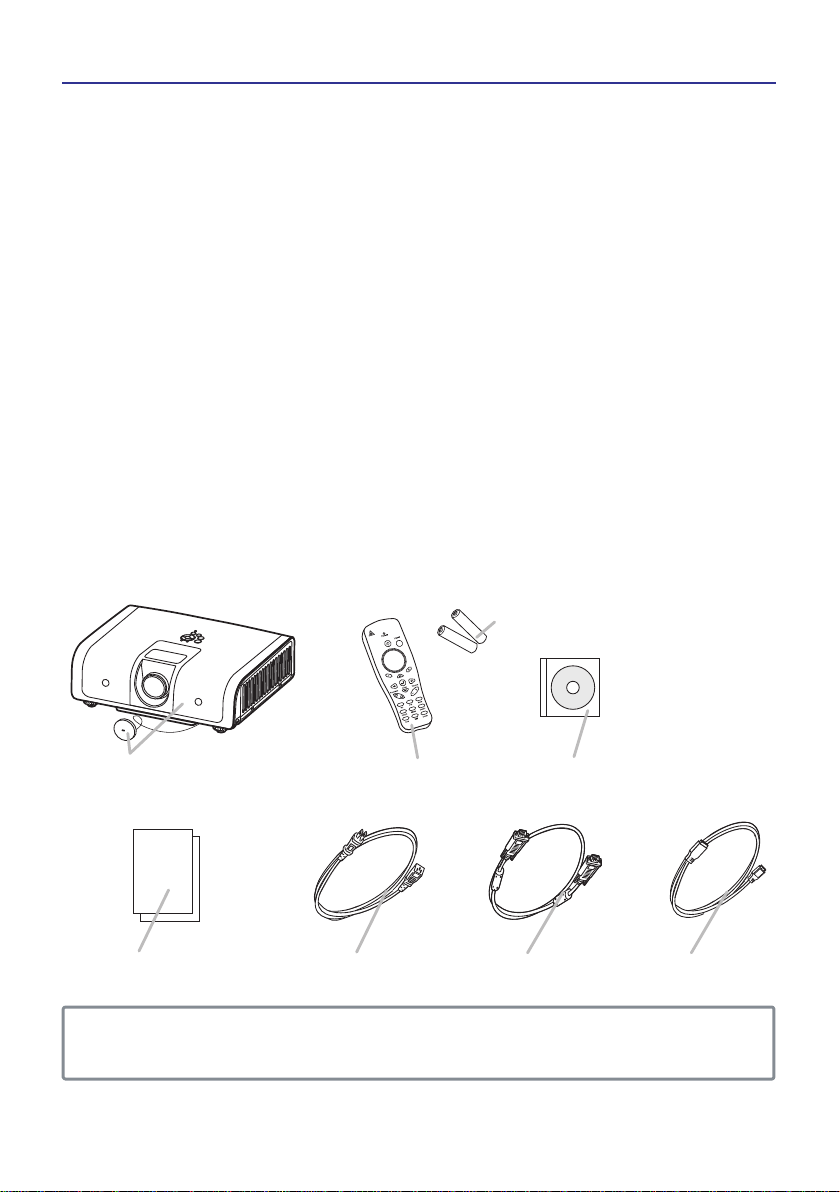

Contents of package( Before Use )

Your projector should come with the items shown there. Contact immediately

your dealer if anything is missing.

Projector features

Preparations

NOTE ► Keep the original packing materials, for future reshipment.

Be sure to use the original packing materials when moving the projector.

(1)Projector and Lens Cap (2)Remote control

(3)Battery (for Remote Control use)

(4)User’s Manual (CD)

(5)Quick Start Guide (6)Power Cable (7)VGA Cable (7)USB Cable

Part names

Projector

(1) Lamp Cover

The lamp is inside.

(2) Focus ring(SEE P17)

(3) Zoom ring(SEE P17)

(4) Control panel(SEE P5)

(5) Speaker

(6) Adjustable knobs (x 2)

(7) Adjustable feet (x 2)

(8) Lens Cap

(9) Lens cover

(10) Intake vents

(11) Filter cover

The air filter is inside.

(12) Front IR receiver

(13) Security anchor(SEE P10)

(14) AC inlet(SEE P10)

(15) S-VIDEO port(SEE P16)

(16) AUDIO L/R port(SEE P8)

(17) VIDEO port(SEE P8)

(18) COMPUTER IN1 port(SEE P8)

(19) COMPUTER IN2 / DVI port(SEE P8)

(20) USB port(SEE P13)

(21) AUDIO 1 IN port(SEE P8)

(22) AUDIO 2 IN port(SEE P8)

(23) AUDIO OUT port (SEE P8)

(24) MONITOR OUT port

(25) YPbPr port (SEE P16)

&(26) L-AUDIO IN-R port(SEE P8)

(28) RS-232C port(SEE P8)

(29) LAN port (Optional)(SEE P8)

ARNING HOT! :

Do not touch the lamp cover and the outlet vents during use or just after use,

since it is too hot.

Do not look into the lens or vents while the lamp is on, since the strong light

is not good for your eyes.

CAUTION

Maintain normal ventilation to prevent the projector from heating up. Do not cover,

block or plug up the vents. Do not place anything that can stick or be sucked to the

vents, around the intake vents. Change the air filter periodically.

Do not use the security anchor to prevent the projector from falling down, since it

is not designed for it.

(1) HOT!

(3) (2)

(4)

(5)

(6) (7) (8)

(9)

(10)

(11)

(13)

(22) (18)

(19)

(20)

(14)

(15) (17) (16)

(25)&(26)

(24)

(12)

(23)

(21) (28) (29)

Part names

Control panel

(1) ON/STANDBY button(SEE P14)

(2) AUTO button(SEE P15)

(3) INPUT button(SEE P15)

(4) BLANK button

(5) KEYSTONE button

(6) MENU button(SEE P16)

(7) MENU-Left/Right

MENU-Up/Down

(8) POWER indicator(SEE P10,P14)

(9) LAMP indicator (SEE P14)

Remote control

(1) Power button.(SEE P14)

(2) Point button.

(3) Mouse Left button.

(4) Menu-up button / Menu-down button.

(5) Menu button.

(6) Keystone up /down button.

(7) PC button.(SEE P15)

(8) Video button.(SEE P16)

(9) Auto button.(SEE P15)

(10) Blank button.

(11) Still button.

(12) Zoom in / Zoom out button.(SEE P17)

(13) Mute button.(SEE P15)

(14) Volume up / down button.(SEE P15)

(15) Menu-left button / Menu-right button.

Menu-up button / Menu-down button.

(SEE P16)

(16) Mouse Right button.

(17) Laser pointer button.

(1)

(2)

(3) (4)

(5)

(6)

(7)

(9)(8)

(1)

(3)

(2)

(5)

(15)

(6)

(7)

(8)

(9)

(10) (11)

(4)

(17)

(16)

(13)

(12)

(14)

Video

Setting up

Install the projector according to the environment and manner the projector will

be used in.

Arrangement

Tele Wide Tele Wide

Screen size

(inch) Distance (m) Distance (feet)

100

200

300

1.50

2.23

2.60

2.97

3.70

7.37

11.04

1.24

1.85

2.15

2.45

3.06

6.10

9.14

4.91

7.32

8.52

9.73

12.14

24.18

36.22

4.06

6.06

7.05

8.05

10.04

20.01

29.97

M M

The distance between the projector and screen determines the actual image size.Refer to

this table, in case of 4:3 aspect ratios. The values M shown in the table are calculated for

a full size screen.

NOTE

► Allowing the proper amount of space on the top, sides, and rear of the

projector cabinet is critical for proper air circulation and cooling of the unit. When in

against at wall, leave about 20cm (7.9in.) between the projector and the wall.

Screen size (diagonal)

Projection distance

Screen height

On a horizontal surface Suspended from the ceiling

Lens center

Screen

Side view

Setting up

WARNING

• Place the projector in a stable horizontal position.

If the projector falls or is knocked over it could cause injury and/or damage

to the projector. Using a damaged projector could then result in ﬁre and/or

electric shock.

(1) Do not place the projector on an unstable, slanted or vibrational surface

such as a wobbly or inclined stand.

(2) Do not place the projector on its side, front or rear position.

(3) Consult with your dealer before a special installation such as suspending

from a ceiling.

• Place the projector in a cool place, and ensure that there is sufﬁcient

ventilation. The high temperature of the projector could cause ﬁre, burns and

/or malfunction of the projector.

(1) Do not stop-up, block or otherwise cover the projector's vents.Keep a

space of 20 cm or more between the sides of the projector and other

objects such as walls.

(2) Do not place the projector on metallic thing or anything weak in heat.

(3) Do not place the projector on carpet, cushions or bedding.

(4) Do not place the projector in direct sunlight or near hot objects such as

heaters.

(5) Do not place anything near the projector lens or vents, or on top of the

projector.

(6) Do not place anything that may be sucked into or stick to the vents on

the left of the projector. This projector has some intake vents also on the

left.

• Avoid placing the projector in smoky, humid or dusty place.

• Do not place the projector anyplace where it may get wet. Getting the

projector wet or inserting liquid into the projector could cause ﬁre, electric

shock and/or malfunction of the projector.

(1) Do not place the projector in a bathroom or the outdoors.

(2) Do not place anything containing liquid near the projector.

CAUTION

Placing the projector in such places could cause ﬁre, electric shock and/or

malfunction of the projector.

(1) Do not place the projector near humidiﬁers, smoking spaces or a kitchen.

(2) Position the projector to prevent light from directly hitting the projector's

remote sensor.

Setting up

Connecting your devices

Be sure to read the manuals for devices before connecting them to the projector

Make sure that all the devices are suitable to be connected with this product, and

prepare the cables required to connect. Please refer to the following illustrations

to connect them.

LANS

(Optional Function)

Audio out Monitor in Monitor in

RS-232C USB Audio out

Audio out

VGA out

DVI outVGA out

VCD/DVD PlayerSpeaker

Audio out (L)&(R) Audio out (L)&(R)Video outS-video out Y Pb/Cb Pr/Cr

Setting up

Connecting your devices(Continue)

WARNING ►Do not disassemble or modify the projector and accessories.

►Be careful not to damage the cables, and do not use damaged cables.

CAUTION ►Turn off all devices and unplug their power cords prior to

connecting them to projector. Connecting a live device to the projector may

generate extremely loud noises or other abnormalities that may result in

malfunction or damage to the device and the projector.

►Use appropriate accessory or otherwise designed cables. Ask your dealer

about non-accessory cables which may have other length or equipped with

a core. For cables with a core only at one end, connect the end with the core

to the projector.

►Make sure that devices are connected to the correct ports. An incorrect

connection may result in malfunction or damage to the device and the

projector.

NOTE ►Be sure to read the manuals for devices before connecting them to the

projector, and make sure that all the devices are suitable to be connected with this

product. Before connecting to a PC, check the signal level, the signal timing, and the

resolution.

- Some signal may need an adapter to input this projector.

- Some PCs have multiple screen display modes that may include some signals which

are not supported by this projector.

-The best display performance will be achieved if the resolutions of the input signal

and the projector panel are identical.

►While connecting, make sure that the shape of the cable's connector ﬁts the port to

connect with. And be sure to tighten the screws on connectors with screws.

►When connecting a laptop PC to the projector, be sure to activate the PC’s external

monitor(RGB) output. (Set the laptop PC to CRT display or to simultaneous LCD and

CRT display.) For details on how this is done, please refer to the instruction manual of

the corresponding laptop PC.

►In some cases, this projector may not display a proper picture or display any picture

on screen. For example, automatic adjustment may not function correctly with some

input signals. An input signal of composite sync may confuse this projector, so the

projector may not display a proper picture.

Setting up

Connecting power supply

WARNING

►Please use extra caution when connecting the power cord, as incorrect or

faulty connections may result in ﬁre and/or electrical shock.

►Only use the power cord that came with the projector. If it is damaged,

contact your dealer soon.

►Only plug the power cord into an outlet rated for use with the power cord's

speciﬁed voltage range. The power outlet should be close to the projector

and easily accessible. Remove the power cord for complete separation.

►Never modify the power cord.

Using the Security Anchor

WARNING

►Do not use the security anchor to prevent the projector from falling down or

held, since it is not designed for it.

NOTE ►The security anchor is not comprehensive theft prevention measures.

It is intended to be used as supplemental theft prevention measure.

Outlet

AC inlet

1.Connect the connector of the power cord

to the AC inlet of the projector.

2.Firmly plug the power cable’s plug into

the outlet.The POWER indicator will

begin blinking in green.The projector

work on stand by mode.

POWER indicator

Security Anchor

The product has design security

anchor and PIN LOCK functions

(SEE P31)to help prevent

unauthorized removal projector.

Table des matières

Autres manuels BOXLIGHT Projecteur

BOXLIGHT

BOXLIGHT N12 BNW Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-315t Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-300t Manuel utilisateur

BOXLIGHT

BOXLIGHT P12 Manuel d'instructions d'installation

BOXLIGHT

BOXLIGHT SP-50m Manuel utilisateur

BOXLIGHT

BOXLIGHT SP-45m Manuel utilisateur

BOXLIGHT

BOXLIGHT Cambridge X33N Manuel utilisateur

BOXLIGHT

BOXLIGHT ProjectoWrite Manuel utilisateur

BOXLIGHT

BOXLIGHT KVU600 Manuel utilisateur

BOXLIGHT

BOXLIGHT Seattle X30N Manuel utilisateur

BOXLIGHT

BOXLIGHT AYW502 Manuel utilisateur

BOXLIGHT

BOXLIGHT XD-17k Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-18t Manuel utilisateur

BOXLIGHT

BOXLIGHT Cinema 17SF Manuel utilisateur

BOXLIGHT

BOXLIGHT CINEMA 20HD Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-58i Manuel utilisateur

BOXLIGHT

BOXLIGHT FP-95t Manuel utilisateur

BOXLIGHT

BOXLIGHT ProjectoWrite5 Manuel utilisateur

BOXLIGHT

BOXLIGHT P9 WX33NST Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-38t Manuel utilisateur

BOXLIGHT

BOXLIGHT CD-727x Manuel utilisateur

BOXLIGHT

BOXLIGHT Projector Manuel utilisateur

BOXLIGHT

BOXLIGHT Seattle X22N Manuel utilisateur

BOXLIGHT

BOXLIGHT XD-9m Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
