BOXLIGHT CD-40m Manuel utilisateur

BOXLIGHT CD-40m

USERS GUIDE

Free phone within these areas:

United Kingdom: 0800-762-575

Germany: 0800-180-8381

France: 0800-9132-88

USA and Canada: 800-762-5757

Direct Phone:

USA: (360) 779-7901

Europe: +44 (0) 1732-840-404

19332 Powder Hill Place

Poulsbo, WA 98370-7407 USA

www.boxlight.com

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communi-

cations. Operation of this equipment in a residential area is likely to cause harm-

ful interference in which case the user will be required to correct the interference

at his own expense.

DOC (Canada)

This Class A digital apparatus meets all requirements of the Canadian Interfer-

ence-Causing Equipment Regulations.

Cet appareil numerique de la classe A respecte toutes les exigences du Reglement

sur le materiel brouilleur du Canada.

Safety Certifications

UL, CUL, TÜV, NOM

EN 55022 Warning

This product is intended for use in a commercial, industrial, or educational envi-

ronment. It is not intended for residential use.

This is a Class A product. In a domestic environment it may cause radio interfer-

ence, in which case the user may be required to take adequate measures. The typ-

ical use is in a conference room, meeting room or auditorium.

Wenn das Produkt CD-40m in Deutschland verkauft wird, muss es Umwelt ges-

chuetzt sein. (Klasse B) Dieses Product muss mit dem Bundesamt fuer Post und

Telekommunikation registriert sein. (BAPT)

Declaration of Conformity

Boxlight

19332 Powder Hill Place, Poulsbo, Washington, 98370-7407, USA

We declare under our sole responsibility that the CD-40m Projector conforms to

the following directives and norms:

Directive 89/336/EEC, Amended by 93/68/EEC

EMI: EN 55022 (1992) Class A

EMC: EN 50082-1 (1992)

IEC 801-2, IEC 801-3, IEC 801-4

Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 1992 + A1 + A2 + A3: 1995

February, 1999

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of

Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of

International Business Machines, Inc. MicroSaver and Kensington are trademarks

or registered trademarks of Kensington Microware Limited. Microsoft, Power-

Point, and Windows are trademarks or registered trademarks of Microsoft Corpo-

ration. Digital Light Processing is a trademark or registered trademark of Texas

Instruments. CablePro is a trademark or registered trademark of Boxlight.

TABLE OF CONTENTS

Safety Instructions iii

Introduction 1

Image Resolution 1

Compatibility 1

Unpacking the Projector 1

Usage Guidelines 3

If You Need Assistance 4

Warranty 4

Setting up the Projector 5

Connecting an IBM-Compatible Computer 7

Connecting a Macintosh Computer 8

Connecting a Video Player 9

Powering up the Projector and Adjusting the Image 11

Turning Off the Projector 12

Using the Projector 13

Basic Image Adjustment 13

Adjusting the Projector 13

Using the Keypad Buttons 15

Using the On-Screen Menus 17

Display Menu 18

Audio Menu 20

Image Menu 21

Controls Menu 23

Language Menu 25

Status Menu 26

Maintenance & Troubleshooting 29

Cleaning the Lens 29

Replacing the Projection Lamp 29

Using the Kensington Lock 32

Troubleshooting 33

Table of Contents

Appendix 37

Specifications 37

Accessories 39

Portable and Laptop Activation Chart 41

Using Video Mirroring with a PowerBook Computer 46

Projected Image Size 47

Index 49

iii

SAFETY INSTRUCTIONS

Please read and follow all safety instructions provided BEFORE

using your new projector. Failure to comply with safety instruc-

tions may result in fire, electrical shock, or personal injury and

may damage or impair protection provided by equipment. Please

save all safety instructions.

Safety Definitions:

•Warning: Statements identify conditions or practices that

could result in permanent personal injury.

•Caution:Statements identify conditions or practices that could

result in damage to your equipment.

Safety Symbols:

Attention:For information about usage of a feature, please

refer to the User’s Guide.

Warning: Hot surface. Do not touch.

An arrow pointing to the lamp door on the projector.

Safety Terms:

•Warning: Don’t look directly into the lens when the projector is

turned on.

•Warning: Don’t block ventilation openings.

•Warning: To replace the lamp, turn the power off and

unplug the power cord. To avoid burns, wait 30 minutes

before opening the lamp door. Follow all instructions provided

in this User’s Guide.

•Warning: Please use the power cord provided. Connect

the power cord to a receptacle with a protective safety

(earth) ground terminal.

•Warning: Refer all service to qualified service personnel. Ser-

vicing your own projector will void the warranty. See the fol-

lowing page for the customer service contact information.

Safety Instructions

•

Caution: Don’t set liquids on the projector. Spilled liquids may

damage your projector.

•Caution:Don’t place the projector on a hot surface or in direct

sunlight.

•Caution: Do not drop the projector. Transport the projector in a

Boxlight-approved case; see page 40 for a list of cases.

•Caution: For ceiling mount installations, please use the ceiling

mount recommended in this User’s Guide on page 40 and fol-

low all instructions provided with it.

Customer Service

If you need assistance, call Boxlight at 1-800-762-5757 or

360-779-7901.

INTRODUCTION

The Boxlight CD-40m™ is specifically designed for the mobile

presenter. It packs SVGA graphics with 16.7 million colors into a

small, 6.8 pound package. It generates crisp, clear images using

Digital Light Processing™ (DLP) technology. The projector is

easy to connect, easy to use, and easy to maintain.

NOTE: The projector automati-

cally expands 640x480 images to

800x600. You can display these

images at 640x480 by turning off

the Auto Resize feature. See “Auto

Resize” on page 21 for more infor-

mation.

Image Resolution

The SVGA resolution of the CD-40m’s projected image is

800x600. Screen resolutions between 800x600 and 1024x768 are

compressed to 800x600. The projector cannot compress screen

resolutions above 1024x768. If your computer’s screen resolution

is higher than 1024x768, reset it to a lower resolution before you

connect the projector.

Compatibility

The projector is compatible with a wide variety of computers and

video devices, including:

•IBM-compatible computers, including laptops, up to 1024x768

resolution.

•Apple Macintosh and PowerBook computers up to 1024x768

resolution.

•Most standard VCRs, DVD players, camcorders and laser disc

players.

Unpacking the Projector

NOTE: The projector ships stan-

dard with computer and audio

cables. If you want to control your

computer’s mouse from the projec-

tor, you must order the optional

CablePro and remote.

The projector comes with the items shown in Figure 1. Check to

make sure all are included. Contact Boxlight immediately if

anything is missing.

If you are experienced in setting up presentation systems, use the

Quick Start card that was included in the shipping box. For com-

plete details on connecting and operating the projector, refer to

this User’s Guide.

Introduction

NOTE: The contents of your

shipping box may vary depending

on the projector configuration

you’ve ordered.

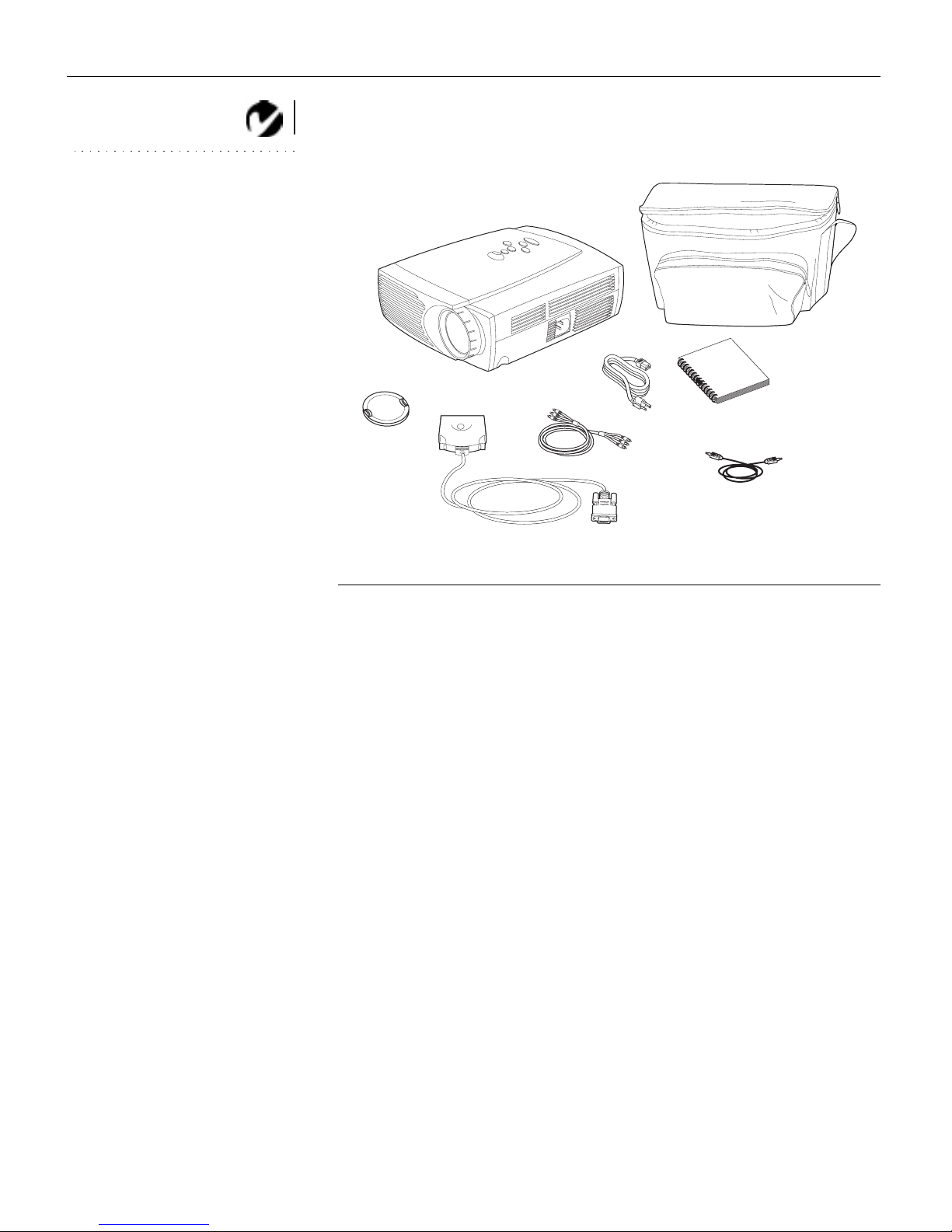

FIGURE 1

Shipping box contents

1. CD-40m projector 5. RCA audio/video (A/V) cable

2. Soft carry case 6. Audio cable

3. CD-40m User’s Guide 7. CablePro Lite cable

4. Power cord 8. Lens cap

FIGURE 2

Side view of projector

Usage Guidelines

•Do not look directly into the projection lens when the projector

is turned on. The bright light may harm your eyes.

•Do not block the grills on the projector. Restricting the air flow

can cause it to overheat and turn off. If this happens, you must

wait a minute before attempting to turn it back on.

•Handle the projector as you would any product with glass

components. Be especially careful not to drop it.

•Avoid leaving the projector in direct sunlight or extreme cold

for extended periods of time. If this happens, allow it to reach

room temperature before use.

•This projector is not intended for use in mainframe computer

rooms as defined in the Standard for the Protection of Elec-

tronic Computer/Data Processing Equipment, ANSI/NFPA 75.

•Transport the projector in a vendor-approved hard or soft case.

Call Boxlight to order.

connector panel

speaker

focus ring

elevator button

power

cord

connector

keypad

power switch
