Bowflex Conquest Manuel utilisateur

The Bowflex Conquest™

Home Gym

Assembly Instructions

WWWBOWFLEXCOM

P/N 001-6841 Rev C (04/2007)

Before You Start.......................................................................................... 2

Tools You Will Need / Hardware Chart ........................................................ 3

Parts List ................................................................................................... 4

Weight and Multi-carton Box Contents ............................................ 5

Assembling Your Bowflex Conquest™Home Gym ..................................... 6

Contact Information.................................................................................. 15

Table of Contents

BeforeYou Assemble

Select where you are going to locate your Bowflex Conquest™home gym carefully. The best place for your

Bowflex Cnquest™home gym is on a hard, level surface. For best results, assemble your Bowflex Conquest™

home gym in the location where you intend to use it. Allow a workout area of at least 8’4”L x 6’6”W (2.6m L x

2m W) of free space for safe operation of the Bowflex Conquest™home gym.

Every effort has been made to provide you with a clear and accurate assembly / owners manual. Should you

find any inconsistencies, have questions about your (model) or have suggestions for improving our manuals,

please call 1-800-NAUTILUS f(628-8458) for assistance.

Basic Assembly Principles

Here are a few basic tips that will make your assembly of the Bowflex Conquest™home gym quick and easy.

By using these principles, you can simplify each process and save yourself extra time and effort.

1. To make the assembly process go faster, gather the pieces you need for each step and thoroughly read

the assembly instructions for that step prior to starting assembly for the step.

2. When tightening a locknut on a bolt, use a combination wrench to grip the locknut and ensure that it is

fastened securely.

3. When attaching two pieces, gently lift and look through the bolt holes to help guide the bolt through the

holes.

4. As a general rule, and for all bolts and nuts on your Bowflex Conquest™home gym, turn bolts or nuts

toward the right to tighten and left to loosen. Or you can remember the mnemonic: “Righty tighty, lefty

loosey.”

Before You Start

Qty 2 Button Head Screws 3/8” X 3”

Qty 14 Button Head Screws 3/8” X 3/4”

Qty 37 Washer 3/8”

Qty 10

Hex Nut 3/8”

Qty 2 Button Head Screws 3/8” X 4”

Qty 1 Button Head Screws 3/8” X 4 1/4”

Qty 2 Button Head Screws 3/8” X 5”

Qty 8 Button Head Screws 5/16” X 3/4”

Qty 8 Washers 5/16”

Qty 2 Button Head Screws 3/8” X 2 3/4”

Qty 2 Button Head Screws 3/8” X 2 1/2”

Qty 3 Washers 1/4”

Qty 3 Self Tapping Screws #10 x 1”

Qty 4 Self Tapping Screws #10 x 3/4”

Qty 2 Button Head Screws 3/8” X 3 1/4”

These Tools Are Not Provided in the Box

Wrench (9/16”) or Adjustable Wrench

(not provided):

Phillips Head Screwdriver

(not provided) :

* Specifications subject to change without notice.

Hex Wrenches Are Provided in the Box

3/16” Hex Key for 5/16” Button Head Screws:

7/32” Hex Key for 3/8” Button Head Screws:

Tools You Will Need

Hardware Chart (1:1 Scale)

Qty 2 Button Head Screws 3/8” X 3”

Qty 14 Button Head Screws 3/8” X 3/4”

Qty 37 Washer 3/8”

Qty 10

Hex Nut 3/8”

Qty 2 Button Head Screws 3/8” X 4”

Qty 1 Button Head Screws 3/8” X 4 1/4”

Qty 2 Button Head Screws 3/8” X 5”

Qty 8 Button Head Screws 5/16” X 3/4”

Qty 8 Washers 5/16”

Qty 2 Button Head Screws 3/8” X 2 3/4”

Qty 2 Button Head Screws 3/8” X 2 1/2”

Qty 3 Washers 1/4”

Qty 3 Self Tapping Screws #10 x 1”

Qty 4 Self Tapping Screws #10 x 3/4”

Qty 2 Button Head Screws 3/8” X 3 1/4”

Bowﬂex Conquest™ Home Gym Parts List

Bench

Qty. 1

Lat Bar

Qty. 1

Squat Bar

Qty. 2

Locking Knob

Qty. 1

Low Row Bar

Qty. 1

Rubber Mat

Qty. 1

Squat Bar Strap

Qty. 2

Grip Ankle Cuff

Qty. 2

Face PLate

Qty. 1

Back Panel

Qty. 2

Squat Platform

Qty. 1

16 1/2” Roller Bar

Qty. 1

Assembled Unit Weight: 154 lbs. [82.1 kg.]

Shipping Box Weight and Contents for Multi-carton Package:

Box 1: Shipping Weight: 15 lbs. [6.8kg.]

210# Rod Pack

Assembly Manual

Owners Manual

Box 2: Shipping Weight: 63 lbs. [28.5kg.]

Front Stabilizer

Bench

Lat Crossbar

Seat Rail

Leg Extension Assembly

Lat Bar

Seat Rail

Seat Roller bracket

Squat Bar

Adjustable Belt

Seat

Low Row Bar

Squat Bar Straps

Box 3: Shipping Weight: 74 lbs. [33.5kg.]

Lower Tower

Upper Tower

Chest Bar

Face Plate

Back Plates

Handle Grips

Grip Ankle Cuffs

Rod Box Mount

Roller Pads

Roller Bars

Snap Hooks

Endcaps

Box 4: Shipping Weight: 52 lbs. [23.5kg.]

Right Stabilizer

Left Stabilizer

Base Crossbar

Squat Platform

Rubber Mat

Base Crossbar

Step 1 Attach Stabilizers to Crossbar

Parts:

• Left and Right Stabilizers

• Base Crossbar

Tools:

• 7/32” Allen wrench

1-1 Insert Left and Right Stabilizers into

the Base Crossbar.

1-2 Install but do not tighten the hardware.

Assembling Your Bowﬂex Conquest™Home Gym

Step 2 Attach Squat Platform To Base Assembly

Parts:

• Base Assembly (from step 1)

• Squat Platform

Tools:

• 7/32” Allen Wrench

• 9/16” Wrench or Adjustable

2-1 Align the tabs on the Squat Platform

with the holes in the Base Assembly.

2-2 Install and completely tighten hardware

from steps 1 and 2.

Left Stabilizer

Right Stabilizer

3/8”x 3/4” Button

Head Screw

3/8”x 3/4” Button

Head Screw

3/8”Washer

Hardware (1:1):

6 Button Head Screw (3/8” X 3/4”) 6 Washer (3/8”)

2 Button Head Screw (3/8” X 3 1/4”) 4 Washer (3/8”) 2 Nylock Nut (3/8”)

Base Assembly

3/8”x 3 1/4” Button

Head Screw

3/8”Washer

3/8” Nylock Nut

Hardware (1:1):

Squat Platform

Step 3 Attach LowerTower to Base Assembly

Parts:

• Base Assembly (from step 2)

• Lower Tower

Tools:

• 7/32” Allen wrench

• 9/16” Wrench or Adjustable

3-1 Align the holes in the Lower Tower with

the holes in the Base Assembly.

3-2 Install and completely tighten the hardware.

LowerTower

3/8”x 3/4” Button

Head Screw

Base Assembly

3/8”x 4” Button

Head Screw

3/8”Washer

Hardware (1:1):

6 Washer (3/8”)

2 Button Head Screw (3/8” X 3/4”)

2 Button Head Screw (3/8” X 4”) 2 Nylock Nut (3/8”)

Step 4 Attach Chest Bar to Lower Tower

Parts:

• Chest Bar

Tools:

• 7/32” Allen wrench

• 9/16” Wrench or Adjustable

4-1 With the pulleys pointing up, align the holes in the

Chest Bar with the holes in the Lower Tower.

4-2 Install and completely tighten the hardware.

Hardware (1:1):

4 Washer (3/8”)

2 Button Head Screw (3/8” X 5”) 2 Nylock Nut (3/8”)

3/8”Washer

3/8” x 5” Button

Head Screw

3/8” Nylock Nut

Assembling Your Bowﬂex Conquest™Home Gym

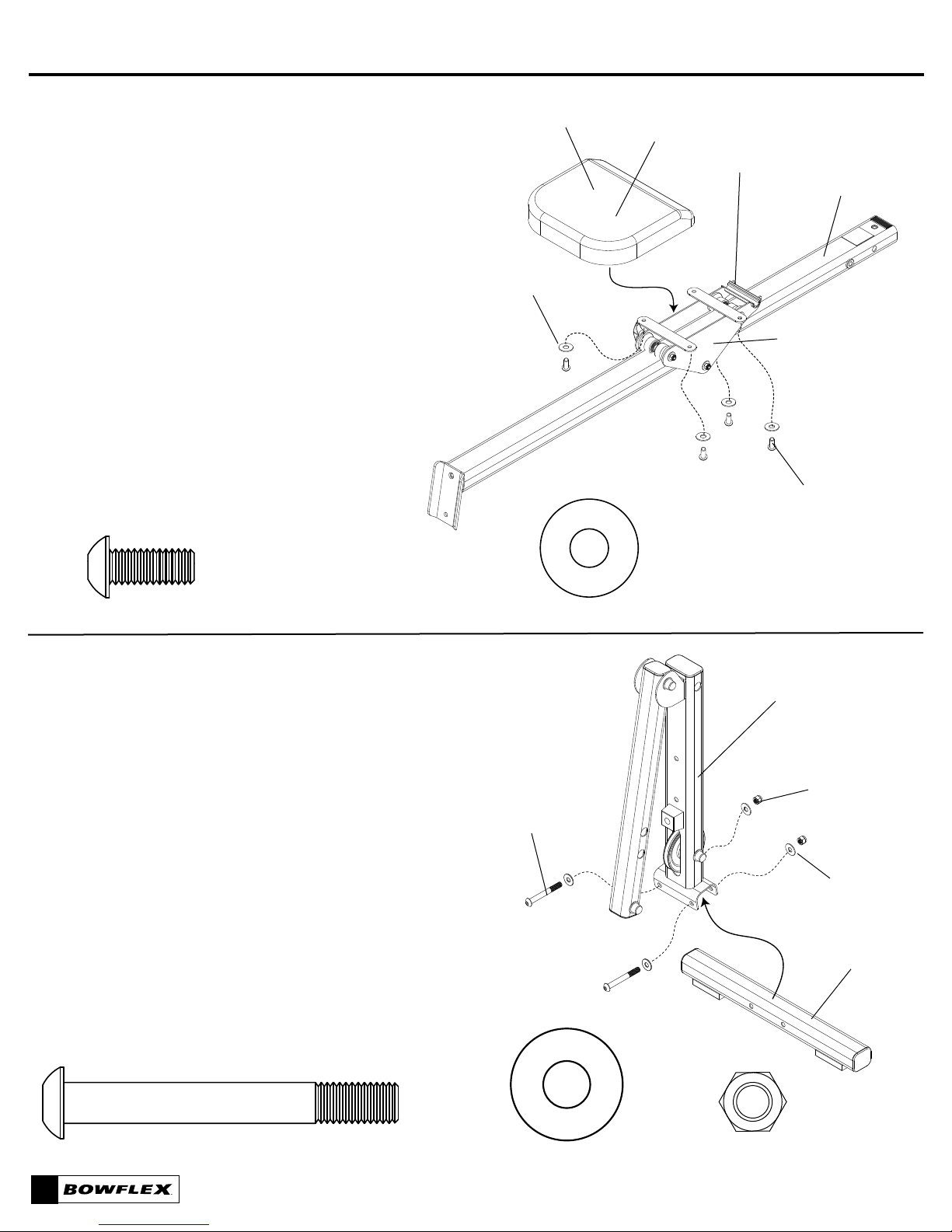

Step 5 Attach Seat to Seat Roller Bracket

Parts:

• Seat

• Seat Rail with Seat Roller Bracket

Tools:

• 3/16” Allen wrench

5-1 Align Seat with holes in Seat Roller Bracket.

Make sure the beveled edge of the Seat is

pointing toward the U shaped channel on

the Seat Roller Bracket.

5-2 Install and completely tighten hardware.

Step 6 Attach Front Stabilizer to Leg Extension Assembly

Parts:

• Leg Extension Assembly

• Front Stabilizer

Tools:

• 7/32” Allen Wrench

• 9/16” Wrench or Adjustable

6-1 Align the holes in the Front Stabilizer with

the holes in the Leg Extension Assembly.

6-2 Install and completely tighten hardware.

Seat

5/16”x 3/4” Button

Head Screw

Hardware (1:1):

4 Button Head Screw (5/16” X 3/4”) 4 Washer (5/16”)

2 Button Head Screw (3/8” X 3”) 4 Washer (3/8”) 2 Nylock Nut (3/8”)

Hardware (1:1):

Seat Rail

Seat Roller Bracket

5/16”Washer

Beveled Edge

U shaped Channel

3/8”x 3”

Button Head

Screw

3/8”Washer

3/8” Nylock Nut

Leg Extension Assembly

Front Stabilizer

Assembling Your Bowﬂex Conquest™Home Gym

Step 7 Attach LowerTower to Base Assembly

Parts:

• Seat Rail Assembly (from step 5)

• Leg Extension Assembly (from step 6)

Tools:

• 7/32” Allen wrench

• 9/16” Wrench or Adjustable Wrench

7-1 Align the holes in the Seat Rail with the

holes in the Leg Extension Assembly.

7-2 Install and completely tighten

the hardware

Hardware (1:1):

3 Washer (3/8”)

2 Button Head Screw (3/8” X 2 3/4”) 1 Nylock Nut (3/8”)

Step 8 Attach Seat Rail

Parts:

• Seat Rail Assembly (from step 7)

• Locking Knob

Tools:

• 7/32” Allen wrench

• 9/16” Wrench or Adjustable Wrench

8-1 Remove twist tie holding bushings

in seat rail.

8-2 Align bushings in Seat Rail with

holes in Seat Rail Bracket.

8-3 Install hardware and tighten but allow seat rail to pivot freely.

8-4 Install Locking Knob.

Hardware (1:1):

2 Washer (3/8”)

1 Button Head Screw (3/8” X 4 1/4”) 1 Nylock Nut (3/8”)

3/8” Nylock Nut

3/8”x 2 3/4”

Button Head

Screw

3/8”Washer

Seat Rail Assembly

Leg Extension Assembly

3/8”x 4 1/2”

Button Head

Screw

3/8”Washer

Seat Rail Assembly

3/8” Nylock Nut

Locking Knob

Bushing

Assembling Your Bowﬂex Conquest™Home Gym

Step 9 Attach Lat Crossbar to Upper Tower

Parts:

• Upper Tower

• Lat Crossbar

Tools:

• 7/32” Allen wrench

9-1 Make sure hooks on Lat Crossbar are

pointing up and Align holes in Lat Bar with

holes in Upper Tower.

9-2 Install and completely tighten hardware.

Step 10 Attach UpperTower Assembly (from step 9)

Parts:

• Upper Tower Assembly

Tools:

• 7/32” Allen Wrench

10-1 Insert Upper Tower into Lower Tower.

10-2 Install and completely tighten hardware.

Hardware (1:1):

2 Button Head Screw (3/8” X 2 1/2”)

6 Button Head Screw (3/8” X 3/4”) 6 Washer (3/8”)

Hardware (1:1):

2 Washer (3/8”)

3/8”x 2 1/4”

Button Head

Screw

3/8”Washer

Lat Crossbar

UpperTower

3/8”x 3/4”

Button Head

Screw

3/8”Washer

LowerTower

UpperTower

Assembling Your Bowﬂex Conquest™Home Gym

Autres manuels pour Conquest

Table des matières

Autres manuels Bowflex Salle de sport à domicile

Bowflex

Bowflex ULTIMATE 2 Manuel utilisateur

Bowflex

Bowflex ULTIMATE 2 Manuel utilisateur

Bowflex

Bowflex The BOWFLEX Xtreme2 Manuel utilisateur

Bowflex

Bowflex Bowflex Sport Manuel utilisateur

Bowflex

Bowflex ElitePlus Manuel utilisateur

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

Bowflex

Bowflex Motivator 2 Manuel utilisateur

Bowflex

Bowflex Conquest Manuel utilisateur

Bowflex

Bowflex PR3000 Manuel utilisateur

Bowflex

Bowflex PR1000 Manuel utilisateur

Bowflex

Bowflex SelectTech 3.1 Manuel utilisateur

Bowflex

Bowflex Bowflex Xtreme 2 SE Manuel utilisateur

Bowflex

Bowflex Blaze Manuel utilisateur

Bowflex

Bowflex Xceed Plus Manuel utilisateur

Bowflex

Bowflex Bowflex Xtreme 2 SE Manuel utilisateur

Bowflex

Bowflex ULTIMATE 2 Manuel utilisateur

Bowflex

Bowflex PR3000 Manuel utilisateur

Bowflex

Bowflex ULTIMATE Manuel utilisateur

Bowflex

Bowflex Bowflex Xtreme 2 SE Manuel utilisateur

Bowflex

Bowflex Xceed Manuel utilisateur

Bowflex

Bowflex SelectTech 4.1 Manuel utilisateur

Bowflex

Bowflex RevolutionXP 001-7057 Manuel utilisateur

Bowflex

Bowflex SelectTech 5.1 Manuel utilisateur

Bowflex

Bowflex Blaze Manuel utilisateur

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Weider

Weider 8300 Hard Drive Manuel utilisateur

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Weider

Weider 8700 I Guide de démarrage rapide

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Weider

Weider WEMC10161 Manuel utilisateur

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Insportline

Insportline RW600 Manuel utilisateur
