SE3401
EN
Installation Instructions
Wireless (RF)
Point Tracking Transmitter
Bosch Security Systems | 6/03 | 40281E
EN | 2
SE3401 | Installation Instructions | 1.0 General Information
1.0 General Information
The SE3401 Point Transmitter is a magnetic and dry
contact wireless transmitter used for monitoring assets.
The unit is equipped with an internal reed contact for
use with an external magnet assembly (included), a
cover tamper switch, and RF supervision. The SE3401
can accept a supervised dry contact input from an
external device.
1.1 Supervision
Supervision is provided by transmitting a low power
level signal to the receiver every 70 min. if there is no
other activity. All transmissions from the SE3401 send
battery status information to the system.
1.2 Auto Tracking
Once an alarm is initiated, such as the transmitter
moved away from the magnet, the auto tracking feature
begins. The transmitter sends a signal back to the
central console every few seconds, updating its location
for several minutes. To reset the transmitter after an
alarm has been initiated, all device conditions (such as
tamper, loop, or magnet) must be reset to normal.
2.0 Specifications
3.0 Mounting the Point Transmitter
Avoid mounting the point transmitter on
metal surfaces as it can reduce the range of
the unit. Placing the point transmitter on
ferrous metal (iron or steel) surfaces can
affect operation of the magnetic contact.
3.1 Recommended Mounting
1. Position the mounting plate over the desired
location and attach it with the supplied screws.
2. Depending on the product you are using, select the
picture that best describes it to open the cover.
Figure 1: Attach Mounting Plate
1 - Release tab
2 - Mounting holes
M A G N E T
2
1
Table 1: Specifications
Description SE3401 Wireless Point Tracking
Transmitter
Dimensions
(H x W x D)
Transmitter without Mounting Plate:
35 mm x 76.5 mm x 19 mm
(1.4 in. x 3.25 in. x 0.75 in.)
Mounting Plate:
35 mm x 76.5 mm x 3.2 mm
(1.4 in. x 3.25 in. x 0.125 in.)
Operating
Temperature -20°C to +65°C (-4°F to +150°F)
Operating
Voltage Supplied by a 3 VDC lithium battery.
Battery Life Up to five years under normal usage
with the recommended battery types.
Higher usage decreases battery life.
Recommended
Battery Types
Duracell DL 123A,
Energizer EL 123AP, or
Panasonic CR 123A
Compatible
Receivers EA102A-304
Options Magnet-RF-10 Assembly (supplied in
packages of ten) 1 - Insert screwdriver and press here
2 - Push in
Figure 2: Open Cover
2
1
2
1
EN | 3
SE3401 | Installation Instructions |
Bosch Security Systems | 6/03 | 40281E
3.0 Mounting the Point Transmitter
3. Be sure to note the location of the magnet when
mounting the base.
4. Slide the point transmitter over the base to lock it
into place as shown is Figure 3.
5. The point transmitter can be released from the base
by pressing the release tab with a small screwdriver
or a paper clip.
6. For higher security installations, mount the
transmitter using the tamper screw provided (see
Figure 4).
Figure 3: Slide Point Transmitter Over Base
3.2 Mounting Without the Mounting Plate
1. If the battery was installed in the point transmitter,
remove it at this time.
2. Using a small screwdriver, gently lift the printed
circuit board away from the case mounting clips.
You do not need to remove the cover to remove the
board.
3. Rock the board gently to loosen the battery clips
from the case and slide the board away from the
mounting clips near the area where the cover
connects to the base.
4. Mount the point transmitter in the desired location,
taking note the magnet needs to be on the same side
of the case as the reed switch.
Figure 6: Mount Point Transmitter in Desired
Location
1 - Magnet side
2 - Mounting holes
1
2
Figure 5: Lift Printed Circuit Board
Figure 4: Mount Transmitter Using Tamper Screw
1 - Tamper screw
1
Bosch Security Systems | 6/03 | 40281E
EN | 4
SE3401 | Installation Instructions |
3.3 Mounting the Magnet
Mount the magnet as shown in Figure 7. The magnet
must mount within 19 mm (0.75 in.) of the base of the
unit.
4.0 Installing the Battery
4.0 Installing the Battery
Install the recommended type of battery: Duracell
DL123A, Energizer EL123AP, or Panasonic CR123A.
Be sure to observe the polarity.
Figure 7: Mount the Magnet
1 - End view from the opening end
1
Figure 8: Install Battery
1 - Battery
1
EN | 5
SE3401 | Installation Instructions |
Bosch Security Systems | 6/03 | 40281E
5.0 Setting Up Magnetic or
External Contacts
The SE3401 has the capacity to monitor magnetic
and/or dry external contacts. External Normally Closed
(NC) or external Normally Open (NO) contacts can be
monitored.
5.0 Setting Up Magnetic or External Contacts

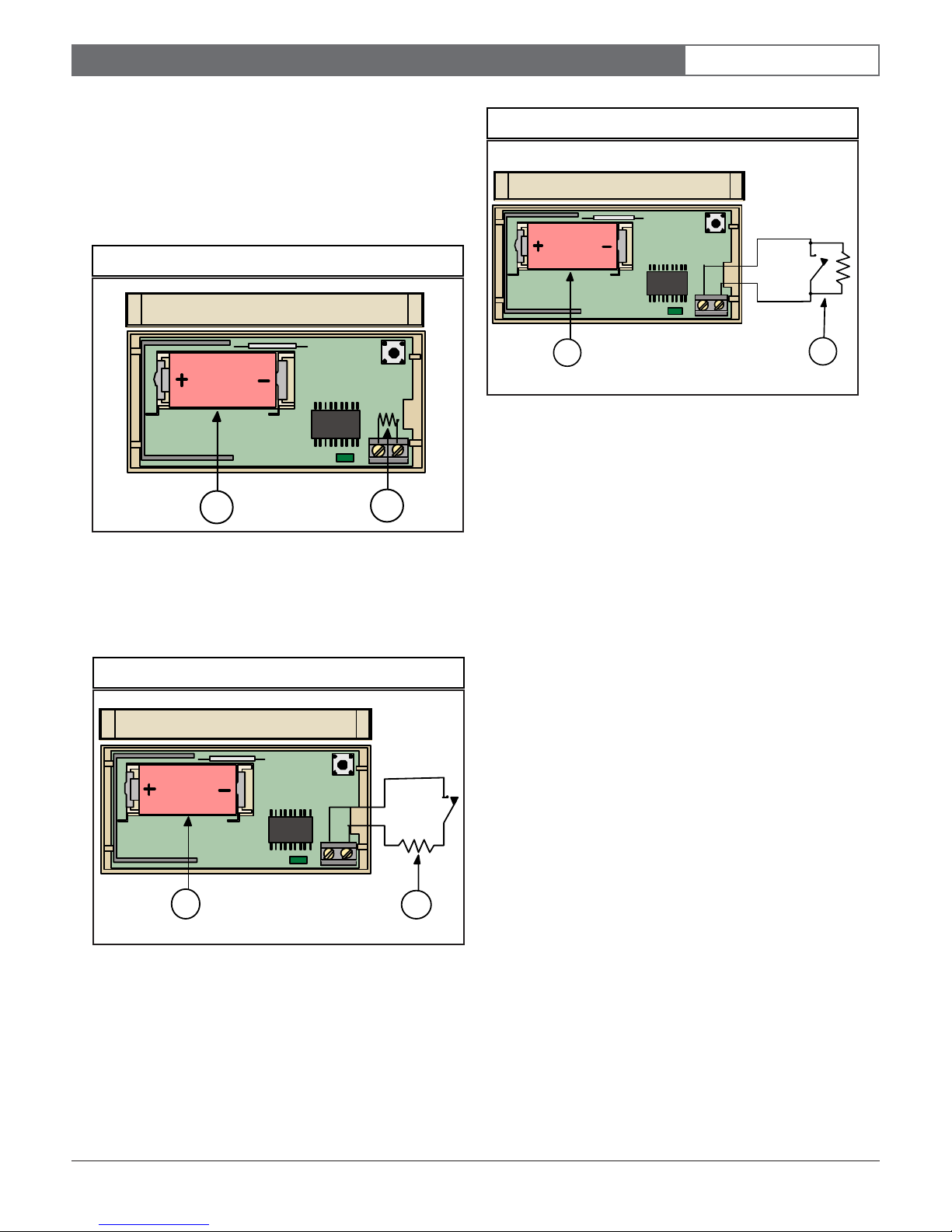

Figure 9: Magnet
1 - Battery
2 - EOL
Note:
If not using external contacts, you must install the EOL.
12
Figure 10: Magnet (Optional) Typical NC Wiring
1 - Battery
2 - EOL 2.21 k
Ω
2
1
Figure 11: Magnet (Optional) Typical NO Wiring
1 - Battery
2 - EOL 2.21 k
Ω
1 2
Bosch Security Systems | 6/03 | 40281E
EN | 6
SE3401 | Installation Instructions |
6.0 System Programming
A two part ID sticker is located on the enclosure. You
need the number on this sticker to program this device
into the system.
See your Security Escort Reference Guide for programming
information for wireless type devices.
6.0 System Programming
FCC Compliance Notice
This device complies with Part 15 of the FCC rules and
with RSS-210 of Industry and Science Canada.
Operation is subject to the following two conditions:
• This device cannot cause harmful interference.
• This device must accept any interference
received, including interference that can cause
undesirable operation.
Changes or modifications not expressly approved by
Bosch Security Systems can void the user’s authority to
operate the equipment.
Figure 1: ID Sticker
1 - ID number
167770187
167770187
1
EN | 7
SE3401 | Installation Instructions |
Bosch Security Systems | 6/03 | 40281E
Notes:
Notes:
Bosch Security Systems
130 Perinton Parkway
Fairport, NY 14450-9199 USA
www.boschsecurity.us
Customer Service: (800) 289-0096
Technical Support: (888) 886-6189
© 2003 Bosch Security Systems
Subject to change | Printed in the USA
40281E
