Dinion and FlexiDome analog camera family

Reveal every detail with 2X camera technology

A complete range of ﬁxed-body and ﬁxed dome surveillance cameras

2 |Dinion and FlexiDome analog camera family

Revealing the Dinion and

FlexiDome camera family

Reveal the details of your surveillance images with Dinion and FlexiDome cameras from Bosch. When

clarity counts, you can rely on cameras to give you the best level of detail to match your application,

and your budget.

Whatever your surveillance application demands, there’s a solution to meet your needs in the family of

analog cameras. The range includes our advanced Dinion 2X and FlexiDome 2X models together with

the high performance DinionXF and FlexiDomeXF and professional standard Dinion, FlexiDomeXT+

and FlexiDome VF cameras. There’s a choice of color or monochrome options, as well as complete

FlexiDome camera systems incorporating the same, excellent technology.

Just as the primary colors red, green and blue combine

to make white light, you can combine Dinion cameras

to meet every application’s need.

DinionDinion 2X

DinionXF

Dinion and FlexiDome analog camera family |3

Giving you a clearer view in the most difﬁcult locations,

our Dinion 2X and FlexiDome 2X cameras bring the

highest level of image quality to your surveillance

applications.

Dinion 2X and FlexiDome 2X Day/Night images in all

conditions

Dinion 2X and FlexiDome 2X cameras are built on our

innovative Dinion 2X Digital Signal Processor (DSP)

technology. The Dinion 2X DSP works in combination

with our proprietary wide dynamic range (WDR) CCD

sensor to deliver the world’s ﬁrst 20-bit image processing

for the CCTV market. Both our Dinion 2X and FlexiDome

2X solutions take advantage of this technology to provide

excellent low light and WDR performance in many

difﬁcult lighting conditions, including day/night

applications.

DinionXF and FlexiDomeXF – color performance even

in difﬁcult lighting

Reveal details conventional color cameras miss.

The DinionXF and FlexiDomeXF combine 15-bit digital

video processing with XF-Dynamic to deliver very good

picture performance in a range of color applications.

Dinion 2X and FlexiDome 2X

the clearest images, day or night

Dinion and FlexiDome - professional performers

In locations well lit by natural or artiﬁcial lighting,

our 10-bit Dinion and FlexiDome cameras are the ideal

solution. These professional-standard CCTV cameras

deliver crisp, clear pictures and high quality images

you can rely on.

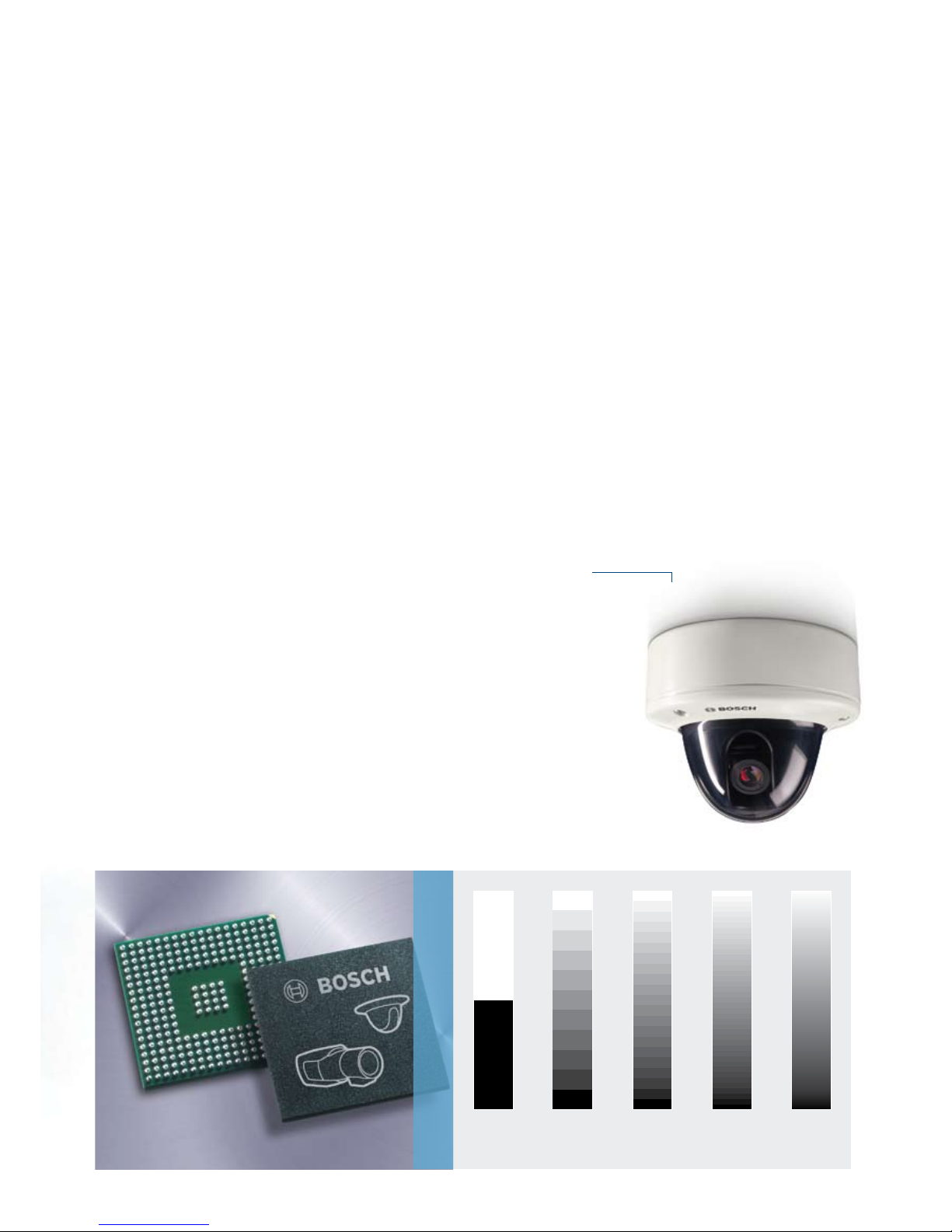

1 Bit 3 Bit 10 Bit

Dinion

FlexiDome

15 Bit

DinionXF

FlexiDomeXF

20 Bit

Dinion 2X

FlexiDome 2X

Image processing

FlexiDome Series

4 |Dinion and FlexiDome analog camera family

Need a dome camera with the highest quality surveillance

images? Look no further than the FlexiDome 2X Day/

Night solution. It combines the exacting performance

of our advanced Dinion 2X DSP and WDR sensor with

a very tough, yet stylish, dome.

FlexiDome 2X camera

the ﬁnest image quality, day or night

Tough enough for almost any application

From arctic temperatures to blazing sun or heavy rain, the

FlexiDome 2X system handles it all. It’s strong too, able

to cope with rough treatment in demanding locations.

Clear images in very difﬁcult lighting

Strong backlighting or high contrast scenes are

no problem for the camera’s wide dynamic range

performance, while low light situations are handled

easily by its highly sensitive CCD sensor, ensuring

high quality image capture day or night.

Day/Night operation

with infrared light

Impact resistant bubble

and construction exceeding

IK10 rating (> 50 Joules of

energy)

Privacy masking to hide

sensitive scene content

Smart BLC with automatic

conﬁguration for easy setup

Back of camera completely sealed

against water, dust and other

contaminants (IP66/NEMA4X

environmental rating) for easy

installation and camera integrity

Dinion and FlexiDome analog camera family |5

CCTV 20-bit image processing

Bosch‘s 2X DSP and proprietary wide dynamic range

(WDR) CCD sensor produce 20-bit image processing

See more in harsh lighting conditions

The superior WDR handling for all lighting conditions

reveals details previously unseen in 24 hour

applications using pixel by pixel analysis

Smart backlight compensation (BLC)

Simply turn Smart BLC on and the camera will

automatically compensate the image without

compromising WDR

Detail enhancement

AutoBlack applies enhancement to the whole scene,

while sharpness automatically enhances each pixel

Guaranteed performance around the clock

See clear images both day and night as the 2X image

processing dynamically adapts to scene changes.

There‘s also compensation for IR illumination

Convenience of a complete package

Stylish, rugged dome, advanced FlexiDome 2X camera

and choice of optimized, high-speed lenses

Discreet surveillance

Aesthetic design style, easy to install

Suitable for locations exposed to the elements

Weather resistant, IP66 / NEMA4X environmental

rating against dust, water and other contaminants.

The surface mount box (SMB) offers complete IP66

protection for the power and video cables

No application is too tough!

Impact resistant bubble and construction exceeding

IK10 rating (> 50 Joules of energy)

Typical applications:

Entrance foyer/lobby with glass

Warehouses and loading bays

Prisons and correctional facilities

Airport locations including:

– baggage handling

– fuel and equipment storage

Stadium

6 |Dinion and FlexiDome analog camera family

FlexiDomeXF camera –

discreet surveillance, virtually anywhere

The FlexiDomeXF camera features the award-winning

performance of our proprietary 15-bit imaging

technology. FlexiDomeXF comes in a range of domes

that are tough enough for almost any situation,

yet stylish enough to be mounted in any location.

Discreet and secure

The FlexiDomeXF camera gives you the discreet,

attractive appearance and robustness of a dome,

combined with FlexiDomeXF camera performance.

Able to cope with difﬁcult lighting conditions,

you can put these compact, integrated dome

solutions in many applications.

Sharp images, whatever the lighting

Default shutter automatically chooses between a fast

or standard shutter speed. In normal light, the fast

shutter captures movement without blurring, while

the standard shutter maintains the camera’s full

sensitivity in low light conditions

Clearer detail where it matters most in the image

Programmable backlight compensation (BLC)

Convenience of a complete package

Stylish, rugged dome, advanced FlexiDomeXF

camera and choice of optimized lenses

Suitable for exposed locations, from arctic

conditions to blazing sun or heavy rain

Weather resistant, IP66 / NEMA4X environmental

rating against dust, water and other contaminants

No application is too tough!

Impact resistant bubble and construction exceeding

IK10 rating (> 50 Joules of energy)

Typical applications:

Stairwells and staircases

Elevators/lifts

High security storage such as bank vaults

Car parks (indoor)

Hotels, bars and nightclubs

Hospitals and medical centres Default shutter

to capture fast

moving objects

NightSense extends

operational sensitivity

SensUp for

improved

sensitivity

Dinion and FlexiDome analog camera family |7

Great for discreet outdoor surveillance, our

FlexiDomeXT+ camera makes an extremely affordable

solution for well lit applications. It combines renowned

Dinion performance and 10-bit image processing in a

tough dome. Or, if you don’t need the weather-resistant

capabilities, our FlexiDomeVF model offers the ideal

indoor alternative.

Easier installation

As complete solutions, these compact and integrated

cameras make system design and installation simple

and quick.

FlexiDomeXT+ camera –

Dinion performance in a dome

Suitable for locations exposed to the elements,

from arctic conditions to blazing sun or heavy rain

Weather resistant, IP66 / NEMA4X environmental

rating (FlexiDomeXT+)

More precise recognition

Superior image quality given by 540 TVL

Convenience of a complete package

Stylish, rugged dome, advanced FlexiDome camera

and choice of optimized lenses

No application is too tough!

Impact resistant bubble and construction exceeding

IK10 impact rating (> 50 Joules of energy)

Programmable

Use the camera key buttons, OSD or Bilinx remote

connection for easy camera set-up

Typical Applications:

Museums and art galleries

Shopping centres (general surveillance)

Ofﬁces and shop queuing zones

Climate controlled and illuminated rooms

Hallways/corridors

Schools, colleges and universities

Bilinx for remote setup

over the coaxial cable

Patented dome shape for

90° vertical view – to view

along a ceiling or surface

540 TVL resolution AutoBlack to

improve contrast

8 |Dinion and FlexiDome analog camera family

Putting your FlexiDome

camera to work

Want to know which type of FlexiDome solution to use in your applications? You’ll ﬁnd just a few ideas on this page.

Camera image

Lifts & entranceways.

Backlit areas make the area of interest dark,

hiding features. Compensate with smart

backlight compensation (BLC).

FlexiDome 2X gives you the best results,

but FlexiDomeXF may also be used if

conditions are not too severe.

Pedestrian and vehicle trafﬁc.

Need sharp images in busy locations?

Combine high dynamic range with

colour sensitivity.

Use our 20-bit FlexiDome 2X for 24/7

performance.

Other cameras

Human eyeHigh quality FlexiDome 2X camera image

Other cameras

Human eyeHigh quality FlexiDome 2X camera image

Note: All pictures have been simulated but show typical performance results.

Dinion and FlexiDome analog camera family |9

Putting your FlexiDome

camera to work

Camera image

Fuel storage.

Details can be hidden in shadow and difﬁcult to

see with all the movement. Use cameras with XF

Dynamic.

FlexiDomeXF. Alternatively use FlexiDome 2X

when views are of particularly high contrast.

Reception centre.

Lots of activity requires a detailed, sharp picture

over the whole scene. Use cameras with 540 TVL

resolution.

Featuring 540 TVL, FlexiDome (including

FlexiDome 2X and FlexiDomeXF) offers

discreet surveillance.

Other cameras

Human eyeHigh quality FlexiDomeXF camera image

Other cameras

Human eyeHigh quality FlexiDome 2X camera image

10 |Dinion and FlexiDome analog camera family

The ﬂagship of the Dinion range, the 20-bit Dinion 2X

Day/Night camera gives you a powerful solution capable

of handling the most demanding lighting situations,

24 hours a day. Optimized for both natural and artiﬁcial

light, this ﬂexible ﬁxed-body camera ensures you always

get the best results, whatever your speciﬁc requirements.

Bosch 2X image processing is 32 times more powerful

than DinionXF‘s 15-bit capabilities!

Smart backlight compensation, 6 user-programmable

modes and a built-in test pattern generator offer easy,

out-of-the-box installation.

Better than the naked eye

Strong backlighting or high contrast scenes are

no problem for the camera’s wide dynamic range

performance, while low light situations are handled easily

by its highly sensitive CCD sensor. Fully automatic detail

enhancement analyzes the image pixel by pixel. In very

difﬁcult lighting, the Dinion 2X produces images that

reveal details which cannot be seen by the human eye.

Dinion 2X advanced smart

surveillance camera

Revealing detail in the most extreme lighting

CCTV cameras are often used in harsh lighting, where

the difference between the brightest and the darkest

parts of a scene can be extreme. To help Dinion 2X

produce a clear picture in these conditions the camera’s

CCD sensor generates two images: one long exposure

to resolve details in the scene’s darkest areas, and one

short exposure to resolve details in the scene’s brightest

areas. The Dinion 2X DSP combines these ‘dual shutter’

images, mixing pixels from each exposure to produce

the most detailed image possible.

2X Dynamic for pixel by

pixel image enhancement

High efﬁciency power-

supply to improve maximum

operating temperature

Smart BLC with automatic

conﬁguration for easy setup

Privacy masking to hide

sensitive scene content

Removable connectors

make cable connection

easier, even when the

camera is already mounted

Day/Night operation

with switching IR ﬁlter

Ce manuel convient aux modèles suivants

Autres manuels Bosch Caméra de sécurité

Bosch

Bosch VEZ Series Manuel utilisateur

Bosch

Bosch AVIOTEC IPSTARLIGHT 8000 Manuel utilisateur

Bosch

Bosch FlexiDome NDN-832 Manuel utilisateur

Bosch

Bosch FlexiDome NDN-498V03-21P Manuel utilisateur

Bosch

Bosch DCN-SWSACC Instructions de montage

Bosch

Bosch NWC?0495 Manuel utilisateur

Bosch

Bosch VG4 Series Manuel d'utilisation et d'entretien

Bosch

Bosch VC7D1305T Manuel utilisateur

Bosch

Bosch EX72MNX8V0922-N Manuel utilisateur

Bosch

Bosch VDC-250F04 Series Manuel utilisateur

Bosch

Bosch FLEXIDOME 5000 Instructions d'utilisation

Bosch

Bosch FLEXIDOME IP micro 3000i-outdoor Manuel utilisateur

Bosch

Bosch EX65 Manuel utilisateur

Bosch

Bosch Dinion XF LTC 0620/11 Guide d'installation

Bosch

Bosch MIC440AXWUD14636N Manuel utilisateur

Bosch

Bosch DINION 4000 AN Guide de l'utilisateur

Bosch

Bosch FLEXIDOME AN outdoor 4000 Manuel utilisateur

Bosch

Bosch DINION IP thermal 8000 Manuel utilisateur

Bosch

Bosch FLEXIDOME corner 9000 MP Instructions de montage

Bosch

Bosch FLEXIDOME HD VR Instructions d'utilisation

Bosch

Bosch NDN-733 Manuel utilisateur

Bosch

Bosch DINION IP 5000 HD Manuel du propriétaire

Bosch

Bosch LTC 0x35 Series Manuel utilisateur

Bosch

Bosch FLEXIDOME IP micro 5000 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
