1 of 11 ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

Instruction Manual

EN Monitor Mounts

TC9217MM-W, TC9220MM-W, TC9227MM-W

2 of 11 ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

TC9217MM-W, TC9220MM-W, TC9227MM-W | Instruction Manual | EN

Bosch Security Systems | February 3, 2005

MONITOR MOUNT COMPATIBILITY CHART

For Bosch LTC Series Monitors

Bosch Monitor Ceiling Wall

Model No. Mount Mount

Monochrome

LTC 2009/51, /61 MM3000 TC9209MM-W

LTC 2012/51, /61 MM3000 TC9209MM-W

LTC 2017/50, /60 TC9217MM-C TC9217MM-W

LTC 2020/90 TC9220MM-C TC9220MM-W

Color

LTC 2810/90, /91 TC9217MM-C TC9217MM-W

LTC 2813/90 TC9217MM-C TC9217MM-W

LTC 2814/90 TC9217MM-C TC9217MM-W

LTC 2821/90, /91 TC9220MM-C TC9220MM-W

LTC 2910/90 MM3000 TC9209MM-W

LTC 2915/91 TC9217MM-C TC9217MM-W

LTC 2917/91 TC9217MM-C TC9217MM-W

LTC 2919/90 TC9220MM-C TC9220MM-W

27ST220L TC9227MM-C TC9227MM-W

Installation Hint for TC9217MM, TC9220MM, and TC9227MM Series Monitor Mounts, RE: Step 4.

For proper center of gravity alignment of Bosch monitors on the bottom support tray, a recommended starting point is to

use the third (3rd) square hole from the front edge of the tray to mount the vertical support arm using pin E.

SERVICE

If the unit needs servicing, contact the nearest Bosch Security Systems Service Center for authorization to return

and shipping instructions.

Service Centers

USA

Phone: 800-366-2283 or 717-735-6638

Fax: 800-366-1329 or 717-735-6639

CCTV Spare Parts

Phone: 800-894-5215 or 408-956-3853 or 3854

Fax: 408-957-3198

E-mail: [email protected].com

Canada

Phone: 514-738-2434

Europe, Middle East & Asia Pacific Region

Phone: 32-1-440-0711

For additional information, see www.boschsecurity.com.

3 of 12ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

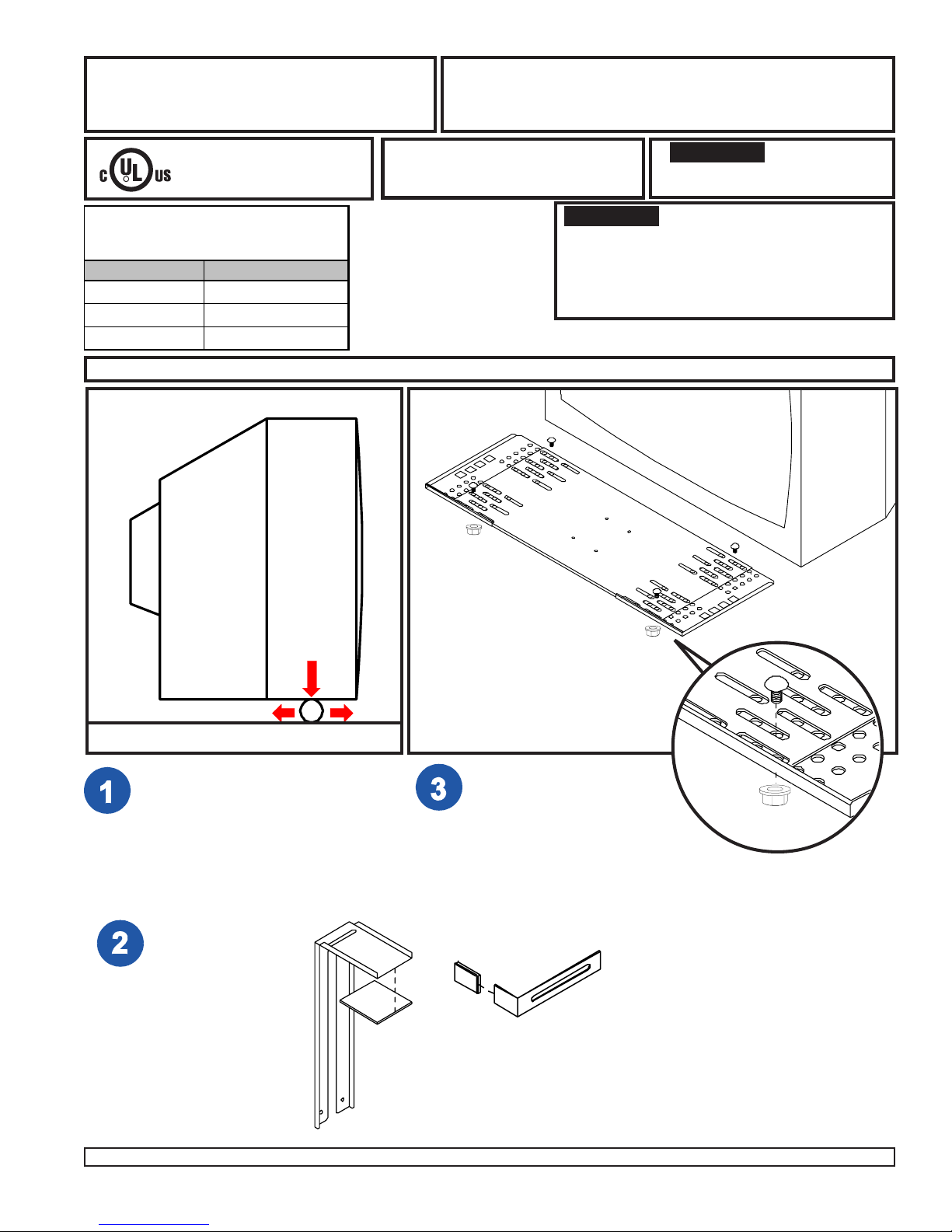

Installation and Assembly

BOSCH Monitor Wall Mounts Models: TC9217MM-W, TC9220MM-W,

TC9227MM-W

Each monitor mount is for use with a single TV or monitor of a specified size only.

IMPORTANT! Read entire

instruction sheet before you

start installation and assembly.

IMPORTANT! If attaching a VCR Mount

carefully study both product instruction sheets

before assembly. The interface bracket

(included with the VCR Mount) must be

attached during monitor mount assembly to

avoid disassembly later.

Before you start make sure all parts

shown (see parts list, page 9) are

included with your bracket.

SIDEVIEW

FLOOR

Place TV onto a piece of pipe as

shown.(Pipeshouldbeafewinches

wider than the TV.) Roll TV back and

forth to find the balance point. This is

the center of gravity. Mark the center

of gravity on the side of the TV.

CENTEROF

GRAVITY

Adjust support tray (A, three

pieces) to match width of TV.

Locksupporttrayusingfour

carriagebolts(B),washer/

nutcombo(C).Tighten

securely.

Attachadhesive

pads (X) to top

clamps(Q).

Insert plastic

covers(CC)onto

endsofanti-rollout

hooks(R).

BOSCH

This product is intended for use with UL

Listed products and must be installed by a

qualified professional installer.

Model #:

TC9217MM-W

TC9220MM-W

TC9227MM-W 27"

Product is UL rated up to ___ TV

sizes, per attached chart

TV size

17"

21"

4 of 12ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

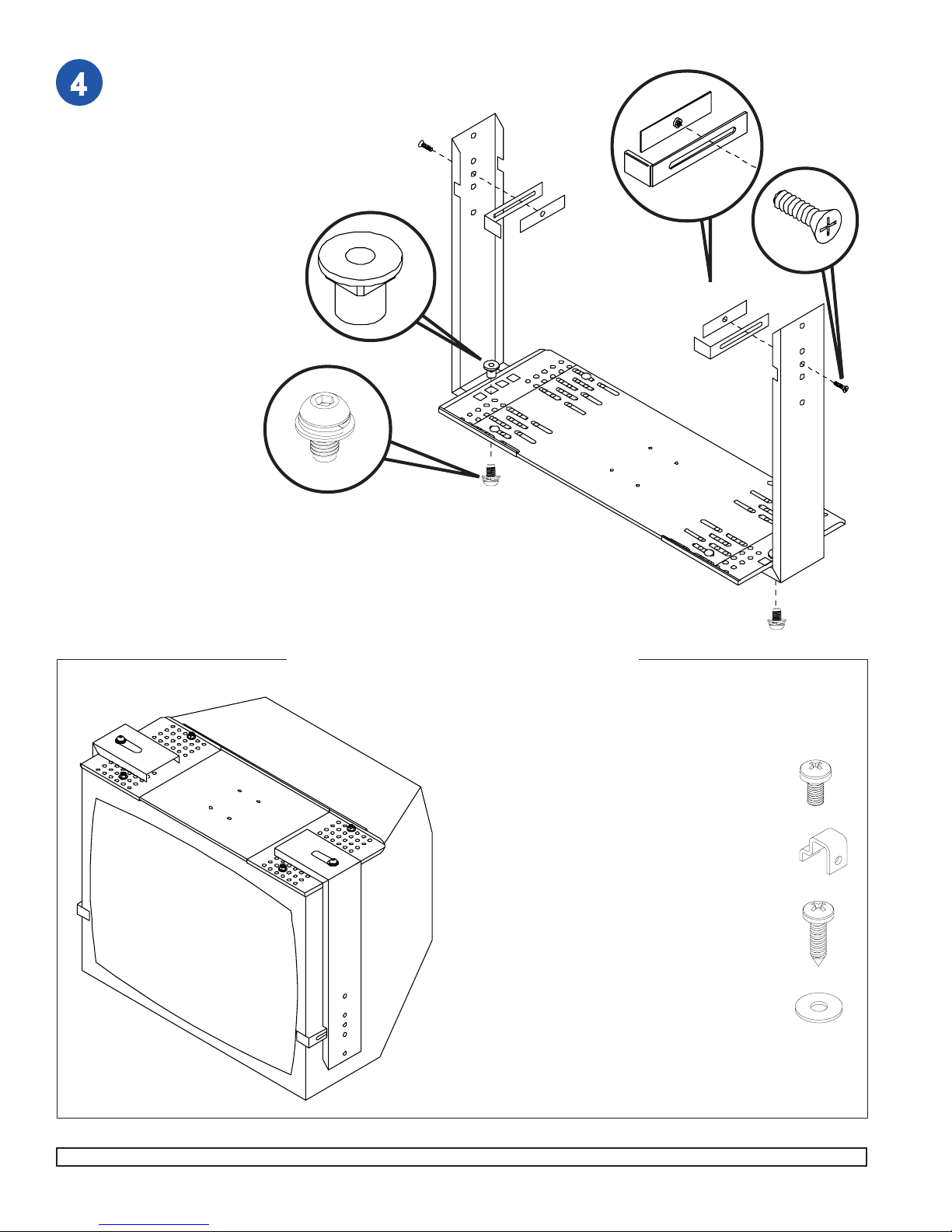

Attach support tray (A)

toverticalsupportarms

(P) as shown.

Note:Choosethesquare

hole which aligns closest

withthecenterofgravity

mark on the TV (as

determinedin step 1).

Attachanti-rollout hooks

(R) as shown using M6

screws(Z)andretainer

bars(Y).Note:Extruded

sideofretainerbar(Y)

goestowardsanti-rollout

hook(R).

Hand tighten only.

Althoughtop clamps(Q)and anti-rollout

hooks (R) [see step 7] will provide more than

adequate support for the TV, some installers

may wish to also attach the support tray to

the TV bottom.

Using uni-clips (G) and M5 screws (F) (see

instruction card in fastener pack), or #10 x

3/4"particle boardscrews (H)andwashers

(I) (for attachment to mounting bosses if

present), or a combination of both, attach

support tray (A) to TV bottom. [To do this

place TV upside down on a flat stable

surfaceand positionsupport trayupside

down on TV bottom.] Attach at four places

as close to the four corners of the TV bottom

as possible.

O P T I O N A L

TVBOTTOM

(UPSIDEDOWN)

5 of 12ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

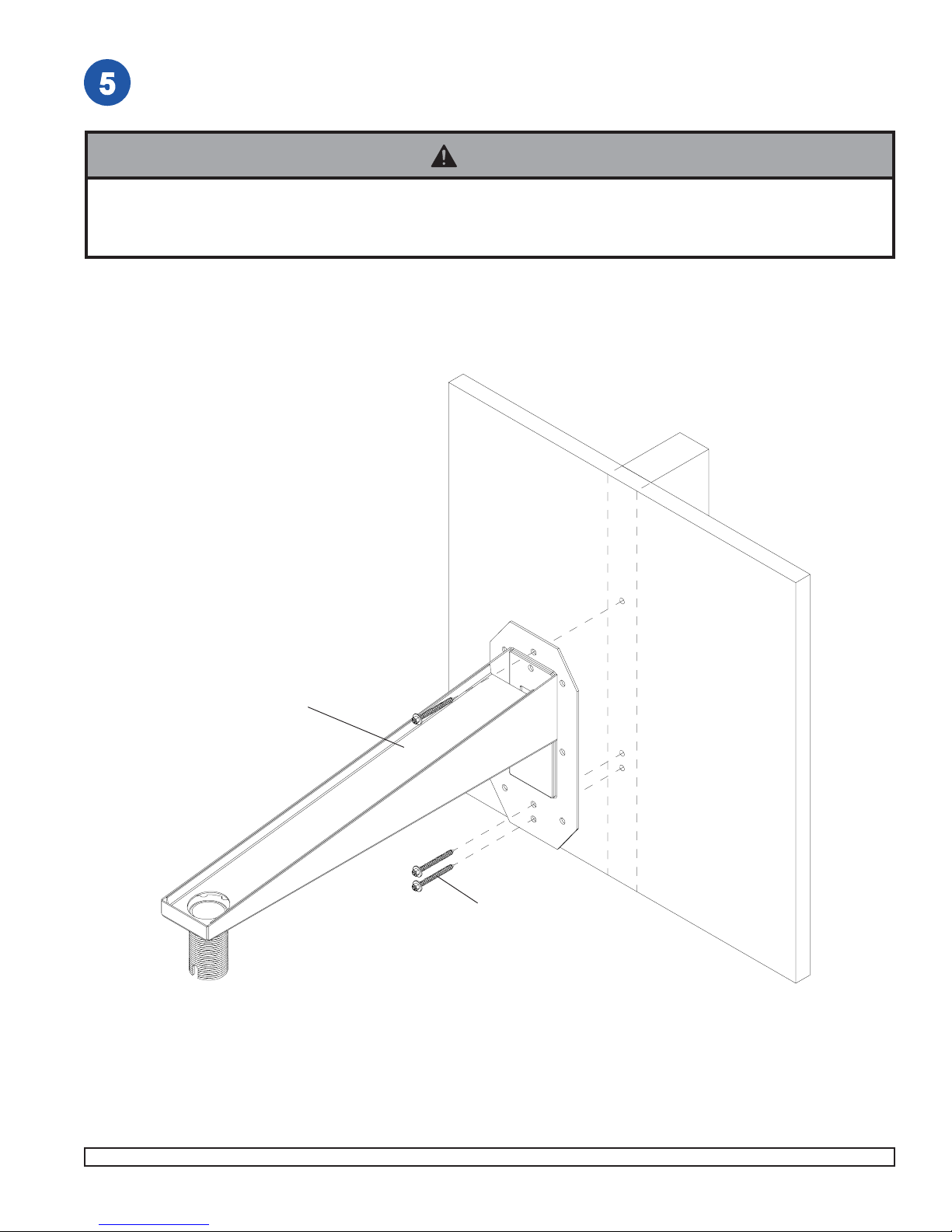

For Wood Stud Walls drill three 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm) into stud center.

Attach wall arm (W) using three #14 x 2.5" (6 mm x 65 mm) wood screws (V).

WOOD

STUD

WALL

• Tightenwoodscrews so wall arm is firmly attached,butdonot tighten with excessive force! Overtighteningcan

cause stress damage to wood screws, greatly reducing their holding power. Tighten to 80 in • lb (9 N.M.) maxi-

mumtorque.

WARNING

6 of 12ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

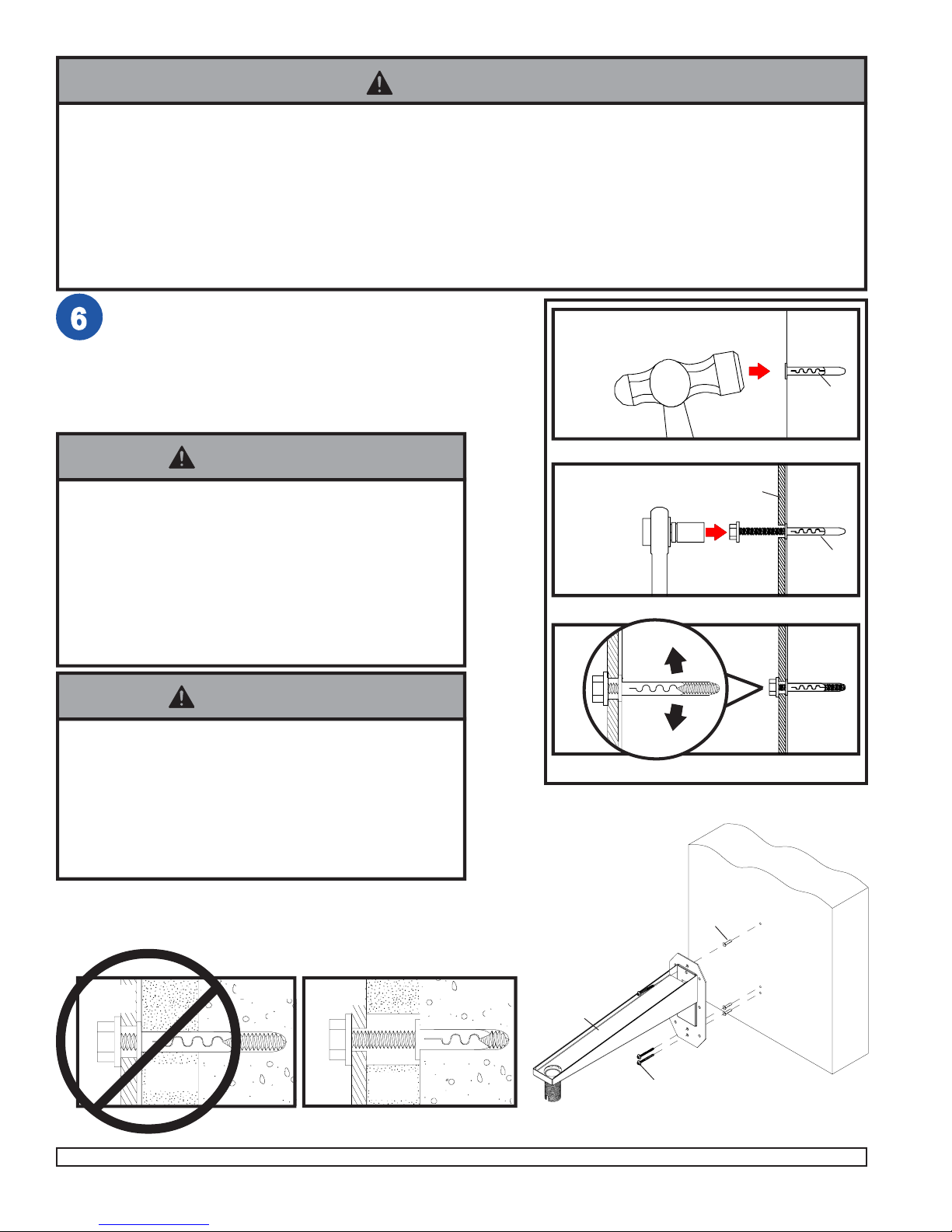

Drill hole(s) and insert anchor(s)

CUTAWAYVIEW

INCORRECT

concrete

plaster/

drywall

wall

arm

concrete

wall

2wall arm

CORRECT

concrete

plaster/

drywall

For Concrete Walls use wall arm (W), making sure

that it is level, as a template to mark holes. Drill 1/

4" (6 mm) dia. holes to a minimum depth of 2.5" (64

mm). Insert concrete anchors in holes flush with

wallasshown (right). Place wall arm (W) over

anchors and secure with #14 x 2.5" (6 mm x 65

mm)wood screws (V).Tighten allfasteners.

wall

arm

ACC 204

WARNING

• When installing BOSCH wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill

toavoidbreaking out the back of theholewhen entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the wall will safely support four times the combined load of the equipment and all attached hard-

wareand components.

CONCRETE

WALL

ACC 204

Place arm over anchor(s) and secure with screw(s)

Tighten all fasteners

• Tighten wood screws so that wall plate is firmly

attached,but do notovertighten. Overtightening can

damagethescrews, greatly reducing theirholding

power.

• Never tighten in excess of 80 in • lb (9 N.M.).

• Make sure that mounting screws are anchored into the

center of the studs. The use of an "edge to edge" stud

finderis highly recommended.

WARNING

• Concrete anchorsare not intendedfor attachment to

concretewallcovered with a layer ofplaster, drywall,

orotherfinishing material. If mounting toconcretewall

coveredwith plaster/drywallisunavoidable, plaster/

drywall (up to 5/8" thick) must be counterbored as

shown below. If plaster/drywall is thicker than 5/8",

custom fasteners must be supplied by installer.

WARNING

7 of 12ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

DETAIL 2

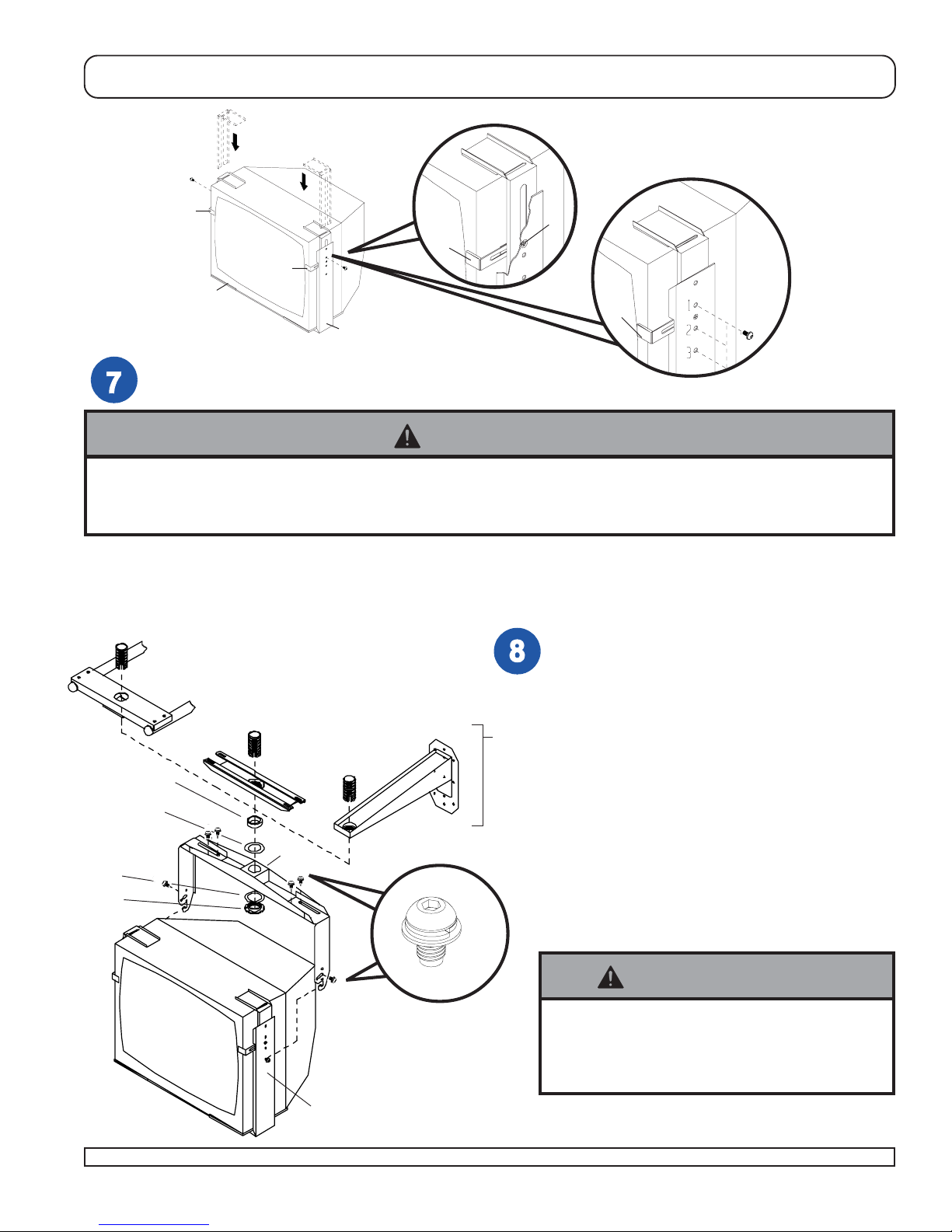

Position TV onto support tray (A).Positionanti-rollouthooks(R) against front edge of TV.

FIRST: From the top fully thread flush mount tube

(T) into threaded fitting in wall arm or ceiling plate.

Install the wall arm or ceiling plate according to

instructions included with it.

NEXT: Attach right and left tilt brackets (AA &BB)

to horizontal support (S) using four screws &

washercombo(J).Beforetighteningscrewsmake

sure tilt brackets are adjusted horizontally to align

precisely with screws in the side of vertical support

arms (P). Attach horizontal support (S) to wallarm

or ceiling plate using fiber washers (M &N), spacer

(U,only includedwithsmaller models) andretaining

collar(O).IMPORTANT:Retainingcollar(O)

requiresasafetyscrew[refertoDETAIL3,page8].

FINALLY: Be sure that hooks in right and left tilt

brackets(AA&BB)areopenendforward.Hangthe

TV / bracket assembly.

Wall arms & ceiling plates

include their own

instructions. Fixed length

and adjustable extension

columns are also available.

CMJ 470,

CMJ 480,

CMJ 490

WMJ 018,

WMJ 022

Included with models

TC9217MM and

TC9220MM only.

Note: Slots in corners of top clamps (Q) and corners of vertical support arms (P) allow for the installation of safety belt

(model ACC 666, sold separately). If using this belt, install it now.

WMJ 025H

WARNING

• Each anti-rollout hook (R) should have at least 1/4” of surface contact with the front of theTV. If this is not the

case the support tray (A) must be adjusted smaller [see step 2], or the vertical support arms (P) adjusted inward

[see step 4].

Inserttopclamps (Q). Note: Top clamps(Q)fit between rolloutprotectors(R)and vertical supportarms(P)

[DETAIL 1]. Press down on each top clamp (Q) while securely tightening each M6 screw (Z).

Byhand, threadone serratedflangeheadscrew(K)intoeach verticalsupport arm(P) intooneofthreethreaded

holes [1, 2, or 3; DETAIL 2]. Choose the threaded hole that will allow just enough tilt clearance [see step 9].

Leaveabout1/4"ofexposedthread.

• Donotliftmoreweightthanyoucanhandle!

Useadditional manpower ormechanicallifting

equipment to safely lift and hang the TV /

Bracketassembly!

WARNING

Insert one screw & washer combo (J) through slot

in each tilt bracket (AA & BB). Hand tighten.

DETAIL 1

8 of 12ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

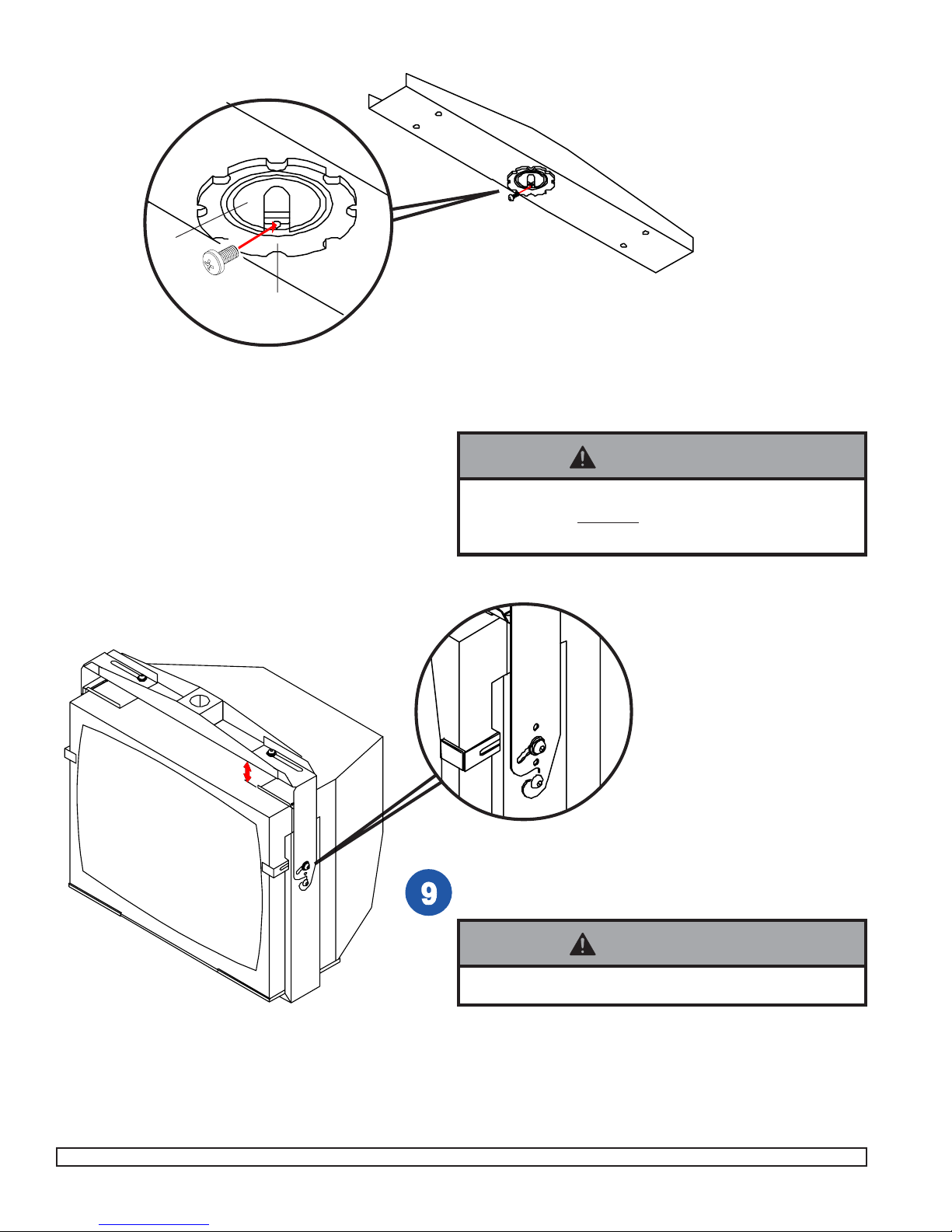

When attaching the horizontal support (S) to wall arm or

ceilingplate, carefullythread retainingcollar (O)ontoendof

flush mount (T) tube (or extension column). Tighten at least

fourcomplete turnsendingwith oneof thesmallthreaded

holes aligned with slot in the end of flush mount tube (T) (or

extension column). Insert and tighten one M5 screw (F).

DETAIL 3

(BOTTOMVIEW)

TILTCLEARANCE

Adjust TV to desired tilt then tighten screws. Maximum tilt

is 30°. If tilt clearance is a problem revisit step 7, DETAIL 2.

• Set screw (F) is self tapping and may be hard to get

started but is essential to this installation. Failure to

install this screw can cause the mount to fall.

WARNING

• Tighten all screws securely.

WARNING

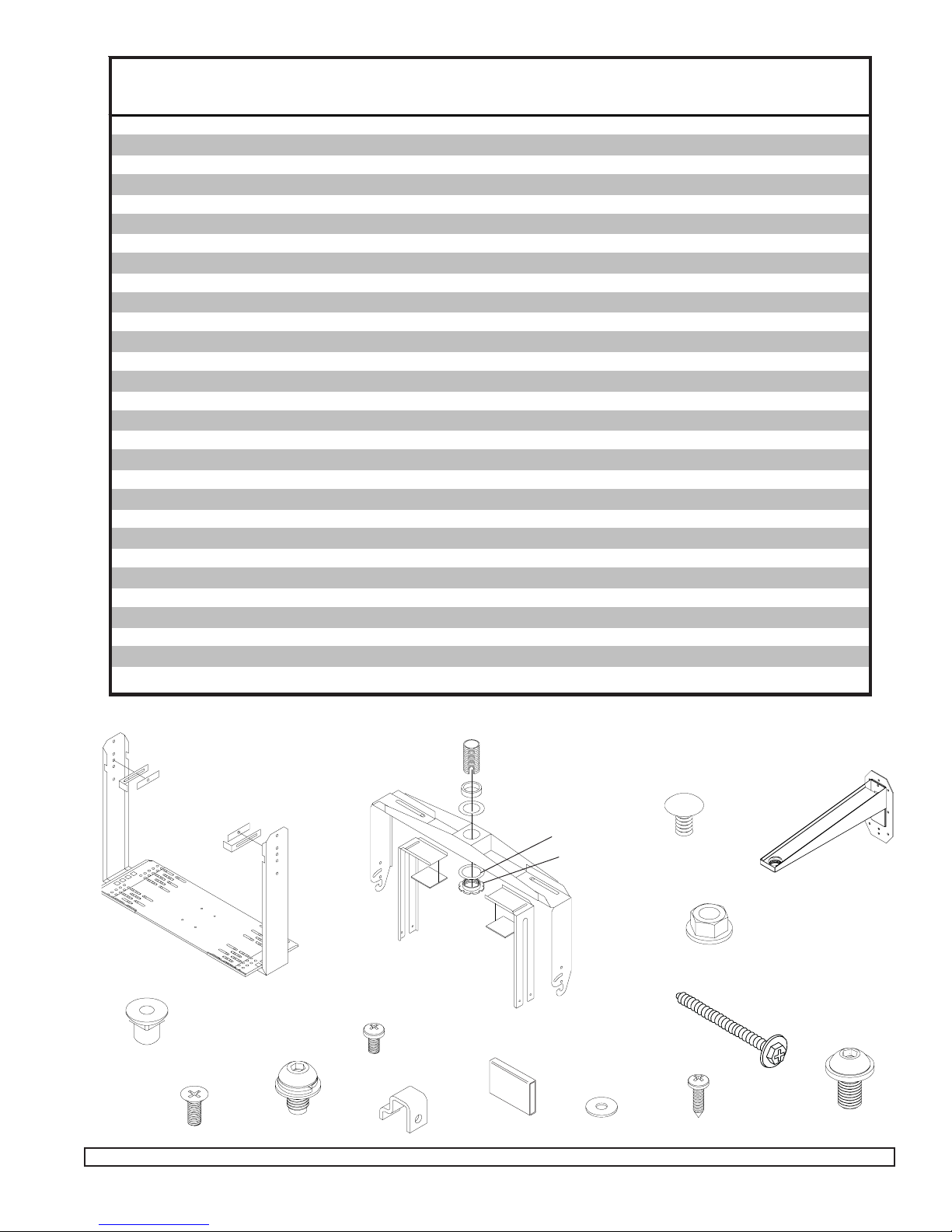

9 of 12ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

BB M

Note: Parts may appear slightly different than illustrated.

ZCC

TC9217MM-W TC9220MM-W TC9227MM-W

Description Qty. Part # Part # Part #

A1 left end support tray 1 128-1023 128-1026 128-1026

A2 right end support tray 1 128-1024 128-1027 128-1027

A3 center support tray 1 128-1128 128-1134 128-1135

B5/16 - 18 x 1/2" carriage bolt 4 520-9207 520-9207 520-9207

C5/16-18 washer/nut combo 4 530-1016 530-1016 530-1016

EM10-1.5 x .7 flange nut 2 520-9261 520-9261 520-9261

FM5 x .8 x 10 mm screw 6 520-9250 520-9250 520-9250

Guni-clip 4 2245-081 2245-081 2245-081

H#10 x 3/4" particle board screw 4 500-9006 500-9006 500-9006

I#10 flat washer 4 540-9400 540-9400 540-9400

JM10 socket head lock/flat washer combo screw 8 520-1041 520-1041 520-1041

KM10 serrated flange head screw 2 520-1105 520-1105 520-1105

Mfiber washer - large inside dia. 1 540-9432 540-9432 540-9432

Nfiber washer - small inside dia. 1 540-9431 540-9431 540-9431

Oretaining collar 1 1800-375 1800-375 1800-375

Pvertical support arm 2 128-1107 128-1109 128-1111

Qtop clamp 2 128-1138 128-1138 128-1138

Ranti-rollout hook 2 128-1116 128-1116 128-1116

Shorizontal support 1 128-1016 128-1017 128-1018

Tflush mount tube 1 1446-014 1446-014 1446-014

Uspacer 1 128-0067 128-0067 -

V#14 x 2.5" (6 mm x 65 mm) screw 4 5S1-015-C03 5S1-015-C03 5S1-015-C03

Wsingle wall arm 1 128-1059 128-1059 128-1069

Xadhesive pads (not shown) 2 570-0024 570-0024 570-0024

Yretainer bar 2 128-1117 128-1117 128-1117

ZM6 x 18mm flat phillips screw 2 520-1166 520-1166 520-1166

AA tilt bracket right 1 128-1342 128-1337 128-1337

BB tilt bracket left 1 128-1341 128-1336 128-1336

CC plastic cover for anti-rollout hook 2 590-1055 590-1055 590-1055

Parts List

10 of 12 ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05

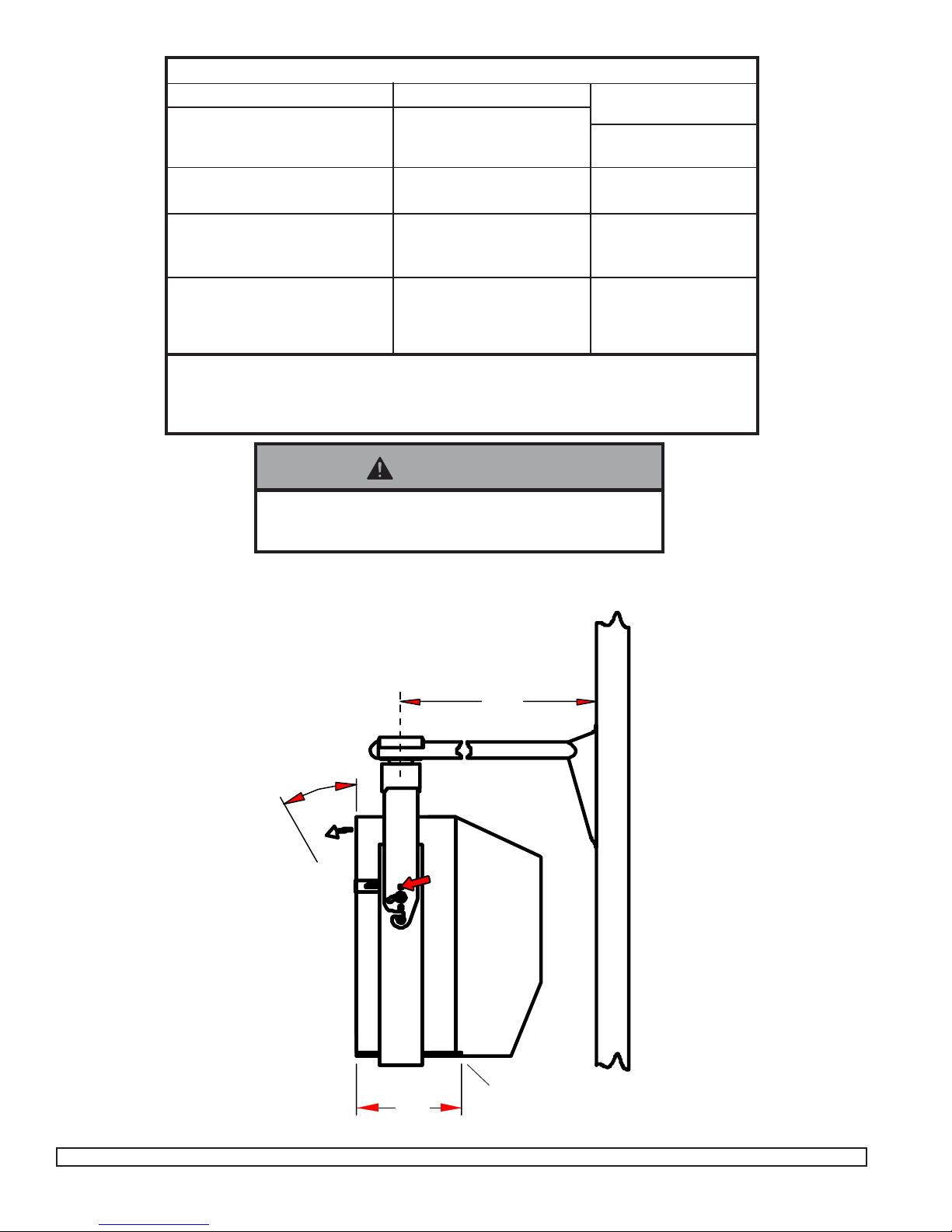

(330 mm) (432 mm)

(482 mm) (533 mm)

(635 mm) (686 mm)

(762 mm) (889 mm)

(686 mm) (889 mm)

(940 mm) (1067 mm)

(889 mm) (1067 mm)

Mount

GENERAL WALLMOUNTKITSPECIFICATIONS

Model

Number

TV/Monitor ProductBOSCHrated

when attached to...

Support

Tray

Depth(D)

10"

14"

10"

14"

Screen Size

13" - 17"

19" - 21"

25" - 27"

25" - 28"

25" - 27"

wood

stud

125 lb

300 lb

150 lb

300 lb

concrete,

cinder block

or brick

(57 kg)

(65 kg)

(254 mm)

(356 mm)

(254 mm)

(356 mm)

TC9217MM-W

TC9220MM-W

TC9227MM-W

Reach(R)

18" (457 mm) for models TC9217MM-W, TC9220MM-W.

22.5" (572 mm) for models TC9227MM-W.

• Weight of TV or monitor not to exceed Max. Load

Capacity(BOSCH rating)!

WARNING

Dsupport tray

300tilt

range

wall

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bosch Support et étagère

Bosch

Bosch MBE Series Manuel utilisateur

Bosch

Bosch PTA1000 Manuel utilisateur

Bosch

Bosch FBH 0000 A Manuel utilisateur

Bosch

Bosch Professional GTA 6000 Manuel utilisateur

Bosch

Bosch PTA 2400 Manuel utilisateur

Bosch

Bosch GTA 3800 Professional Instructions de montage

Bosch

Bosch FlexiDome VDA-CMT-Dome Manuel utilisateur

Bosch

Bosch VDA-WMT-AODome Manuel utilisateur

Bosch

Bosch SCT 815 S4 Manuel utilisateur

Bosch

Bosch GTA 600 Professional Manuel utilisateur

Bosch

Bosch FMH 0000 A Manuel utilisateur

Bosch

Bosch TS1014 Manuel utilisateur

Bosch

Bosch GTA 600 Professional Manuel utilisateur

Bosch

Bosch BDS3210 Manuel utilisateur

Bosch

Bosch UMM-LW-20B Manuel d'instructions d'installation

Bosch

Bosch GTA 2500 W Professional Manuel utilisateur

Bosch

Bosch GTA 60 W Professional Manuel utilisateur

Bosch

Bosch MSS 300 Guide de démarrage rapide

Bosch

Bosch VG4-A-9543 Manuel utilisateur

Bosch

Bosch T10031 Manuel utilisateur

Bosch

Bosch LTC 9349MK Manuel utilisateur

Bosch

Bosch GTA50W Instructions de montage

Bosch

Bosch GTA570 Instructions de montage

Bosch

Bosch S 500 A PROFESSIONAL Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
