Bosch LTC 9349MK Manuel utilisateur

LTC 9349MK

Instruction Manual

EN Mounting Kit

Safety Precautions

Sécurité

Sicherheitshinweise

Precauciones de Seguridad

Veiligheidsmaatregelen

Precauzioni

Medidas de Segurança

Zasady Bezpieczeństwa

1UNPACKING

Unpack carefully. Ensure that the following items are

included:

•LTC9349MK:

Base Bracket Assembly, including one (1) mounting

plate and two (2) rails.

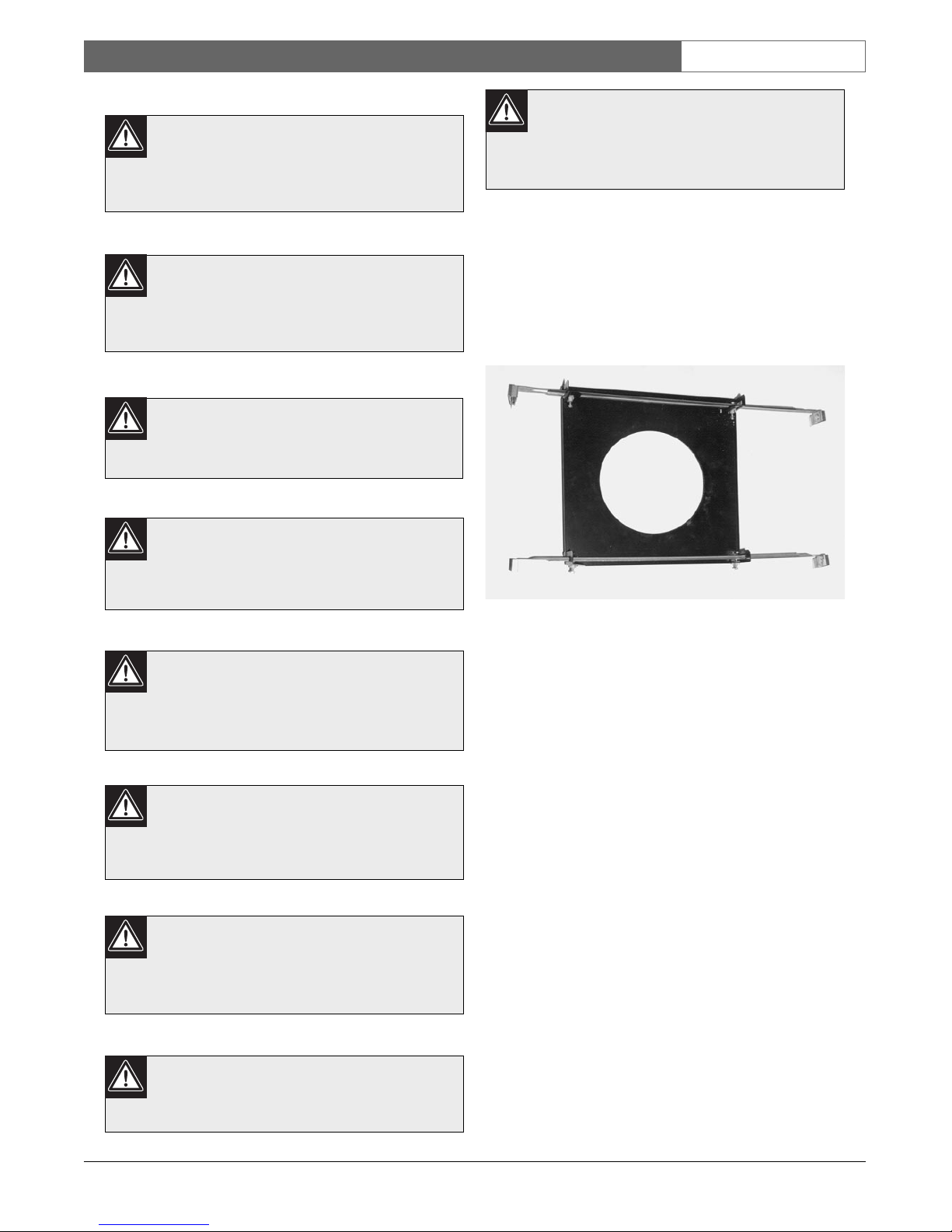

Photo 1: Mounting Kit

2SERVICE

If the unit ever needs service, the customer should

contact the nearest Bosch Security Systems, Inc.

Service Center for authorization to return and shipping

instructions.

Service Centers

U.S.A.: Phone: 800-366-2283 or 408-956-3895

fax: 800-366-1329 or 408-956-3896

e-mail: NationalServiceC[email protected].com

Canada: 514-738-2434

Europe, Middle East & Asia Pacific Region:

32-1-440-0711

For additional information,

see www.boschsecuritysystems.com.

LTC9349MK | Instruction Manual | Installation

Bosch Security Systems | 21 July 2003

EN |2

The exclamation point within an equilateral

triangle is intended to alert the user to presence

of important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

NOTE: This manual is only for installations where

this unit is used with the LTC 9349 Unity®Dome

Series. When using the LTC 9349MK with the

AutoDome®, refer to the In-ceiling Installation

Section of the AutoDome Installation Manual.

Das Ausrufungszeichen im gleichseitigen Dreieck

soll den Benutzer auf wichtige Bedienungs- und

Wartungsanweisungen in der Dokumentation

hinweisen, die dem Gerät beiliegt.

El punto de exclamación dentro de un triángulo

equilátero pretende alertar al usuario de la existencia

de instrucciones de funcionamiento y

mantenimiento (reparación) en la documentación

suministrada con el aparato.

Le point d’exclamation contenu dans un triangle

équilatéral avertit l’utilisateur de la présence, dans

la documentation qui accompagne l’appareil,

d’importantes consignes d’utilisation et de

maintenance.

Het symbool van een uitroepteken in een

gelijkzijdige driehoek is bedoeld om de gebruiker

te waarschuwen voor de aanwezigheid van

belangrijke bedienings- en onderhouds- (service-)

instructies in de documentatie die met het product

zijn meegeleverd.

Il punto esclamativo racchiuso in un triangolo

equilatero intende avvisare l’utente in merito alla

presenza di importanti istruzioni operative e di

manutenzione nella documentazione di

accompagnamento all’unità.

O ponto de exclamação dentro de um triângulo

equilátero serve para alertar o utilizador para a

presença de instruções de funcionamento e

manutenção importantes na documentação fornecida

com o aparelho.

Wykrzyknik wewnątrz trójkąta równobocznego ma za

zadanie zwrócić uwagę użytkownika na ważne czynności,

związane z obsługą i konserwacją urządzenia,

zamieszczone w Instrukcji obsługi.

LTC9349MK | Instruction Manual | Installation

Bosch Security Systems | 21 July 2003

EN |3

3INSTALLATION

Backbox Module Mounting in Suspended Ceiling

Mount the backbox in a suspended ceiling grid using

the existing ceiling tile, as follows.

1. Locate the bracket assembly at the desired location

(PHOTO 2). Loosen the securing screws on the

base bracket assembly (PHOTO 4) enough to retain

the suspension bars during handling, but allowing

adjustment during installation.

Photo 2: Ceiling Mounting (Top View)

2. Snap the bar clips over the ceiling rails (PHOTO 3).

Slide the base plate to the desired position on top

of the tile.

Photo 3: Bracket Clip Fitting

3. Tighten the 4 bracket screws located in each corner

(PHOTO 4).

Photo 4: Bracket Securing Screws

4. Secure the bracket assembly to an overhead

securing point using a safety cable (PHOTO 5).

Photo 5: Safety Cable Fitment

5. Cut a 172 mm (6.75-inch) diameter hole in the

center of the mounting plate using two (2) pencils

(or a pencil and nail) and the template tool

(provided with the LTC 9349 Unity Dome Series).

6. Install the unit as instructed in the

LTC 9349 Unity Dome Series manual.

Ceiling Tile

Suspension

Bars

Ceiling Base

Bracket

x 4

3935 890 36112 03-30 July 22, 2003 Data subject to change without notice.

Bosch Security Systems, Inc.

850 Greenfield Road

Lancaster, PA 17601 EE.UU.

Tel: 800-326-3270

Fax: 1-717-735-6560

www.boschsecuritysystems.com

Robert Bosch GmbH

Geschäftsbereich

Postfach 10 60 50

70049 Stuttgart

Tel e fax (0711) 811-12 34

Bosch Security Systems B.V.

P.O. Box 80002

5600 JB Eindhoven

The Netherlands

Tele +31 40 27 80000
