AutoDome Easy Mount
en Instruction Manual
AutoDome, Bilinx, Bosch, the Bosch logo, DiBos, FastAddress and VIDOS are registered trademarks of Bosch Security Systems, inc.
Due to the nature of this material, this document refers to numerous hardware and software products by their trade names, In most, if not all
cases, these designations are claimed as trademarks or registered trademarks by their respective companies in the United States of America. It is
not this publisher’s intent to use any of these names generically. The reader is therefore cautioned to investigate all claimed trademark rights be-
fore using any of these names other than to refer to the product described.
iv en | AutoDome Easy Mount
F01U064856 | 1.0 | 2007.03 Instruction Manual Bosch Security Systems, Inc.
Preface
This guide describes how to install the AutoDome Easy mount.
Audience
This guide is intended for qualified installation and service personnel who are familiar with the applicable national
and local electrical codes.
Important Safeguards
1. Read Instructions - All the safety and operating instructions should be read before the
unit is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future
reference.
3. Heed Warnings - All warnings on the unit and in the operating instructions should be
adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
Document Conventions
Symbols
You may encounter these symbols within the document. Explanatory text accompanies each symbol, which provides
additional information detailing the operation or highlighting safety information.
Convention Meaning
Bold Denotes a part, item, or assembly.
Italic Denotes a reference to another paragraph, figure or table.
Underline Used to emphasize a point.
courier Denotes the actual name of an object, the exact code that should be typed or a message
returned from a system.
i
NOTICE! Notices inform you of essential but non-critical information. Read these messages
carefully as any directions or instructions contained therein can help you avoid making
mistakes.
!
CAUTION! Cautionary messages provide critical information that help you reduce the chance
of losing data or damaging the system. Please heed these messages.
!
WARNING! Warnings highlight information, that if overlooked may cause damage to the
system or result in personal injury. Take warnings seriously.
DANGER! Danger messages denote the presence of electrical equipment that may cause
electric shock or electrocution. Take care when you see this symbol to avoid serious injury or
death.
AutoDome Easy Mount | en v
Bosch Security Systems, Inc. Instruction Manual F01U064856 | 1.0 | 2007.03
Customer Support and Service
If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and
shipping instructions.
Service Centers
USA
Phone: 800-366-2283 or 585-340-4162
Fax: 800-366-1329
Email: [email protected]
Technical Support
Phone: 800-326-1450
Email: technical.su[email protected]
CCTV Spare Parts
Phone: 800-894-5215 or 408-957-3065
Fax: 408-935-5938
Canada
Phone: 514-738-2434
Fax: 514-738-8480
Europe, Middle East & Asia Pacific Region
Phone: 44 (0) 1495 274558
Fax: 44 (0) 1495 274280
For additional information, see www.boschsecurity.com
Related Publications
Refer to the latest Bosch Security Systems, Inc. Databook for the most up-to-date datasheets. To obtain a copy of
the Databook, please contact your local Bosch representative.
You can also visit the Bosch Security Systems World Wide Web site at: http://www.boschsecurity.com to view a cur-
rent listings of our publications.
vi en | Table of Contents AutoDome Easy Mount
Bosch Security Systems Instruction Manual F01U064856 | 1.0 | 2006.07
Table of Contents
1 Unpacking 1
1.1 Parts List 1
2 Installation 2
2.1 Installing the Wall Mount 2
2.2 Installing the Pipe Mount 5
3 Maintenance 7
4 Dimensional Outline 8
4.1 Wall Mount Dimensions 8
4.2 Pendant Pipe Mount Dimensions 8
AutoDome Easy Mount Unpacking | en 1
Bosch Security Systems Instruction Manual F01U064856 | 1.0 | 2007.03
1Unpacking
This equipment should be unpacked and handled with care. If an item appears to have been
damaged in shipment, notify the shipper immediately.
Verify that all the parts listed in the Parts List below are included. If any items are missing,
notify your Bosch Security Systems Sales or Customer Service Representative.
The original packing carton is the safest container in which to transport the unit and must be
used if returning the unit for service. Save it for possible future use.
1.1 Parts List
The following table lists the parts included:
Quantity Part
1 Wall mount: VEZ-A-WW or VEZ-A-WC (white or charcoal)
1Domemountingcap
3M4screws
1 Installation manual
Quantity Part
1 Pipe mount: VEZ-A-PW or VEZ-A-PC (white or charcoal)
1Domemountingcap
2 Pipe mount extension poles 20 cm (7.9 in.) and 30 cm (11.8 in.)
3M4screws
1 Pipe extension coupler
1 Installation manual
2en | Installation AutoDome Easy Mount
F01U064856 | 1.0 | 2007.03 Instruction Manual Bosch Security Systems
2 Installation
This installation should be made by qualified service personnel and conform to the National
Electrical Code and applicable local codes.
2.1 Installing the Wall Mount
1. Determine a secure location for the wall mount.
2. Use the mount as a template to mark the location of the mount holes.
3. Drill holes for the anchors (not supplied, use a minimum of 4 mm (.15 in.)).
4. Install the anchors into the wall.
5. Drill a fifth hole (maximum of 30 mm) in the center of the four-hole pattern used to
mount the flange. Use this hole to feed the wires through the mount.
6. Attach mounting cap to the arm.
7. Pull all wires from the wall through the feed through tube.
8. Attach the mount to the wall with the appropriate hardware (not supplied).

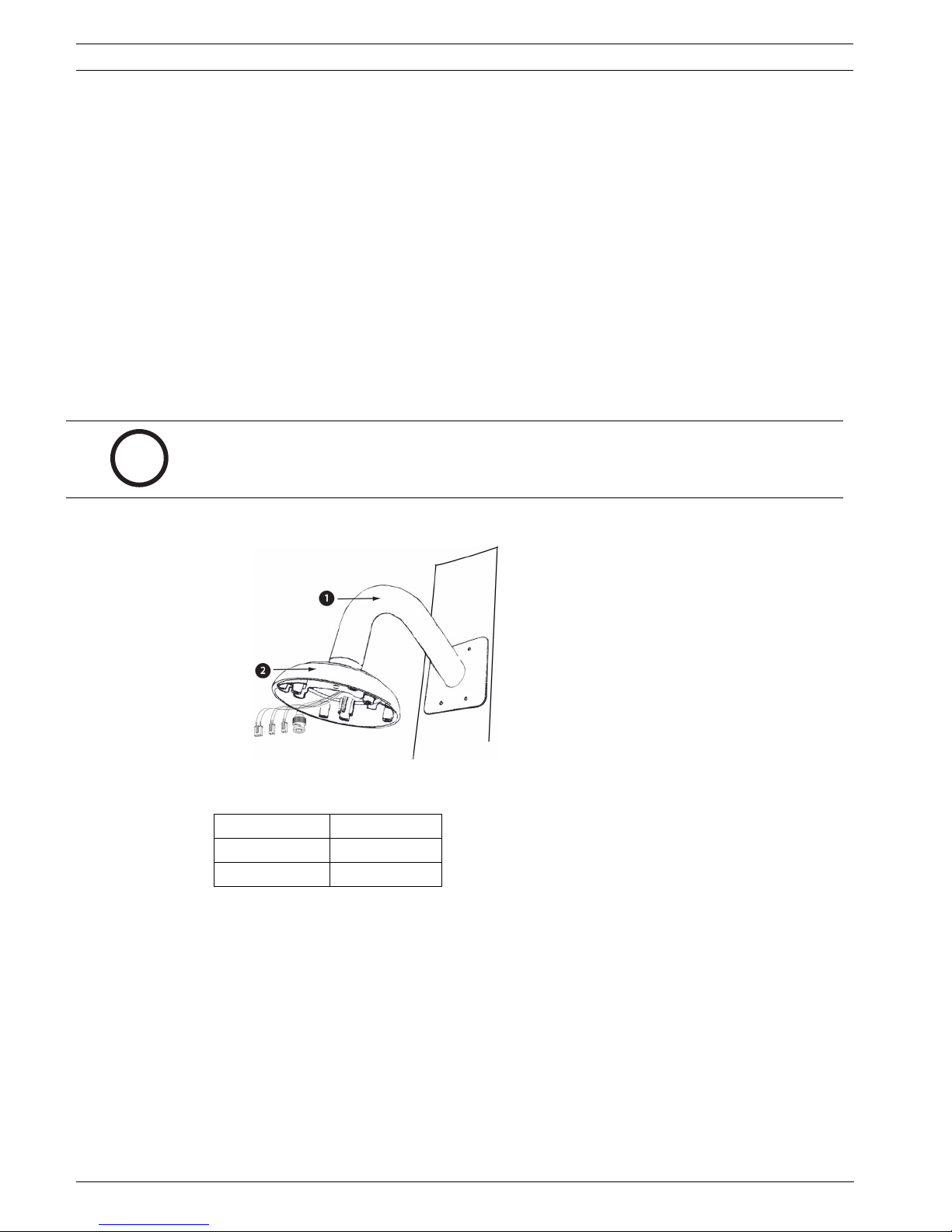

Fig. 2.1 Attaching the mount to the wall
i
NOTICE! The fasteners and mounting surface must be capable of supporting a maximum load
of 11.33 Kg (25 pounds).
Reference # Description
1Arm
2Cap
AutoDome Easy Mount Installation | en 3
Bosch Security Systems Instruction Manual F01U064856 | 1.0 | 2007.03
9. Attach the mounting plate (supplied with Dome) to the dome mounting cap with the sup-
plied three (3) screws. Ensure that the mounting plate’s “front” end, as labeled on the
plate, is screwed into the threaded stud furthest away from the wall as seen in Figure 2.2.

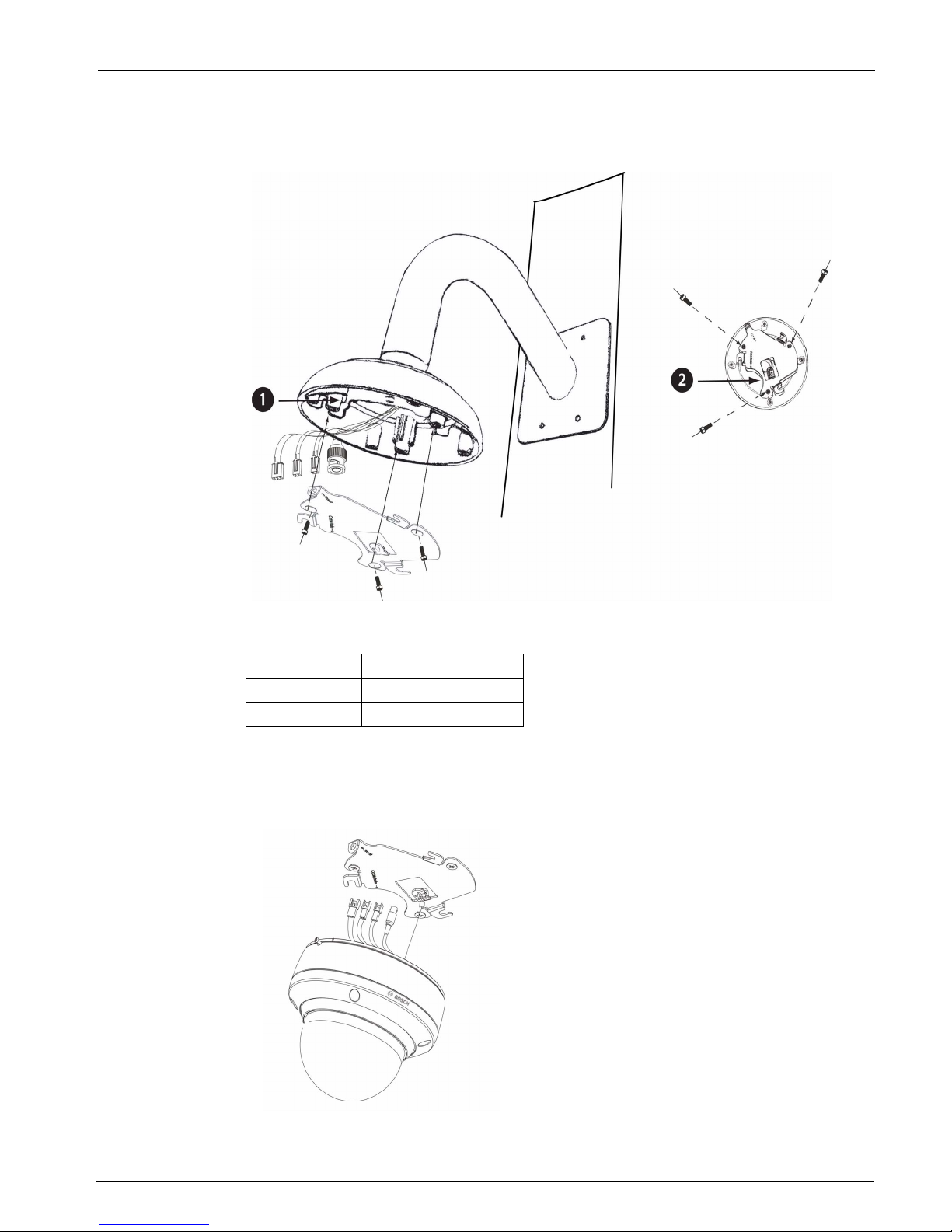

Fig. 2.2 Attaching the mounting plate to the dome cap
10. Connect all wires to the camera.
11. Pull excess wire back into the mount tube.
12. Hang the dome camera to the mounting plate using the safety wire.
Fig. 2.3 Hanging the safety wire to the mounting plate
Reference # Description
1Align “front” of plate here
2Feed wires through here
4en | Installation AutoDome Easy Mount
F01U064856 | 1.0 | 2007.03 Instruction Manual Bosch Security Systems
13. Attach the camera to the mounting plate by turning the dome camera to the right approx-
imately 15 degrees and locking into place as seen in Figure 2.4.

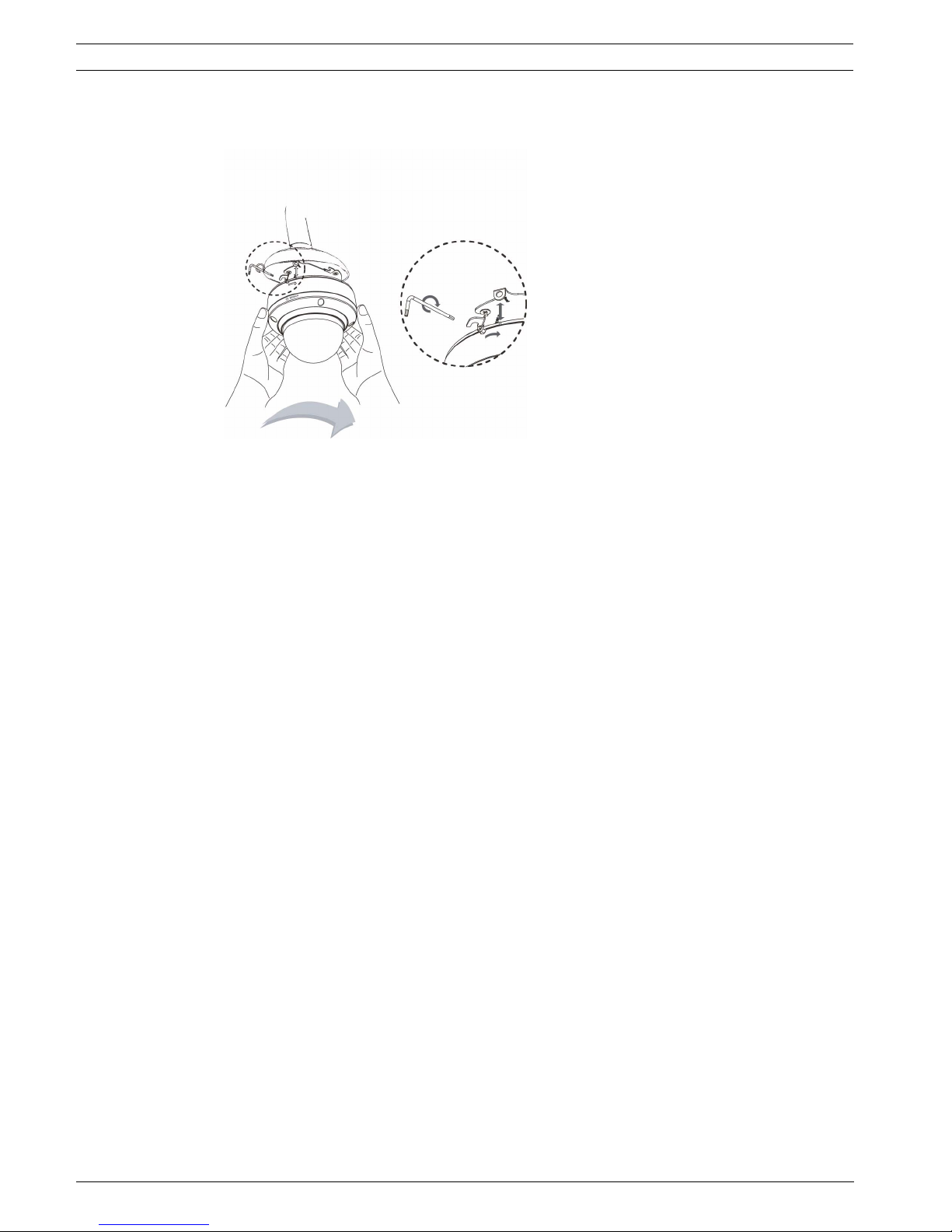

Fig. 2.4 Attaching the AutoDome Easy to the mounting plate
14. Secure the safety locking screw with the locking torx wrench (T-10) supplied with the
AutoDome Easy.
