Operating/Safety Instructions

Consignes de sécurité/d’utilisation

Instrucciones de funcionamiento

y seguridad

1-877-BOSCH99 (1-877-267-2499) www.boschtools.com

0.0°

1/x

164

" ⁄

GLM165-22

GLM165-27C

-2-

GLM165-22

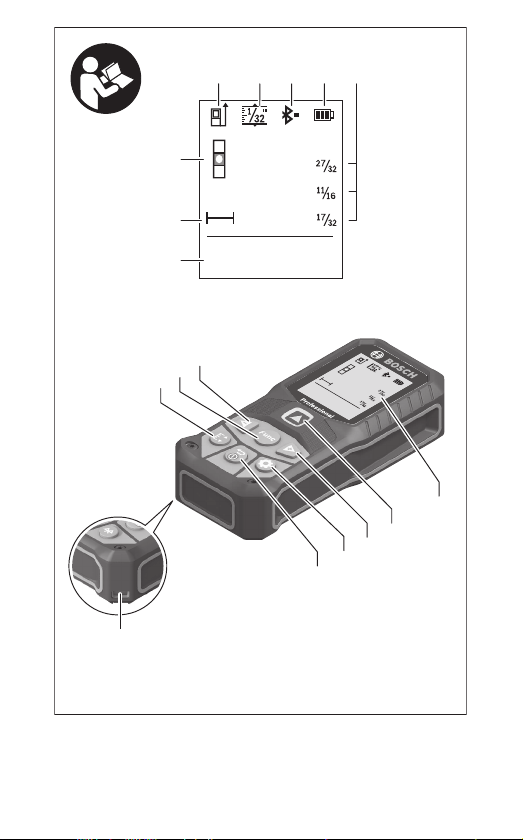

(1)(2)(3)

(4)

(5)

(6)

(7)

(8)

(a) (d) (e)

(f)

(g)

(9)

4'02"

8'05"

12'08"

164

" ⁄

1/x

(b)

4'02"

8'05"

12'08"

164

" ⁄

-3-

GLM165-27C

0.0°

(1)(2)(3)

(4)

(5)

(6)

(7)

(8)

(a) (c) (d)(e)

(f)

(g)

(h)

(b)

(9)

4'02"

8'05"

12'08"

164

" ⁄

1/x

0.0°

4'02"

8'05"

12'08"

164

" ⁄

-4-

(10)

(11)

(12)

(13)

(14)

(15)

(16)

GLM165-22

3601K72S10

2 x 1.5V (AA)

LASER RADIATION.

DO NOT STARE INTO

BEAM. CLASS 2

LASER PRODUCT.

RAYONNEMENT

LASER. NE RE-

GARDEZ PAS DI-

RECTEMENT DANS

LE FAISCEAU. PRO-

DUIT LASER DE

CLA SSE 2 .

IEC 60825-1:2014

< 1 mW, 635 nm

Robert Bosch Tool Corp.,

Mount Prospect, IL

Made in Malaysia

-5-

1/x

(i) (j) (k)

GLM165-27C

GLM165-22

-6-

(17)

(18)

(17)

-7-

GLM50C

Professional

(17)

(18)

(19)

(20)

(21)

(22)

-8-

Read all instructions. Failure to

follow all instructions listed below

may result in hazardous radiation exposure, electric

shock, ﬁre and/or serious injury.

The term “laser measure” in the warnings listed below

refers to your battery-operated (cordless) laser mea-

suring tool.

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTURE REFERENCE

The following label is on your laser

measure for your safety. ALWAYS BE

AWARE of its location when using the

laser measure.

DO NOT direct the laser beam

at persons or animals and do

not stare into the laser beam

yourself. This laser measure

produces class 2 laser radia-

tion and complies with 21 CFR 1040.10 and 1040.11

except for deviations pursuant to Laser Notice No.

50, dated June 24, 2007. This can lead to persons

being blinded.

DO NOT stare directly at the laser beam or project

the laser beam directly into the eyes of others. Seri-

ous eye injury could result.

DO NOT place the laser measure in a position that

may cause anyone to stare into the laser beam inten-

tionally or unintentionally. Serious eye injury could

result.

DO NOT operate the laser measure around children

or allow children to operate the laser measure. Seri-

ous eye injury could result.

ALWAYS: Make sure that any bystanders in the vicin-

ity of use are made aware of the dangers of looking

directly into the laser measure.

General Safety Rules

LASER RADIATION.

DO NOT STARE INTO

BEAM. CLASS 2

LASER PRODUCT.

RAYONNEMENT

LASER. NE RE-

GARDEZ PAS DI-

RECTEMENT DANS

LE FAISCEAU. PRO-

DUIT LASER DE

CLASSE 2.

IEC 60825-1:2014

< 1 mW, 635 nm

-9-

Never aim the beam at a workpiece with a reﬂective

surface. Bright shiny reﬂective sheet steel or similar

reﬂective surfaces are not recommended for laser

use. Reﬂective surfaces could direct the beam back

towards the operator.

Use of controls or adjustments or performance of

procedures other than those speciﬁed herein may

result in hazardous radiation exposure.

DO NOT use any optical tools such as, but not limited

to, telescopes or transits to view the laser beam. Se-

rious eye injury could result.

DO NOT leave the laser measure “ON” unattended in

any operation mode. ALWAYS turn the laser measure

“OFF” when not in use. Leaving the laser measure

“ON” increases the risk of someone inadvertently star-

ing into the laser beam.

DO NOT operate the laser measure in combustible

areas such as in the presence of ﬂammable liquids,

gases or dust.

Do not use the laser viewing glasses as safety gog-

gles. The laser viewing glasses are used for improved

visualization of the laser beam, but they do not protect

against laser radiation.

Do not use the laser viewing glasses as sun glasses

or in traﬃc. The laser viewing glasses do not aﬀord

complete UV protection and reduce color perception.

ALWAYS position the laser measure securely. Dam-

age to the laser measure and/or serious injury to the

user could result if the laser measure falls.

Take care to recognize the accuracy and range of the

laser measure. Measurement may not be accurate if

used beyond the rated range of the laser measure.

DO NOT remove or deface any warning or caution

labels. Removing labels increases the risk of exposure

to laser radiation.

-10-

Electrical safety

Batteries can explode or leak, cause injury or ﬁre. To

reduce this risk, always follow all instructions and

warnings on the battery label and package.

DO NOT short any battery terminals.

DO NOT charge alkaline batteries.

DO NOT mix old and new batteries. Replace all of

them at the same time with new batteries of the

same brand and type.

DO NOT mix battery chemistries.

Dispose of or recycle batteries per local code.

DO NOT dispose of batteries in ﬁre.

Keep batteries out of reach of children.

Remove batteries if the device will not be used for

several months.

Maintenance

DO NOT disassemble the laser measure. There are

no user serviceable parts inside. Disassembling the

laser will void all warranties on the product. Do not

modify the product in any way. Modifying the laser

measure may result in hazardous laser radiation expo-

sure.

ALWAYS remove the batteries when cleaning the la-

ser light aperture to laser lens.

DO NOT use this laser measure for any purpose other

than those outlined in this manual. This could result

in serious injury.

ALWAYS use only the accessories that are recom-

mended by the manufacturer of your laser measure.

Use of accessories that have been designed for use

with other laser measures could result in serious in-

jury.

Repair and servicing must always be performed by

a qualiﬁed repair facility. Repairs performed by un-

qualiﬁed personnel could result in serious injury.
