Body Solid DPRS.2 Manuel utilisateur
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com

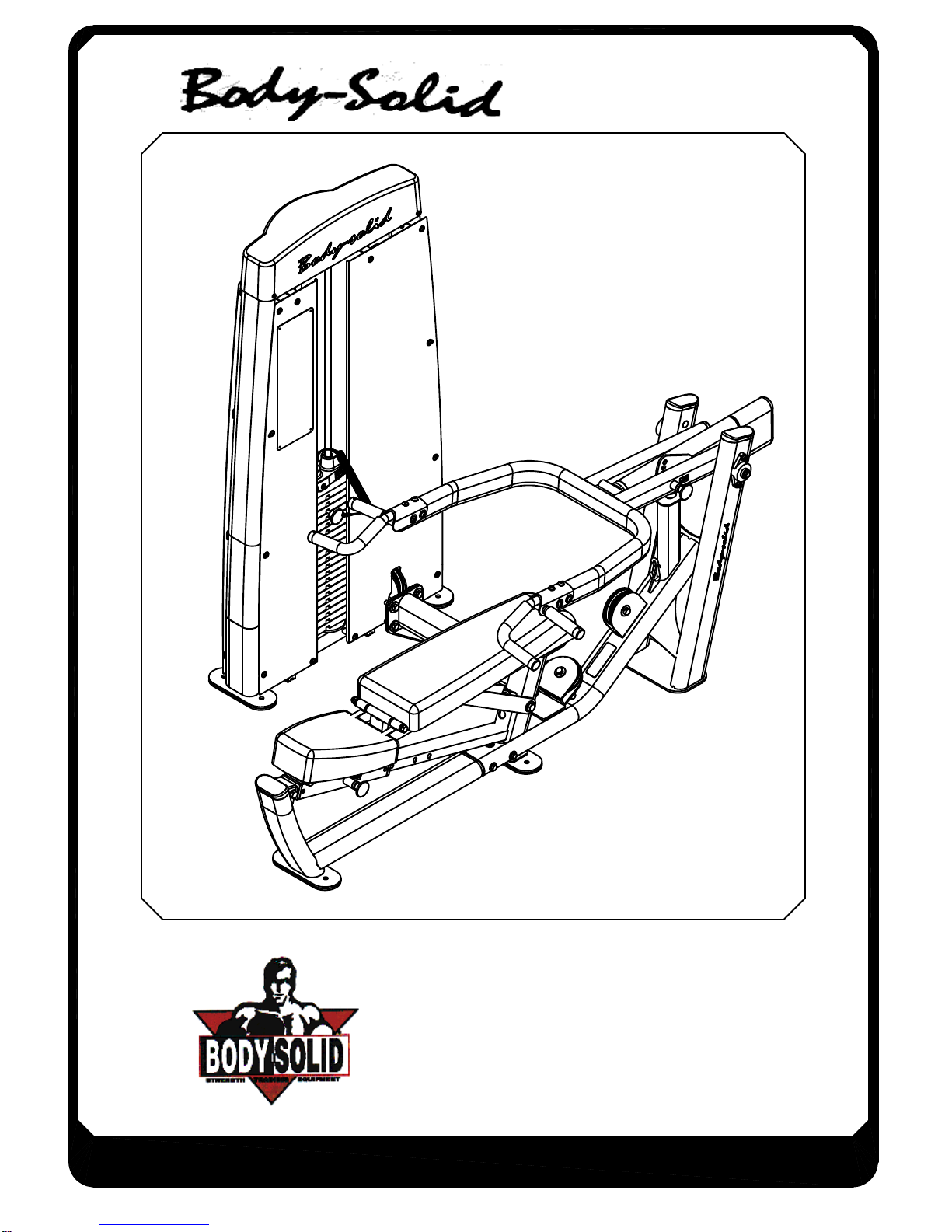

OWNER'S MANUAL
DPRS.2

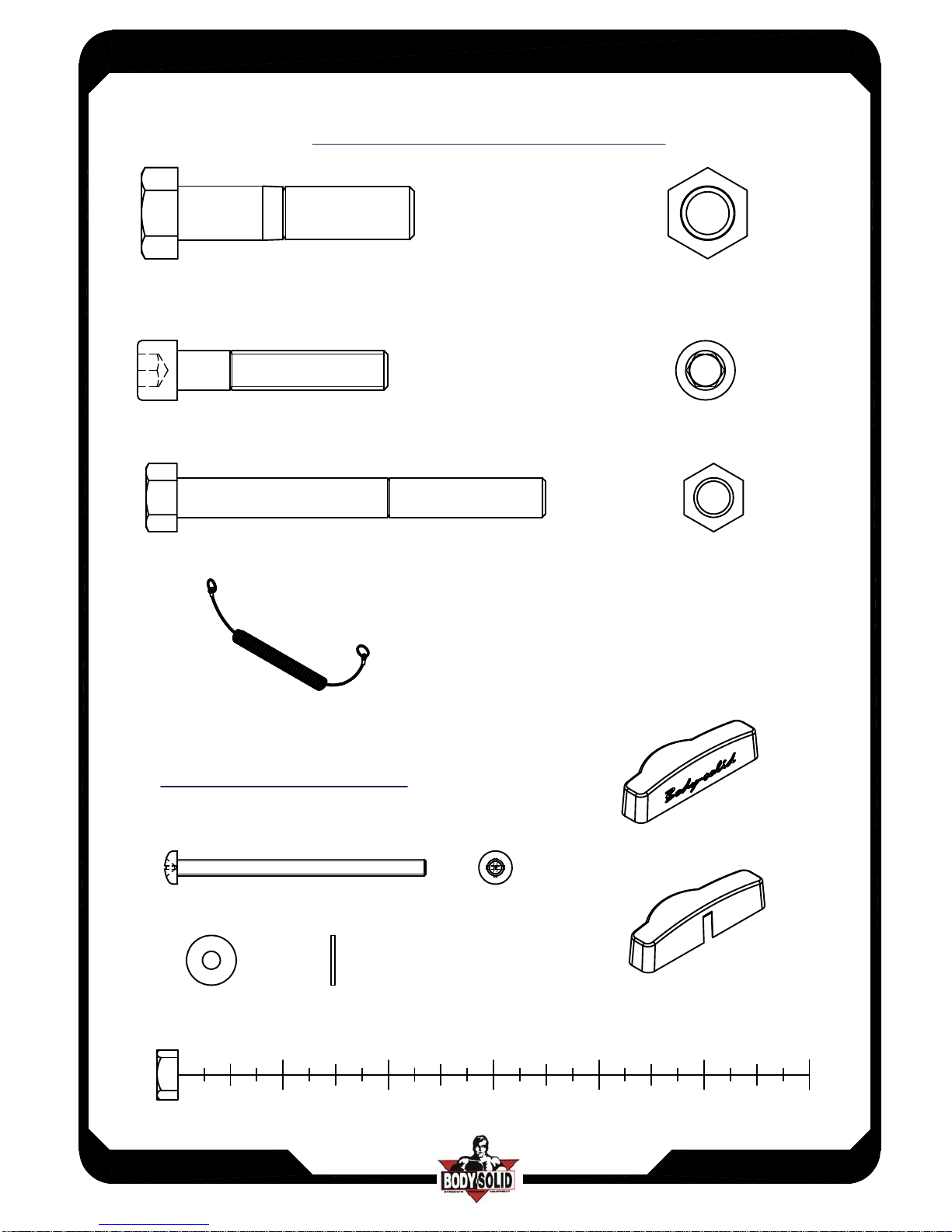

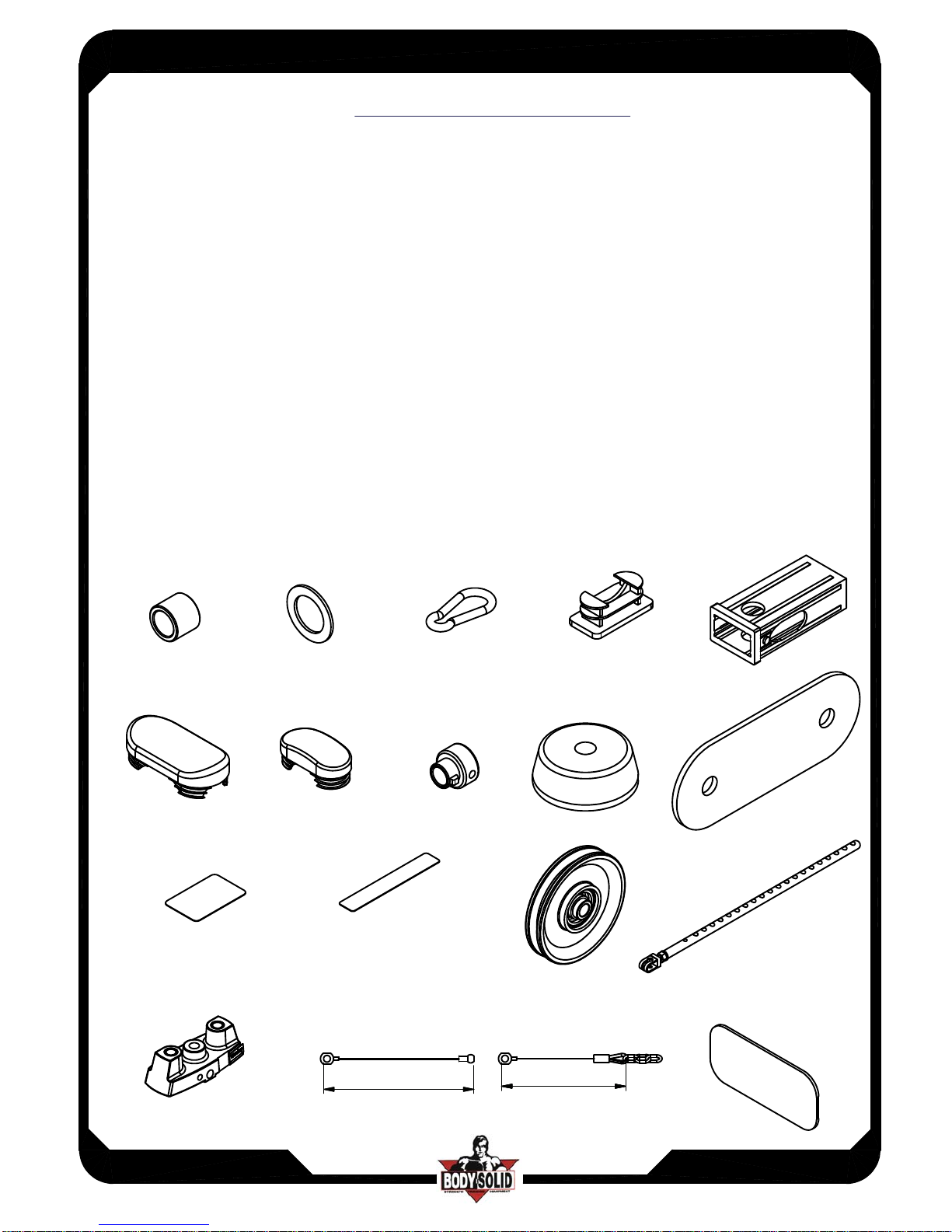

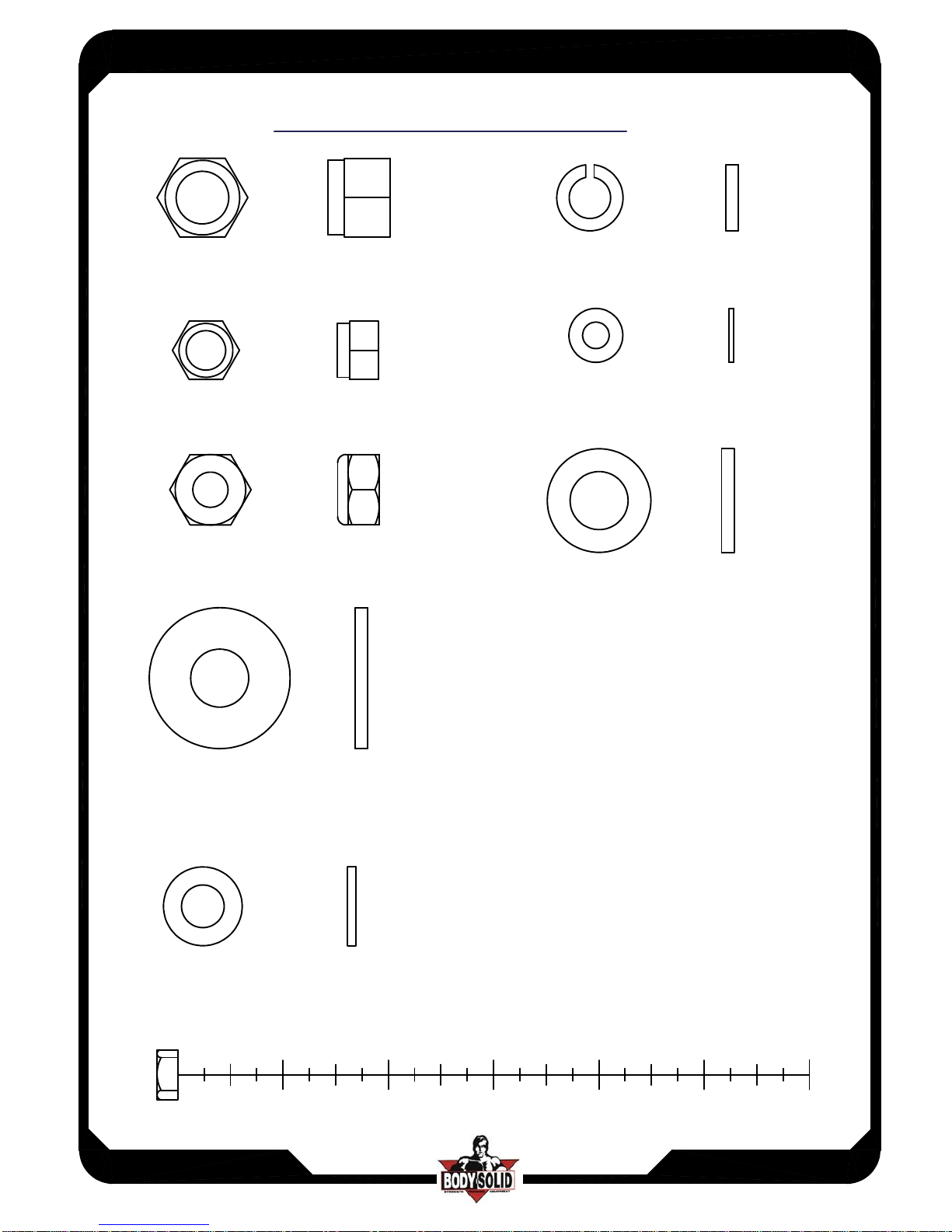

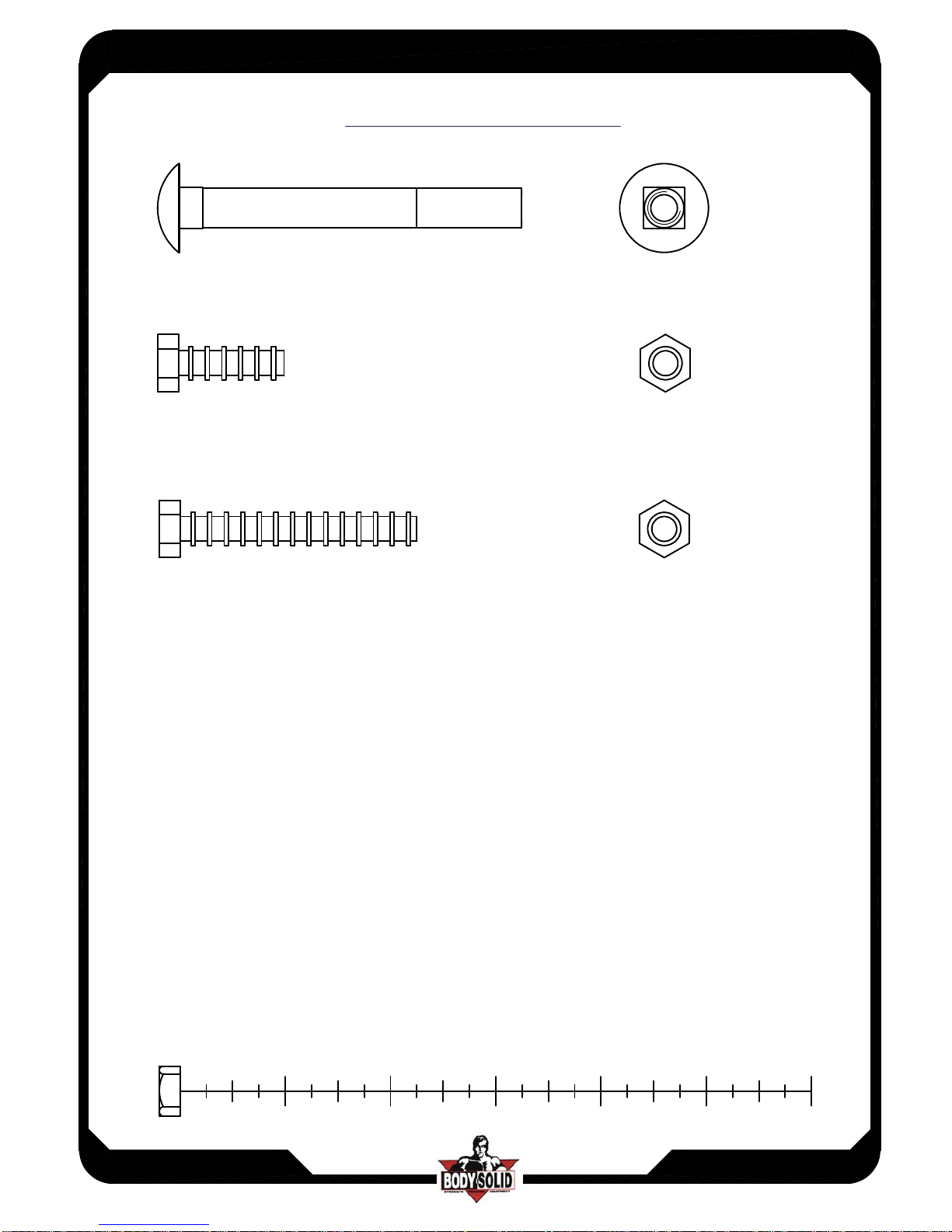

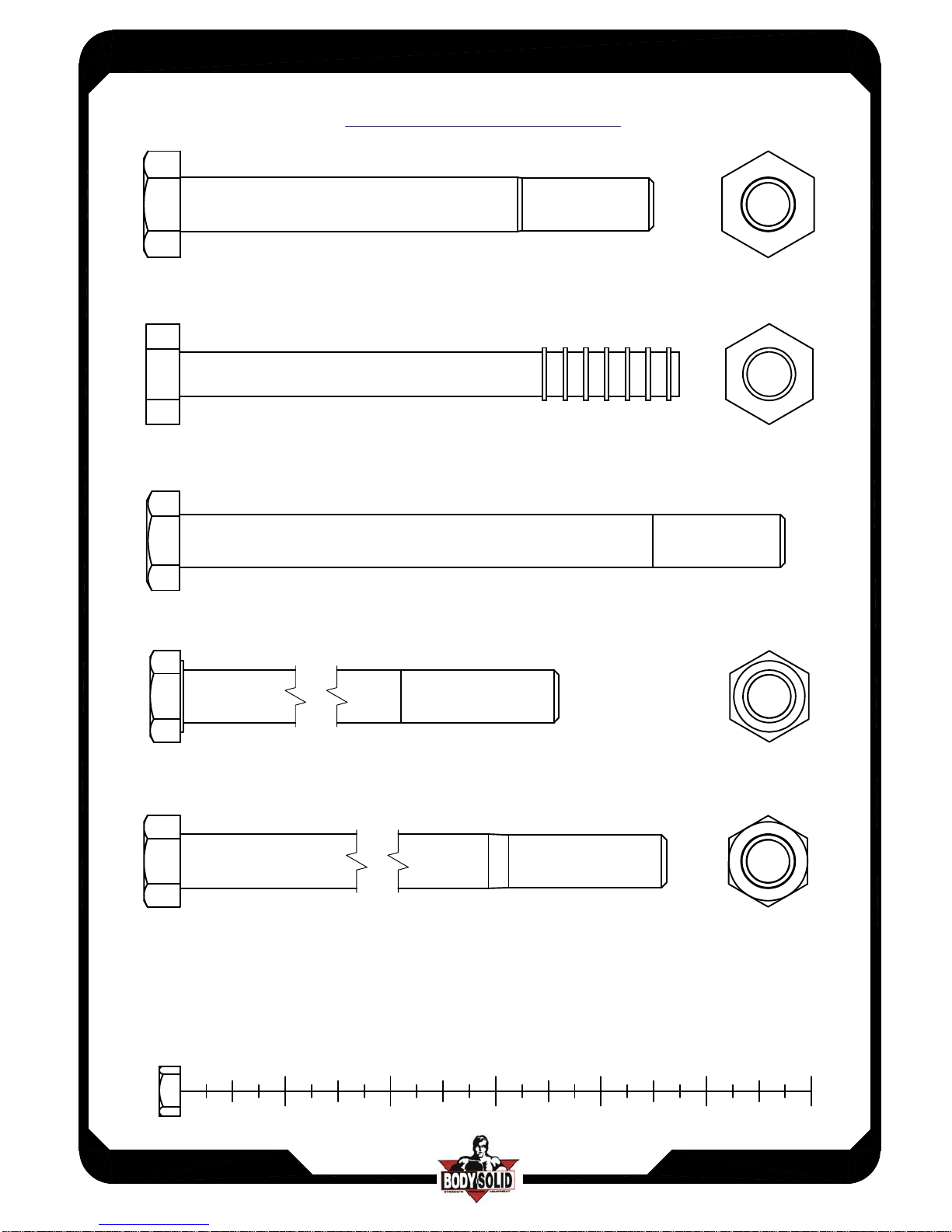

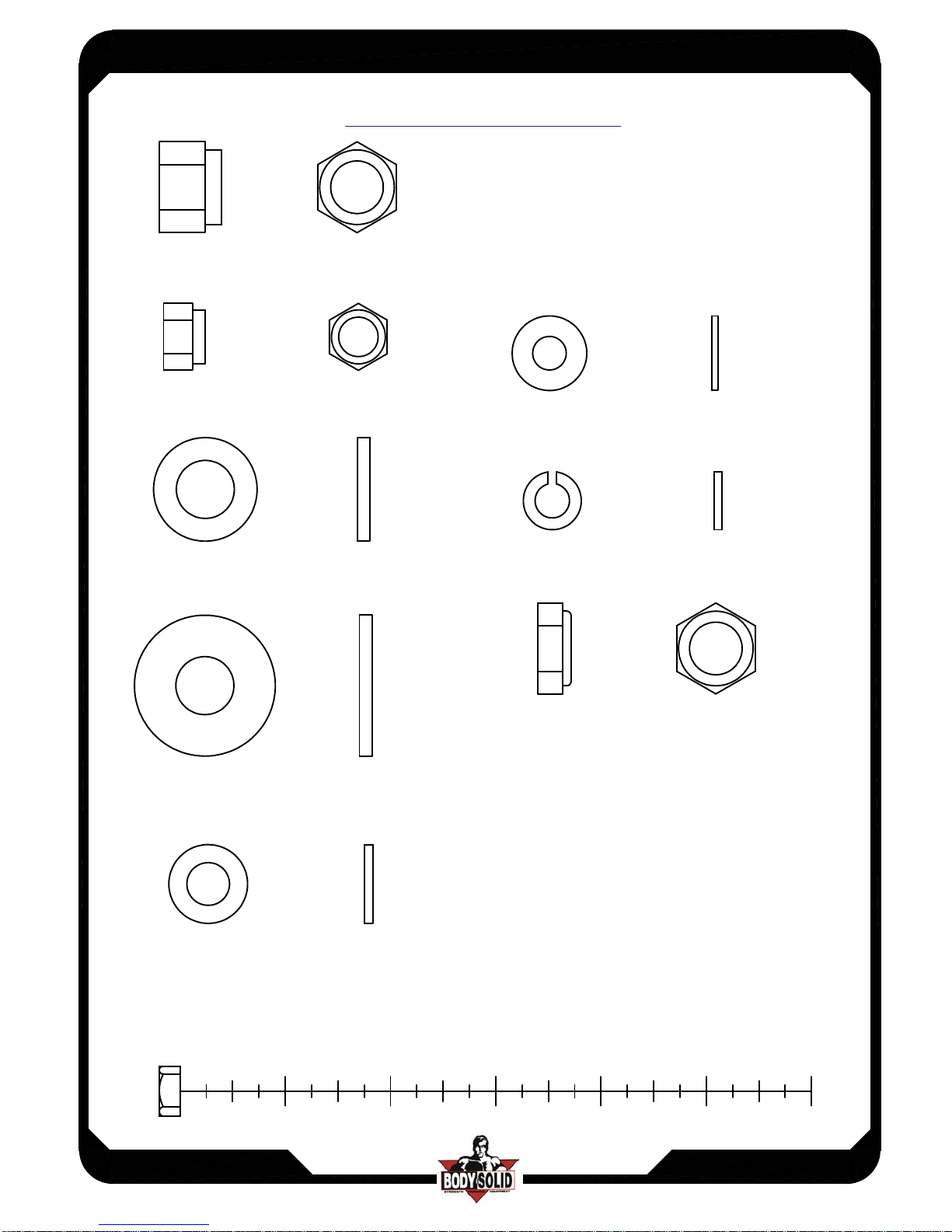

ASSEMBLY INSTRUCTIONS
Page
DPRS.2-042007 1.1
DPRS

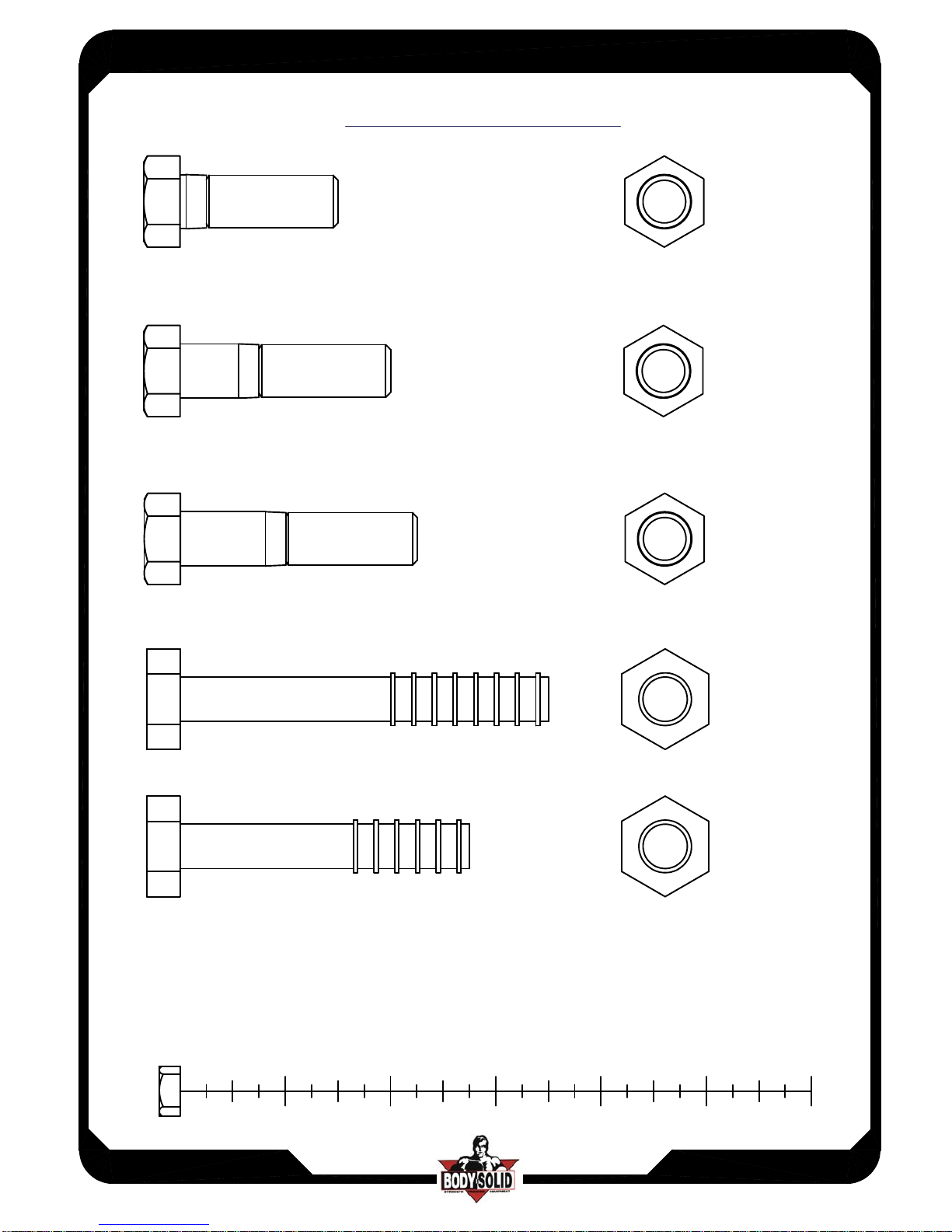

(A1)HEX BOLT 1/2"x1 1/2"L PARTIAL THREAD QTY.7
(A2)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.1
(A3)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1
(A4)HEX BOLT 1/2"x3 1/2"L PARTIAL THREAD QTY.1
(A5)HEX BOLT 1/2"x2 3/4"L PARTIAL THREAD QTY.1
HARDWARE ILLUSTRATION
2
13456
ASSEMBLY INSTRUCTIONS
Page
DPRS.2-042007 1.2
DPRS
(A6)HEX BOLT 1/2"x4 1/2"L PARTIAL THREAD QTY.1
(A7)HEX BOLT 1/2"x4 3/4"L PARTIAL THREAD QTY.1
(A8)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.1
(A9)HEX BOLT 1/2"x7"L PARTIAL THREAD QTY.1
(A10)HEX BOLT 1/2"x8 1/2"L PARTIAL THREAD QTY.1
HARDWARE ILLUSTRATION
2
13456
ASSEMBLY INSTRUCTIONS
Page
DPRS.2-042007 1.3
DPRS
(A12)ROUND ALLEN HEAD 3/8"x3 1/8"L PARTIAL THREAD QTY.4
(A13)HEX BOLT 5/16"x1"L PARTIAL THREAD QTY.3
(A14)HEX BOLT 5/16"x2 1/4"L PARTIAL THREAD QTY.4
HARDWARE ILLUSTRATION
2
13456
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.2-062007 1.4
(A16)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.4
(A17)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2
(A18)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1
(A19)HEX BOLT 3/8"x3 1/2"L PARTIAL THREAD QTY.1
2
13456
FRAME HARDWARE ILLUSTRATION
(A20)ELASTIC BOLT QTY.1
(C12)M4(I.D.)FLAT WASHER n12 QTY.2
Optional Purchase
"M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP
TOP CAP(9211-111)
TOP CAP(9211-119)
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.2-042007 1.5

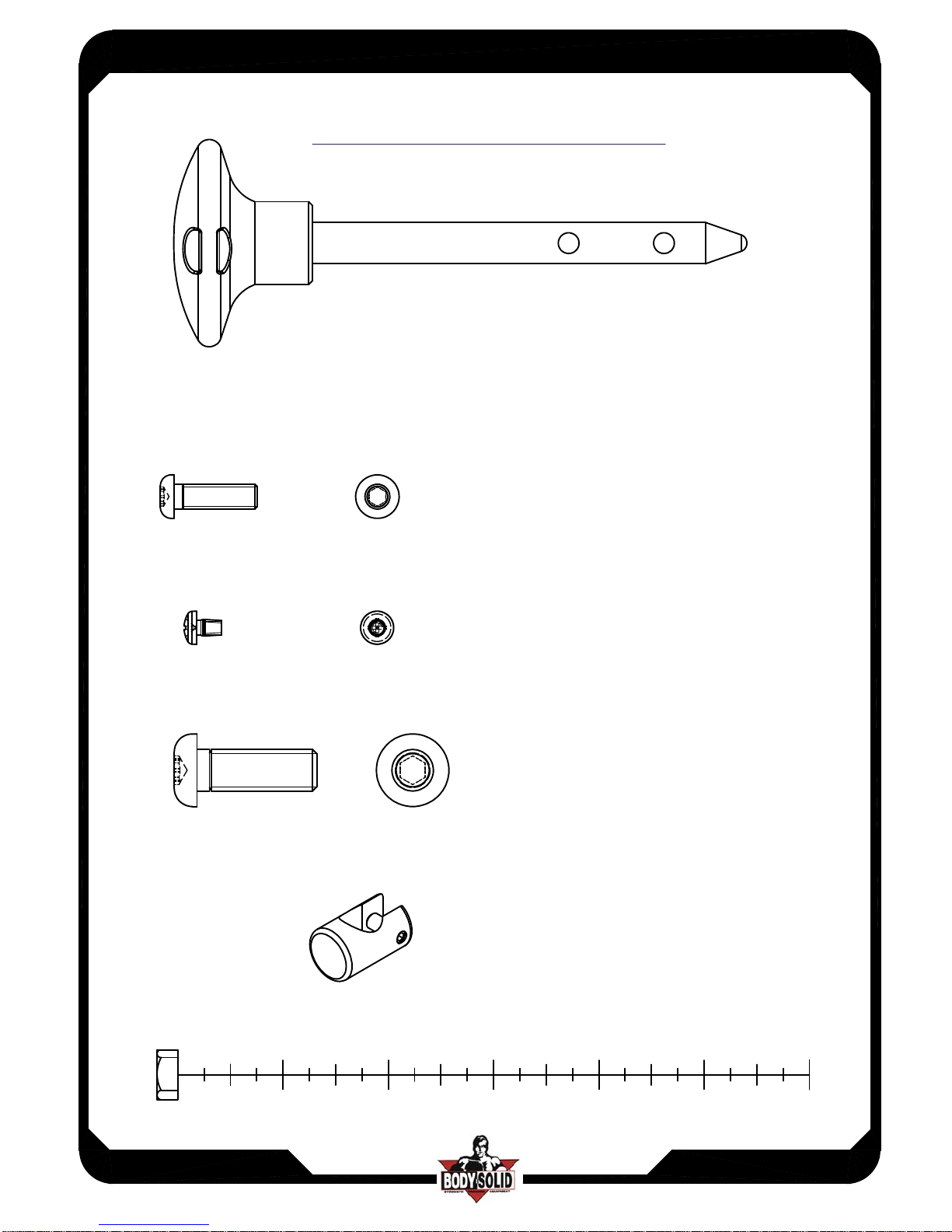

(A21)10LB PIN (8250-071) QTY.1
(A23)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.20
(A24)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4
2
13456
FRAME HARDWARE ILLUSTRATION
(A25)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1
(A26)FIRM SHEATH(8890-046) QTY.1
ASSEMBLY INSTRUCTIONS
Page
DPRS.2-072007 1.6
DPRS
(B1)NYLON LOCK NUT 1/2" QTY.14
(B2)NYLON LOCK NUT 3/8" QTY.4
(C1)1/2"(I.D.)FLAT WASHER n25 QTY.14
(C2)1/2"(I.D.)FLAT WASHER n34 QTY.15
(C3)3/8"(I.D.)FLAT WASHER n19 QTY.4
(C5)5/16"(I.D.)FLAT WASHER n18 QTY.7
(C6)5/16" SPRING WASHER QTY.7
(B6)NYLON LOCK NUT 1/2"X8H QTY.1
HARDWARE ILLUSTRATION
2
13456
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.2-062007 1.7
(B4)NYLON LOCK NUT 1/2" QTY.4
(C8)1/2"(I.D.)FLAT WASHER n34 QTY.6
(C10)3/8" SPRING WASHER QTY.1
(C11)M6(I.D.)FLAT WASHER n13 QTY.20
(C9)3/8"(I.D.)FLAT WASHER n19 QTY.2
(B5)NYLON LOCK NUT 3/8" QTY.1
2
13456
FRAME HARDWARE ILLUSTRATION
(C13)1/2"(I.D.)FLAT WASHER n25 QTY.2
(B6)NYLON LOCK NUT M10 QTY.1
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.2-042007 2
D1.n3/4"X16L STEEL BUSHING (8110-066)---------------------[2PCS]
D2.n30Xn20X1.5T CU WASHER (8520-007)---------------------[4PCS]
D6.58X116 END CAP(9211-112)---------------------------------------[4PCS]
D8.n3/4" SHAFT COLLAR(9211-046)---------------------------------[2PCS]
D9.n4" RUBBER DOUNT(9310-017)----------------------------------[2PCS]
D12.20X120 FRICTION TAPE(9440-083)----------------------------[2PCS]
D1 D2 D3 D4
D6 D7 D8 D9
D11 D12 D13 D14
D16
D5
D10
D15
D7.40X80 END CAP(9211-113)-----------------------------------------[2PCS]
D3.n8 SPRING SNAP LINK(8810-001)------------------------------[1PCS]
D4.20X40 END CAP(9211-008)----------------------------------------[4PCS]
D5.50X75(30X60)NYLON BUSHING(9211-083)-------------------[2PCS]
D10.95X250 RUBBER PAD(9310-060)--------------------------------[4PCS]
D11.40X70 FRICTION TAPE(9440-068)------------------------------[2PCS]
D13.n117 PULLEY(9213-010B)-----------------------------------------[7PCS]
D14.WEIGHT SELECTOR BAR(8210-042B)-------------------------[1PCS]
D15.TOP PLATE(8400-006)----------------------------------------------[1PCS]
2375
D17
D16.2375mm STEEEL CABLE(FDPRSA)----------------------------[1PCS]
D17.2615mm STEEL CABLE(FDPRSB)------------------------------[1PCS]
D18.DPRS For DGYM Steel Cable(FDPRSC)-----------------------[1PCS]
D19
D19.95X250 RUBBER PAD(9310-061)--------------------------------[1PCS]
HARDWARE ILLUSTRATION
26152615
ASSEMBLY INSTRUCTIONS
Page
DPRS.2-042007 3
DPRS

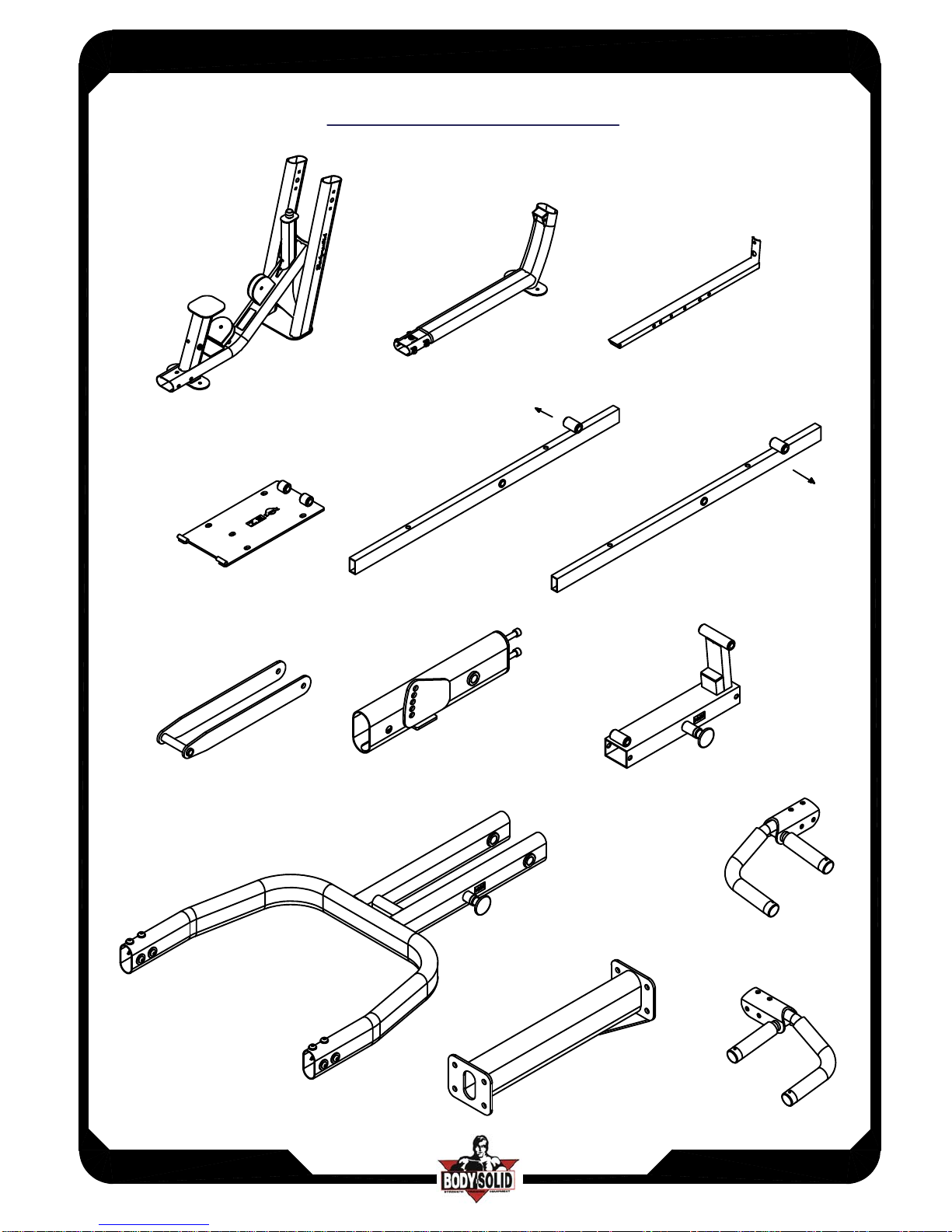

PARTS ILLUSTRATION SHEET
A1[1PCS] B[1PCS] C[1PCS]
D1[1PCS]
long
E1[1PCS]
long
F1[1PCS]
G[1PCS] H[1PCS] I[1PCS]
J[1PCS]
L[1PCS]
M[1PCS]
K[1PCS]
