Black Box RM7006 Manuel utilisateur

BL A C K B O X®

These 15U, 22U, 37U, 42U, and 51U racks provide

exceptional stability.

Hold up to 2200 pounds of equipment.

4-Post Steel Open Racks

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

RM7000A-R2 RM7003A-R2 RM7006

RM7001A-R2 RM7004A-R2 RM7007

RM7002 RM7005A-R2 RM7008A-R2

RM7010

Get other manuals https://www.bkmanuals.com

Page 2 724-746-5500 | blackbox.com

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of BB

Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the

property of the trademark owners.

Get other manuals https://www.bkmanuals.com

Page 3

724-746-5500 | blackbox.com

Chapter 1: Specifications

1. Specifications

Exterior Height — RM7000A-R2: 80.5" (204.5 cm);

RM7001A-R2: 45.5" (115.6 cm);

RM7003A-R2: 33.25" (84.5 cm);

RM7004A-R2: 96" (243.8 cm);

RM7005A-R2: 108" (274.3 cm);

RM7008A-R2: 72" (183 cm)

Exterior Width — 20.6" (52.3 cm)

Exterior Depth — 29" (73.7 cm)

Rack Units — RM7000A-R2: 42U;

RM7001A-R2: 22U;

RM7003A-R2: 15U;

RM7004A-R2: 51U;

RM7005A-R2: 58U;

RM7008A-R2: 37U

Interior Width — 19" (48.3 cm)

Weight — RM7000A-R2: 80 lb. (36.4 kg);

RM7001A-R2: 65 lb. (29.5 kg);

RM7003A-R2: 60 lb. (27.3 kg);

RM7004A-R2: 94 lb. (42.7 kg);

RM7005A-R2: 101 lb. (45.9 kg);

RM7008A-R2: 79 lb. (35.8 kg)

Get other manuals https://www.bkmanuals.com

Page 4 724-746-5500 | blackbox.com

Chapter 2: Overview

2. Overview

2.1 Introduction

The 4-Post Steel Open Rack combines the stability of a cabinet with the airflow

of an open rack. It’s made of 12-gauge steel and supports up to 2200 pounds

(1000 kg) of equipment. The rack conforms to EIA standards for 19" equipment

mounting and has universal M6 holes. The rack is labeled with rack units.

Mounting hardware is included.

Choose from six rack models. They are 19" wide and are available in the six

heights listed below:

• RM7003A-R2 (15U)

• RM7001A-R2 (22U)

• RM7008A-R2 (37U)

• RM7000A-R2 (42U)

• RM7004A-R2 (51U)

• RM7005A-R2 (58U)

2.2 What’s Included

• (2) 15U, 22U, 37U, 42U, 51U, or 58U uprights, right hand

• (2) 15U, 22U, 37U, 42U, 51U, or 58U uprights, left hand

• (4) 23"D horizontal depth brackets

• (4) top/bottom horizontal width brackets

• (16) 3⁄8-16 x 3⁄4" long flat head screws, hex drive

• (16) 1⁄2"-13 x 1" hex head bolts, black oxide, wax coat, RoHS compliant

• (16) 1⁄2" split lockwashers, black oxide, wax coat, RoHS compliant

• (16) 1⁄2"-13 finished hex nuts, black oxide, wax coat, RoHS compliant

• (50) M6 metric threaded universal mounting cage nuts

• (50) M6 x 12 mm long metric threaded Phillips head screws, black

Get other manuals https://www.bkmanuals.com

Page 5

724-746-5500 | blackbox.com

Chapter 2: Overview

2.3 Optional Accessories

• Baying Kit (RM7002)

• RM7000A-R2 Series Caster Set (RM7006)

• RM7000A-R2 Series Flat Top (RM7007)

• Fixed Vented Shelf, 28.9"D, 50-lb. Capacity (RM7010)

• Fixed Vented Server Shelf, 271⁄4"D, 150-lb. Capacity (RM403)

• Fixed Vented Server Shelf, 30"D, 150-lb. Capacity (RM410)

Get other manuals https://www.bkmanuals.com

Page 6 724-746-5500 | blackbox.com

Chapter 3: Assembly Instructions

3. Assembly Instructions

Tools You Will Need

• 3⁄4" socket

• 3⁄4" wrench

• 7⁄32" hex key wrench

Step 1: Assembling the Bottom Corners of the Rack

A. Lay the left-hand and right-hand uprights on end, facing each other.

KEY:

1. Right-hand upright

2. Left-hand upright

Figure 3-1. Uprights.

B. Align the through holes in one top/bottom horizontal width bracket (#3 in

Figure 3-2) with the through holes in one left-hand upright (#1 in Figure 3-2).

Install (2) 3⁄8"-16 x 3⁄4" long flat head screws (see #4 in Figure 3-2) through the

holes on the upright and the threaded holes on the horizontal width bracket

(#3).

Get other manuals https://www.bkmanuals.com

Page 7

724-746-5500 | blackbox.com

Chapter 3: Assembly Instructions

KEY:

1. Left-hand upright

2. Horizontal depth bracket

3. Horizontal width bracket

4. 3⁄8-16 x 3⁄4" long flat head screw

5. 1⁄2-13 x 1" hex head bolt

6. 1⁄2" split lockwasher

7. 1⁄2-13 finished hex nut

Figure 3-2. Assembling the rack corners.

Threaded

holes

Through

holes

Get other manuals https://www.bkmanuals.com

Page 8 724-746-5500 | blackbox.com

Chapter 3: Assembly Instructions

C. Align the through holes in one top/bottom horizontal depth bracket (#2 in

Figure 3-2) with the through holes on the opposite side of the upright in Step

1B (#1 in Figure 3-2). Install (2) 1⁄2"-13 x 1" hex head bolts, lockwashers, and

(2) 1⁄2-13 finished hex head nuts (see #5, #6, and #7 in Figure 3-2).

D. Align the through holes on the other side of the horizontal width bracket in

Step 1B (#3 in Figure 3-2) with the through holes in one right-hand upright (#1

in Figure 3-1).

E. Repeat steps A–D for the remaining left- and right-hand uprights (#1 and #2 in

Figure 3-1), horizontal width bracket (#3 in Figure 3-2), and horizontal depth

bracket (#2 in Figure 3-2).

Step 2: Assembling the Top Corners of the Rack

A. Stand the bottom corner assembly from Step 1 with the horizontal width and

depth brackets’ bottom edges flat on the floor.

B. Repeat Steps 1B through 1E for the remaining two top/bottom horizontal width

brackets and the two top/bottom horizontal depth brackets. See Figure 3-2.

Step 3: Final Tightening

Square the unit using a level or carpenter square. Tighten all bolts using a 3⁄4"

socket and/or wrench.

Step 4: Secure the Rack to the Floor

CAUTION: Before installing equipment in the rack, bolt it to the floor, or to an

equally stable and secure surface before installing any equipment.

Get other manuals https://www.bkmanuals.com

Page 9

724-746-5500 | blackbox.com

Chapter 3: Assembly Instructions

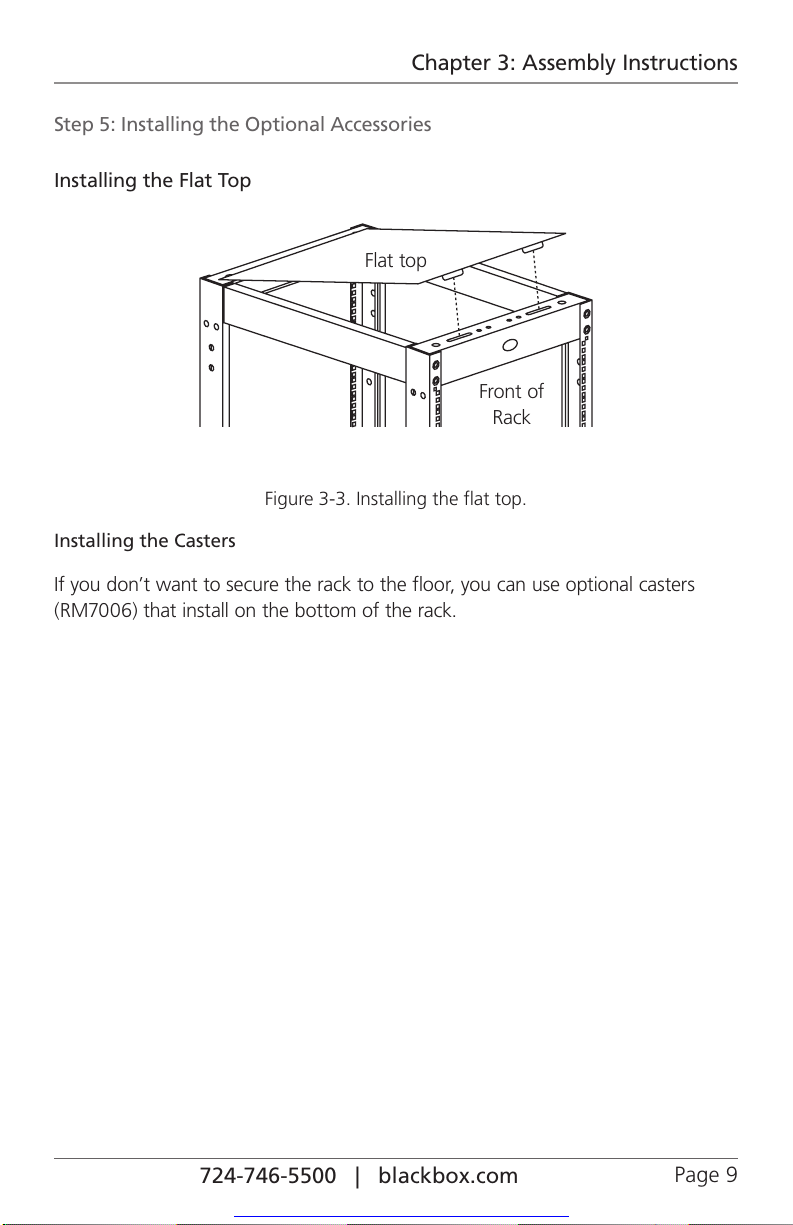

Step 5: Installing the Optional Accessories

Installing the Flat Top

Flat top

Front of

Rack

Figure 3-3. Installing the flat top.

Installing the Casters

If you don’t want to secure the rack to the floor, you can use optional casters

(RM7006) that install on the bottom of the rack.

Get other manuals https://www.bkmanuals.com

Page 10 724-746-5500 | blackbox.com

NOTES
