Black Box USB–DVI/VGA Adapter Manuel utilisateur

BL A C K B O X®

Add multiple DVI displays to your PC.

USB–DVI/VGA Adapter Quick Start Guide

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: [email protected]

Customer

Support

Information

AC1039A-R3

1. Installing the Driver

CAUTION: DO NOT connect the adapter to your computer before installing

the provided driver.

Insert the provided CD into your disc drive and the installer program will run

automatically when the Driver CD is inserted. Then follow the on-screen

prompts to complete the installation.

Page 2 724-746-5500 | blackbox.com

USB-DVI/VGA Adapter Quick Start Guide

For Windows Vista®users:

• Click on “Run Setup.exe” to execute the installer program.

• If you encounter a User Account Control dialog box when attempting

to install a program, enter an administrator password or click “Allow”

to start the installation.

• When prompted to restart your computer, click “Yes.”

NOTE: A reboot is always needed for a successful installation. If the reboot

prompt doesn’t appear, make sure to manually reboot your computer.

For Windows®2000/XP users:

• If prompted for system patch after running the setup le, download and

install the required patch rst. After that, execute the setup le again to install

the driver.

2. Making the Connection

Connect the smaller end of the USB cable to the adapter. Then connect the

other end of the USB cable to a USB 2.0 port on your computer. If your monitor

is not yet connected to the adapter, make the connection and power on your

monitor. After the connection, Windows will automatically complete the

installation. On Windows Vista, if the add-on monitor is blank, reboot your

system again.

NOTE: Before the installation is complete, it’s normal that the screen ﬂickers

black a couple of times.

Page 3

724-746-5500 | blackbox.com

USB-DVI/VGA Adapter Quick Start Guide

3. Changing the Display Mode

There are several ways you can use the monitor attached on the adapter. The

add-on monitor can be congured to use either “mirror mode” or “extended

mode” (extend your Windows desktop to the add-on monitor).

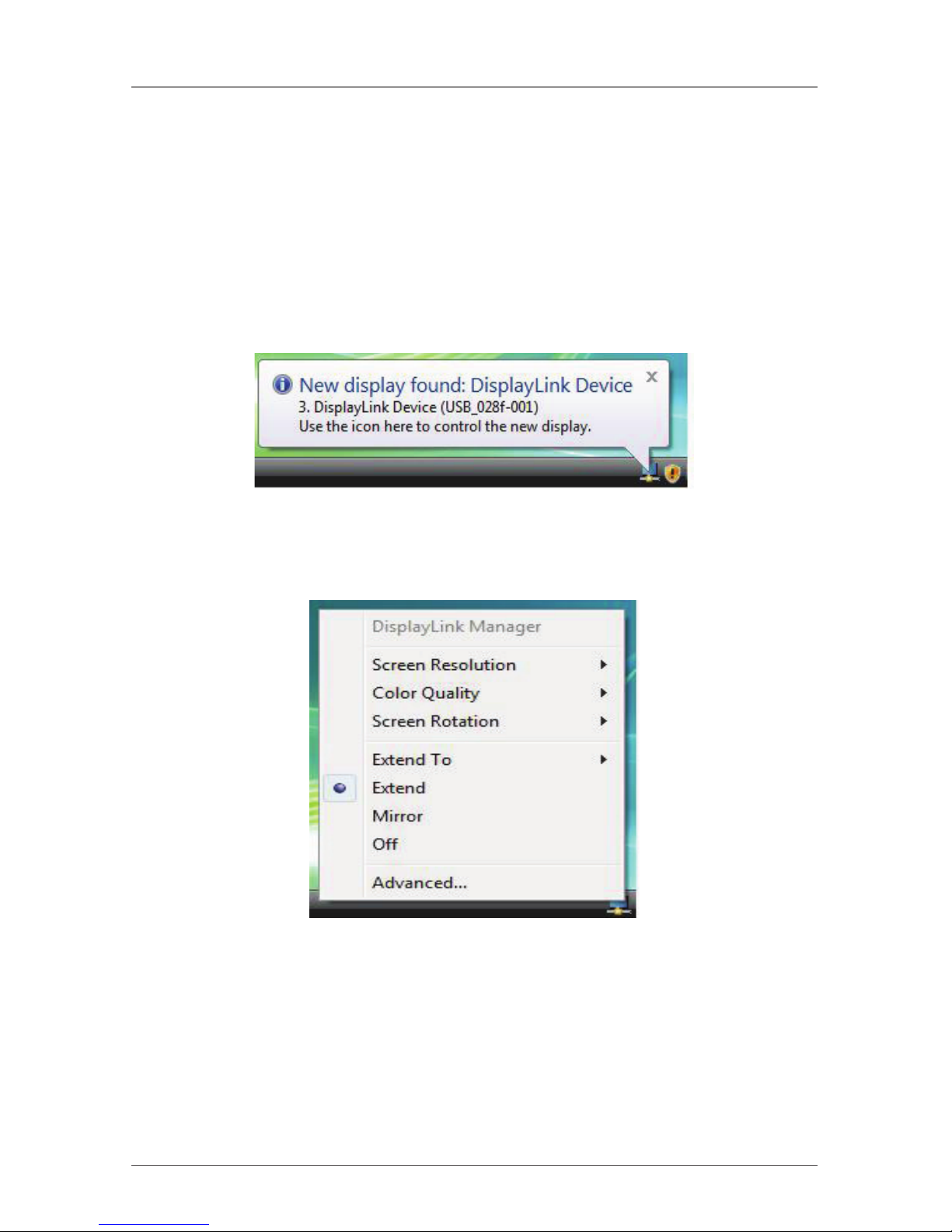

Click on the “DisplayLink Device” icon to control the display adapter and select

to congure Display Properties as shown in Figure 1.

(The above string depends on each display adapter.)

Figure 1. Change the display mode.

This Quick Installation Guide describes only the basic installation instructions.

For more information, please refer to the User’s Manual on the provided

CD-ROM.

BL A C K B OX®

FREE, live, 24/7 Tech Support is just 30 seconds away.

724-746-5500 | blackbox.com

logo are registered trademarks of BB Technologies, Inc. Windows®and Windows Vista®are

registered trademarks of Microsoft Corporation. Any third-party trademarks appearing in this guide

are acknowledged to be the property of their respective owners.

4. Specifications

Color — 16- and 32-bit

Modes — Mirrored desktop, extended desktop, primary display

Operating Systems — Windows 2000, XP, 7; Windows Vista

Resolution — All resolutions up to 1920 x 1080

Video Modes — All VESA modes to 1080p excluding interlaced and reduced

blanking

CE Approval — Yes

RoHS — Yes

Connectors — (1) USB Mini B F, (1) DVI-I F, (1) DVI M to VGA HD15 F adapter

Power — Interface-powered from USB Type A port (5 V, 500 mA)

Size — 0.7"H x 2.2"W x 3.4"D (1.8 x 5.4 x 8.5 cm)

AC1039A-R3 Quick Start Guide, version 1
