MODULAR PARALLEL ADAPTERS AND MODULAR MEDIA UNITS

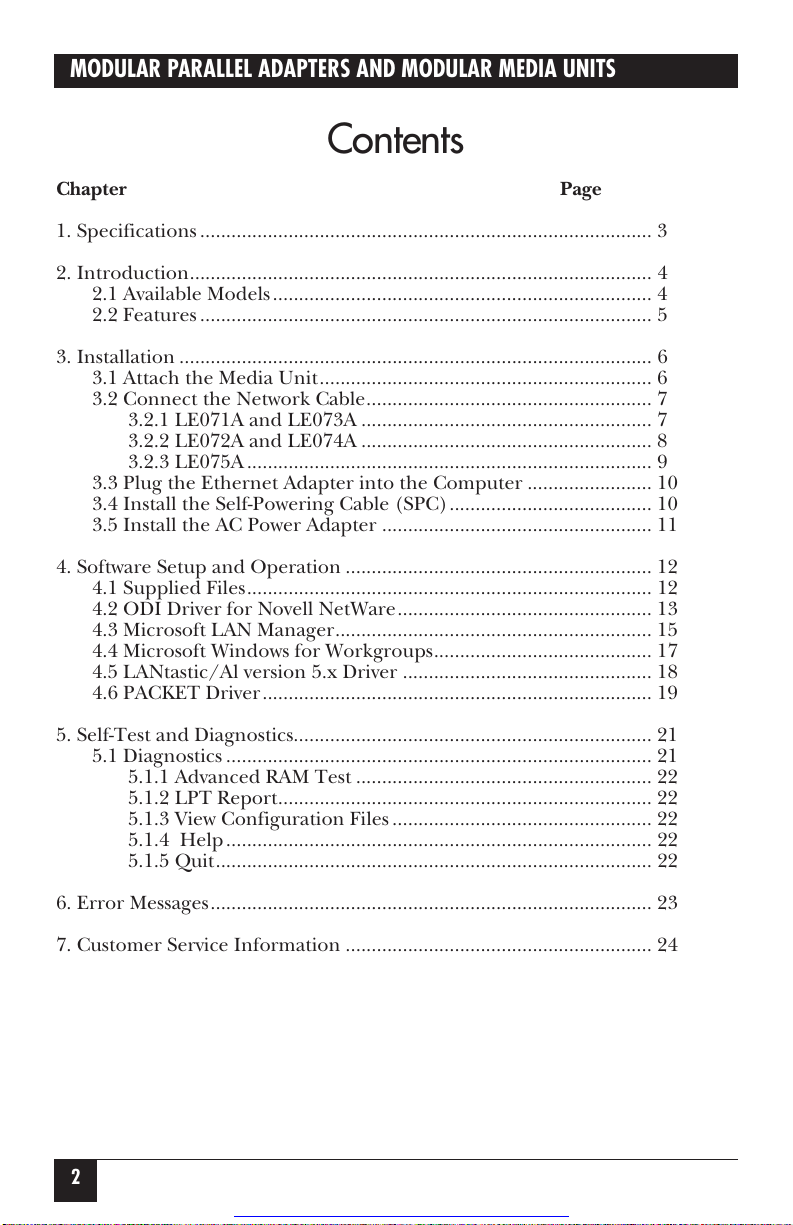

Contents

Chapter Page

1. Specifications ....................................................................................... 3

2. Introduction......................................................................................... 4

2.1 Available Models......................................................................... 4

2.2 Features ....................................................................................... 5

3. Installation ........................................................................................... 6

3.1 Attach the Media Unit................................................................ 6

3.2 Connect the Network Cable....................................................... 7

3.2.1 LE071A and LE073A ........................................................ 7

3.2.2 LE072A and LE074A ........................................................ 8

3.2.3 LE075A .............................................................................. 9

3.3 Plug the Ethernet Adapter into the Computer ........................ 10

3.4 Install the Self-Powering Cable (SPC)....................................... 10

3.5 Install the AC Power Adapter .................................................... 11

4. Software Setup and Operation ........................................................... 12

4.1 Supplied Files.............................................................................. 12

4.2 ODI Driver for Novell NetWare................................................. 13

4.3 Microsoft LAN Manager............................................................. 15

4.4 Microsoft Windows for Workgroups.......................................... 17

4.5 LANtastic/Al version 5.x Driver ................................................ 18

4.6 PACKET Driver........................................................................... 19

5. Self-Test and Diagnostics..................................................................... 21

5.1 Diagnostics .................................................................................. 21

5.1.1 Advanced RAM Test ......................................................... 22

5.1.2 LPT Report........................................................................ 22

5.1.3 View Configuration Files .................................................. 22

5.1.4 Help.................................................................................. 22

5.1.5 Quit.................................................................................... 22

6. Error Messages..................................................................................... 23

7. Customer Service Information ........................................................... 24

Get other manuals https://www.bkmanuals.com

CHAPTER 1: Specifications

Connectors — LE071A, LE073A:

(1) RJ-45 male; LE171: (1) RJ-45

female, LE072A,

LE074A: (1) BNC male;

LE172: (1) BNC female;

LE075A: (1) AUI male;

LE175: (1) AUI female

Size — 4.1"H x 2.4"W x 1"D (10.4 x

6.1 x 2.5 cm)

Weight — 0.2 lb. (0.1 kg)

Standards — Conforms to the IEEE

802.3 Ethernet standard.

Compatible with 10BASE-T,

10BASE2, and 10BASE5

standards.

Speed — 10 Mbps

Computer Interface — Connects to

parallel port

Operating Temperature — 32 to

122° F (0 to 50° C)

Storage Temperature — 40 to 176° F

(4 to 80° C)

Memory Size — 32K x 8 network

buffer

Input voltage — Externally powered

unit: 12 VDC, 500 mA, Self-

powered unit: 5 VDC

1. Specifications

Get other manuals https://www.bkmanuals.com

MODULAR PARALLEL ADAPTERS AND MODULAR MEDIA UNITS

2. Introduction

2.1 Available Models

The following models of the

Adapters and the Media Units are

available:

Modular Parallel Adapters:

• LE071A: Modular Parallel

Adapter w/SPC for 10BT

• LE072A: Modular Parallel

Adapter w/SPC for BNC

• LE073A: Modular Parallel

Adapter w/EPS for 10BT

• LE074A: Modular Parallel

Adapter w/EPS for BNC

• LE075A: Modular Parallel

Adapter w/EPS for AUI

Modular Media Units:

• LE171: Modular Media Unit EN-

10T

• LE172: Modular Media Unit EN-

BNC

• LE175: Modular Media Unit EN-

AUI

NOTE

If you would like to connect

both the network and a

printer to your parallel port,

you might want to order the

Modular Parallel Mux

(LE170).

The Modular Parallel Adapter easily

connects notebook, laptop, and

desktop PCs to virtually any Ethernet

Local Area Network. It connects

externally to a standard parallel

printer port, eliminating the need to

install internal Ethernet cards. The

adapter is easy to install; there are

no jumpers or configuration

switches to set. The device is the

perfect solution for notebook and

laptop connectivity, as well as for

workstations with a limited number

of internal expansion slots. The

Adapter fits all Ethernet cable types.

The modular construction of the

Adapter enables you to work with all

three cabling systems used in

Ethernet networks. You simply

attach the Modular Media Unit that

matches your cabling system to the

Adapter and then connect to the

network.

Get other manuals https://www.bkmanuals.com

CHAPTER 2: Introduction

2.2 Features

The Adapters offer the following

features:

• Fits any Ethernet cable type via

modular snap-on media units

• Supplied with drivers for Novell®

NetWare®(ODI™), Microsoft®

LAN Manager, 3Com®

3+Open™ (NDIS), Artisoft

LANtastic and Packet TCP/IP

• Powered by the Self-Powering

Cable (SPC), or any standard 4

to 20V DC non-regulated power

supply

• Enhanced Parallel Port (EPP)

support for increased

performance

Fig. 2-1. Parallel Adapter and Media Unit.

• Provides extensive diagnostics

and self-test capabilities

• Automatically selects

unidirectional or bidirectional

mode

• Supports parallel ports LPT1

through LPT4

• Supports interrupt lines IRQ7

and IRQ5, as well as polling

mode (when no interrupt line is

available)

• Power and network activity LEDs

• Fast and easy installation

• No jumpers or switches to set

Figure 2-1 illustrates a typical

adapter and media unit.

Get other manuals https://www.bkmanuals.com

MODULAR PARALLEL ADAPTERS AND MODULAR MEDIA UNITS

3. Installation

IMPORTANT!

Make sure the computer is

turned off while performing

the install procedure.

3.1 Attach the Media Unit

To attach the Media Unit to the

Adapter, hold the Adapter with the

logo facing up, press the top and

bottom of the unit together, and

insert it until it snaps into the

Adapter (see Fig. 3-1).

Follow these steps to install your

Adapter. Detailed instructions

appear in Sections 3.1 through 3.4.

1. Attach the media unit.

2. Connect the network cable.

3. Plug the Ethernet adapter into

the computer.

4. Install the Self-Powering Cable

or an AC power adapter.

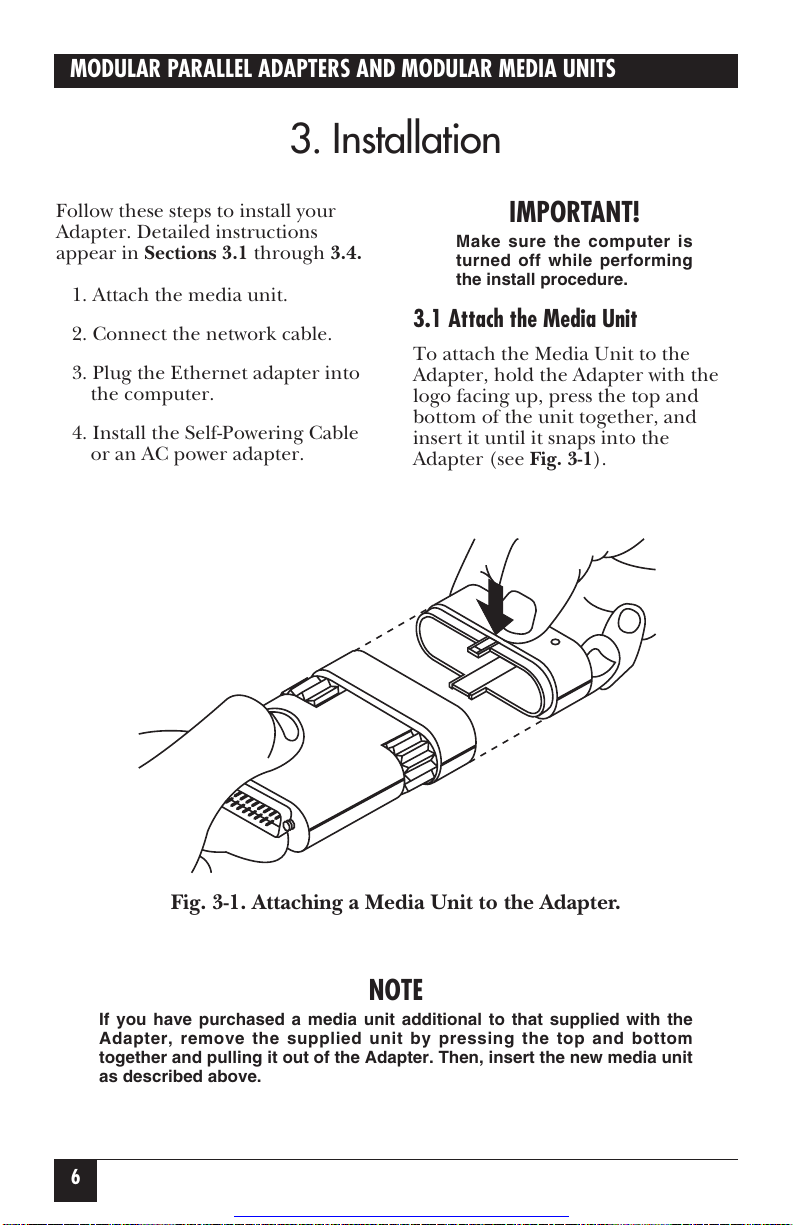

Fig. 3-1. Attaching a Media Unit to the Adapter.

NOTE

If you have purchased a media unit additional to that supplied with the

Adapter, remove the supplied unit by pressing the top and bottom

together and pulling it out of the Adapter. Then, insert the new media unit

as described above.

Get other manuals https://www.bkmanuals.com

CHAPTER 3: Installation

3.2 Connect the Network Cable

Connect the network cable unit as

illustrated for each model below.

3.2.1 LE071A

AND

LE073A

For the Modular Parallel Adapter

w/SPC for 10BT (LE071A) and the

Modular Parallel Adapter w/EPS for

10BT (LE073A), refer to Fig. 3-2.

Fig. 3-2. Connecting an Unshielded Twisted Pair Cable to the Media

Unit.

NOTE

When used with non-

10BASE-T networks, Link

Integrity should be disabled.

It can be disabled in the

software by using the key-

word DISABLELINK in the

configuration files (NET.CFG,

PROTOCOL.INI) or as a com-

mand line parameter for the

Packet and LANtastic

drivers.

Get other manuals https://www.bkmanuals.com

MODULAR PARALLEL ADAPTERS AND MODULAR MEDIA UNITS

3.2.2 LE072A

AND

LE074A

For the Modular Parallel Adapters

for BNC (LE072A and LE074A),

refer to Fig. 3-3.

Fig. 3-3. Connecting an RG-58/U Coaxial Cable to the Media Unit.

Make sure that the RG-58A/U

coaxial cable has a T-connector at

the end. Then connect the T-

connector to the BNC connector at

the back of the media unit, as shown

in Fig. 3-3.

Get other manuals https://www.bkmanuals.com

CHAPTER 3: Installation

NOTE

Both ends of the T-

connector must be attached

to network cabling. If the

Adapter is at the end of a

network segment, the end of

the T-connector not attached

to the network must have a

50-ohm terminator installed.

3.2.3 LE075A

For the Modular Parallel Adapter for

AUI, refer to Fig. 3-4.

After connecting the connector,

press the slide latch to the left to

lock the connector into place.

Fig. 3-4. Connecting an AUI Cable to the Media Unit.

NOTE

For use with an external

power supply only. Not to be

used with the SPC!

Get other manuals https://www.bkmanuals.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Black Box Adaptateur

Black Box

Black Box IS425A Manuel utilisateur

Black Box

Black Box IC1000A Manuel utilisateur

Black Box

Black Box IS280A-R2 Manuel utilisateur

Black Box

Black Box MicroConverter G.703 Manuel utilisateur

Black Box

Black Box Video PTZ Balu Manuel utilisateur

Black Box

Black Box DVI2VGA Manuel utilisateur

Black Box

Black Box IC513C Manuel utilisateur

Black Box

Black Box IC102C-R2 Manuel utilisateur

Black Box

Black Box HS550A Manuel utilisateur

Black Box

Black Box Multi-Function Line Driver Manuel utilisateur

Black Box

Black Box VOE101 Manuel utilisateur

Black Box

Black Box IC168A Manuel utilisateur

Black Box

Black Box CMA02A Manuel utilisateur

Black Box

Black Box LE9050A-USB Manuel utilisateur

Black Box

Black Box IC025A Manuel utilisateur

Black Box

Black Box IC167A Manuel utilisateur

Black Box

Black Box LE073A-R2 Manuel utilisateur

Black Box

Black Box USB Solo-E Manuel utilisateur

Black Box

Black Box LBU9001-US Manuel utilisateur

Black Box

Black Box USB Solo IC138A Manuel utilisateur

Black Box

Black Box LG9230CtX-32 Manuel utilisateur

Black Box

Black Box CL512A-F Manuel utilisateur

Black Box

Black Box AC346A USB to HD Pro Manuel utilisateur

Black Box

Black Box LG9230CtX-32 Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
