BIXOLON SRP-Q300 Manuel d'instructions

Network Connection Manual

SRP-Q300/302

Thermal Printer

Rev. 1.01

http://www.bixolon.com

Rev. 1.01

- 2 -

SRP-Q300/302

■

Table of Contents

1. Manual Information......................................................................................................3

2. Precautions..................................................................................................................3

3. How to Connect (Printer only) ....................................................................................4

3-1 Android Soft AP mode..............................................................................................7

3-2 iOS Soft AP mode.....................................................................................................8

3-3 How to change Infrastructure mode..........................................................................9

4. Factory Reset (Printer only)......................................................................................11

5. Specifications (B-gate only)......................................................................................13

6. How to Connect (B-gate only)...................................................................................14

6-1 Initial Wireless LAN Connection (Windows 2000)...................................................15

6-2 Initial Wireless LAN Connection (Windows XP)......................................................15

6-3 Initial Wireless LAN Connection (Windows VISTA, Windows 7, 8, 10)...................20

6-4 Initial Wireless LAN Connection (iOS)....................................................................26

7. Configuration (B-gate only) ......................................................................................27

7-1 LAN Setting Values.................................................................................................27

7-2 WLAN Setting Values.............................................................................................27

7-3 Web Browser..........................................................................................................28

8. Network Status Check (B-gate only)........................................................................29

9. Troubleshooting (B-gate only)..................................................................................30

Rev. 1.01

- 3 -

SRP-Q300/302

1. Manual Information

This WLAN manual provides information on the connection of wireless network with the

mobile printer.

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and

quality of all our products. In following, product specifications and/or user manual content

may be changed without prior notice.

2. Precautions

2-1 The printer has to be within 100m(Out door) from AP(Access point) to connect

WLAN. Although 35m is able to communicate in door, WLAN could be affected by

environment to be shorten.

2-2 The maximum separating distance may be shortened if transmission obstacles, such

as cement walls, are present

2-3 If a device (such as a microwave oven, wireless LAN, etc.) that uses the same

frequency is present, transmission may be interrupted. Separate the printer and

Bluetooth-enabled device from such interrupting devices by a distance of at least 5m.

2-4 As to Normal POS printer and B-gate printer, both have different concept of usage,

resulting to different way of printer connection, setting and functioning.Accordingly,

this manual explains the printer connection, setting and functioning on normal POS

printer and B-gate printer separately.

Rev. 1.01

- 4 -

SRP-Q300/302

3. How to Connect (Printer only)

WLAN can be configured through the printer’s WLAN interface. Likewise, WLAN can also

be configured though the printer’s USB interface.

(1) Connecting Printer

1) USB cable

Connect USB cable to Printer, PC device.

Use the “Net Configuration Tool” to adjust the settings.

2) WLAN

Connect to the AP (Access Point) configured in Infrastructure mode in order to connect to

the LAN/wireless network

Infrastructure mode

In order to configure the network between the wireless host device and the printer, set the

printer to Soft AP Mode.

Soft AP mode

A P

Rev. 1.01

- 5 -

SRP-Q300/302

(2) Checking Network Setting

After the printer has finished booting, open the printer cover and press and hold the FEED

button for 5 seconds. This will cause the internal buzzer to buzz 5 times and enter the

interface setting confirmation mode. Then add the paper, close the cover, and check that

the following message is printed.

* For models not supported by WLAN, the Error/Paper ELD will be toggled untilWLAN is

booted.

If the above message is printed, select Mode 1, and you will see the following LAN data.

(To select Mode 1, press the Feed button once quickly/ once long.)

* For models not supported by WLAN,numbers 3 and 4 will not be printed.

Checking Interface Setting

0: Exit

1: LAN Information Print

2: LAN Factory Reset and Reboot Printer

3: WLAN Information Print

4: WLAN Factory Reset and Reboot Printer

5 or more: None

Select Modes by Feed button control

as below.

Step 1. Short-press as many times as

The mode number to choose.

Step 2. Long-press over 1 second.

*e.g. To choose Mode 2, press Feed

Button 3 times(short-short-long)

COVER OPEN LEVER

FEED BUTTON

Rev. 1.01

- 6 -

SRP-Q300/302

WLAN SETTING

WLAN F/W VERSION : 02.00(3930)

SYSTEM NAME : SRP-Q300

NETWORK MODE : SOFT AP

FREQUENCY : (Priarity) 2.4GHz/5GHz

AUTHENTICATION : OPEN

ENCRYTION : NONE

ESSID : PRINTER_B03223

DHCP : ENABLED

IPADDRESS : 192.168.1.1

SUBNET MASK: 255.255.255.0

GATEWAY : 192.168.1.2

PORT : 9100

WLAN MACADDRESS :

0 0 1 5 9 4 B 0 3 2 2 3

LAN SETTING

MAC ADDRESS :

00:15:94:C2:6B:A8

IPADDRESS : 192.168.0.48

SUBNET MASK: 255.255.255.0

GATEWAY : 192.168.0.1

PORT : 9100

INACT. TIME : 0

Rev. 1.01

- 7 -

SRP-Q300/302

3-1 Android Soft AP mode

1) Select “Wi-Fi”. 2) Select the printer to connect.

3) Select “CONNECT”. 4) Wi-Fi communication is available.

Rev. 1.01

- 8 -

SRP-Q300/302

3-2 iOS Soft AP mode

1) Select “Wi-Fi”. 2) Wi-Fi ON and Select the printer

to connect.

3) Wi-Fi communication is available.

Rev. 1.01

- 9 -

SRP-Q300/302

3-3 How to change Infrastructure mode

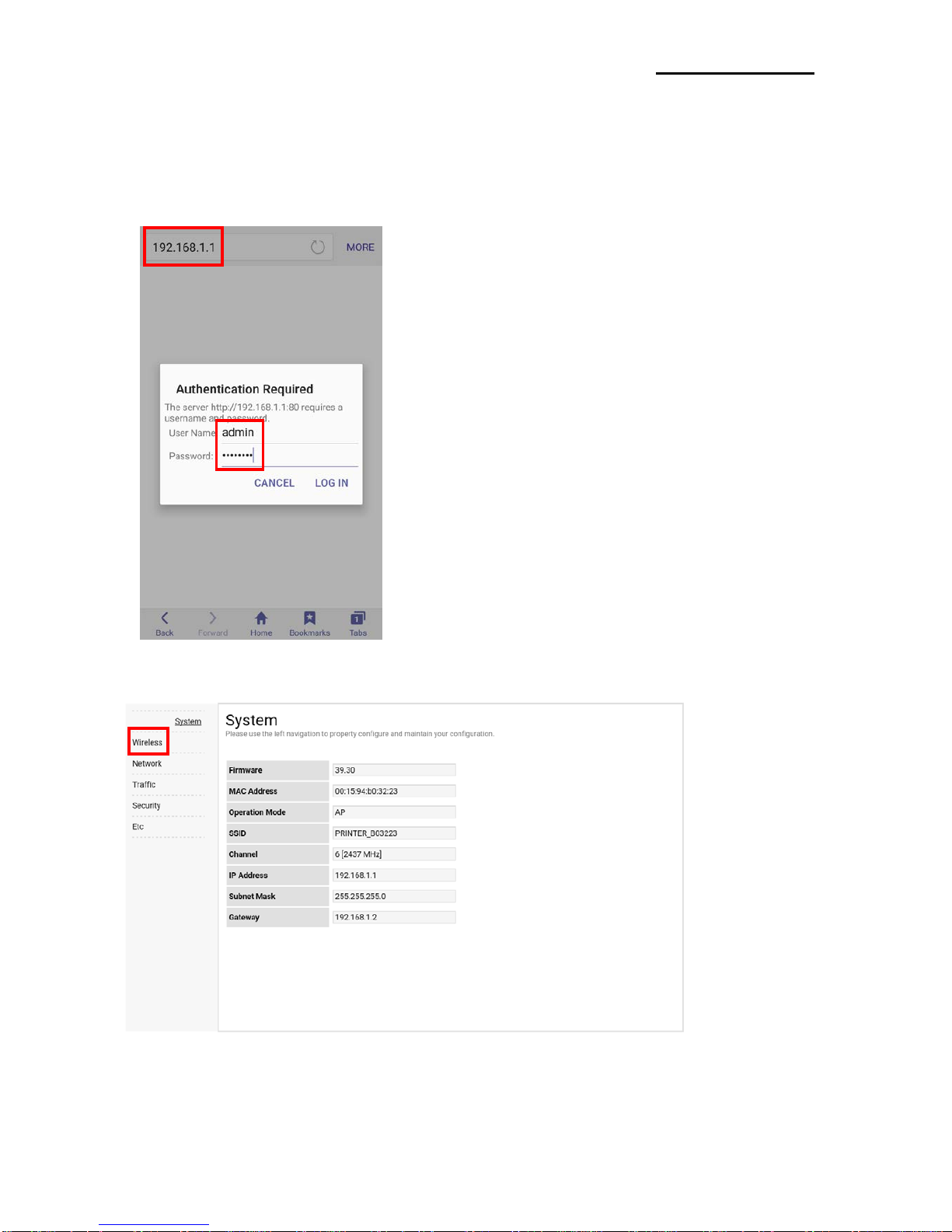

1) Enter the IP address of the printer in the address bar, and the following login window will

pop up. Enter the ID and Password set for the printer, and then click [LOG IN]

(Default User Name: admin, Password: password)

2) Select “Wireless” to change Wi-Fi mode.

Rev. 1.01

- 10 -

SRP-Q300/302

3) Select “Infrastructure”, and set SSID, WLAN Security Type.

4) Reboot the Printer.
