BIXOLON TX Series Manuel d'instructions

Bluetooth Connection Manual

THERMAL LABEL PRINTER

Ver. 1.01 TX Series

DX Series

DL Series

XD Series

XL Series

XT Series

http://www.bixolon.co.kr

Ver. 1.01

- 2 -

Bluetooth Connection Manual

■ Table of Contents

1. Manual Information........................................................................................................3

2. Precaitions .....................................................................................................................3

3. Bluetooth Connection Instructions..............................................................................4

3-1 PIN Code Paring Instruction .......................................................................................4

3-2 Just Works Paring Instruction.....................................................................................8

3-3 Numeric Comparison Paring Instruction...................................................................10

3-4 Passkey Entry Paring Instruction..............................................................................14

4. Bluetooth Setting Instruction .....................................................................................18

5. Troubleshooting...........................................................................................................22

Ver. 1.01

- 3 -

Bluetooth Connection Manual

1. Manual Information

This Bluetooth Connection Manual provides information on the connection of Bluetooth-

enabled iOS or Android Host devices with the printer.

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and

quality of all our products. In following, product specifications and/or user manual content

may be changed without prior notice.

2. Precaitions

1) To connect the printer with another Host device via Bluetooth, the Host devices

must be within 100m of one another. The connection is broken if the distance between

devices exceeds 100m.

2) The maximum separating distance may be shortened if transmission obstacles, such

as cement walls, are present.

3) If a device (such as a microwave oven, wireless LAN, etc.) that uses the same

frequency is present, transmission may be interrupted. Separate the printer and

Bluetooth-enabled device from such interrupting devices by a distance of at least 5m.

Ver. 1.01

- 4 -

Bluetooth Connection Manual

3. Bluetooth Connection Instructions

This manual focuses on the use of the following Host devices.

For other Host devices, please refer to the relevant Host device manual.

3-1 PIN Code Paring Instruction

Use Pin Code for verification(Legacy Pairing) instead of SSP.

3-1-1 iOS Mode

1) Select the icon. 2) Select “Bluetooth”.

Ver. 1.01

- 5 -

Bluetooth Connection Manual

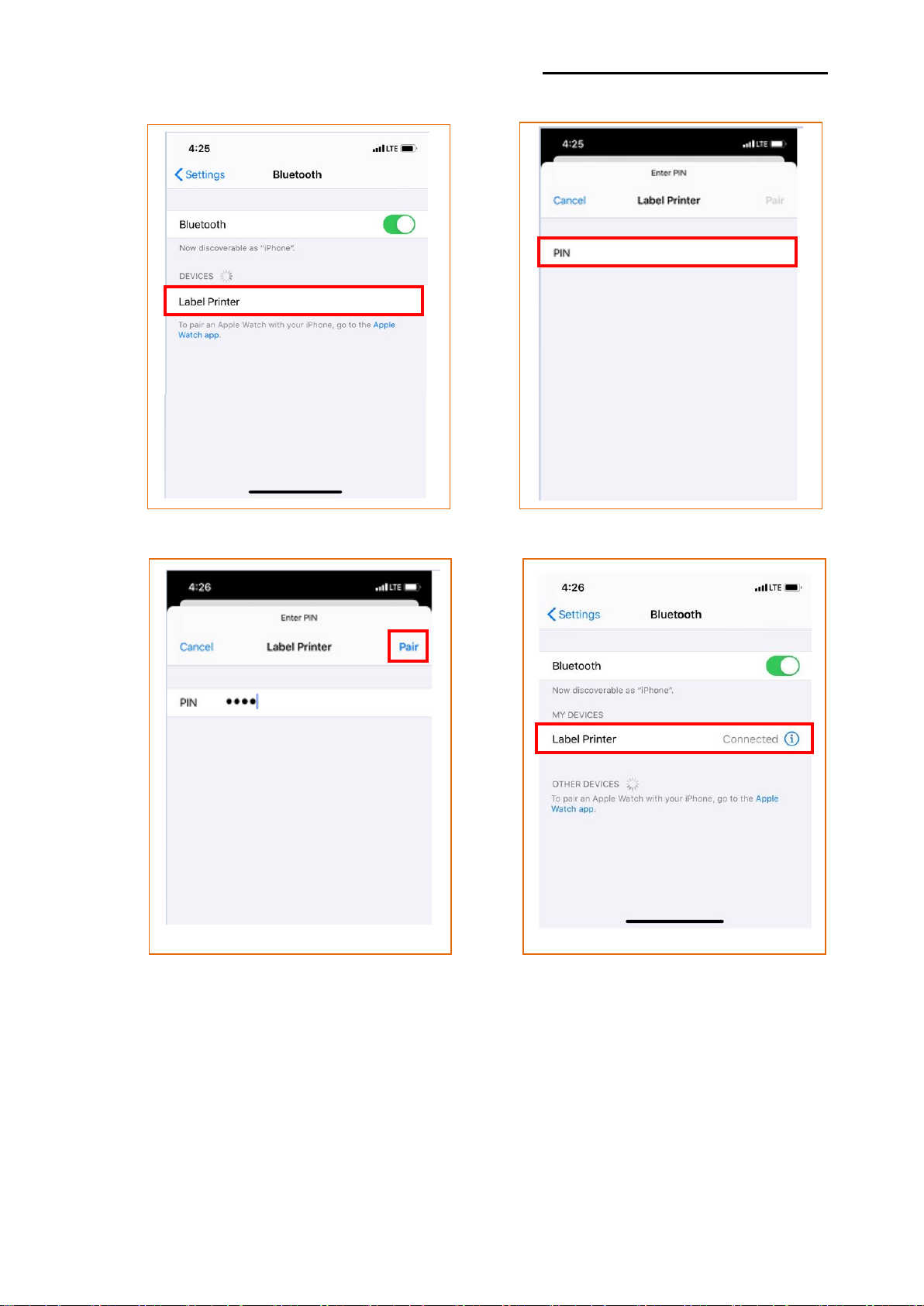

3) Select the printer to connect. 4) Enter Pin Code. (default: 0000).

5) Select “Pair”. 6) Bluetooth communication is available.

Ver. 1.01

- 6 -

Bluetooth Connection Manual

3-1-2 Android Mode

1) Select the icon. 2) Select “Bluetooth”.

3) Select the printer to connect. 4) Enter Pin Code. (default: 0000)

Ver. 1.01

- 7 -

Bluetooth Connection Manual

5) Select “OK”. 6) Bluetooth communication is available.

Ver. 1.01

- 8 -

Bluetooth Connection Manual

3-2 Just Works Paring Instruction

Designed for situation where one (or both) of the pairing Host device has neither a display

nor keyboard for entering digits (e.g. Bluetooth headset). it does not verify any for pairing.

3-2-1 iOS Mode

1) Select the icon. 2) Select “Bluetooth”.

3) Select the printer to connect. 4) Bluetooth communication is available.

Ver. 1.01

- 9 -

Bluetooth Connection Manual

3-2-2 Android Mode

1) Select the icon. 2) Select “Bluetooth”.

3) Select the printer to connect. 4) Bluetooth communication is available.

Ver. 1.01

- 10 -

Bluetooth Connection Manual

3-3 Numeric Comparison Paring Instruction

Numeric Comparison : Designed for situation where Host device and printer are capable of

displaying a six-digit number and allowing user to enter “yes” or “no” response for pairing.

*This function is supported on LCD model only.

3-3-1 iOS Mode

1) Select the icon. 2) Select “Bluetooth”.

3) Select the printer to connect. 4) Check the code on the Host device.

(6 characters long)
