Bitspower O11DXL Manuel utilisateur

[ 1 ]

instruction manual

Digital RGB PIN on 1motherboard or 2other equipment.

motherboard DRGB Multi Function Controller

(Not included)

BPTA-DRGBMFC

Accessories

1M3x8 Screw 2 PCS

Bitspower Sedna O11DXL for LIAN LI O11

DYNAMIC (Hercules Pump, Front ver.) V1

BPTA-TOO11DXLA-PHCL

Both the front and the back side of the reservoir have a 󽗉ll or

drain hole, choose the one that suits you.

Fill

Drain

2M4x25 Screw 3 PCS 3Base 1 PCS

[ 2 ]

Power Supply and Pump

SPECIFICATION

Rated voltage：12V DC

Power consumption：15W

Maximum 󽗊ow：11±15% L/min

Noise：≤ 40dBA

PWM：Yes

MTBF：15000 hours

Warranty：2 years

Dimension: 62 x 62 x 46.7mm

Maximum lift of the water pump: 5.5±0.5m

※ The position of the Hole position o󽗈set block can

be adjusted to correspond to the CPU installation

position of di󽗈erent motherboards.

※Recommended：BPTA-SCT-WD

If need be

O-Ring(54×50×2)

Water conduit modules

Hole o󽗈set block(CPU)

M4×16mm Screw

O-Ring(60×56×2)

※When installing the GPU, it is necessary to

remove the conduit module, and then install the

corresponding 󽗉ttings.

G1/4 Screw plug

All tube connect hole sare G 1/4

threaded holes.

[ 3 ]

Water

Choose your desired dye color and mix it with pure

distilled water. Pour the water mix into the reservoir

via the water filling hole. Once the reservoir is 90%

full, turn on the power supply for the pump to run

and let the air exit the loop. Turn off the power

supply when the reservoir is near empty. Repeat until

all the air has exited the loop.

(In order to power the pump only, connect the power

switch connector to the 24 pin cable of the power

supply. This will allow the power supply to bypass

the motherboard and make the pump work alone.)

The warranty will be void if any of the situations below happen.

Water Block

- The CPU block and the screws in it has any trace of disassemble.

- The top plate inlet and outlet ports, due to improper use of external forces, are cracked.

Radiator

- The 󽗉n of the radiator are broken or deformed due to improper use of external forces.

- The inlet and outlet of the radiator are cracked due to improper use of external forces.

Fitting

- There are signs of damage caused by instrument clamping on the 󽗉ttings.

PUMP

- Pump damage from pump operation without any liquid.

- Pump damage caused by water leak on the pump's PCB.

- Water tank has been separated from the pump.

Fan

- Fan damaged by water leak.

G1/4 Screw plug

- If the plug, screw speci󽗉cation or thread are not up to standard, the screw can not be

locked. If you tighten the screw violently, the device will be damaged.

Product Warranty Rules

Not included

[ 4 ]

Assembly steps

step 1

step 4

step 3

step 2

LIAN LI O11 DYNAMIC XL

(Not included)

M3x8 Screw

TOP

Front plateSide plate

[ 5 ]

M4x25 Screw

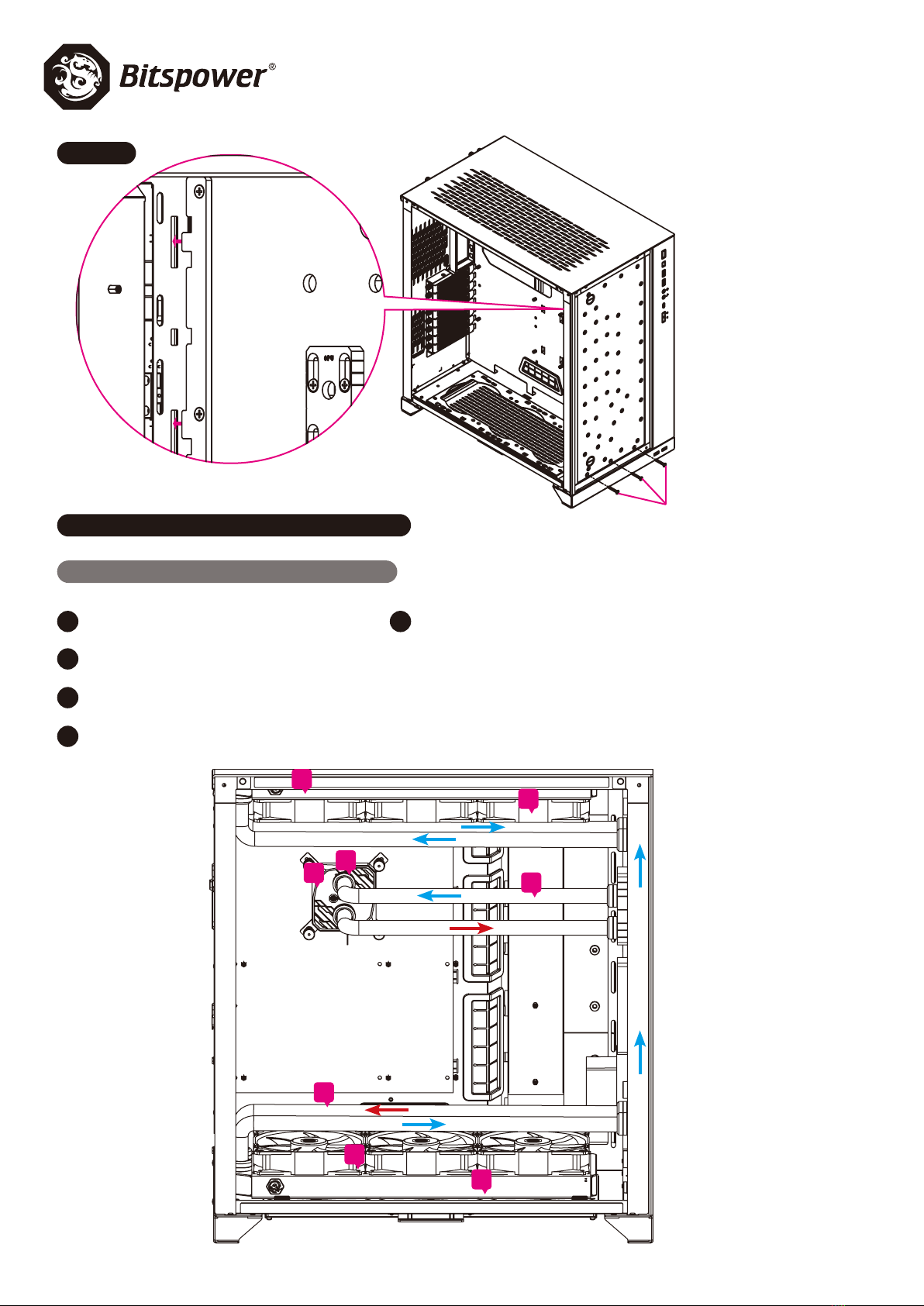

Accessories(additional purchases)

Recommended installation method

BPN-NLS360-F2PB

BPTA-CPUMS-SKI

BPTA-FX1812NT-3

BPTA-DOTFH1622

2 PCS

1 PC

2 SETS

12 PCS

BP-NCCLT16AC-L500

step 5

[ 6 ]

記得上角要放對應的 LOGO!

Notice

Before filling in the water, please make sure all the components are

installed correctly. To prevent any leakage which may damage the PC

components, please perform a 24-hour leaking test with only the pump

connected to the power supply.

Bitspower reserves the right to change the product design and

interpretations. These are subject to change without notice. Product

colors and accessories are based on the actual product.

When using leak tester on water cooling loop, in order to avoid product

damage due to excessive pressure, the input pressure should not exceed

0.5kg/cm2 (Bar). If the product is damaged due to excessive pressure, it

will be the fault of the customer. DO NOT use the leak teser when there is

water in the loop or the pump is running.

Bitspower recommends that customers use Bitspower Pellucid Coolant

for their coolant fluid. It is also recommended to use Bitspower Dye to

create any desired color. If the customer chooses di󽗈erent liquid coolants,

the resulting impurities may cause peeling of the coating on some of the

hardware, water channel blockage by built-up residue, improper operation

of the water pump, water tank tube breakage, and o-ring deformation

leading to leakage. Any issues related to the use of inappropriate liquid

coolants will be the responsibility of the customer.

[ 7 ]

記得上角要放對應的 LOGO!

使用說明書

配件

請接 1主板或 2 其他設備的 DRGB 插槽

主板

DRGB 控制器 ( 不包括 )

BPTA-DRGBMFC

Bitspower Sedna O11DXL for LIAN LI O11

DYNAMIC (Hercules Pump, Front ver.) V1

1M3x8 螺絲 2 PCS

BPTA-TOO11DXLA-PHCL

水道板上前後都有預留進水和排水的孔位，請視情況擇一選用

即可。

進水

2M4x25 螺絲 3 PCS 3底座 1 PCS

出水

[ 8 ]

供電與水泵

如果有需要

※ 可通過調整孔位偏移塊的位置，以對應不同主機板的

CPU 安裝位置。

※ 安裝 GPU 冷頭時，需要把水路導通模組拆除，然後安

裝相應的接頭即可使用。

SPECIFICATION

Rated voltage：12V DC

Power consumption：15W

Maximum 󽗊ow：11±15% L/min

Noise：≤ 40dBA

PWM：Yes

MTBF：15000 hours

Warranty：2 years

Dimension: 62 x 62 x 46.7mm

Maximum lift of the water pump: 5.5±0.5m

※ 建議：BPTA-SCT-WD

O 圈 (54×50×2)

水路導通模組

孔位偏移塊 (CPU)

M4×16mm 螺絲

O 圈 (60×56×2)

G1/4 堵頭

所有接管孔位為 G1/4 螺牙孔

[ 9 ]

注水

選擇喜好的水冷濃縮液顏色，以純淨水調合，由”填水孔”

注入至水箱九分滿，接著利用”24PIN 跳線開關”啟動電源，

讓水路中的空氣集中至水箱排出，再依水量繼續添加至

水箱九分滿左右即可。

（24PIN 跳線開關用途：需無經主板開啟 ATX 電源時，使

電源直接開啟供電。）

質保期時效，送修的產品凡有以下狀況，不在保修範圍內。

水冷頭

- 冷頭自體螺絲，有拆裝痕跡，整套產品失保。

- 頂部的進出口，因為外力使用不當導致開裂。

冷排

- 因為外力使用不當導致冷排水道破裂漏水。

- 進出水孔因為外力使用不當導致開裂。

接頭

- 有器械夾持導致的損傷痕跡。

水泵

- 無水通電導致水泵燒毀。

- 底部 pcb 進水燒毀。

- 水箱底座與水泵不可拆解，一經拆解即不保固。

風扇

- 進水燒毀。

堵頭

- 堵頭、螺絲規格或牙紋不達標，會鎖不了孔位，暴力裝配致使破裂。

產品保修規範

未包括

[ 10 ]

組裝步驟

步驟 1

步驟 3

步驟 2

步驟 4

LIAN LI O11 DYNAMIC XL

( 不包括 )

M3x8 螺絲

上蓋

前面板側面板
