Bitspower BPTA-WDP303-KIT Manuel utilisateur

P 1

BPTA-WDP303-KIT 示範組裝說明書

繁中文

BPTA-WDP303C

.........1個

..2個

.....................1個

....1組

BP-DSWDP-303C

BPTA-FX120PWM-DRGB

水箱

隨附接頭

（詳細內容見後敘）

其它配件

（詳細內容見後敘）

D. 隨附接頭內容

...........1個

..............1個

TA-EXAIR-GS

BPTA-EFW-GS

TA-F06-GS

本公司保留對產品的設計更改以及解釋的權力，如有更動恕不另行通知，

產品顏色與配件以實物為準。

隨附接頭內容

主機板轉接座插頭

六角板手(2.5MM)

大4PIN供電線

........1個

.........1支

............1個

E. 其它配件內容

其它配件內容

P 2

安裝方式

BPTA-EFW-GS

建議將洩水接頭安裝於

水冷系統的最低點。

Step 1

將洩水接頭上蓋旋起。

Step 2

換上洩水配件，旋入配件過程中即會逐漸洩

水，建議外接管線以利洩水。

BPTA-EFW-GS

90°

黑色M4螺絲

O型圈

角度微調整技術

DRGB LED

使用前，請先確定您所選用的主機板具

有DRGB(Digital RGB)燈效及其插座，

一般多為3PIN。或者您也可選用

Bitspower

的燈效控制器

-BPTA-DRGBMFC

。

S1水泵規格

額定電壓：12V DC

功耗：17W

最大流量：960L/h

最高系統溫度：60℃

PWM：無

使用壽命：50,000小時

保固：2 年

組裝水箱系統

水道板與水泵不可拆解，一經拆解

恕不保固。

您可使用大4PIN供電線由電源供應器直

接驅動。

TA-EXAIR-GS

建議將排氣接頭安裝於

水箱且在水位之上。

安裝方式

Step 1

將按鈕按下即可排氣。

TA-EXAIR-GS

P 3

防震腳墊

風扇濾網

黑色M4螺絲

兼容ATX機箱

IN WIN 303

IN WIN 303C

IN WIN 305

IN WIN 307

安裝方式

BP-DSWDP-303C

BPTA-FX120PWM-DRGB

P 4

填水孔

-------產品保修規範------

質保期時效，送修的產品凡有以下狀況，不在保修

範圍內。

【CPU水冷頭】

1.冷頭自體螺絲，有拆裝痕跡，整套產品失保。

2.頂部的進出口，因為外力使用不當導致開裂。

【冷排】

1.因為外力使用不當導致冷排水道破裂漏水。

2.進出水孔因為外力使用不當導致開裂。

【接頭】

1.有器械夾持導致的損傷痕跡。

【水泵】

1.無水通電導致水泵燒毀。

2.底部pcb進水燒毀。

3.水箱底座與水泵不可拆解，一經拆解即不保固。

【風扇】

1.進水燒毀。

注水

選擇喜好的水冷濃縮液顏色，以純淨水調合，由”填水孔”注入至水箱九分滿，接著利用”24PIN跳線開關”

啟動電源，讓水路中的空氣集中至水箱排出，再依水量繼續添加至水箱九分滿左右即可。

（24PIN跳線開關用途：需無經主板開啟ATX電源時，使電源直接開啟供電。）

注意：Bitspower建議消費者使用蒸餾水、純凈水，加入Bitspower的染劑作

為水冷液使用；如客戶自行選購的水冷液導致電鍍層剝落、水道堵塞

、水泵轉動不正常、水箱管破裂或密封圈變型以致漏水等及其它不可

抗力之問題時，消費者自行承擔相關產品責任。

未注水前，請勿啟動水泵電源。

緊

鬆

緊

鬆

水路安裝注意事項

硬管安裝順序：

1.先將螺母順時針方向擰進G1/4”

牙孔。

2.將硬管先穿過螺帽再穿過O圈，再

將硬管推進螺母內必須到底。

3.最後將螺帽順時針方向扭緊即可。

彎管注意事項（不含在內）

裁切完成之硬管

矽膠條

１.先將矽膠條（另外採買）穿至硬管內。

２.將已穿矽膠條之硬管需做折彎造型之

範圍進行均勻加熱（建議使用熱風槍）。

３.加熱過程請配合轉動硬管達到均勻加熱。

４.待硬管加熱至可輕易折彎之程度即可移

至彎管器上進行折彎動作。

5 .建議可選擇使用Bitspower 彎管治具組

（BP-PTR12/BP-PTR14/BP-PTR16）

協助完成。

註：此一使用步驟可依個人習慣作調整。

P 5

建議安裝方式

主件說明

注意，跑水前，請先確認所有零件已安裝在正確的位置上，在不開主機，單開水泵的情况下，進行24小時的跑水測試，確保無漏水情况後再開主機，避免發生漏水而導致電腦零件的損壞。

本公司保留對產品的設計更改以及解釋的權力，如有更動恕不另行通知，產品顏色與配件以實物為準。

.....1個

......1個

.........1個

..2個

..........4個

.............1個

BPTAN-NLS360-F2PB

BPTA-CPUMS-DRGB

BP-VG2080RD-A2

BP-WTP-C06(

BP-VG2080RD-A2

附贈)

BPTA-FX1812NT

BP-PFANMFH

.............1個

...............10個

..................6個

...........2個

.................1個

BP-WTP-C95

BP-WTP-C62

BP-EML14

BP-90R

BP-DG14AALPI

BP-QR-C

.............1個

......5支

.........1個

..............2個

...........1個

BP-WTP-C06

BP-NCCLT14AC-L500

BPTA-DRGBMFC

BP-WTP-C61

BPTA-DTMC-V2

P 1

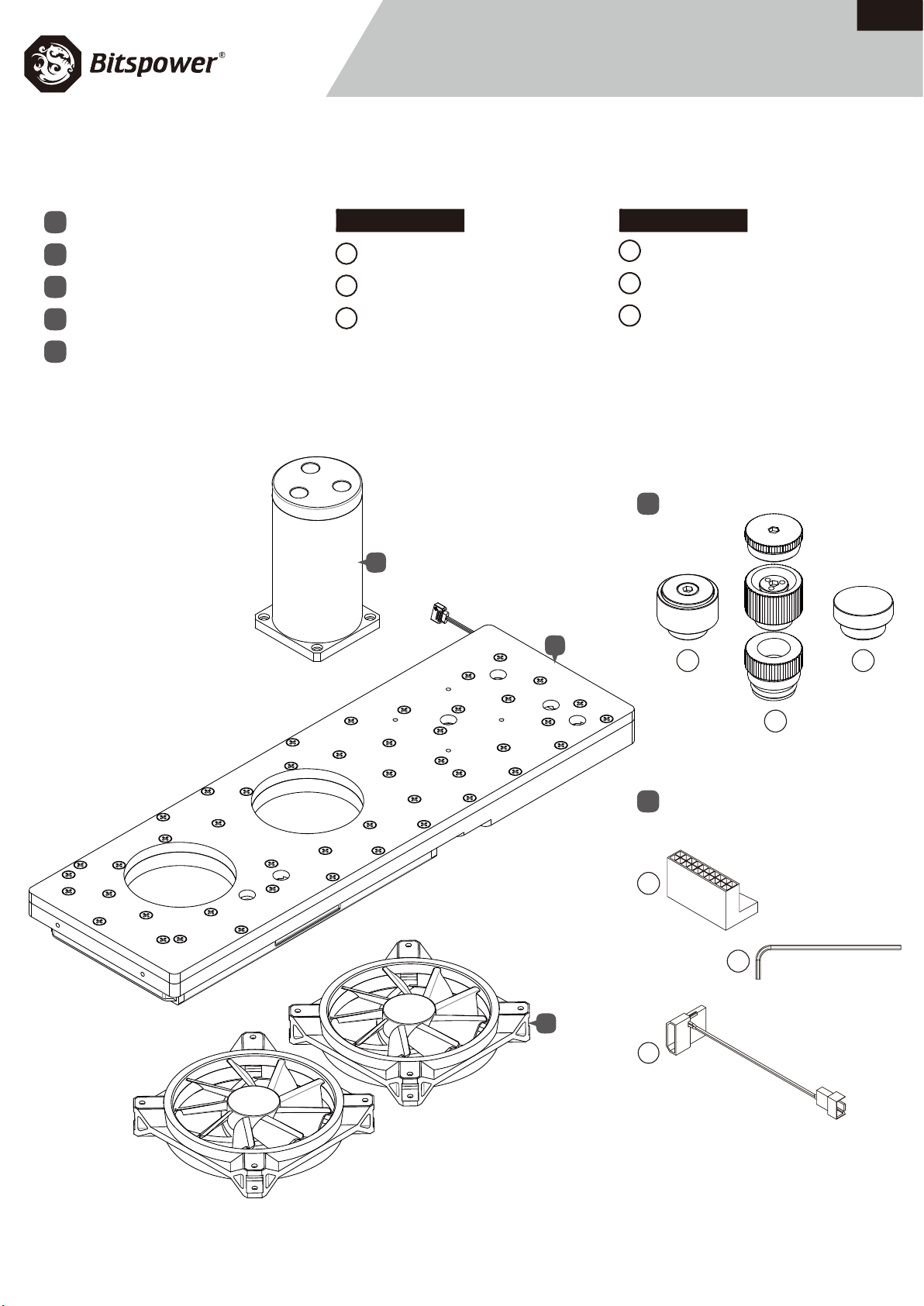

BPTA-WDP303-KIT Installation Guide

English

BPTA-WDP303C

.......1 PCS

2 PCS

....1 PCS

....1 SET

BP-DSWDP-303C

BPTA-FX120PWM-DRGB

Water tank system

Complimentary fittings

(See following details)

Other accessories

(See following details)

Complimentary fittings

.........1 PCS

............1 PCS

TA-EXAIR-GS

BPTA-EFW-GS

TA-F06-GS

Bitspower reserves the right to change the product design and

interpretations. These are subject to change without notice. Product

colors and accessories are based on the actual product.

Complimentary fittings

USB3.0-19pin-R90

Hex wrench(2.5mm)

4PIN extension wire

......1 PCS

.....1 PCS

....1 PCS

Other accessories

P 2

O-ring

Installation

BPTA-EFW-GS

It is recommended to install the

water-exhaust fitting at the lowest

point of the water cooling system.

Step 1

Unscrew the top of the water-exhaust

fitting.

Step 2

Replace with the water-exhaust part.

When screwing in the part, water will

start to discharge, it is recommended

to connect tubing beforehand to

control the water outflow.

BPTA-EFW-GS

90°

Black/M4 Screw

angular adjustment

DRGB LED

Before use, please make sure that the mother-

board you choose has DRGB (Digital RGB)

lighting effect and its appropriate connector,

usually 3PIN. Or you can also use Bitspower's

lighting controller - BPTA-DRGBMFC.

S1 Pump Spec.

Rated voltage：12V DC

Power consumption：17W

Maximum flow：960L/h

Maximum system temperature：60℃

PWM：NO

MTBF：50,000 hours

Warranty：2 years

The customized reservoir and water

pump should not be disassembled.

Disassembly will void the warranty.

Pump may be directly powered from the

power supply using a large 4PIN power

cord.

Install the water tank flap

TA-EXAIR-GS

It is recommended to

install the air-exhaust

fitting on the reservoir,

above the water line.

Installation

Step 1

Press the button to

release the air.

TA-EXAIR-GS

P 3

Shock-Proof Stand

Fan Dust Filter

Black/M4 Screw

Compatibility ATX Chassis

IN WIN 303

IN WIN 303C

IN WIN 305

IN WIN 307

Installation

BP-DSWDP-303C

BPTA-FX120PWM-DRGB

P 4

Water filling hole

---Product Warranty Rules---

The warranty will be void if any of the situations below

happen.

【

CPU Water Block

】

- The CPU block and the screws in it has any trace of disassemble.

- The top plate inlet and outlet ports, due to improper use of

external forces, are cracked.

【

Radiator

】

- The fin of the radiator are broken or deformed due to improper

use of external forces.

- The inlet and outlet of the radiator are cracked due to improper

use of external forces.

【

Fitting

】

- There are signs of damage caused by instrument clamping on the

fittings.

【

PUMP

】

- Pump damage from pump operation without any liquid.

- Pump damage caused by water leak on the pump's PCB.

- Water tank has been separated from the pump.

【

Fan

】

- Fan damaged by water leak.

Choose your desired dye color and mix it with pure distilled water. Pour the water mix into the reservoir via the water filling hole. Once the reservoir is

90% full, turn on the power supply for the pump to run and let the air exit the loop. Turn off the power supply when the reservoir is near empty. Repeat

until all the air has exited the loop. (In order to power the pump only, connect the power switch connector to the 24 pin cable of the power supply. This

will allow the power supply to bypass the motherboard and make the pump work alone.)

Notice:

Bitspower recommends that consumers add the Bitspower dye to

distilled water or purified water for their water-cooling liquid. If the

consumer chooses different water-cooling liquids, the resulting impu-

rities may cause peeling of the coating on some of the hardware, water

channels blockage by built-up residue, improper operation of the water

pump, water tank tube breakage, and o-rings deformation leading to

leakage. Any issues related to the use of inappropriate water-cooling

liquid will be the responsibility of the consumer.

Do not turn on the pump if the reservoir is empty.

Water

OPEN

Hard tube fitting installation guide

Hard tube installation steps:

1.First screw the fitting clockwise into the

G1/4" hole.

2.Slide the sleeve on the tube, then push the

tube into the nut over the o-ring

3.Lock the nut tightly to the sleeve using a

clockwise rotation.

Hard tube bending guide（Accessories not included）

Hard tube

Silicon strip

1. Insert the silicon strip (sold separately) inside

the hard tube.

2. Heat up evenly the area where the hard tube

needs to be bent (We suggestyou use a heat

gun for this step).

3. During the process of heating, please turn

the hard tube to heat evenly.

4. Once the tube is hot enough to bend easily,

move it to the bending tool andbend at the

desired angle.

5. We recommend using the Bitspower bending

kit (BP-PTR12/BP-PTR14/BP-PTR16).

Remark:This step is a guideline for

beginners. With experience, you will

develop your own style of bending tubes,

P 5

Recommended installation method

Accessories

Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test

with only the pump connected to the power supply .

Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product.

BPTAN-NLS360-F2PB

BPTA-CPUMS-DRGB

BP-VG2080RD-A2

BP-WTP-C06(

BP-VG2080RD-A2

Included)

BPTA-FX1812NT

BP-PFANMFH

BP-WTP-C95

BP-WTP-C62

BP-EML14

BP-90R

BP-DG14AALPI

BP-QR-C

BP-WTP-C06

BP-NCCLT14AC-L500

BPTA-DRGBMFC

BP-WTP-C61

BPTA-DTMC-V2

....1PCS

.....1PCS

.........1PCS

2PCS

.........4PCS

............1PCS

...........1PCS

.............10PCS

................6PCS

..........2PCS

...............1PCS

...........1PCS

....5PCS

.......1PCS

............2PCS

..........1PCS
