Bitspower CR120 Manuel utilisateur

[ 1 ]

instruction manual

Accessories

Bitspower CR120 Reservoir V1

1BPM-WTCR120 1 SET

2Mounting bracket (short) 2 PCS

3Mounting bracket (long) 2 PCS

4M3x45mm Screw 4 PCS

5M3x5mm Screw 4 PCS

6M4x6mm Screw 4 PCS

[ 2 ]

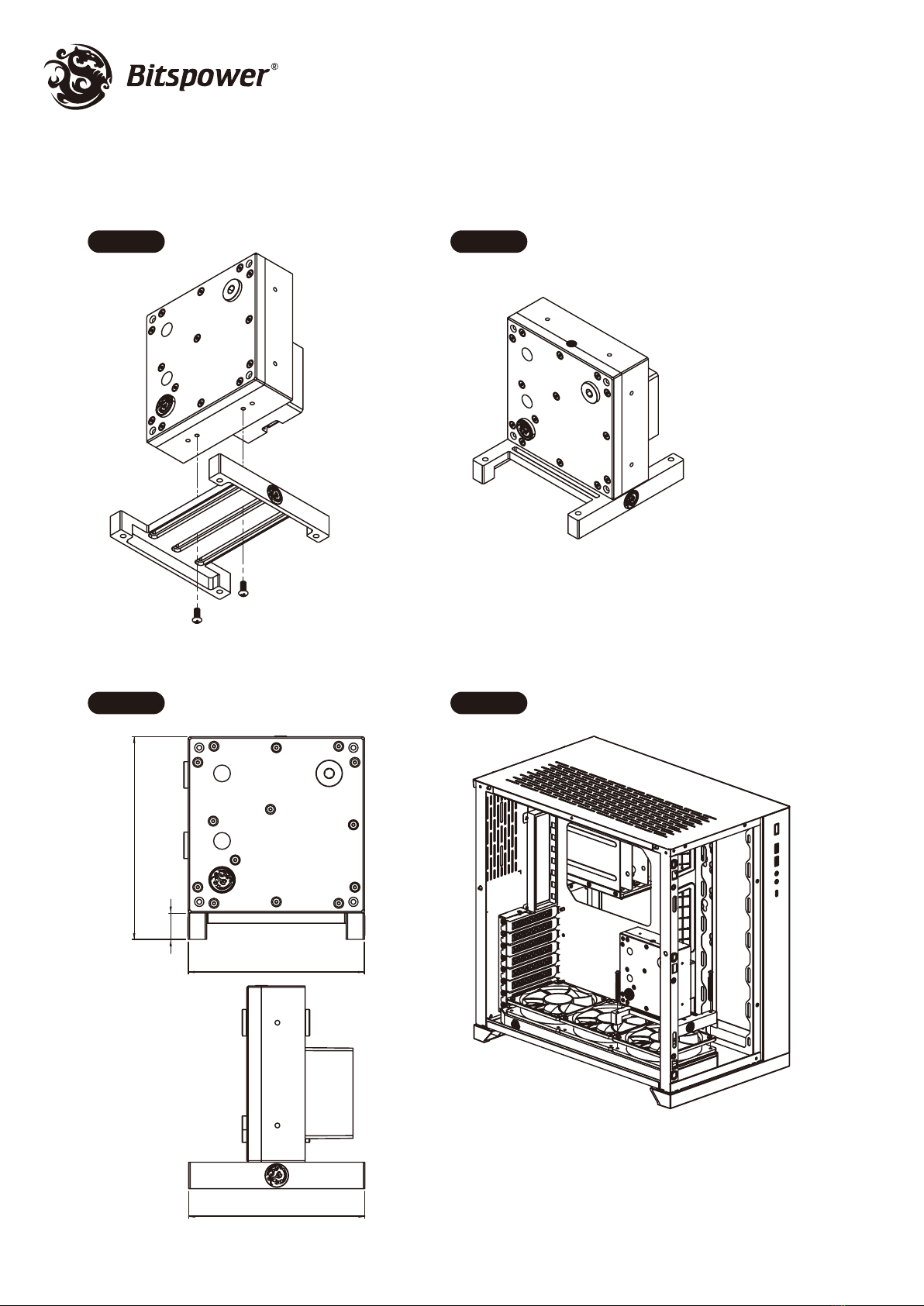

Installation For Mounting bracket (short)

step 2

step 3

step 1

Assemble the M3x5mm screws Install the mounting bracket (short)

120

123

120

72.50

75.50

Dimension

Assembly steps

[ 3 ]

step 4

Installed in the chassis

Assembly steps

[ 4 ]

Assembly steps

step 3

step 2step 1

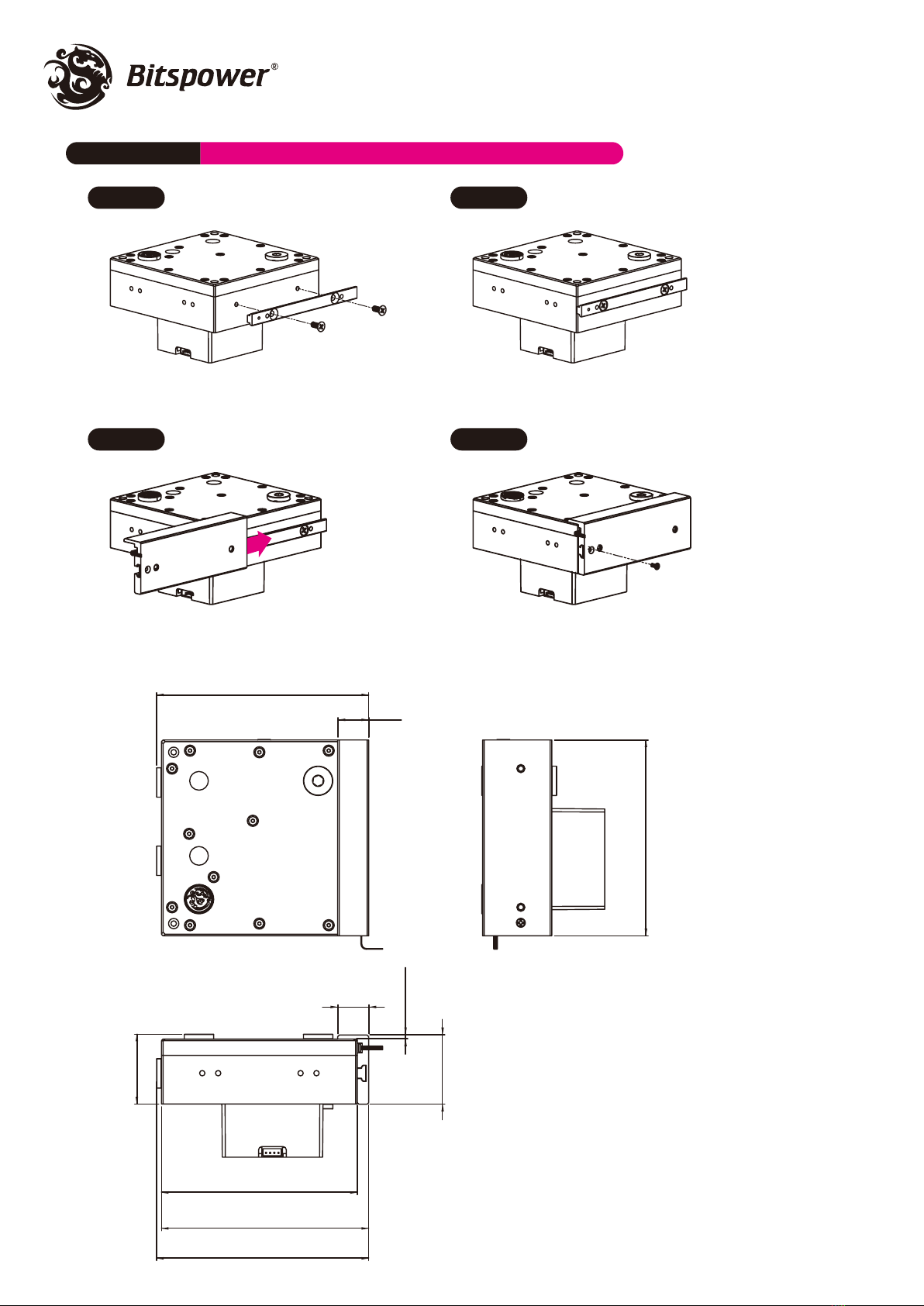

Installation For Mounting bracket (long)

step 3

Assemble the M3x5mm screws Install the mounting bracket (long)

Dimension

120

123

120

72.50

[ 5 ]

step 4

Installed in the chassis

Assembly steps

[ 6 ]

step 1

Recommend For Vertical stand(Additional purchases)

step 2

step 3

Method A

step 4

120

138

120

[ 7 ]

step 1 step 2

step 3

Method B

120

138

120

step 4

[ 8 ]

Recommend For Lighting module(Additional purchases)

step 1 step 2

step 3 step 4

Dimension (After installing the lighting module)

130

120

2.50

127

130

120

42.50

[ 9 ]

145

147.80

120

127

130

120

42.50

120

Dimension (After installing the lighting module and the vertical bracket)

The lighting module can be installed on surfaces in three di󽗈erent orientations.

[ 10 ]

記得上角要放對應的 LOGO!

Notice

Before filling in the water, please make sure all the components are

installed correctly. To prevent any leakage which may damage the PC

components, please perform a 24-hour leaking test with only the pump

connected to the power supply.

Bitspower reserves the right to change the product design and

interpretations. These are subject to change without notice. Product

colors and accessories are based on the actual product.

When using leak tester on water cooling loop, in order to avoid product

damage due to excessive pressure, the input pressure should not exceed

0.5kg/cm2 (Bar). If the product is damaged due to excessive pressure, it

will be the fault of the customer. DO NOT use the leak teser when there is

water in the loop or the pump is running.

Bitspower recommends that customers use Bitspower Pellucid Coolant

for their coolant fluid. It is also recommended to use Bitspower Dye to

create any desired color. If the customer chooses di󽗈erent liquid coolants,

the resulting impurities may cause peeling of the coating on some of the

hardware, water channel blockage by built-up residue, improper operation

of the water pump, water tank tube breakage, and o-ring deformation

leading to leakage. Any issues related to the use of inappropriate liquid

coolants will be the responsibility of the customer.
