Bitspower BP-VG3090TIST Manuel utilisateur

[ 1 ]

Classic VGA Water Block for ASUS TUF

Gaming GeForce RTX 3090 Ti Series

instruction manual

GPU

Step 1 Step 2

Step 4Step 3

Accessories

3Back plate

M2.5 x 8 Screw*

BP-VG3090TIST 1 SET

41.0 mm Thermal pad 8 PC

1 PC

13 PCS

*Two screws fastened in advance.

[ 2 ]

instruction manual

Step 5 Step 6

Step 8Step 7

Accessories

3Back plate

M2.5 x 8 Screw*

BP-VG3090TIST 1 SET

41.0 mm Thermal pad 8 PC

1 PC

13 PCS

*Two screws fastened in advance.

[ 3 ]

instruction manual

Step 9 Step 10

Digital RGB PIN on 1motherboard or 2

other equipment.

motherboard

DRGB Multi Function Controller

(Not included)

BPTA-DRGBMFC

Finish

Out

Accessories

3Back plate

M2.5 x 8 Screw*

BP-VG3090TIST 1 SET

41.0 mm Thermal pad 8 PC

1 PC

13 PCS

*Two screws fastened in advance.

[ 4 ]

instruction manual

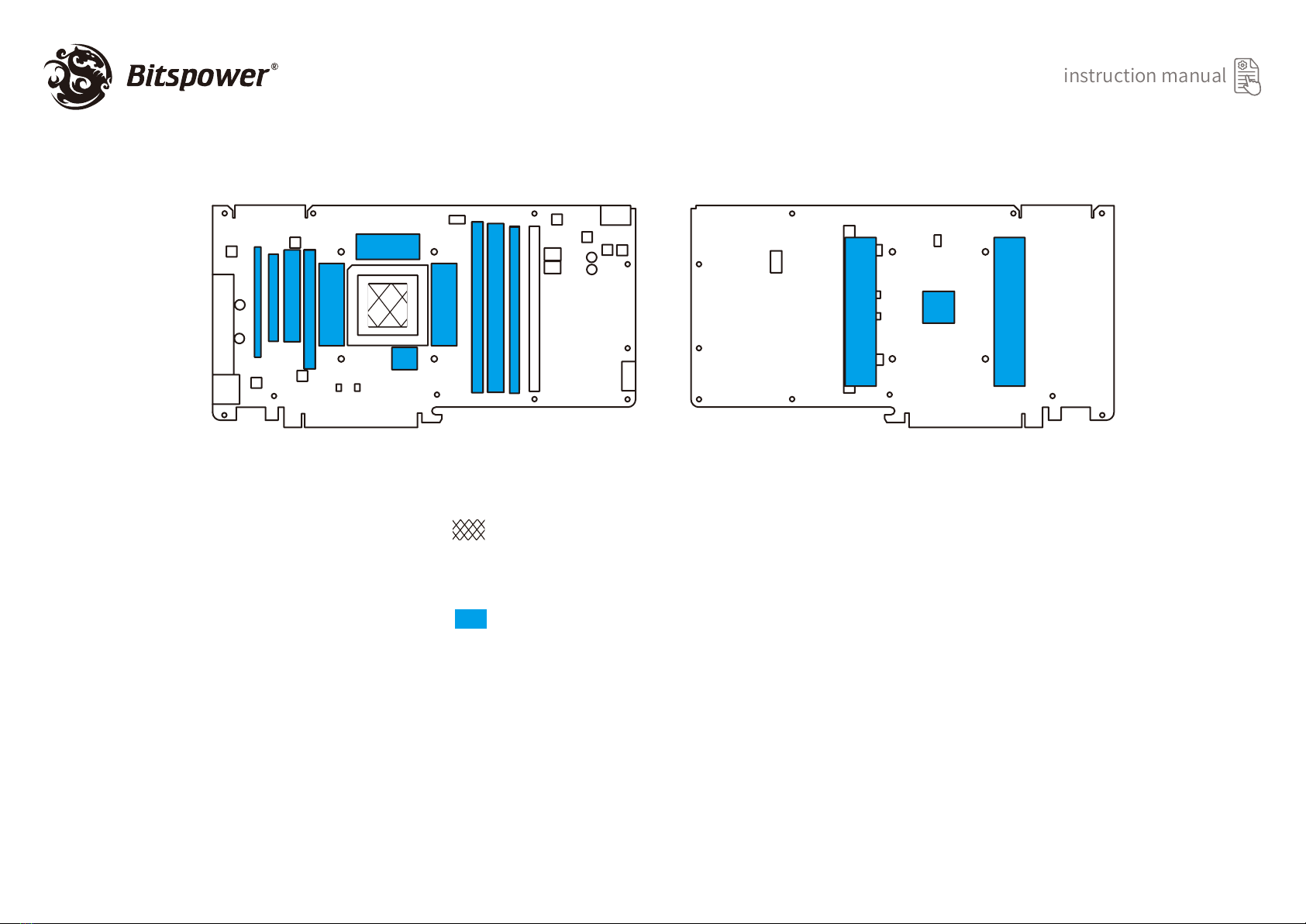

1.0 mm Thermal pad

Make sure the correct thermal pads are in the appropriate locations.

Use an appropriate amount of thermal paste.

[ 5 ]

Notice

Before 󽗉lling with water, please make sure all the components are installed correctly. To prevent any leakage

which may damage the PC components, please perform a 24-hour leak test with only the pump connected to

the power supply.

Bitspower reserves the right to change the product design and specifications. These are subject to change

without notice. Product colors and accessories are based on the actual product.

When using leak tester on water cooling loop, in order to avoid product damage due to excessive pressure, the

input pressure should not exceed 0.5kg/cm2 (Bar). If the product is damaged due to excessive pressure, it will

be the fault of the customer. DO NOT use the leak teser when there is water in the loop or the pump is running.

Bitspower recommends that customers use Bitspower Pellucid Coolant for their coolant fluid. It is also

recommended to use Bitspower Dye to create any desired color. If the customer chooses different liquid

coolants, the resulting impurities may cause peeling of the coating on some of the hardware, water channel

blockage by built-up residue, improper operation of the water pump, water tank tube breakage, and o-ring

deformation leading to leakage. Any issues related to the use of inappropriate liquid coolants will be the

responsibility of the customer.

[ 6 ]

使用說明書

配件

3背板

M2.5 x 8 螺絲 *

BP-VG3090TIST 1 SET

41.0 mm 導熱墊片 8 PC

1 PC

13 PCS

* 兩根螺絲預先鎖上

Classic VGA Water Block for ASUS TUF

Gaming GeForce RTX 3090 Ti Series V3

GPU

步驟 1 步驟 2

步驟 4步驟 3

[ 7 ]

使用說明書

配件

3背板

M2.5 x 8 螺絲 *

BP-VG3090TIST 1 SET

41.0 mm 導熱墊片 8 PC

1 PC

13 PCS

* 兩根螺絲預先鎖上

步驟 5 步驟 6

步驟 8步驟 7

[ 8 ]

使用說明書

配件

3背板

M2.5 x 8 螺絲 *

BP-VG3090TIST 1 SET

41.0 mm 導熱墊片 8 PC

1 PC

13 PCS

* 兩根螺絲預先鎖上

步驟 9 步驟 10

完成

進

出

請接 1主板或 2 其他設備的 DRGB 插槽

主板

DRGB 控制器 ( 不包括 )

BPTA-DRGBMFC

[ 9 ]

使用說明書

導熱墊片的正確應用位置

1.0 mm 導熱墊片

適量使用導熱膏

[ 10 ]

記得上角要放對應的 LOGO!

注意

跑水前，請先確認所有零件已安裝在正確的位置上，在不開主機，單開水泵的情况下，進行 24 小時的跑水測試，

確保無漏水情况後再開主機，避免發生漏水而導致電腦零件的損壞。

本公司保留對產品的設計更改以及解釋的權力，如有更動恕不另行通知，產品顏色與配件以實物為準。

當使用測氣產品測試水路時 , 為避免由于壓力過大導致產品損壞 , 輸入的壓力請不要超過 0.5kg/cm2 (Bar), 如因壓力

過大造成產品損壞 , 將由客戶自行承擔 . 嚴禁客戶在水路有水及水泵開啟的情況下進行氣體飽壓測試。

Bitspower 建議消費者使用 Bitspower 透明冷卻液。此外，也可以添加 Bitspower 染料到透明冷卻液中以滿足顏色

要求。如果消費者選擇不同的水冷液，可能會引起水路配件中的塗層剝落、積垢堵塞水道、水泵磨損、水箱管破裂、

破壞 O 型圈密封性導致漏水等。任何因使用不當水冷液導致相關的問題將由消費者自行負責。
