Biostar U8868 Manuel utilisateur

FCC Information and Copyright

This equipment has been tested and found to comply with the

limits of a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not

occur in a particular installation.

The vendor makes no representations or warranties with respect

to the contents here of and specially disclaims any implied

warranties of merchantability or fitness for any purpose. Further

the vendor reserves the right to revise this publication and to

make changes to the contents here of without obligation to notify

any party beforehand.

Duplication of this publication, in part or in whole, is not allowed

without first obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without

notice and we will not be responsible for any mistakes found in

this user’s manual. All the brand and product names are

trademarks of their respective companies.

Table of Contents

Notice .............................................................................................1

Mainboard Features...............................................................2

1. Features Introduction......................................................................... 2

1-1. Hardware.........................................................................................................2

1-2. BIOS & Software.........................................................................................6

1-3. Package Contents.......................................................................................6

2. Mainboard Configuration................................................................... 7

2-1. Layout of U8868..........................................................................................7

2-2. Component Index.......................................................................................8

3. CPU Configuration ............................................................................... 9

3-1. CPU Socket 478 Configuration Steps:.............................................9

3-2. CPU Fan Header: JCFAN1.....................................................................10

3-3. System Fan Header: JSFAN1.............................................................11

4. Jumpers, Headers & Connectors.................................................. 12

4-1. Front Panel Connector: JPANEL1......................................................13

4-2. ATX 20-pin Power Connector: JATXPWR1...................................15

4-3. Hard Disk Connectors: IDE1/IDE2..................................................15

4-4. Floppy Disk Connector: FDD1............................................................16

4-5. Wake On LAN Header: JWOL1...........................................................16

4-6. Clear CMOS Jumper: JCMOS1...........................................................16

4-7. Front USB Header: JUSB3....................................................................17

4-8. Front USB Header: JUSB4....................................................................17

4-9. 5V / 5VSB Selection for KB: JKBV1.................................................17

Table of Contents

4-10. ATX 12V Power Connector: JATXPWR2......................................18

5. RAM Module Configuration............................................................. 19

5-1. DDR SDRAM................................................................................................19

5-2. How to install DDR DIMM Module....................................................20

6. Peripheral Port Features ................................................................. 21

6-1. PS/2 Mouse / Keyboard Connector: JKBMS1.............................21

6-2. USB & LAN Port Connectors: JUSBLAN1......................................22

6-3. Serial and Parallel Interface Ports....................................................24

6-4. Game (Joystick/MIDI) Port Connector: JAUD_GAME............27

6-5. Audio Port Connectors: JSPKR1/JLIN1/JMIC1...........................27

6-6. Audio Subsystem......................................................................................28

Chapter 1 Motherboard Description

1-1

Notice

Introduction of system

This mainboard is designed to take advantage of the latest industry

technology to provide you with the ultimate solution in data

processing. In the tradition of its predecessors, this mainboard

continues a commitment to reliability and performance and strives

for full compliance and compatibility with industry software and

hardware standards.

U8868 Features:

1.Contains on board I/O facilities that include a serial port, a parallel

port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB

ports and a game port.

2.Contains on board IDE facilities for IDE devices such as hard disks

and CD-ROM Drives.

3.Supports the Intel Pentium ® 4 processor, a leading edge processor.

Complies with PC Micro-ATX form factor specifications.

4.Supports popular operating systems such as Windows NT, Windows

2000, Windows ME, Windows XP, Novell, LINUX and SCO UNIX.

Chapter 1 Motherboard Description

1-2

Mainboard Features

1. Features Introduction

1-1. Hardware

CPU:

1.Provides Socket-478.

2.Supports the Intel Pentium ® 4processor providing the new generation power

for high-end workstations and servers.

Speed:

1.Runing at 400 MHz Front Side Bus frequency.

2.Supports up to 2.4 GHz CPU core speeds.

3.The 33MHz 32 bit PCI 2.2 compliant.

4.The 66MHz AGP 2.0 compliant interface supports 1x, 2x and 4x data transfer

mode.

Chipset:

Chipset – VIA VT8751 (P4M266)/ VT8235.

Super I/O

Chipset – ITE 8705

DRAM Memory:

1.Supports 200MHz, 266MHz DDR SDRAM devices.

2.Supports 64Mb, 128Mb, 256Mb and 512Mb technologies for x8 and 16

devices.

3.Max of 2 Double-Sided DDR SDRAM with unbuffered / Registered.

4.The largest memory capacity is 2 GB.

Chapter 1 Motherboard Description

1-3

Shadow RAM:

Motherboard is equipped with a memory controller providing shadow RAM and

support for ROM BIOS.

Green Functionality:

1.Supports Award BIOS ™ power management functionality.

2.Has a power down timer from 1 to 15 minutes.

BUS Slots:

1.Contains 1 AGP slot.

2.Contains 1 CNR slot.

3. Contains 3 32-bit PCI bus slots

Flash Memory:

1.Supports flash memory functionality.

2.Supports ESCD functionality.

Built in VGA:

1. High Resolution CRT RGB Interface

1.250 MHz RAMDAC on chip with Gamma Correction.

2.Horizontal / Vertical Sync outputs compliant with Monitor Power

Management protocols.

3.I2C Serial Bus for DDC Monitor Communications.

2. 2D Hardware Acceleration Features

1. ROP3 Ternary Raster Operation BitBLTs.

2. 8, 16 and 32 bpp mode acceleration.

3. Integrated Savage4 2D/ 3D Graphics Controller and Video

Accelerator

1. Optimized Shared Memory Architecture (SMA).

2. 16 / 32 MB frame buffer using system memory.

Chapter 1 Motherboard Description

1-4

3. Floating-point triangle setup engine.

4. Single circle 128-bit 3D architecture.

5. 8M triangles /second setup engine.

6. 140M pixels second trilinear fill rate.

7. Full internal AGP 4x performance.

8. Microsoft Direct X texture compression.

9. Next generation, 128-bit 2D graphics engine.

10. High quality DVD video playback.

11. 2D / 3D resolutions up to 1920x1440.

4. 3D Rendering Features

1. Single-pass multiple textures.

2. Anisotropic filtering.

3. 8-bit stencil buffer.

4. 32-bit true color rendering.

5. Specular lighting and diffuse shading.

6. Alpha blending modes.

7. Massive 2K x 2K textures.

8. MPEG-2 video textures.

9. Vertex and table fog.

10. 16 or 24-bit Z-buffering.

11. Reflection mapping, texture morphing, shadows, procedural textures and

atmospheric effects.

Built in IDE Facilities:

1.Supports four IDE hard disk drives.

2.Supports PIO Mode 4, Master Mode, and high performance hard disk drives.

3.Supports disk transfer rates up to 133 MB/second.

4.Supports Ultra DMA 33, Ultra DMA 66, Ultra DMA 100, Ultra DMA 133 Bus

Master Modes.

5.Supports IDE interface with CD-ROM.

6.Supports high capacity hard disk drives.

7.Supports LBA mode.

Chapter 1 Motherboard Description

1-5

AC’97 Sound Codec Onboard:

1.AC-LINK protocol comfliance.

2.Compliant with AC’97 specification.

3.18-bit full duplex stereo ADC, DACs.

4.SNR>95 Bb throughmixer and DAC.

I/O facilities:

1.One multi-mode Parallel Port capable of supporting the following

specifications:

Standard & Bidirection Parallel Port.

Enhanced Parallel Port (EPP).

Extended Capabilities Port (ECP).

Normal

2.Supports one serial port, 16550 UART.

3.Supports Infrared Data Transmission using IrDA.

4.Supports PS/2 mouse and PS/2 keyboard.

5.Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy disk drives.

Universal Serial Bus:

Supports two back panel Universal Serial Bus Port and four front panel

Universal Serial Bus Ports.

Hardware Monitor Function:

1.Monitors CPU Fan Speed.

2.Monitors System Voltage.

Dimensions (MATX form-factor):

24.5cm x 22.8cm (WxL)

Chapter 1 Motherboard Description

1-6

1-2. BIOS & Software

1.Award legal BIOS.

2.Supports APM1.2.

3.Supports USB Function.

4.Supports ACPI.

Operating System:

Offers the highest performance for MS-DOS, Windows NT, Windows 2000,

Windows ME, Windows XP, Novell, LINUX, and SCO UNIX etc.

1-3. Package Contents

1.HDD Cable.

2.FDD Cable.

3.Flash Memory Writer for BIOS Update.

4.USB Cable (Optional).

5.Rear I/O Panel for MATX Case (Optional).

6.Fully Setup Driver CD.

Chapter 1 Motherboard Description

1-7

2. Mainboard Configuration

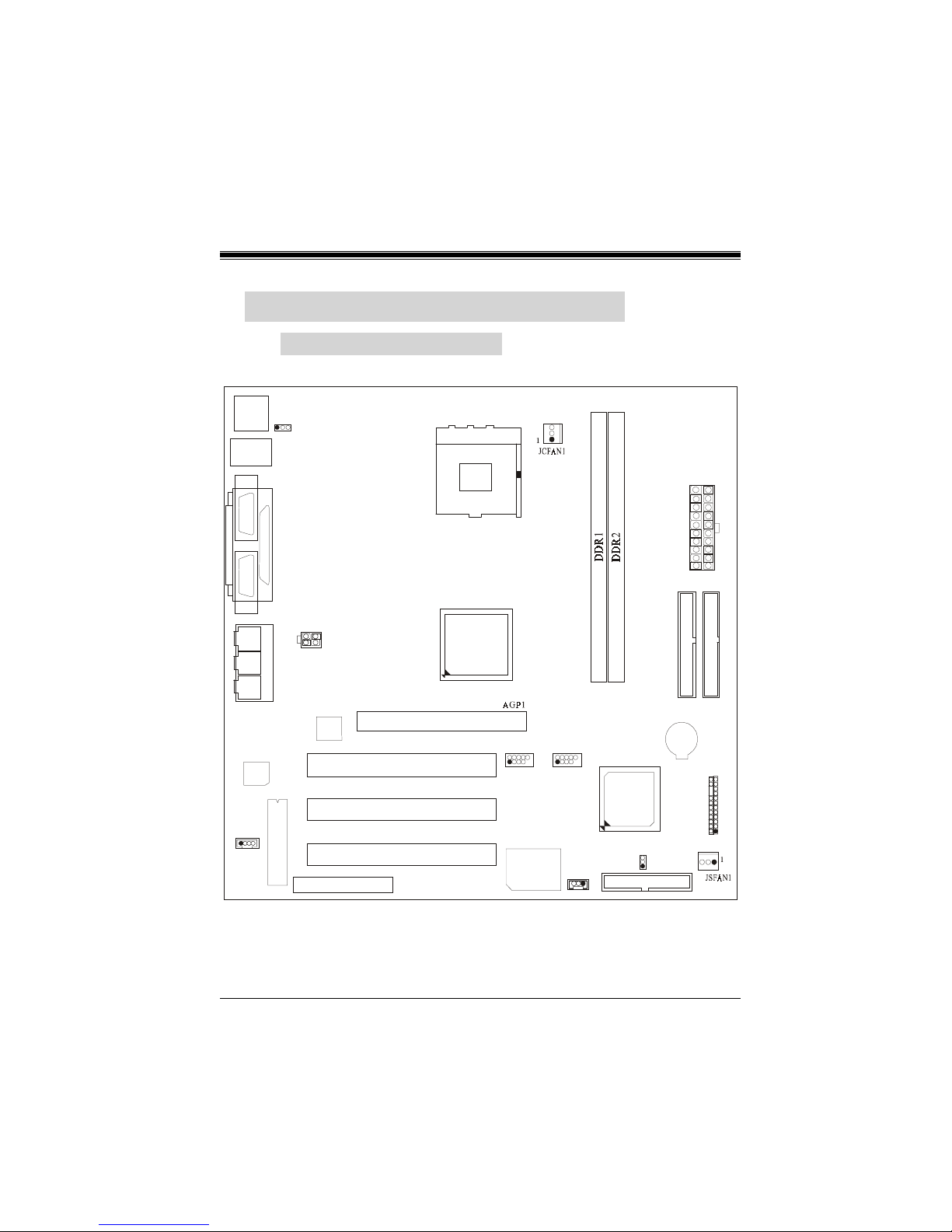

2-1. Layout of U8868

PCI1

PCI2

AGP SLOT

PCI SLOT

VT8235

1612A

JCDIN1

PCI3

CNR1

CNRSLOT

ITE

BIOS

JATXPWR1

PRIMARY IDE CONN.

SECONDARY IDE CONN.

FLOPPY DISK CONN.

JCMOS1

CPU

Socket 478

CPU1

VT8751

JKBV1

JWOL1

BAT1

JPANEL1

2324

JUSB3

JUSB4

10 1

6103

K/B

Mouse

JKBMS1

JLAN

USB & LAN

JCOM1

COM1

Parallel Port

JPRNT1

JVGA1

VGA1

Game Port

Speaker

Out

Line

MIC

JATXPWR2

Autres manuels pour U8868

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar A58ML2 Guide de l'utilisateur

Biostar

Biostar 6100 AM2 Guide de l'utilisateur

Biostar

Biostar P43B-A7 - BIOS Guide de l'utilisateur

Biostar

Biostar NF61S-M2 TE Guide de l'utilisateur

Biostar

Biostar TA790GX A3+ Guide de l'utilisateur

Biostar

Biostar TF570 Guide de l'utilisateur

Biostar

Biostar TZ590-BTC DUO Manuel utilisateur

Biostar

Biostar M7VIG Pro D Manuel utilisateur

Biostar

Biostar G41D3B Guide de l'utilisateur

Biostar

Biostar GF7025-M2 TE - BIOS SETUP Guide de l'utilisateur

Biostar

Biostar A68N-5100 Manuel utilisateur

Biostar

Biostar H310MHP 2.0 Manuel utilisateur

Biostar

Biostar G965 MICRO 775 Guide de l'utilisateur

Biostar

Biostar P4 TDP Guide de l'utilisateur

Biostar

Biostar P4M80-M7 Guide de l'utilisateur

Biostar

Biostar TA970XE Guide de l'utilisateur

Biostar

Biostar P4 SDL Manuel utilisateur

Biostar

Biostar K8NHA-M Grand Manuel utilisateur

Biostar

Biostar A740G3L - BIOS Guide de l'utilisateur

Biostar

Biostar U8668 Grand Guide de l'utilisateur

Biostar

Biostar B250MDC Manuel utilisateur

Biostar

Biostar P43C-A7 - BIOS Guide de l'utilisateur

Biostar

Biostar H61MHB Manuel utilisateur

Biostar

Biostar P4 SFA Instructions d'utilisation et d'installation

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
