H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

UEFI BIOS Setup...................................................................................... 1

1 Main Menu ............................................................................................. 3

2 Advanced Menu...................................................................................... 4

3 Chipset Menu ....................................................................................... 17

4 Boot Menu............................................................................................. 22

5 Security Menu ...................................................................................... 24

6 Performance Menu .............................................................................. 25

7 Exit Menu ............................................................................................. 31

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

UEFI BIOS Setup

Introduction

The p urpose of this manual is to describe the settings in the AMI UEFI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to NVRAM.

UEFI BIOS determines what a computer can do without accessing programs from a

disk. This system controls most of the input and output devices such as keybo ard,

mouse, s erial ports and disk drives. BIOS activates at the first stage of the booting

process, loading and executing the operating s ys tem. Some additio nal features, such

as virus and password protection or chips et fine-tuning options are also included in

UEFI BIOS.

The rest of this manual will to guide you through the options and settings in UEFI

BIOS Setup.

Plug and Play Support

This AMI UEF I BIOS suppo rts the Plug and Play Version 1.0A spec ification.

EPA Green PC Support

This AMI UEFI BIOS s upports Vers ion 1. 03 of the EPA Green PC spec ification.

ACPI Support

AMI ACP I UEFI BIOS s upport Vers io n 1.0/2.0 of Advanc ed Configuration and

Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilities as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also suppo rts Vers ion 2.3 of the Intel PCI (Peripheral

Component Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

Supported CPUs

This AMI UEF I BIOS s uppo rts the Intel CPU.

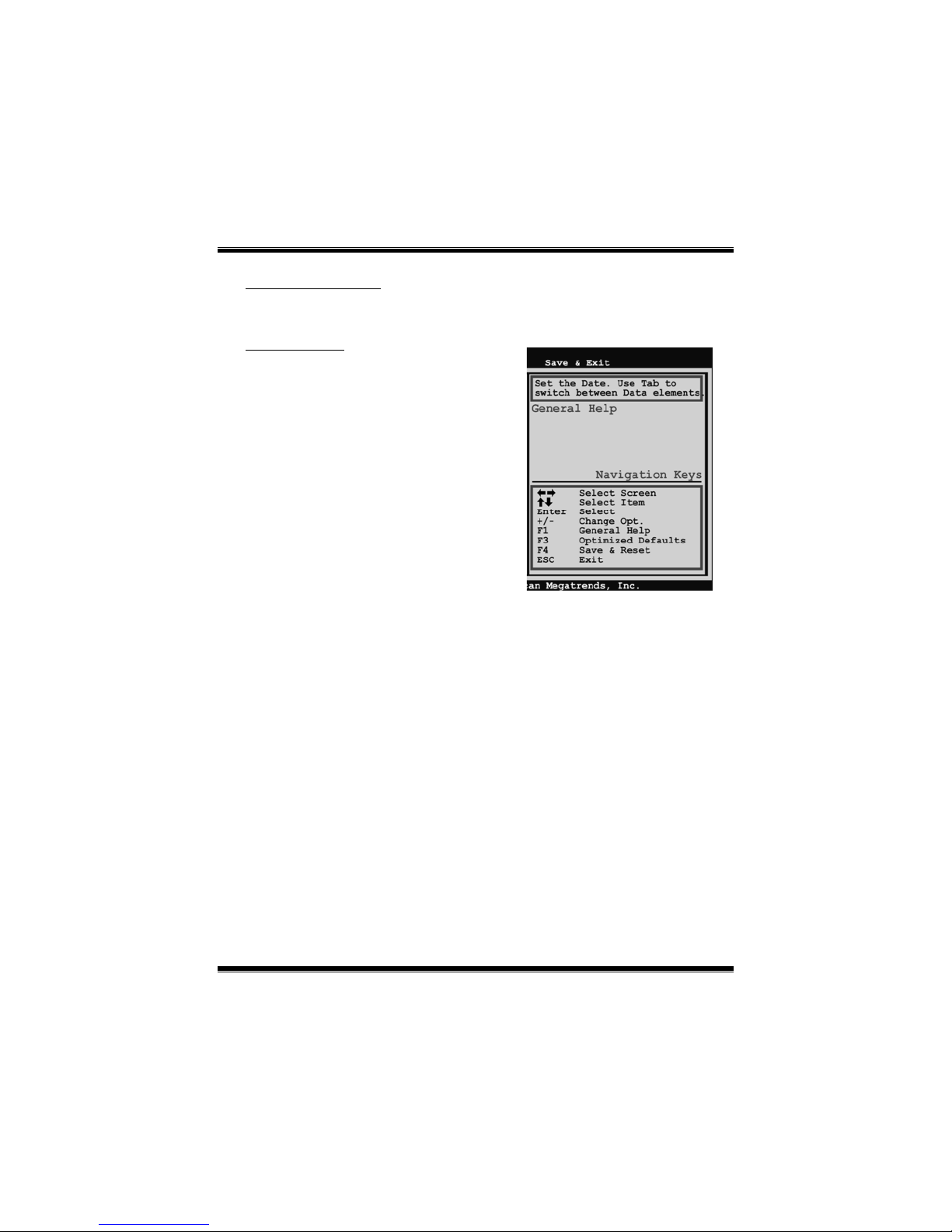

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the UEFI BIOS setup

utility.

In the UEFI BIOS setup utility, you will

see General Help description at the top

right corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use thes e keys to select item and change

the settings.

Notice

zThe default UEFI BIOS settings apply for most conditions to ensure optimum

performance of the motherboard. If the system becomes unstable after changing

any settings, please load the default settings to ensure s ystem’s compatibility and

stability. Use Load Setup Default under the Exit Menu.

zFor better system performance, the UEFI BIOS firmware is being continuously

updated. The UEFI BIOS informatio n described in this manual is for yo ur reference

only. The actual UEFI BIOS information and settings on board may be slightly

different from this manual.

zThe content of this manual is subject to be changed without notice. We will not be

responsible fo r any mistakes found in this user’s manual and any system damage that

may b e caused by wrong-settings.

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

1 Main Menu

Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the

screen providing an overview of the basic system information.

BIOS SETUP UTILIT

Main Advanced Chipset Boot Security Performance

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

Set the Date. Use Tab to

switch between Data elements.

BIOS Information

Compliency

Project Code

Model Name

Build Date

Total Memory

System

Time

[00:00:00]

System Date [Sat 01/01/2011]

Access Level Administrator

Save & Exit

System Language [English]

BIOS Version

BIOS Information

Shows system information including UEFI BIOS version, model name, marketing

name, built date, etc.

Total Memor y

Shows system memory size, VGA shard memory will be excluded.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

System Time

Set the system internal c lock.

Access Level

Shows the access level of current us er.

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

BIOS SETUP UTILIT

> ACPI Settings/WakeUp Event control

> CPU Configuration

> SATA Configuration

> USB Configuration

> SMART FAN Control

> Super IO Configuration

> H/W Monitor

> PCI Subsystem Settings

PCI, PCI-X and PCI Express

Settings.

Main Advanced Chipset Boot Security Performance Save & Exit

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

PCI Su bs ystem Settings

BIOS SETUP UTILIT

PCI Bus Driver Version V x.xx.xx

PCI Common Settings

PCI Express Device Settings

PCI Express Link Settings

WARNING: Enabling ASPM may cause some

PCI-E devices to fail

PCI ROM Priority [Legacy ROM]

PCI Latency Timer [32 PCI Bus Clocks]

VGA Palette Snoop [Disabled]

PERR# Generation [Disabled]

SERR# Generation [Disabled]

Relaxed Ordering [Disabled]

Extended Tag [Disabled]

No Snoop [Enabled]

Maximum Payload [Auto]

Maximum Read Request [Auto]

ASPM Support [Disabled]

Extended Synch [Disabled]

In case of multiple Opiton

ROMs (Legacy and EFI

Compatible), specifies what

PCI Option ROM to launch.

Advanced

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

PCI ROM Priority

In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies

what PCI Option ROM to launc h

Options: Legacy ROM (Default) / EFI Compatible ROM

PCI Latency Timer

This item sets the value to be programmed into PCI Latency Timer Register.

Optio ns: 32 PCI Bus Cloc ks (Default) / 64 PCI Bus Cloc ks / 96 PCI Bus Clocks /

128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224

PCI Bus Clocks / 248 PCI Bus Clocks

VGA Palette Snoop

This item enables or disables VGA Palette Registers Snooping.

Options: Disabled (Default) / Enabled

PERR# Generation

This item enables o r disables PCI Devic e to generate PERR#.

Options: Disabled (Default) / Enabled

SERR# Generation

This item enables o r disables PCI Devic e to generate SERR#.

Options: Disabled (Default) / Enabled

Relaxed Ordering

This item enables or disables PCI Express Device Relaxed Ordering.

Options: Disabled (Default) / Enabled

Extended Tag

If this item is enabled, the s ystem allows Device to use 8-bit Tag field as a requester.

Options: Disabled (Default) / Enabled

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

No Snoop

This item enables or disables PCI Express Device No Snoop option.

Options: Enabled (Default) / Disabled

Maximum Payload

This item s ets Maximum Payload of PCI Express Device or allows System BIOS to

select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

Maximum Read Request

This item sets Maximum Read Request Size of PCI Express Device or allows

System BIOS to s elect the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

ASPM Support

This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –

BIOS auto co nfigures; Disabled – Disables ASPM.

Options: Disabled (Default) / Auto / Force LO

Extended Synch

If this item is enabled, the sys tem allo ws generation of Extended Synchro nization

patterns.

Options: Disabled (Default) / Enabled

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

ACPI Settings/WakeUp Event control

BIOS SETUP UTILIT

ACPI Settings/Wakeup Event Control

ACPI Sleep State [S1 (CPU Stop Clock)]

EuP Control [Disabled]

PME Wake up from S5 [Disabled]

Wake system with Fixed Time [Disabled]

Ring-In Wake up from S5 [Disabled]

PS2 Keyboard PowerOn [Disabled]

PS2 Mouse PowerOn [Disabled]

USB Device Wakeup from S3/S4 [Disabled]

Wake up date [EveryDay]

Wake up hour 0

Wake up minute 0

Wake up second 0

Stroke key [Wake Key]

Specific key

Advanced

Select the highest ACPI sleep

state the system will enter

when the SUSPEND button is

pressed.

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

ACPI Sleep State

This item selects the highest ACPI sleep state the system will enter when the

SUSPEND button is pressed.

Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to

RAM)

EuP Control

When EuP is enabled, the system will meet EuP requirement.

Options: Disabled (Default) / Enabled

PME Wake up from S5

The item enables the system to wake from S5 using PME event.

Options: Disabled (Default) / Enabled

Wake system with Fixed Time

This item enables or disables the system to wake on by alarm event. When this item

is enabled, the system will wake on the hr::min::sec specified.

Options: Disabled (Default) / Enabled

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

Wake up date

You can choose which date the system will boot up.

Wake up hour / Wake up minute / Wake up second

You can c hoose the system boot up time, input hour, minute and second to specify.

Ring-In Wake up from S5

This item enables the system to wake from S5 using Ring-In event.

Options: Disabled (Default) / Enabled

PS2 Keyboard PowerOn

This item allows you to control the keyboard power on function.

Options: Disabled (Default) / Any Key / Stroke Key / Specific Key

Stroke Keys Selected

This item will show only when Keyboard PowerOn is s et “Stroke Key.”

Optio ns: Wake Key (Default) / Po wer Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 /

Ctrl +F4 / Ctrl+F5 / Ctrl+F6

Specific Key Enter

This item will show only when Keyboard PowerOn is s et “Specific Key.” Press

Enter to set Specific key.

PS2 Mouse PowerOn

This item allows you to control the mouse power on function.

Options: Disabled (Default) / Enabled

USB Device Wakeup from S3/S4

This item allo ws you to enable or disabled the US B resume from S3/S4 function.

Options: Disabled (Default) / Enabled

H61MGB/H61MLB/H61MHB

UEFI BIOS Manual

CPU Configuration

BIOS SETUP UTILIT

CPU Configuration

Processor Stepping

Microcode Revision

Max Processor Speed

Min Processor Speed

Processor Speed

Processor Cores

Intel HT Technology

EMT64

Hyper-threading [Enable d]

Active Processor Cores [All]

Limit CPUID Maximum [Disabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Execute-Disable Bit [Enabled]

Intel Virtualization T echnology[Disabled]

Power Technology [Energy Efficient]

Local x2APIC [Disabled]

Advanced

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

Enabled for Windows XP and

Linux(OS optimized for

Hyper-Threading Technology)

and Disabled for other OS(OS

not optimized for

Hyper-Threading Technology).

When Disabled only one thread

per enabled core is enabled.

Hyper-threading

Hyper Threading Technology can improve performance by splitting instructions into

multiple streams. This item is enabled for Windows XP and Linux (OS optimized for

Hyper-Threading Technology) and disabled for other OS (OS not optimized for

Threading Techno lo gy). When this item is dis abled, only one thread per enabled core

is enabled.

Options: Enabled (Default) / Disabled

Active Processor Cores

This item sets number of cores to enable in each processor package.

Options: All (Default) / 1 / 2 / 3

Limit CP UID Max imum

When the computer is booted up, the operating system executes the CPUID

instruction to identify the p rocessor and its c apabilities. Before it can do so, it mus t

first query the processor to find out the highest input value CPUID recognizes. This

determines the kind of basic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Autres manuels pour H61MHB

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar TA780G M2 Guide de l'utilisateur

Biostar

Biostar TH55XE - BIOS Guide de l'utilisateur

Biostar

Biostar U8668 Grand Guide de l'utilisateur

Biostar

Biostar P43D3 - BIOS Manuel utilisateur

Biostar

Biostar M7VIZ Manuel utilisateur

Biostar

Biostar A760GE - BIOS Guide de l'utilisateur

Biostar

Biostar 945GC-M7G Guide de l'utilisateur

Biostar

Biostar A68MHE Manuel utilisateur

Biostar

Biostar P43D3+ Manuel utilisateur

Biostar

Biostar P4 VTB Guide de l'utilisateur

Biostar

Biostar H310MHD PRO Manuel utilisateur

Biostar

Biostar B560GTQ Manuel utilisateur

Biostar

Biostar B450MHP Manuel utilisateur

Biostar

Biostar IDEQ 200P Manuel utilisateur

Biostar

Biostar H55 HD Manuel utilisateur

Biostar

Biostar CX70M-PE Guide de l'utilisateur

Biostar

Biostar I915P-A7 Manuel utilisateur

Biostar

Biostar P4 TDQ Instructions d'utilisation et d'installation

Biostar

Biostar X670E VALKYRIE Manuel utilisateur

Biostar

Biostar AM1MD Manuel utilisateur

Biostar

Biostar TH55B HD - BIOS Manuel utilisateur

Biostar

Biostar P4TSG PRO Guide de l'utilisateur

Biostar

Biostar U8798 Manuel

Biostar

Biostar P4 TPT Guide de l'utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
