TP67B+ UEFI BIOS Manual

UEFI BIOS Setup

Introduction

The purpose ofthis manual is to describethe settings in the AMI UEFI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to NVRAM.

UEFI BIOS determines what acomputer can do without accessing programs from a

disk. This system controls most of the input and output devices such as keyboard,

mouse, serial ports and disk drives. BIOS activates at the first stage of the booting

process, loading and executing the operating system. Some additional features, such

as virus and password protection or chipset fine-tuning options are also included in

UEFI BIOS.

The rest of this manual will to guide you through the options and settings in UEFI

BIOS Setup.

Plugand Play Support

ThisAMI UEFI BIOSsupportsthe Plugand Play Version 1.0A specification.

EPA Green PC Support

ThisAMI UEFI BIOSsupports Version 1.03 ofthe EPA Green PCspecification.

ACPI Support

AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Configuration and

Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilities as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral

Component Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

TP67B+ UEFI BIOS Manual

Supported CPUs

ThisAMI UEFI BIOSsupportsthe Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the UEFI BIOS setup

utility.

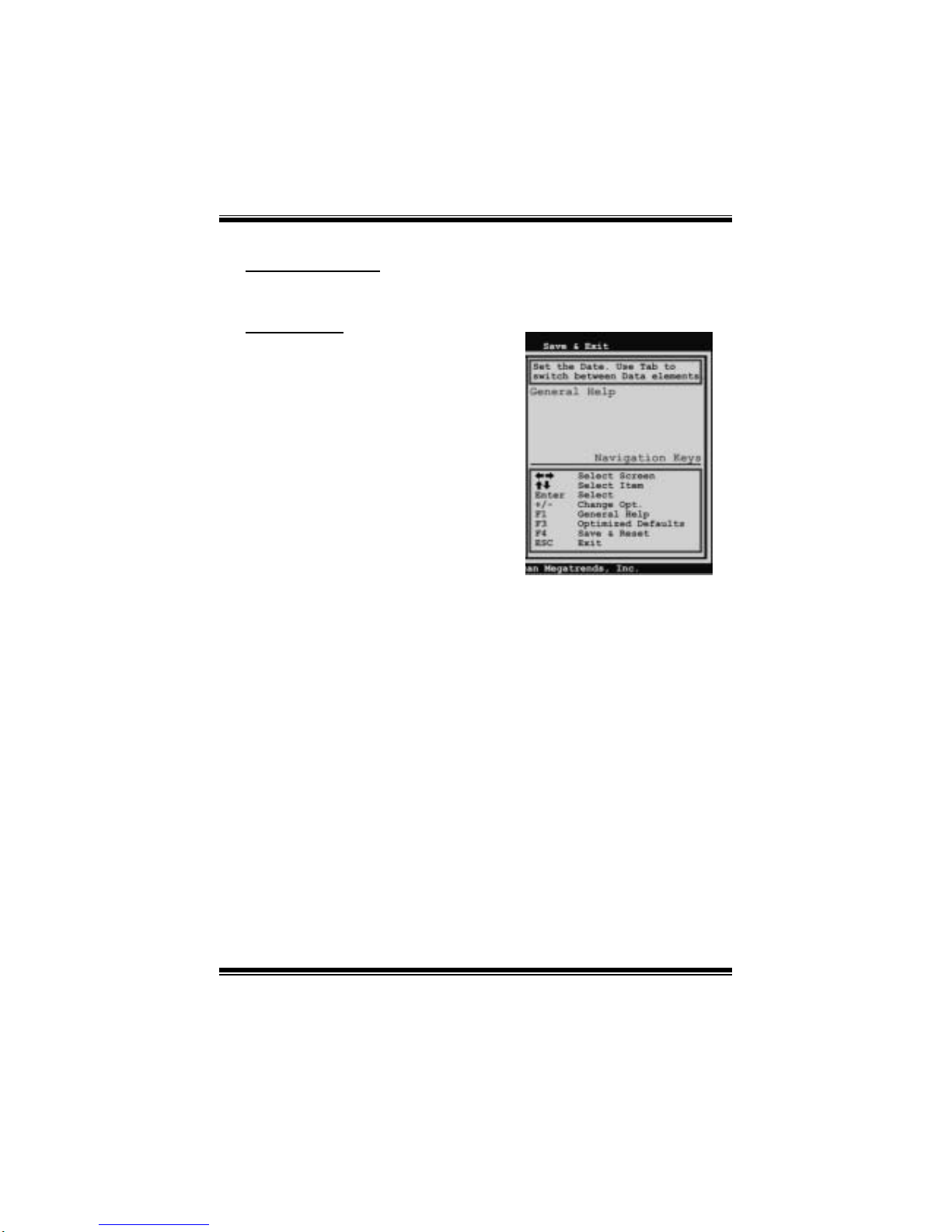

In the UEFI BIOS setup utility, you will

see General Help description at the top

right corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default UEFI BIOS settings apply for most conditions to ensure optimum

perform ance of the motherboard. If the system becomes unstable after changing

any settings, please load the default settings to ensure system’s compatibility and

stability. Use Load Setup Default under the Exit Menu.

zFor better system performance, the UEFI BIOS firmware is being continuously

updated. The UEFI BIOS information described in this manual is for your reference

only. The actual UEFI BIOS information and settings on board may be slightly

different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

TP67B+ UEFI BIOS Manual

1 Main Menu

Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the

screen providing an overview ofthe basicsystem information.

BIOS SETUP UTILITY

Main Advanced Chipset Boot Security O.N.E

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

Set the Date. Use Tab to

switch between Data elements.

BIOS Information

Compliency

Model Name

Marketing Name

Build Date

Total Memory

System

Time

[00:00:00]

System Date [Fri 01 /01/2010]

Access Level Administrator

Save & Exit

System Language [English]

BIOS Information

Shows system information including UEFI BIOS version, model name, marketing

name, built date, etc.

Total Memory

Shows systemmemory size, VGA shard memory will be excluded.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

System Time

Set the systeminternal clock.

Access Level

Shows the access level of current user.

TP67B+ UEFI BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

> ACPI Settings/WakeUp Event control

> CPU Configuration

> SATA Configuration

> USB Configuration

> SMART FAN Control

> Super IO Configuration

> H/W Monitor

> PCI Subsystem Settings

PCI, PCI-X and PCI Express

Settings.

Main Advanced Chipset Boot Security O.N.E Save & Exit

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

PCISubsystem Settings

BIOS SETUP UTILITY

PCI Bus Driver Version V x.xx.xx

PCI Common Settings

PCI Express Device Settings

PCI Express Link Settings

WARNING: Enabling ASPM may cause some

PCI-E devices to fail

PCI ROM Priority [Legacy ROM]

PCI Latency Timer [32 PCI Bus Clocks]

VGA Palette Snoop [Disabled]

No Snoop [Enabled]

Maximum Payload [Auto]

Maximum Read Request [Auto]

ASPM Support [Disabled]

In case of multiple Opiton

ROMs (Legacy and EFI

Compatible), specifies what

PCI Option ROM to launch.

Advanced

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

TP67B+ UEFI BIOS Manual

PCIROM Priority

In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies

what PCI Option ROMto launch

Options: Legacy ROM (Default) / EFICompatible ROM

PCI LatencyTimer

Thisitem sets the value to be programmed intoPCI Latency TimerRegister.

Options: 32 PCI Bus Clocks (Default) / 64 PCIBus Clocks / 96 PCI Bus Clocks /

128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224

PCI Bus Clocks / 248 PCI Bus Clocks

VGA Palette Snoop

Thisitem enables or disables VGA Palette Registers Snooping.

Options: Disabled (Default) / Enabled

No Snoop

Thisitem enables or disables PCI Express DeviceNo Snoop option.

Options: Enabled (Default) / Disabled

Maximum Payload

This item sets Maximum Payload of PCI Express Device or allows System BIOS to

select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

Maximum Read Request

This item sets Maximum Read Request Size of PCI Express Device or allows

System BIOSto select the value.

Options: Disabled (Default) / Enabled

ASPM Support

This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –

BIOS auto configures; Disabled – Disables ASPM.

Options: Disabled (Default) / Auto / Force LO

TP67B+ UEFI BIOS Manual

ACPISettings/WakeUpEventcontrol

BIOS SETUP UTILITY

EuP Control [Disabled]

ACPI Sleep State [S1 (CPU Stop Clock)]

PME Wake up from S5 [Disabled]

Wake system with Fixed Time [Disabled]

Ring-In Wake up from S5 [Disabled]

PS2 Keyboard PowerOn [Disabled]

PS2 Mouse PowerOn [Disabled]

USB Device Wakeup from S3/S4 [Disabled]

Wake up date [EveryDay]

Wake up hour 0

Wake up minute 0

Wake up second 0

Stroke key [Wake Key]

Specific key

Advanced

When EuP Enabled,System meets

EuP requirement.

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

EuP Control

When EuP is enabled, the system will meet EuP requirement.

Options: Disabled (Default) / Enabled

ACPI SleepState

This item selects the highest ACPI sleep state the system will enter when the

SUSPEND button is pressed.

Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to

RAM)

PMEWake up fromS5

The item enables the system to wake from S5 using PME event.

Options: Disabled (Default) / Enabled

Wake systemwith Fixed Time

Thisitem enables or disables the system to wake on by alarm event. When this item

is enabled, thesystem will wakeon the hr::min::sec specified.

Options: Disabled (Default) / Enabled

TP67B+ UEFI BIOS Manual

Wake up date

You can choose which date the system will boot up.

Wake up hour / Wake up minute / Wake up second

You can choose the system boot up time, input hour, minute and second to specify.

Ring-In Wake up from S5

Thisitem enables the system towake from S5 usingRing-In event.

Options: Disabled (Default) / Enabled

PS2 Keyboard PowerOn

Thisitem allows you to control thekeyboard power on function.

Options: Disabled (Default) / Any Key / StrokeKey / Specific Key

Stroke KeysSelected

Thisitem will show only when Keyboard PowerOn is set “Stroke Key.”

Options: Wake Key (Default)/ Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 /

Ctrl +F4 / Ctrl+F5 / Ctrl+F6

Specific KeyEnter

This item will show only when Keyboard PowerOn is set “Specific Key.” Press

Enterto set Specific key.

PS2Mouse PowerOn

Thisitem allows you to control themouse power on function.

Options: Disabled (Default) / Enabled

USBDevice Wakeup from S3/S4

Thisitem allows you to enable or disabled the USB resumefrom S3/S4 function.

Options: Disabled (Default) / Enabled

TP67B+ UEFI BIOS Manual

CPU Configuration

BIOS SETUP UTILITY

CPU Configuration

EMT64

Processor Speed

Microcode Revision

Intel HT Technology

Processor Stepping

Processor Cores

Active Processor Cores [All]

Limit CPUID Maximum [Disabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Execute-Disable Bit [Enabled]

Intel Virtualization Technology[Disabled]

Power Technology [Energy Efficient]

Advanced

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

Number of cores to enable in

each processor package.

Active Processor Cores

Thisitem sets number of cores to enable in each processor package.

Options: All (Default) / 1 / 2 /3

Limit CPUID Maximum

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Execute-Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined

with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux

9.2, RedHat Enterprise3 Update3.).

Options: Enabled (Default) / Disabled

TP67B+ UEFI BIOS Manual

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches data and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hardware adjacent cache line prefetch mechanism that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cache latency by making the next cache line

immediately available ifthe processor requires it as well.

Options: Enabled (Default) / Disabled

Intel Virtualization Tech

Virtualization Technology can virtually separate your system resource into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Disabled (Default) / Enabled

Power Technology

Thisitem enables thepowermanagement features.

Options: Energy Effici ent (Default) / Disabled /Custom

CPU C3 Report

Thisitem enables/disables CPU C3 (ACPI C2) report to OS.

Options: Disabled (Default) / ACPIC-2 / ACPIC-3

CPU C6 Report

Thisitem enables/disables CPU C6 (ACPI C3) report to OS.

Options: Enabled (Default) / Disabled

Package C State Limit

Thisitem sets Package C State Limit.

Options: No Limit (Default) / C0 / C1 /C6 / C7

Autres manuels pour TP67B PLUS - BIOS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar G41-M7 Guide de l'utilisateur

Biostar

Biostar EIH11-SWA Manuel utilisateur

Biostar

Biostar VIOTECH 3100 PLUS - BIOS Guide de l'utilisateur

Biostar

Biostar GF8100 M2G PLUS - BIOS Guide de l'utilisateur

Biostar

Biostar U8598 Manuel utilisateur

Biostar

Biostar Hi-Fi A85S3 PLUS Manuel utilisateur

Biostar

Biostar A740GM2 Guide de l'utilisateur

Biostar

Biostar TA75M Guide de l'utilisateur

Biostar

Biostar H110MDE Manuel utilisateur

Biostar

Biostar NF325-A7 Manuel utilisateur

Biostar

Biostar Hi-Fi H81S2 Manuel utilisateur

Biostar

Biostar B760MX-E D4 Manuel utilisateur

Biostar

Biostar P4 TPT Manuel utilisateur

Biostar

Biostar B660GTN Manuel utilisateur

Biostar

Biostar TP55 - BIOS Manuel utilisateur

Biostar

Biostar A740G3L - BIOS Guide de l'utilisateur

Biostar

Biostar M7TDE Manuel utilisateur

Biostar

Biostar P4TDK Instructions d'utilisation et d'installation

Biostar

Biostar P4VMA-M Instructions d'utilisation et d'installation

Biostar

Biostar P43-A7 Guide de l'utilisateur

Biostar

Biostar A960G Guide de l'utilisateur

Biostar

Biostar A785G3 PLUS - BIOS 2 Manuel utilisateur

Biostar

Biostar M6VCG Manuel utilisateur

Biostar

Biostar Hi-Fi A88S2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
