Biostar P4 VTB Manuel utilisateur

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a

ClassB digital device, pursuant to Part15of the FCC Rules. These limits

are designedto provide reasonableprotectionagainst harmful interference

in a residential installation. This equipment generates, uses and can

radiateradio frequencyenergyand,ifnotinstalledandusedin accordance

with the instructions, may cause harmful interference to radio

communications. There isno guarantee thatinterference will notoccurina

particularinstallation.

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitnessfor any purpose. Since our products are under

continual improvement, we reserve the right to make changes without

notice.

The material in this manual is the intellectual property of the vendor.

Further the vendor reserves the right to revise this publication and to make

changes to its contents without obligation to notifyany party beforehand.

Duplication of thispublication, in part or in whole, is not allowed without

first obtaining the vendor’s approval in writing. Even thought we have

taken every carein the preparation of thisuser’smanual,no guarantee is

givenasto the correctnessof itscontents.

All the brand and product names are the property of their respective

owners.

Layout of P4VTB (only for version 1.x).............................3

Layout of P4VTB (only for version 7.x).............................4

English ............................................................................5

1. P4VTB Features......................................................................................5

2. Package contents...................................................................................6

3. How to setup Jumper..............................................................................7

4. CPUInstallation......................................................................................7

5. DDR DIMM Modules: DIMM1/ DIMM2..........................................................8

6. Jumpers, Headers, Connectors & Slots.....................................................9

Français.........................................................................17

CaractéristiquesdeP4VTB........................................................................17

WarpSpeeder.................................................................19

Introduction.............................................................................................19

System Requirement................................................................................19

Installation..............................................................................................20

Usage.....................................................................................................21

Trouble Shooting............................................................29

Dépannage.....................................................................31

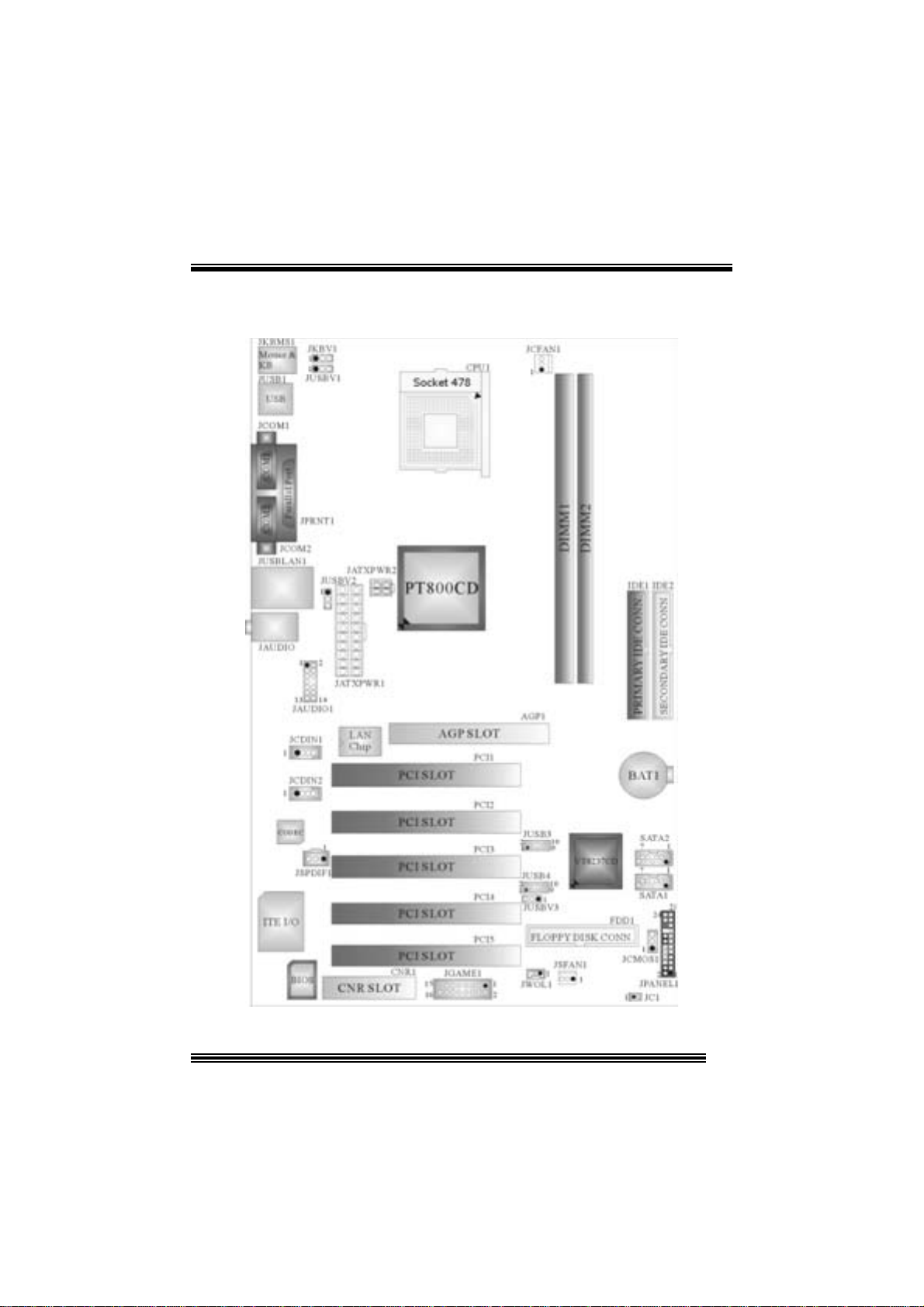

Layout ofP4VTB (only for version 1.x)

※NOTE: ●represents thefirstpin.

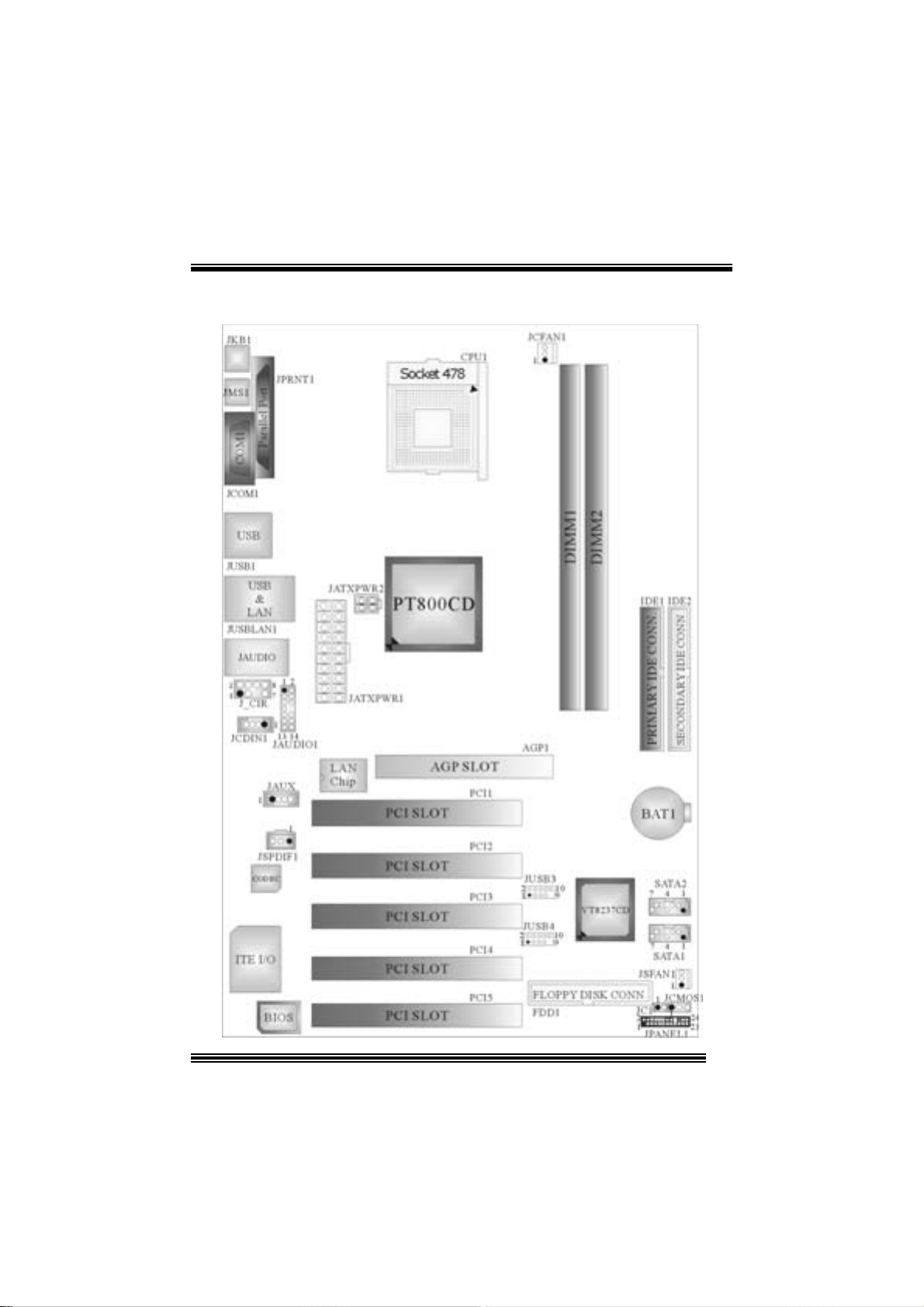

Layout ofP4VTB (only for version 7.x)

English

1. P4VTB Features

A. Har dware

CPU

Provides Socket 478.

Supports Intel® Pentium®4 Processor.

Supports Intel®

Pentium®4 Prescott CPU. (onlyforversions 1.3 and 7.2)

Front SideBus at 400/533/800 MHz.

Chipset

North Bridge: VIA PT800CD.

South Bridge: VIA VT8237CD.

Main Memory

Supports up to 2 DDR devices.

Supports 200/266/333/400 MHzDDR devices.

Maximum memory size of 2GB.

Super I/O

Chip: ITE IT8705F.

Low Pin Count Interface.

Provides the most commonly used legacy Super I/O functionality.

Env ironment Control initiatives

-H/W Monitor

-Fan Speed Controller

- ITE's "Smart Guardian" software utility.

Slots

Five 32-bit PCI bus master slots.

One AGP slot.

One CNR slot. (does not support on version 7.x)

On Board IDE

Supports four IDE disk drives.

Supports PIO Mode 4 and Ultra DMA 33/66/100/133 Bus Master Mode.

On Board AC’97 Sound Codec (only for version 1.x)

Chip: CMI9739A.

Compliantwith AC’97 specification.

AC’97 2.2interface.

Supports 6channels.

On Board AC’97 Sound Codec (only for version 7.x)

Chip: CMI9761A.

Compliantwith AC’97 specification.

AC’97 2.2interface.

Supports 6channels.

Supports stereo microphone.

On Board Peripherals

a.Rearside

2 serial ports. (1 serial port only support onversion 7.x)

1 parallel port. (SPP/EPP/ECP mode)

Audio ports in vertical position.

1 LAN port.

PS/2 mouse andPS/2keyboard.

4USB2.0ports.

b.FrontSide

1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

4 USB2.0 ports.

Dimensions

ATX FormFactor: 20.5 X 30.5cm. (WX L) (onlyforversion 1.x)

ATX FormFactor: 20.5 X 29.5cm. (WX L) (onlyforversion 7.x)

B. BIOS & Software

BIOS

Award legal Bios.

APM1.2.

ACPI.

USB Function.

Software

SupportsWarpspeederTM

, 9th TouchTM,FLASHER™and WinFlasherTM.

Offers thehighest performance forWindows 98 SE,Windows 2000, Windows Me,

Windows XP, SCOUNIX etc.

2. Package contents

HDD Cable X1

FDD CableX1

User’s Manual X1

USB Cable X1 (optional)

Rear I/O Panelfor ATX Case X1 (optional)

Fully SetupDriverCD X1

StudioFun! Application CD X1 (optional)

3. How to setupJumper

The illustration shows howjumpers are setup. When the Jumper cap is placed onpins, the

jumper is “close”. If no jumper cap is placed on the pins, the jumper is ”open”. The

illustrationshows a 3-pin jumper whose pin 1and 2 are“close” when jumper cap is placed

on these2 pins.

Jumperclose Jumperopen Pin1-2close

4. CPU Installation

Step1: Pull the lever sideways away from thesocket and then raise the lever up to a

90-degree angle.

Step2: Look for the white dot/cut edge. The white dot/cut edgeshould point towards the

lever pivot. The CPUwill fit only in thecorrect orientation.

Step3: Hold the CPU downfirmly, and then close the lever.

Step4: Put the CPU fan onthe CPU and buckle it. Connect the CPU fan power cable to

the JCFAN1. This completestheinstallation.

Step1 Step2 Step3 Step4

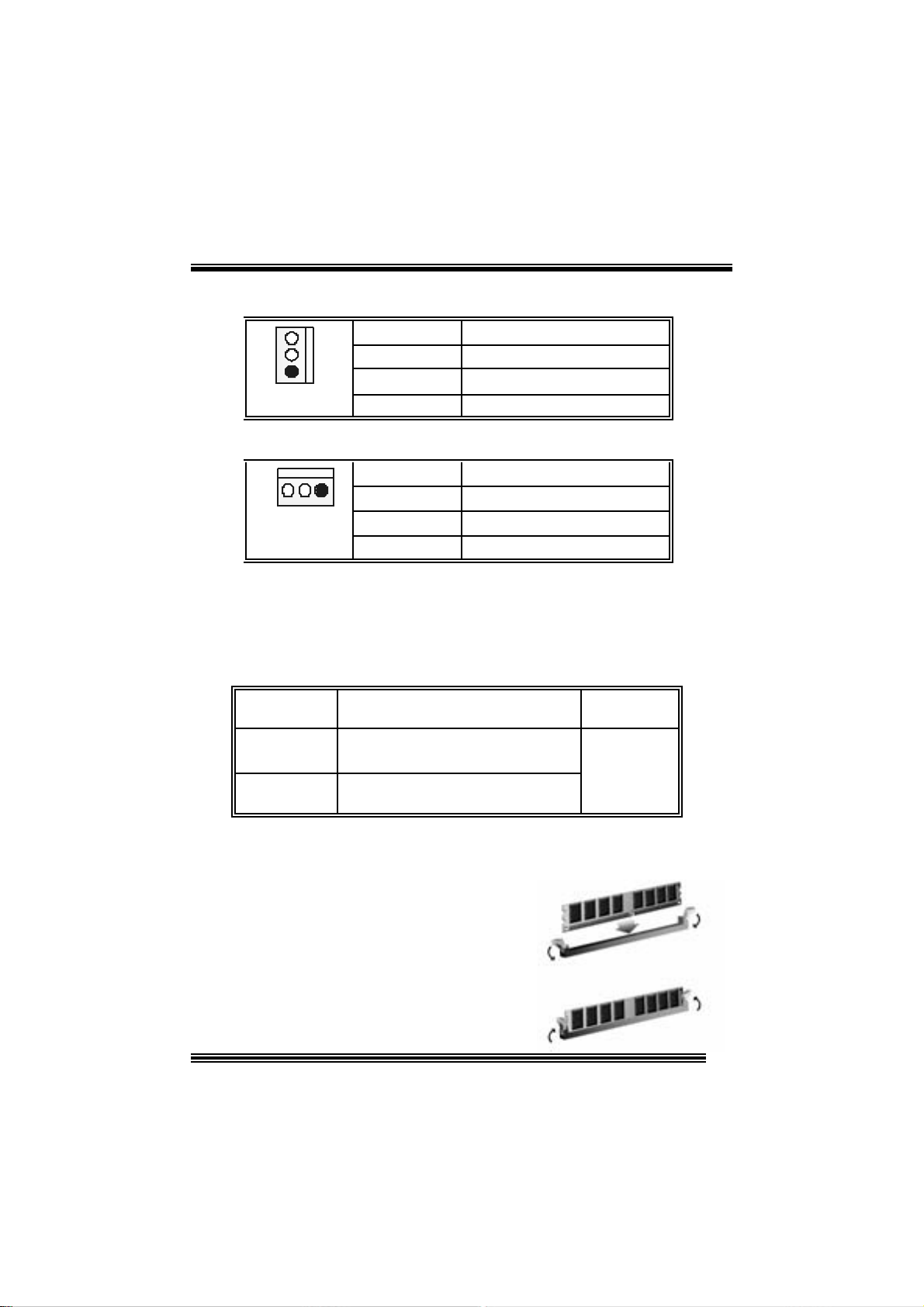

CPU Fan Headers: JCFAN1

PinNo. Assignment

1 Ground

2 +12V

JCFAN1 3 FAN rpm Rate Sense

System Fan Headers: JSFAN1

PinNo. Assignment

1 Ground

2 +12V

JSFAN1

3 FAN rpm Rate Sense

5. DDR DIMM Modules: DIMM1/ DIMM2

DRAM Access Time: 2.5VUnbufferedDDR 200/266/333/400 MHz Type required.

DRAMType:64MB/128MB/ 256MB/ 512MB/1GBDIMMModule(184 pin)

Total Memory Size with Unbuffered DIMMs

DIMM Socket

Location DDR Module Total Memor

Size(MB)

DIMM1 64MB/128MB/256MB/512MB/1GB

DIMM2 64MB/128MB/256MB/512MB/1GB

Maxis

2GB

***On ly for referen ce***

InstallingDDR Module

1. Unlock a DIMM slot by pressing the

retainingclips outward. Align aDIMM to the

slot in the way that the notch of the DIMM

matches the break of the slot.

2. Insert the DIMM firmly and vertically into

the slot until the retaining clip snap back in

place and the DIMM is properly seated.

6. Jumpers, Headers, Connectors &Slots

(1)FloppyDiskConnector: FDD1

The motherboard provides a standardfloppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

providedfloppy drive ribbon cables.

(2)Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality. It has two

HDD connectors IDE1 (primary) and IDE2 (secondary).

The IDE connectorscan connect a master and a slave drive, soyou canconnect

up to four hard disk drives. The first hard drive should always be connected to

IDE1.

(3) Peripheral Component Interconnect Slots: PCI 1-5

This motherboard isequipped with 5 standard PCI slots.PCI standsfor Peripheral

Component Interconnect, and it is a bus standard for expansion cards. This PCI

slot is designated as32 bits.

(4) Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard supports

video cardsfor PCIslots, but it is also equippedwith anAccelerated Graphics Port

(AGP). An AGP card will take advantage of AGP technology for improved video

efficiency and performance, especially with 3D graphics.

(5)Communication Network RiserSlot:CNR1 (does not

support on version 7.x)

The CNR specification is anopen Industry Standard Architecture, and it defines a

hardware scalable riser card interface,which supports modem only.

(6)Serial ATA Connector:SATA1/ SATA2

The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it

satisfies the SATA 1.0 spec and can transfer data with 1.5GHzspeed.

Pin Assignment Pin Assignment

1 Ground 2 TX+

3 TX- 4 Ground

5 RX- 6 RX+

SATA1/ SATA2 7 Ground

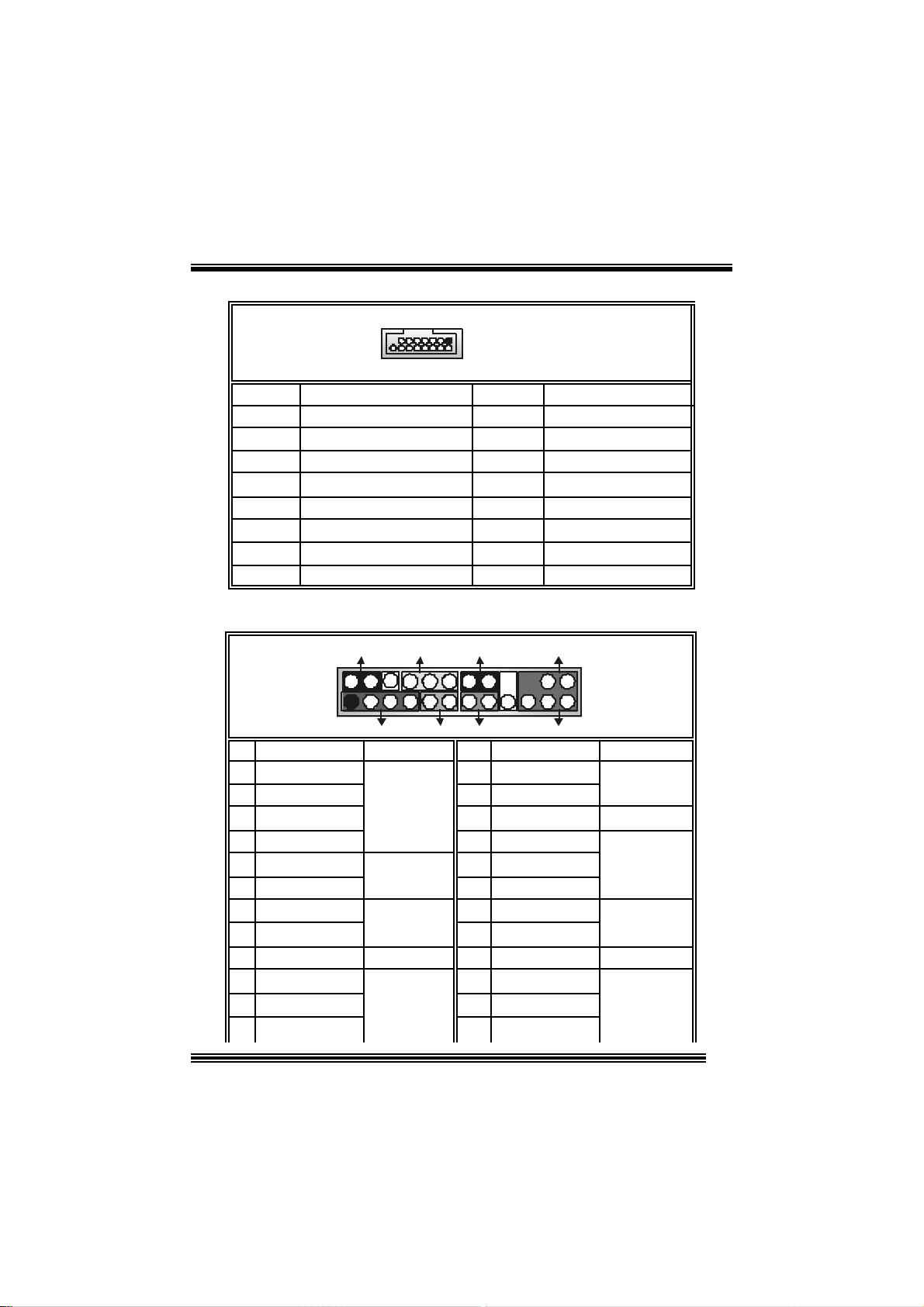

(7)Game Header: JGAME1 (does not support on version 7.x)

216

JGAME1

Pin Assignment Pin Assignment

1 +5V 2 +5V

3 Joystick B Button 1 4 Joystick AButton 1

5 Joystick B Coordinate X 6 Joystick A Coordinate

7 MIDI Output 8 Ground

9 Joystick B Coordinate Y 10 Ground

11 Joystick B Button 2 12 Joystick A CoordinateY

13 MIDI Input 14 Joystick AButton 2

15 NA 16 +5V

(8) FrontPanel Connector: JPANEL1

SPK

PWR_LED

HLED

SLP

RST

224

123

IRON/OFF

(+) (-)

(+) (-)(+)

Pin Assignment Function Pin Assignment Function

1 +5V 2 Sleep Control

3 NA 4 Ground Sleep

Button

5 NA 6 NA NA

7 Speaker

Speaker

Connector

8 Power LED (+)

9 HDD LED (+) 10 Power LED (+)

11 HDD LED (-)

HardDrive

LED 12 Power LED (-)

POWER

LED

13 Ground 14 Power Button

15 Reset Control Reset

Button 16 Ground Power-on

Button

17 NA 18 KEY

19 NA 20 KEY

21 +5V 22 Ground

23 IRTX

IrDA

Connector

24 IRRX

IrDA

Connector

JPANEL1
