Biostar N3150MP Guide de l'utilisateur

N3150MP/N3050MP Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee that

interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents

here and specially disclaims any implied warranties of merchantability or fitness

for any purpose. Further the vendor reserves the right to revise this publication

and to make changes to the contents here without obligation to notify any party

beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the brand

and product names are trademarks of their respective companies.

Dichiarazione di conformità

sintetica

Ai sensi dell’art. 2 comma 3 del D.M.

275 del 30/10/2002

Si dichiara che questo prodotto è

conforme alle normative vigenti e

soddisfa i requisiti essenziali richiesti

dalle direttive

2004/108/CE, 2006/95/CE e

1999/05/CE

quando ad esso applicabili

Short Declaration of conformity

We declare this product is complying

with the laws in force and meeting all

the essential requirements as specified

by the directives

2004/108/CE, 2006/95/CE and

1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction.......................................... 1

1.1 Before You Start ................................................................................1

1.2 Package Checklist ............................................................................1

1.3 Motherboard Specifications .............................................................2

1.4 Rear Panel Connectors....................................................................3

1.5 Central Processing Unit (CPU) .......................................................3

1.6 Motherboard Layout..........................................................................4

Chapter 2: Hardware Installation........................... 5

2.1 Connect Cooling Fans......................................................................5

2.2 Install System Memory.....................................................................5

2.3 Expansion Slots.................................................................................7

2.4 Jumper Setting ..................................................................................8

2.5 Headers & Connectors.....................................................................9

Chapter 3: UEFI BIOS & Software ........................ 13

3.1 UEFI BIOS Setup............................................................................13

3.2 BIOS Update....................................................................................13

3.3 Software............................................................................................17

Chapter 4: Useful Help ......................................... 20

4.1 Driver Installation.............................................................................20

4.2 AMI BIOS Beep Code.....................................................................21

4.3 Troubleshooting...............................................................................21

Appendix: SPEC In Other Languages.................... 23

Arabic.....................................................................................................................23

French ...................................................................................................................24

German .................................................................................................................25

Portuguese ...........................................................................................................26

Russian .................................................................................................................27

Spanish..................................................................................................................28

Thai........................................................................................................................29

N3150MP/N3050MP

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

Prepare a dry and stable working environment with sufficient

lighting.

Always disconnect the computer from power outlet before

operation.

Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded

appliance, or use grounded wrist strap to remove the static

charge.

Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the

edge, do not try to bend or flex the board.

Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may

damage the equipment.

Keep the computer from dangerous area, such as heat

source, humid air and water.

The operating temperatures of the computer should be 0 to

45 degrees Celsius.

To avoid injury, be careful of:

Sharp pins on headers and connectors

Rough edges and sharp corners on the chassis

Damage to wires that could cause a short circuit

1.2 Package Checklist

Serial ATA Cable x2

Rear I/O Panel for ATX Case x1

Installation Guide x1

Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was

sold. For more information about the standard package in your region, please contact your dealer

or sales representative.

Motherboard Manual

1.3 Motherboard Specifications

Specifications

CPU Support N3150MP: Intel® Celeron® N3150 processor

N3050MP: Intel® Celeron® N3050 processor

Memory

Supports Dual Channel DDR3L 1600(1.35V/1.5V)

2x DDR3L DIMM Memory Slot, Max. Supports up to 8 GB Memory

Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3L module

* Please refer to www.biostar.com.tw for Memory support list.

Storage 2x SATA 6Gb/s Connector

Supports AHCI Mode

LAN Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Audio Codec ALC662, 5.1 Channels, High Definition Audio

USB 6x USB 2.0 port (2 on rear I/Os and 4 via internal header)

4x USB 3.0 port (2 on rear I/Os and 2 via internal header)

Expansion Slots 1x PCIe 2.0 x16 Slot (x1 speed)

2x PCI x1 Slot

Rear I/Os

1x PS/2 Mouse

1x PS/2 Keyboard

1x VGA Port

1x Printer Port

1x Serial Port

1x LAN port

2x USB 3.0 Port

2x USB 2.0 Port

3x Audio Jack

Internal I/Os

2x SATA 6.0Gb/s Connector

1x 24-Pin Power Connector

2x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1x USB 3.0 Header (each header supports 2 USB 3.0 ports)

2x System Fan Connector

1x Front Panel Header

1x Front Audio Header

1x Clear CMOS Header

1x Serial Port Header

Form Factor microATX Form Factor, 226 mm x 195 mm

OS Support

Windows 7 (64bit)/ 8.1 (64bit)

Biostar reserves the right to add or remove support for any OS with or without

notice.

N3150MP/N3050MP

1.4 Rear Panel Connectors

Note 1: Since the audio chip supports High Definition Audio Specification, the function of

each audio jack can be defined by software. The input / output function of each audio jack

listed above represents the default setting. However, when connecting external microphone

to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.

Note 2: Maximum resolution:

VGA: 1920 x 1200 @60Hz

1.5 Central Processing Unit (CPU)

The motherboard is equipped with an onboard Intel procrssor and a CPU cooler.

Model Name: Onboard CPU:

N3150MP Intel® Celeron® N3150 processor (Quad Core, 2M Cache, up to 2.08 GHz)

N3050MP Intel® Celeron® N3050 processor (Dual Core, 2M Cache, up to 2.16 GHz)

Motherboard Manual

1.6 Motherboard Layout

Note: ■represents the 1st pin.

N3150MP/N3050MP

CHAPTER 2: HARDWARE INSTALLATION

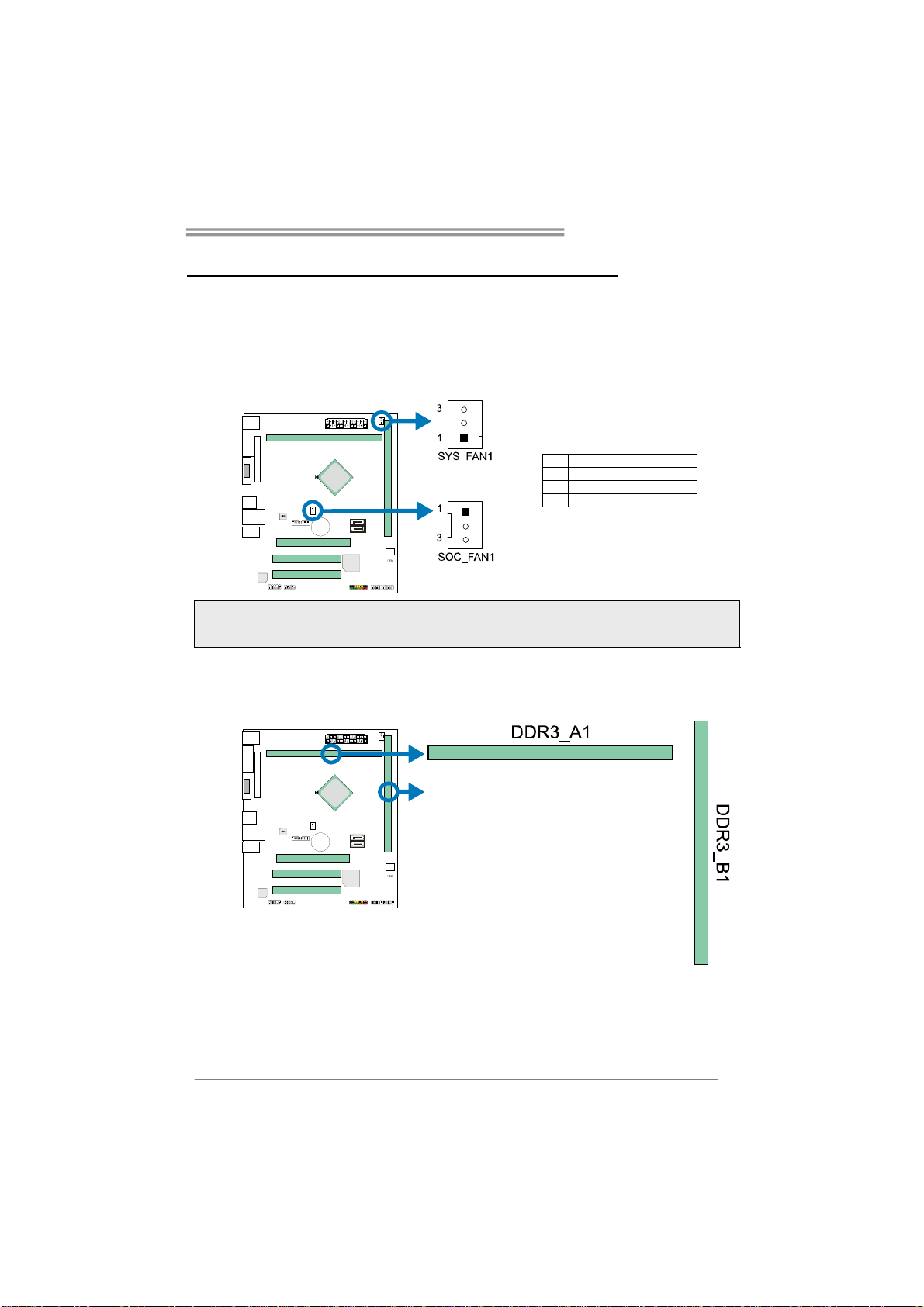

2.1 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and

connector may be different according to the fan manufacturer. Connect the fan

cable to the connector while matching the black wire to pin#1.

SYS_FAN1/SOC_FAN1: Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note: When connecting with wires onto connectors, please note that the red wire is the positive

and should be connected to pin#2, and the black wire is Ground and should be connected to

GND.

2.2 Install System Memory

A. DDR3L DIMM Module (1.35V/1.5V)

Motherboard Manual

Step 1: Align a DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

Step 2: Insert the DIMM firmly into the slot until the retaining chip snap back in place

and the DIMM is properly seated.

Note1: The DIMM must be installed to DIMMA1(DDR3_A1) slot first.

Note2: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

B. Memory Capacity

DIMM Socket Location DDR3L Module Total Memory Size

DIMMA1 512MB/1GB/2GB/4GB/8GB Max is 8GB

DIMMB1 512MB/1GB/2GB/4GB/8GB

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DIMMA1 DIMMB1

Disabled O X

Enabled O O

(O means memory installed, X means memory not installed.)

Note: When installing more than one memory module, we recommend to use the same brand and

capacity memory on this motherboard.

N3150MP/N3050MP

2.3 Expansion Slots

PEX16_1: PCI-Express x16 Slot (Gen2 x1 speed)

-PCI-Express 2.0 compliant.

-Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

PCI1/PCI2: Peripheral Component Interconnect Slots

-The PCI slots support cards used in PCs include: LAN cards, sound cards,

modems, TV tuner cards and other cards that comply PCI standard.

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the

expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the

computer.

3. Place a card in the expansion slot and press down on the card until it is

completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the

expansion card.

7. Install related driver for the expansion card.

Motherboard Manual

2.4 Jumper Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on

pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

JCMOS1: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data.

Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Open:

Normal Operation (default).

Pin 1-2 Close:

Clear CMOS data.

※Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 1-2 close”, you can use a metal object like a

screwdriver to touch the two pins.

3. Wait for five seconds.

4. After clearing the CMOS values, be sure the jumper is “Pin 1-2 open”.

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar Z270GT6 Manuel utilisateur

Biostar

Biostar TZ68A Guide de l'utilisateur

Biostar

Biostar M7VKA Manuel utilisateur

Biostar

Biostar G41D3B Guide de l'utilisateur

Biostar

Biostar BIPV10-IAT Guide de l'utilisateur

Biostar

Biostar GF7050V-M7 Guide de l'utilisateur

Biostar

Biostar B250GT3 Manuel utilisateur

Biostar

Biostar A68N-2100E Manuel utilisateur

Biostar

Biostar M7 VKL Manuel utilisateur

Biostar

Biostar GF7100P-M7 - BIOS SETUP Guide de l'utilisateur

Biostar

Biostar T5XE CFX-SLI Manuel

Biostar

Biostar Hi-Fi A85S2 Manuel utilisateur

Biostar

Biostar TForce4 U AM2 Manuel utilisateur

Biostar

Biostar TB150 PRO Manuel utilisateur

Biostar

Biostar H81A Guide de l'utilisateur

Biostar

Biostar GF8100M2TE Manuel utilisateur

Biostar

Biostar TA75M+ Guide de l'utilisateur

Biostar

Biostar GF7100P-M7 - BIOS SETUP Manuel utilisateur

Biostar

Biostar B660GTQ Manuel utilisateur

Biostar

Biostar Z790 VALKYRIE Manuel utilisateur

Biostar

Biostar PT880 Pro-A7 DDR2 Manuel utilisateur

Biostar

Biostar NF61S MICRO AM2 SE Guide de l'utilisateur

Biostar

Biostar H110MDS2 PRO D4 Manuel utilisateur

Biostar

Biostar P4M900-M7 FE Guide de l'utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
