Biostar 945GC-M7 TE Guide de l'utilisateur

945GC-M7 TE BIOS SETUP

BIOS Setup........................................................................................1

1 Main Menu.....................................................................................................3

2 Standard CMOS Features ..............................................................................6

3 Advanced BIOS Features............................................................................... 8

4 Advanced Chipset Features.......................................................................... 13

5 Integrated Peripherals ..................................................................................16

6 Power Management Setup ...........................................................................21

7 PnP/PCI Configurations ............................................................................... 26

8 PC Health Status ..........................................................................................28

9 Frequency/Voltage Control.......................................................................... 30

945GC-M7 TE

BIOS Setup

Introduction

This manual discussed Phoenix-Award™ Setup program built into the ROM BIOS. The

Setup program allows users to modify the basic system configuration. This special

informat ion is then stored in battery-backed RAM so that it retains the Setup information

when the power is turned off.

The Phoenix-Award BIOS™ installed in your computer system’s ROM (Read Only

Memory) is a custom version of an industry standard BIOS. This means that it supports

Intel P entium ® 4 processor input/output system. The BIOS provides critical low-level

support for standard devices such as disk drives and serial and parallel ports.

Adding important has customized the Phoenix-Award BIOS™, but nonstandard, features

such as virus and password protection as well as special support for detailed fine-tuning of

the chipset controlling the entire system.

The rest of this manual is intended to guide you through the process of configuring your

system using Setup.

Plug and Play Support

These PHOENIX-AWARD BIOS supports the Plug and Play Version 1.0A specification.

EPA Green PC Support

This PHOENIX-AWARD BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

These PHOENIX-AWARD BIOS supports Version 1.1&1.2 of the Advanced Power

Management (APM) specification. Power management features are implemented via the

System Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can be managed by this

PHOENIX-AWARD BIOS.

ACPI Support

Phoenix-Award ACPI BIOS support Version 1.0b of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and device

configuration capabilities as defined in the ACPI specification, developed by Microsoft,

Intel and Toshiba.

945GC-M7 TE

PCI B us S upport

This PHOENIX-AWARD BIOS also supports Version 2.3 of the Intel PCI (Peripheral

Component Interconnect) local bus specification.

DRAM Support

DDR2 SDRAM (Double Data Rate Two Synchronous DRAM) are supported.

Suppo rte d CP Us

This PHOENIX-AWARD BIOS supports the Intel CPU.

Us ing Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the

<PgUp> and <PgDn> keys to change entries, press <F1> for help and press <Esc> to quit.

The following table provides more detail about how to navigate in the Setup program by

using the keyboard.

Keystroke Function

Up arro w Move to p revious item

Down a rrow Move to next item

Left arrow Move to the item on the left (menu bar)

Right arrow Move to the item on the right (menu bar)

Move Enter Move to the item yo u desired

PgUp key Increase the numeric value or make changes

PgDn key Decrease the numeric value or make changes

+ Key Increase the numeric value or make changes

- Key Decrease the numeric value or make changes

Esc key Main Menu – Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu – Exit

Current page and return to Main Menu

F1 key Genera l he lp o n Setup na vigation ke ys

F5 key Load previous values from CMOS

F7 key Load the optimized defaults

F10 key Save all the CMOS changes and exit

945GC-M7 TE

1 Main Menu

Once you enter P hoenix-Award BIOS™ CMOS Setup Utility, the Main Menu w ill appear

on the screen. The Main Menu allows you to select from several setup functions. Use the

arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.

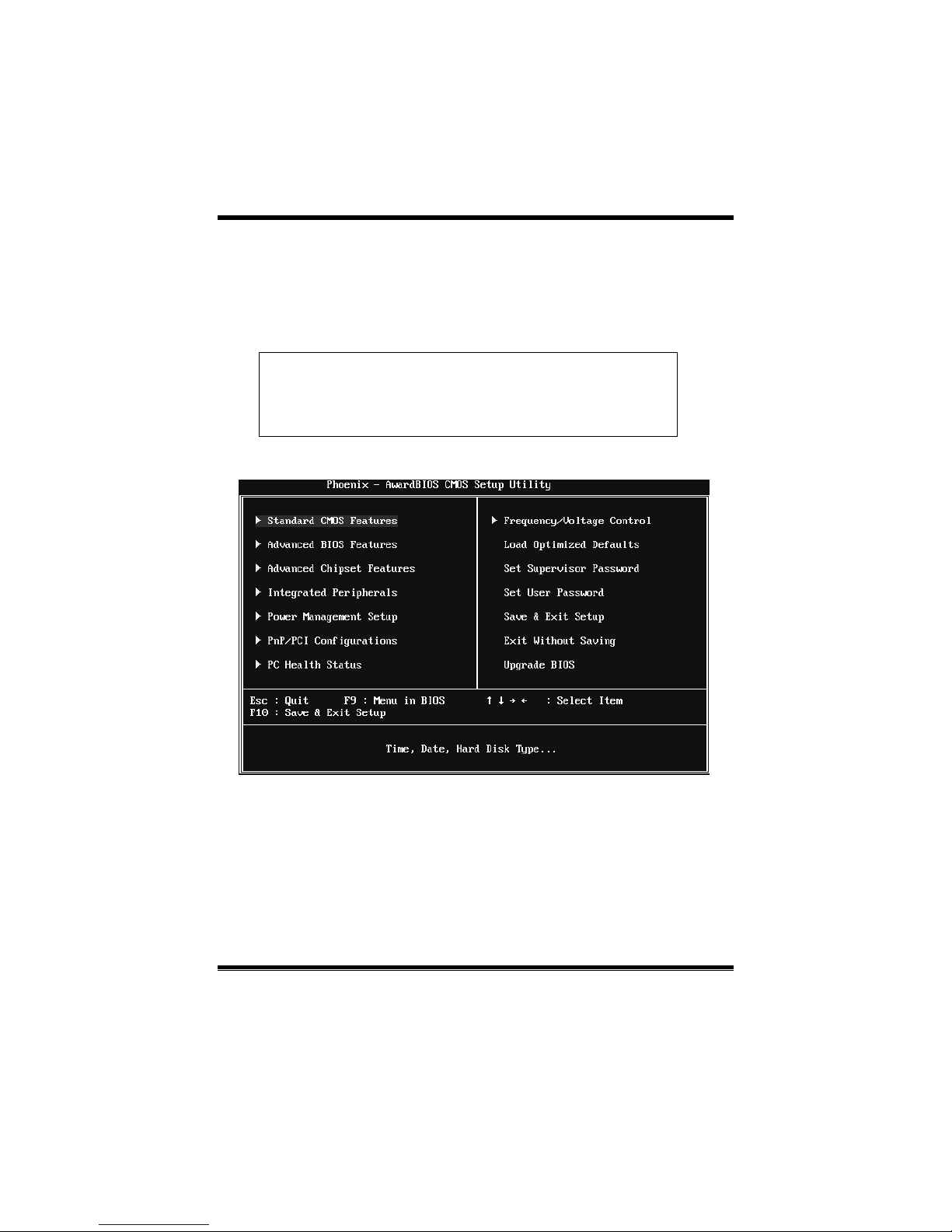

Figure 1. Main Menu

Standard CMOS Features

This submenu contains industry standard configurable options.

Adva nce d BIOS Features

This submenu allows you to configure enhanced features of the BIOS.

Advanced Chipset Features

This submenu allows you to configure special chipset features.

!! WARNING !!

The information about BIOS defaults on manual (Figu re

1,2,3,4,5,6,7,8,9) is just for reference, please refer to the BIOS

installed on board, for update information.

945GC-M7 TE

Integrated Peripherals

This submenu allows you to configure certain IDE hard drive options and Programmed

Input/ Output features.

Power Management Setup

This submenu allows you to configure the power management features.

PnP/PCI Configurations

This submenu allows you to configure certain “Plug and Play” and PCI options.

PC Health Status

This submenu allows you to monitor the hardware of your system.

Frequency/Voltage Control

This submenu allows you to change CPU Vcore Voltage and CPU/PCI clock. (However,

this function is strongly recommended not to use. Not properly change the voltage

and clock may cause the CPU or M/B damage!)

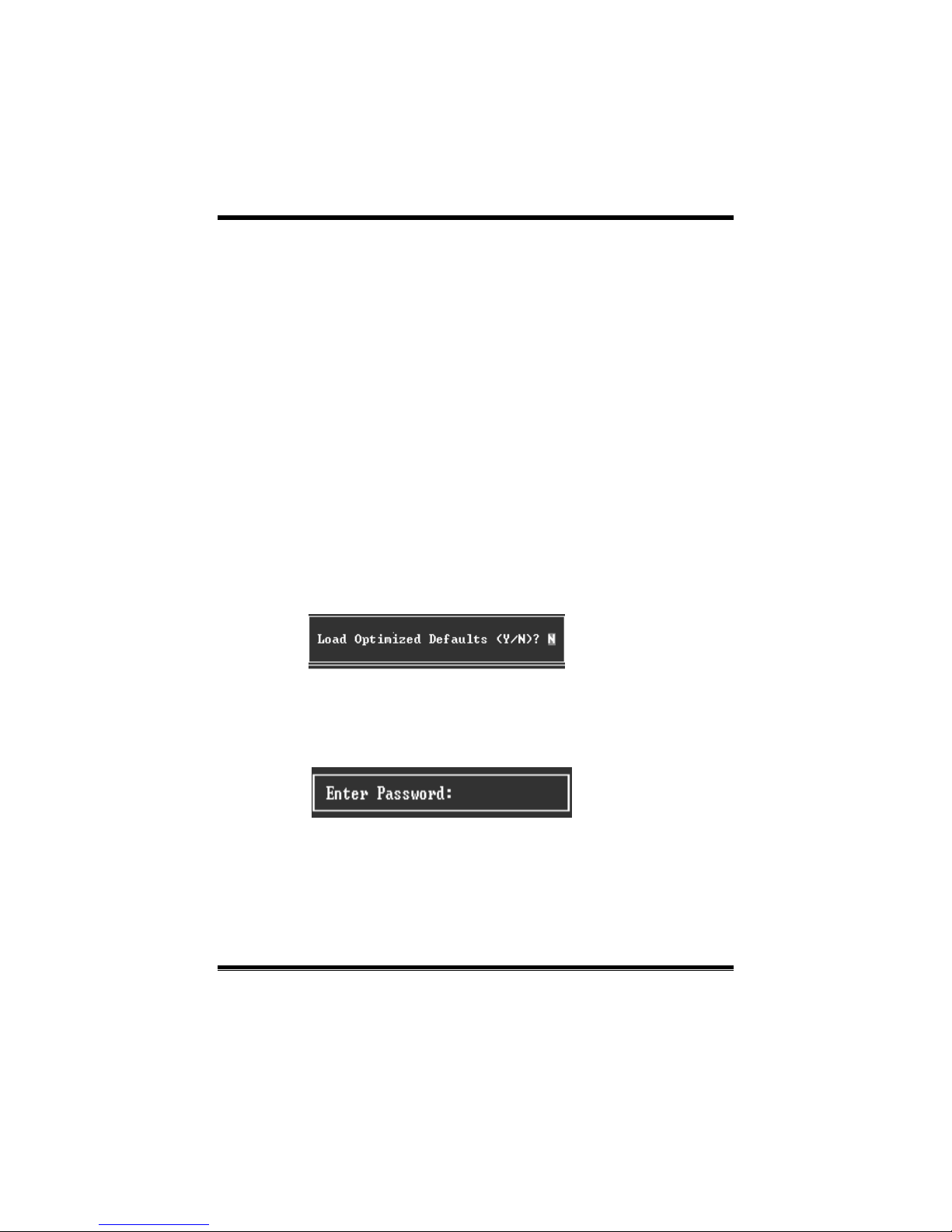

Lo ad Optimi ze d Defa ul ts

This selection allows you to reload the BIOS when the system is having problems

particularly with the boot sequence. These configurations are factory settings optimized

for this system. A confirmation message will be displayed before defaults are set.

Set Supervisor Password

Setting the supervisor password will prohibit everyone except the supervisor from making

changes using the CMOS Setup Utility.You will be prompted with to enter a password.

945GC-M7 TE

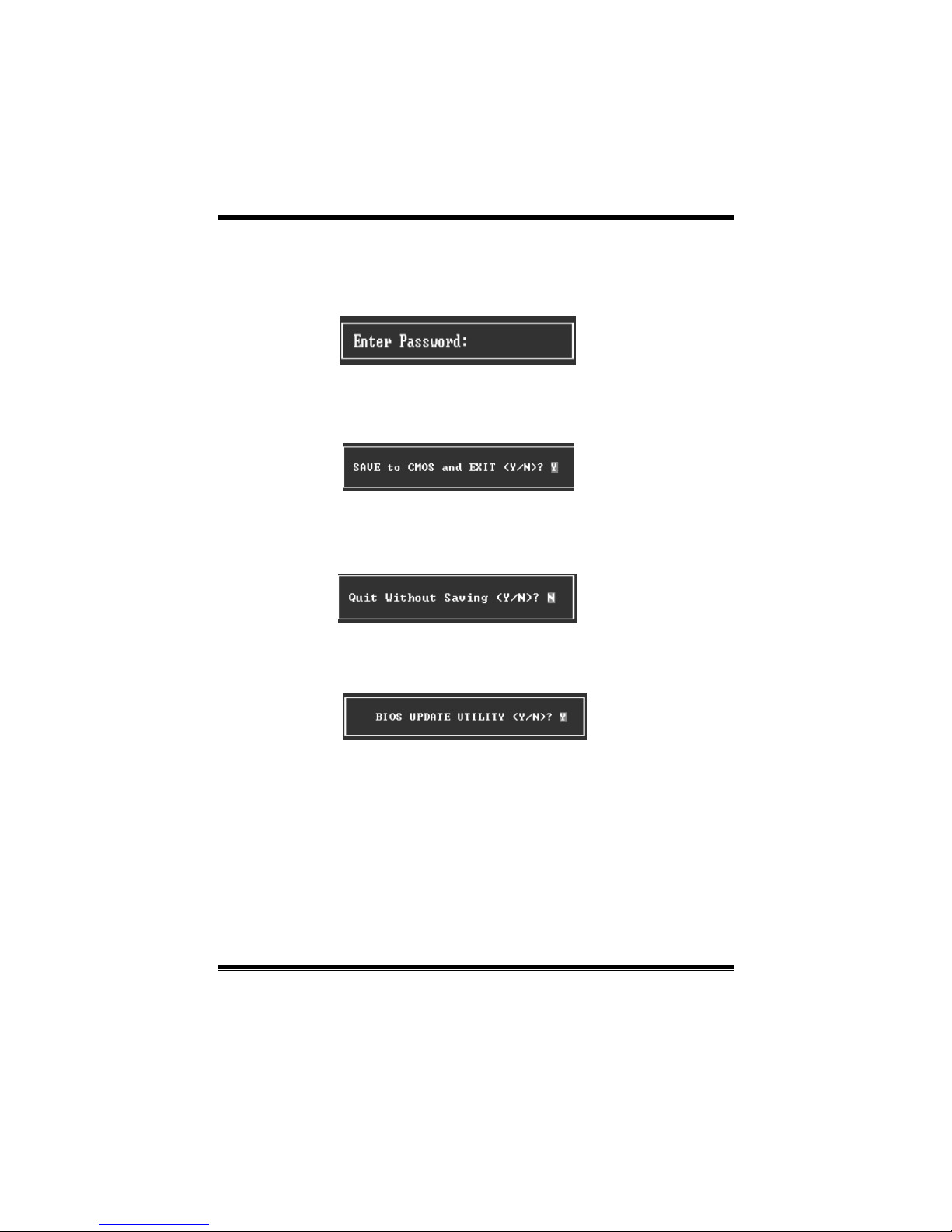

Set User Password

If the Supervisor Password is not set, then the User Password will function in the same way

as the Supervisor Password. If the Supervisor P assword is set and the User P assword is

set, the “User” will only be able to view configurations but will not be able to change them.

Save & Exit Setup

Save all configuration changes to CMOS (memory) and exit setup. Confirmation message

will be displayed before proceeding.

Exit Without Saving

Abandon all changes made during the current session and exit setup. confirmation

message will be displayed before proceeding.

Upgrade BIOS

This submenu allows you to upgrade bios.

945GC-M7 TE

2 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 categories. Each category

includes no, one or more than one setup items. Use the arrow keys to highlight the item and

then use the<PgUp> or <PgDn> keys to select the value you want in each item.

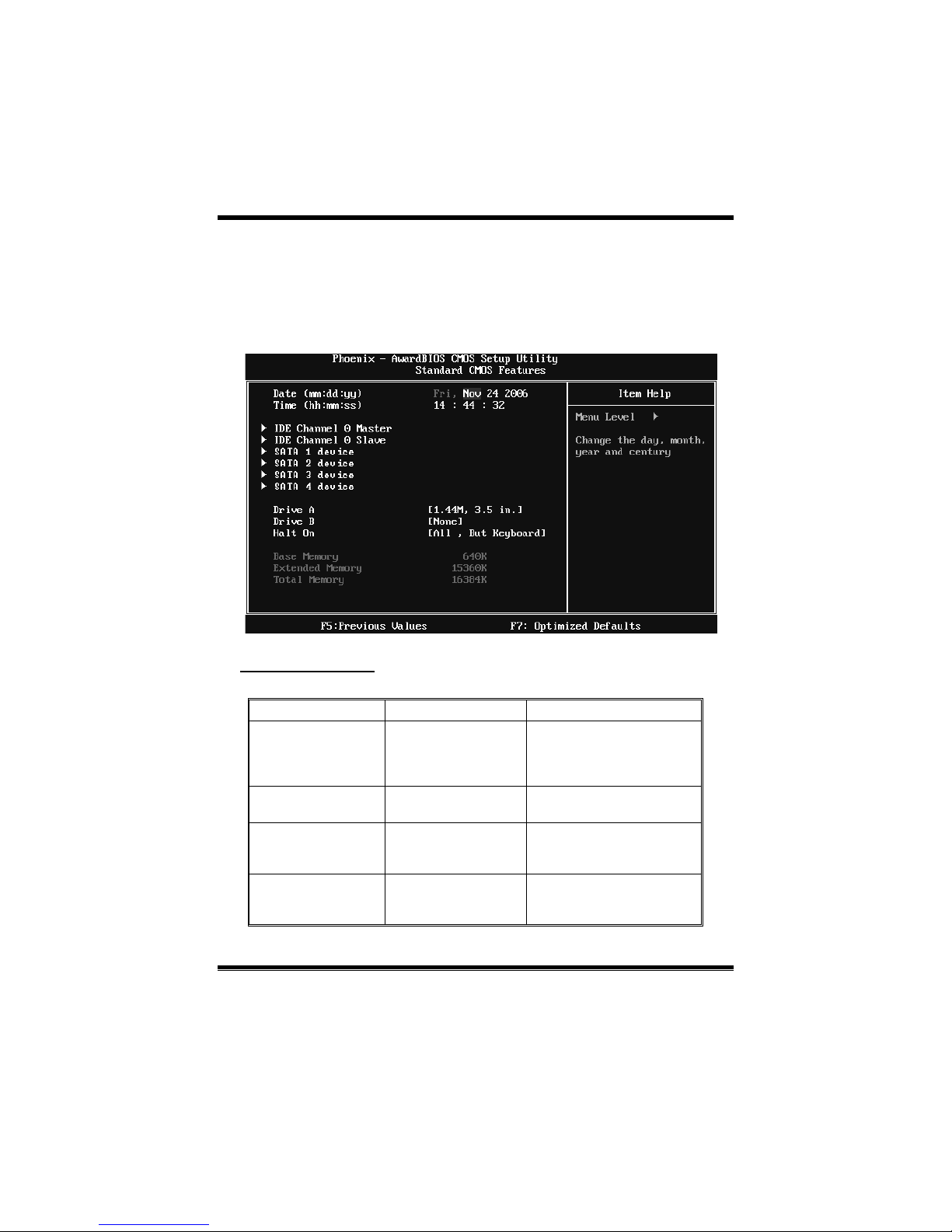

Figure 2. Standard CMOS Setup

Main Menu Selections

This table shows the selections that you can make on the Main Menu.

Item Options Description

Date mm : dd : yy Set the system date. Note

that the ‘Day’ automatically

changes when you set the

date.

Time hh : mm : ss Set the system internal

clock.

IDE Channel 0 Master Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options

IDE Channel 0 Slave Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options.

945GC-M7 TE

Item Options Description

SATA 1~4 device Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options.

Drive A

Drive B

360K, 5.25 in

1.2M, 5.25 in

720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

None

Select the type of flop py

disk drive installed in your

system.

Halt On All Errors

No Errors

All, but Keyboard

All, but Diskette

All, but Disk/ Key

Select the situation in which

you want the BIOS to stop

the POST process and

notify you.

Base Memory N/A Displays the amount of

conventional memory

detected during boot up.

Extended Memory N/A Displays the amount of

extended memory detected

during boot up.

Total Memory N/A Displays the total memory

available in the system.

945GC-M7 TE

3 Advanced BIOS Features

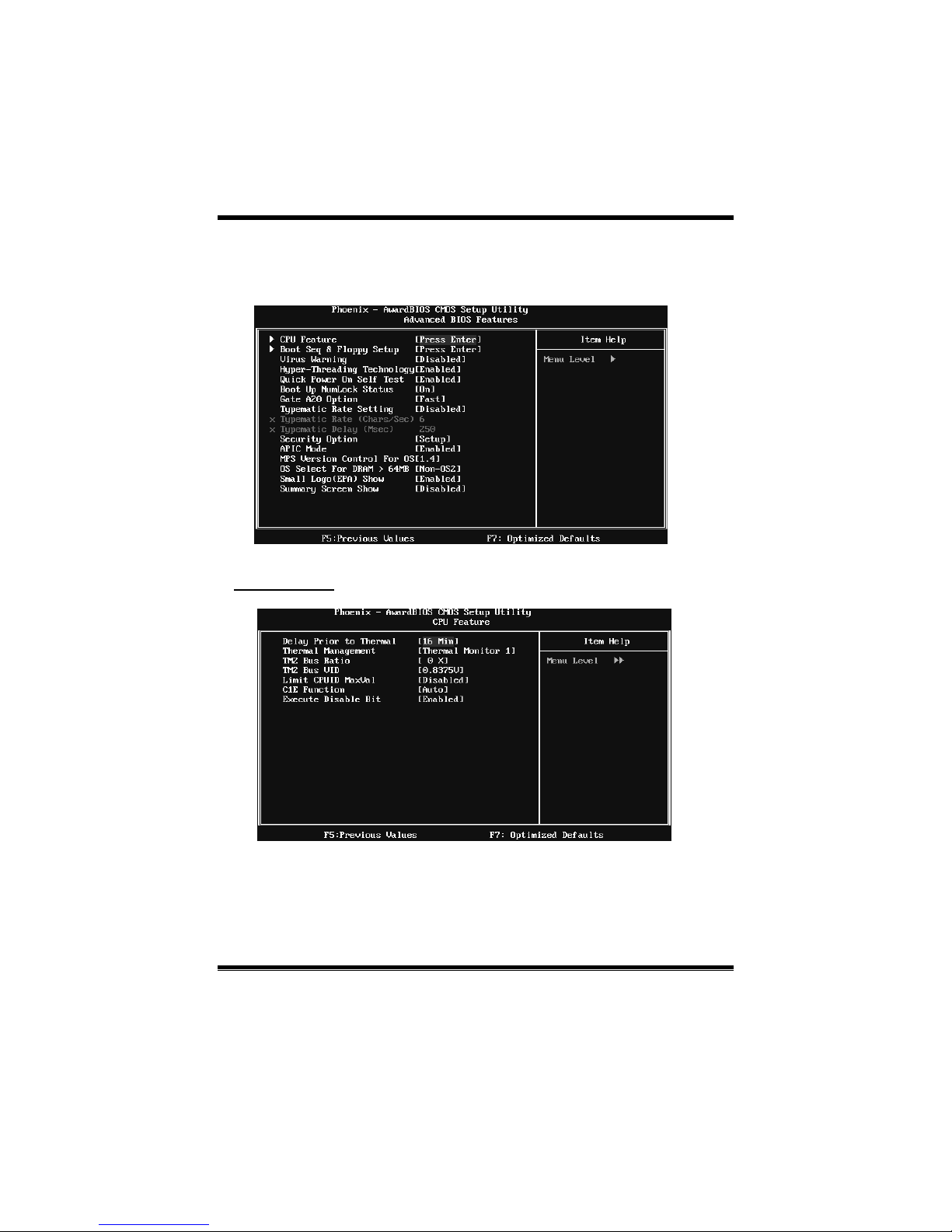

Fig ure 3. Advanced BIOS Setup

CP U F EATURE

Delay Prior to Thermal

Set this item to enable the CPU Thermal function to engage after the specified time.

The Choices: 4 Min, 8 Min, 16 Min (default), 32 Min.

945GC-M7 TE

The r mal Ma nage me nt

This option allows you to choose the thermal management method of your monitor.

The Choices: Thermal Monitor 1 (default), Thermal Monitor2.

Notes: The choices will be different according to your CPU features.

TM2 Bus Ratio

This option represents the frequency. (Bus ratio of the throttled performance state

that will be in itiated when the on-die sensor goes from not hot to hot.)

Min= 0 Max= 255 Key in a DEC number.

The Choices: 14X (default).

TM2 Bus VID

This option represents the voltage of the throttled performance state that will be

initiated when the on-die sensor goes from not hot to hot.

The Choices: 1.2000V (default), 0.8375V-1.6000V.

Limit CPUID MaxVal

Set limit CPUID MaxVal to 3, it should be “Disabled” for Win XP.

The Choices: Disabled (default), Enabled.

C1E Function

This item allows you to choose the C1E function.

The Choices: Auto (default), Disabled.

Execute Disable Bit

When disabled, forces the XD feature flag to always return 0.

The Choices: Enabled (default), Disabled.

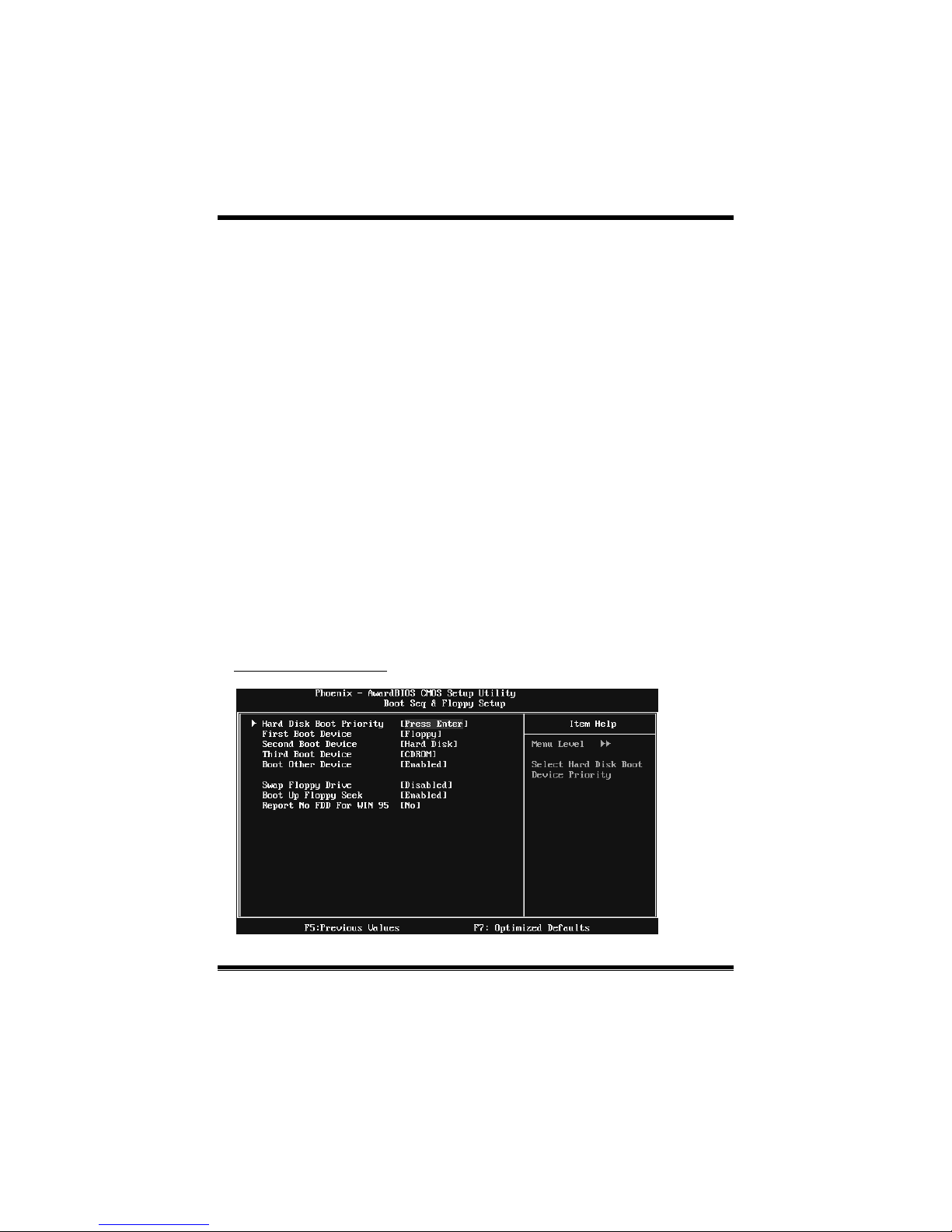

Boot Seq & Floppy Setup

This item allows you to setup Boot Seq & Floppy.
