Biostar B550M-SILVER Manuel utilisateur

FCC Informaon and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon

against harmful interference in a residenal installaon. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instrucons,

may cause harmful interference to radio communicaons. There is no guarantee that interference

will not occur in a parcular installaon.

The vendor makes no representaons or warranes with respect to the contents here and

specially disclaims any implied warranes of merchantability or tness for any purpose. Further

the vendor reserves the right to revise this publicaon and to make changes to the contents here

without obligaon to nofy any party beforehand.

Duplicaon of this publicaon, in part or in whole, is not allowed without rst obtaining the

vendor’s approval in wring.

The content of this user’s manual is subject to be changed without noce and we will not be

responsible for any mistakes found in this user’s manual. All the brand and product names are

trademarks of their respecve companies.

Dichiarazione di conformità sinteca

Ai sensi dell’art. 2 comma 3 del D.M. 275 del

30/10/2002

Si dichiara che questo prodoo è conforme

alle normave vigen e soddisfa i requisi

essenziali richies dalle direve

2004/108/CE, 2006/95/CE e 1999/05/CE

quando ad esso applicabili

Short Declaraon of conformity

We declare this product is complying with the

laws in force and meeng all the essenal

requirements as specied by the direcves

2004/108/CE, 2006/95/CE and 1999/05/CE

whenever these laws may be applied

2 | Table Of Contents

Table Of Contents

FCC Informaon and Copyright �� 1

Chapter 1: Introducon�� 3

1.1 Before You Start.................................................................................................................. 3

1.2 Package Checklist................................................................................................................ 3

1.3 Specicaons...................................................................................................................... 4

1.4 Rear Panel Connectors........................................................................................................ 6

1.5 Motherboard Layout .......................................................................................................... 7

Chapter 2: Hardware installaon�� 8

2.1 Install Central Processing Unit (CPU) .................................................................................. 8

2.2 Install a Heatsink................................................................................................................. 9

2.3 Connect Cooling Fans ....................................................................................................... 11

2.4 Install System Memory ..................................................................................................... 11

2.5 Expansion Slots ................................................................................................................. 13

2.6 Jumper & Switch Seng................................................................................................... 16

2.7 Headers & Connectors...................................................................................................... 17

2.8 LEDs .................................................................................................................................. 21

Chapter 3: UEFI BIOS & Soware�� 22

3.1 UEFI BIOS Setup................................................................................................................ 22

3.2 BIOS Update...................................................................................................................... 22

3.3 Soware............................................................................................................................ 26

Chapter 4: Useful help�� 36

4.1 Driver Installaon ............................................................................................................. 36

4.2 AMI BIOS Beep Code......................................................................................................... 37

4.3 AMI BIOS post code .......................................................................................................... 37

4.4 Troubleshoong................................................................................................................ 39

4.5 RAID Funcons.................................................................................................................. 40

APPENDIX I: Specicaons in Other Languages �� 42

Arabic...................................................................................................................................... 42

German................................................................................................................................... 44

Spanish ................................................................................................................................... 46

Thai ......................................................................................................................................... 48

Japan....................................................................................................................................... 50

Chapter 1: Introducon | 3

B550M-SILVER

Chapter 1: Introducon

1�1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make

sure you follow the instrucons below:

• Prepare a dry and stable working environment with sucient lighng.

• Always disconnect the computer from power outlet before operaon.

• Before you take the motherboard out from an-stac bag, ground yourself properly

by touching any safely grounded appliance, or use grounded wrist strap to remove the

stac charge.

• Avoid touching the components on motherboard or the rear side of the board unless

necessary. Hold the board on the edge, do not try to bend or ex the board.

• Do not leave any unfastened small parts inside the case aer installaon. Loose parts

will cause short circuits which may damage the equipment.

• Keep the computer from dangerous area, such as heat source, humid air and water.

• The operang temperatures of the computer should be 0 to 45 degrees Celsius.

• To avoid injury, be careful of:

Sharp pins on headers and connectors

Rough edges and sharp corners on the chassis

Damage to wires that could cause a short circuit

1.2 Package Checklist

• Serial ATA Cable x4

• Rear I/O Panel for ATX Case x1

• Quick Installaon Guide x1

• Fully Setup Driver DVD x1

Note

»  Thepackagecontentsmaybedierentduetothesalesregionormodelsinwhichitwassold.For

moreinformaonaboutthestandardpackageinyourregion,pleasecontactyourdealerorsales

representave.

4 | Chapter 1: Introducon

1�3 Specifications

Specicaons

CPU Support

Socket AM4 support AMD® Ryzen™ 3rd Gen (Masse/ Renoir) and Ryzen™ 4th Gen (Vermeer) processors

Support for future AMD Ryzen processors with BIOS update

* Please refer to www.biostar.com.tw for CPU support list.

Chipset AMD® B550

Memory

4th Gen AMD Ryzen Processors (Vermeer CPUs):

Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133/

1866

3rd Gen AMD Ryzen Processors (Masse CPUs):

Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133/

1866

3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):

Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/

3200/ 2933/ 2667/ 2400/ 2133/ 1866

4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory

Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

* Please refer to www.biostar.com.tw for Memory support list.

Storage

-- Total supports 2x M.2 socket and 6 x SATA III (6Gb/s) ports

6x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10

1x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):

Supports M.2 Type 2242/ 2260/ 2280 SSD module

Supports PCI-E 4.0 x4 (64Gb/s)/ 3.0 x4 (32Gb/s) - NVMe/ AHCI & SATA III (6.0Gb/s) SSD

1x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):

Supports M.2 Type 2242/ 2260/ 2280 SSD module

Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI & SATA III (6.0Gb/s) SSD

* M.2 (M Key) Socket (M2_PCIEG4_64G_SATA) : The bandwidth is depended on CPU. Supports PCI-E 4.0 x4

(64Gb/s) speed, which depends only on Ryzen 3rd Gen Masse and 4th Gen Vermeer CPUs.

* When M.2 (M2_PCIEG3_32G_SATA) slot is occupied by SATA mode, the SATA_5 connector will be disabled.

* When M.2 (M2_PCIEG3_32G_SATA) slot is occupied by PCI-E mode, the SATA_5/ SATA_6 connector will be

disabled.

LAN Realtek RTL8125B

10/ 100/ 1000/ 2500 Mb/s auto negoaon, Half / Full duplex capability

Audio Codec ALC1150

7.1 Channels, High Denion Audio, Hi-Fi (Front)

USB

1x USB 3.2 (Gen2) Type-C port (1 on rear I/O)

1x USB 3.2 (Gen2) port (1 on rear I/O)

6x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)

6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

Expansion Slots

1x PCIe 4.0/ 3.0 x16 Slot (PCIEG4X16):

Supports PCIe 3.0 x16/ 4.0 x16 mode with AMD® Ryzen™ processors.

Supports PCIe 3.0 x16 mode AMD® Ryzen™ with Radeon Vega Graphics processors.

1x PCIe 3.0 x16 Slot (PCIEG3X4): Supports x4 mode

1x PCIe 3.0 x1 Slot

* According to dierent CPUs will have dierent speeds.

* PCIe 4.0 speed only for AMD® Ryzen™ 3rd Gen Masse and 4th Gen Vermeer CPUs.

* When using PCIe x1 slot (PCIEG3X1), PCIe x16 slot (PCIEG3X4) will be adjusted to x1 mode.



»ConnuedonNextPage

Chapter 1: Introducon | 5

B550M-SILVER

Specicaons

Rear I/Os

2x WIFI Antenna Port

1x PS/2 Keyboard / Mouse

1x DVI-D Port

1x DP Port

1x HDMI Port

1x LAN port

1x USB 3.2 (Gen2) Type-C Port

1x USB 3.2 (Gen2) Port

4x USB 3.2 (Gen1) Port

2x USB 2.0 Port

3x Audio Jack

Internal I/Os

6x SATA III (6.0Gb/s) Connector

1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module

2x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1x 8-Pin Power Connector

1x 24-Pin Power Connector

1x CPU Fan Connector

1x CPU water cooling connector (CPU_OPT)

2x System Fan Connector

1x Front Panel Header

1x Front Audio Header

1x Internal Stereo Speaker Header

1x Clear CMOS Header

1x S/PDIF out Connector

1x COM Port Header

2x LED Header (5V)

1x LED Header (12V)

* M.2 (E key) Wi-Fi card is not provided

Form Factor uATX Form Factor, 244 mm x 244 mm

OS Support Windows 10(64bit)

Biostar reserves the right to add or remove support for any OS with or without noce.

6 | Chapter 1: Introducon

1.4 Rear Panel Connectors

Note



»DVI-D/DP/HDMIoutputrequireanAMDfamilyprocessorwithintedratedgraphics.



»SincetheaudiochipsupportsHighDenionAudioSpecicaon,thefunconofeachaudiojack

canbedenedbysoware.Theinput/outputfunconofeachaudiojacklistedaboverepresents

thedefaultseng.However,whenconnecngexternalmicrophonetotheaudioport,pleaseuse

theLineInandMicInaudiojack.



»Maximumresoluon

DVI-D:1920x1200@60Hz

DP:4096x2160@60Hz

HDMI:4096x2160@30Hz,compliantwithHDMI1.4



»WhenusingthefrontHDaudiojackandplugintheheadset,therearsoundwillbeautomacally

Disabled.

Chapter 1: Introducon | 7

B550M-SILVER

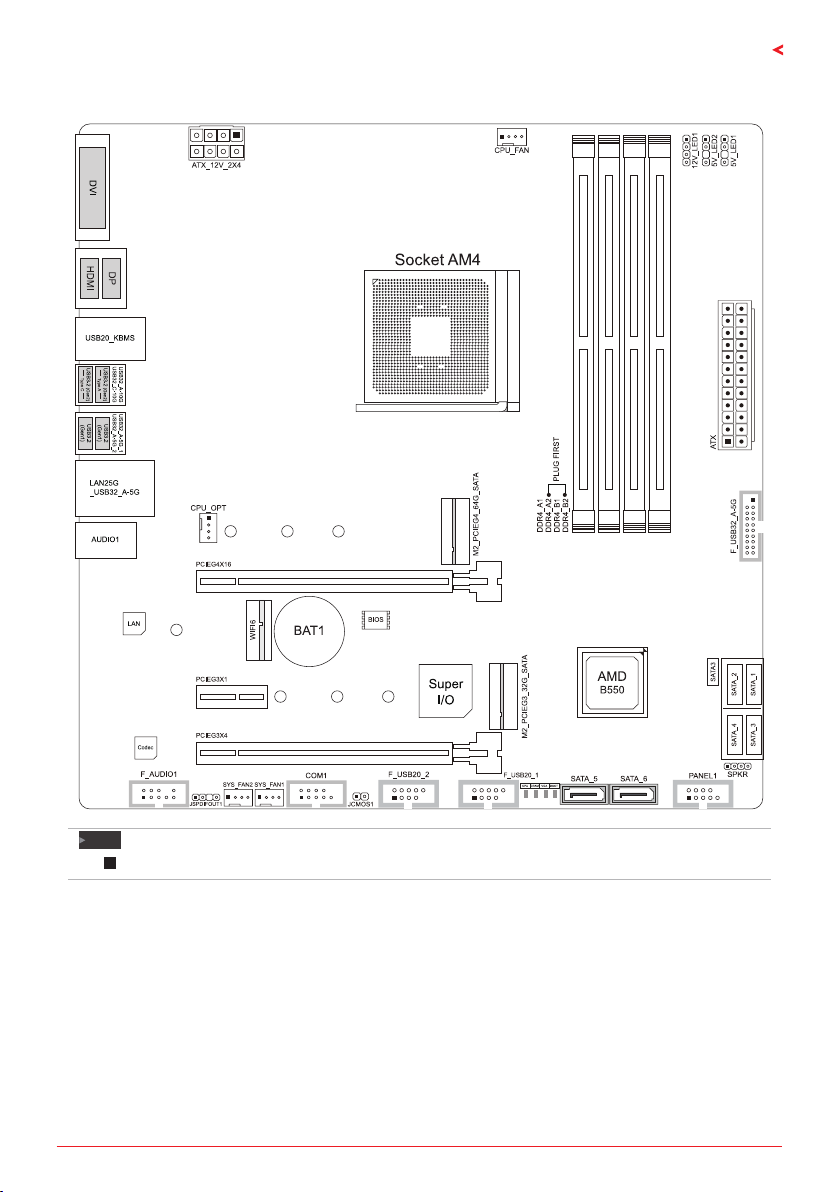

1.5 Motherboard Layout

Note

»  representsthe1stpin.

8 | Chapter 2: Hardware installaon

Chapter 2: Hardware installaon

2.1 Install Central Processing Unit (CPU)

Step 1: Locate the CPU socket on the motherboard

Step 2: Pull the socket locking out from the socket and then raise the lever up to a 90-degree

angel.

Step 3: Look for the white triangle on socket, and the gold triangle on CPU should point

towards this white triangle. The CPU will t only in the correct orientaon.

Chapter 2: Hardware installaon | 9

B550M-SILVER

Step 4: Hold the CPU down rmly, and then close the lever to locked the posion

Note

»  PleaseturnothePowerSupplybeforeremovetheCPUsocket.

2.2 Install a Heatsink

<TypeA>

Step 1: Place the heatsink and fan assembly onto the retenon frame. Match the heatsink clip

with the socket mounng-lug. Hook the spring clip to the mounng-lug.

Step 2: On the other side, push the retenon clip straight down to lock into the plasc lug on

the retenon frame, and then press down the locker unl it stops.

10 | Chapter 2: Hardware installaon

<TypeB>

Step 1: Remove the heatsink and fan assembly bracket on the motherboard and keep the

cooler backplane under the motherboard.

Step 2: Place the heatsink and fan assembly on top of the installed CPU and make sure that the

fan cable is closest to the CPU fan connector. Please refer diagram to the following screw into

the screw hole in the order shown.

Note



»DonotforgettoconnecttheCPUfanconnector.



»Forproperinstallaon,pleasekindlyrefertotheinstallaonmanualofyourCPUheatsink.

Table des matières

Langues :

Autres manuels Biostar Carte mère

Biostar

Biostar TH67 Guide de l'utilisateur

Biostar

Biostar M6TSM Manuel utilisateur

Biostar

Biostar M7MIA Manuel utilisateur

Biostar

Biostar U8569 Manuel utilisateur

Biostar

Biostar NF61S MICRO AM2 SE Guide de l'utilisateur

Biostar

Biostar TA970XE Manuel utilisateur

Biostar

Biostar TA880GB - BIOS Manuel utilisateur

Biostar

Biostar GF8200 M2G PLUS - BIOS Manuel utilisateur

Biostar

Biostar H81MDV5 Guide de l'utilisateur

Biostar

Biostar M7 VKS Manuel utilisateur

Biostar

Biostar TA970XE Guide de l'utilisateur

Biostar

Biostar G41-DVI Guide de l'utilisateur

Biostar

Biostar A740X-A2+ Guide de l'utilisateur

Biostar

Biostar P4M900-M4 Guide de l'utilisateur

Biostar

Biostar K8VHA PRO Manuel utilisateur

Biostar

Biostar P4 TDP Manuel utilisateur

Biostar

Biostar TZ77XE4 Manuel utilisateur

Biostar

Biostar Hi-Fi A85S2 Manuel utilisateur

Biostar

Biostar 945P-A7G Guide de l'utilisateur

Biostar

Biostar B250MHC Manuel utilisateur

Biostar

Biostar P4M900 Micro 775 Guide de l'utilisateur

Biostar

Biostar M7TDA Manuel utilisateur

Biostar

Biostar P4 SFA Manuel utilisateur

Biostar

Biostar A68N-5745 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
