BIOS User Guide
Z270GTN / B250GTN
2 | BIOS Update
BIOS Update
The BIOS can be updated using either of the following ulies:
• BIOSTAR BIOS-FLASHER: Using this ulity, the BIOS can be updated from a le on a hard disk,
a USB drive (a ash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Ulity: It enables automated updang while in the Windows
environment. Using this ulity, the BIOS can be updated from a le on a hard disk, a USB
drive (a ash drive or a USB hard drive), or a CD-ROM, or from the le locaon on the Web.
BIOSTAR BIOS-FLASHER
Note
» This ulity only allows storage device with FAT32/16 format and single paron.
» Shung down or reseng the system while updang the BIOS will lead to system boot failure.
Updang BIOS with BIOSTAR BIOS-FLASHER
1. Go to the website to download the latest BIOS le for the motherboard.
2. Then, copy and save the BIOS le into a USB ash (pen) drive.(Only supported FAT/FAT32
format)
3. Insert the USB pen drive that contains the BIOS le to the USB port.
4. Power on or reset the computer and then press <F12> during the POST process.
5. Aer entering the POST screen, the BIOS-
FLASHER ulity pops out. Choose <fs0> to search
for the BIOS le.
6. Select the proper BIOS le, and a message asking
if you are sure to ash the BIOS le. Click “Yes” to
start updang BIOS.
BIOS Update | 3
Z270GTN / B250GTN
7. A dialog pops out aer BIOS ash is completed,
asking you to restart the system. Press the <Y> key
to restart system.
8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the
computer. Then the BIOS Update is completed.
BIOS Update Ulity (through the Internet)
1. Installing BIOS Update Ulity from the DVD Driver.
2. Please make sure the system is connected to the internet before using this funcon.
3. Launch BIOS Update Ulity and click the
“Online Update” buon on the main screen.
4. An open dialog will show up to request your
agreement to start the BIOS update. Click “Yes”
to start the online update procedure.
5. If there is a new BIOS version, the ulity will
ask you to download it. Click “Yes” to proceed.
6. Aer the download is completed, you will be
asked to program (update) the BIOS or not. Click
“Yes” to proceed.
4 | BIOS Update
7. Aer the updang process is nished, you
will be asked you to reboot the system. Click
“OK” to reboot.
8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes> and <Reset> to restart the
computer. Then, the BIOS Update is completed.
BIOS Update Ulity (through a BIOS le)
1. Installing BIOS Update Ulity from the DVD Driver.
2. Download the proper BIOS from hp://www.biostar.com.tw/
3. Launch BIOS Update Ulity and click the “Update
BIOS” buon on the main screen.
4. A warning message will show up to request your
agreement to start the BIOS update. Click “OK” to
start the update procedure.
5. Choose the locaon for your BIOS le in the
system. Please select the proper BIOS le, and
then click on “Open”. It will take several minutes,
please be paent.
UEFI BIOS Setup | 5
Z270GTN / B250GTN
6. Aer the BIOS Update process is nished, click
on “OK” to reboot the system.
7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the
computer. Then, the BIOS Update is completed.
Backup BIOS
Click the Backup BIOS buon on the main screen
for the backup of BIOS, and select a proper
locaon for your backup BIOS le in the system,
and click “Save”.
6 | UEFI BIOS Setup
UEFI BIOS Setup
Introduction
The purpose of this manual is to describe the sengs in the AMI UEFI BIOS Setup program on this
motherboard. The Setup program allows users to modify the basic system conguraon and save
these sengs to NVRAM.
UEFI BIOS determines what a computer can do without accessing programs from a disk. This
system controls most of the input and output devices such as keyboard, mouse, serial ports and
disk drives. BIOS acvates at the rst stage of the boong process, loading and execung the
operang system. Some addional features, such as virus and password protecon or chipset
ne-tuning opons are also included in UEFI BIOS.
The rest of this manual will to guide you through the opons and sengs in UEFI BIOS Setup.
Plug and Play Support
This AMI UEFI BIOS supports the Plug and Play Version 1.0A specicaon.
EPA Green PC Support
This AMI UEFI BIOS supports Version 1.03 of the EPA Green PC specicaon.
ACPI Support
AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Conguraon and Power interface
specicaon (ACPI). It provides ASL code for power management and device conguraon
capabilies as dened in the ACPI specicaon, developed by Microso, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component Interconnect)
local bus specicaon.
Using Setup
When starng up the computer, press <Del> during the Power-On Self-Test (POST) to enter the
UEFI BIOS setup ulity.
In the UEFI BIOS setup ulity, you will see General Help descripon at the top right corner, and
this is providing a brief descripon of the selected item. Navigaon Keys for that parcular menu
are at the boom right corner, and you can use these keys to select item and change the sengs.
Note
»The default UEFI BIOS sengs apply for most condions to ensure opmum performance of the
motherboard. If the system becomes unstable aer changing any sengs, please load the default
sengs to ensure system’s compability and stability. Use Load Setup Default under the Exit Menu.
»For beer system performance, the UEFI BIOS rmware is being connuously updated. The UEFI BIOS
informaon described in this manual is for your reference only. The actual UEFI BIOS informaon and
sengs on board may be slightly dierent from this manual.
»The content of this manual is subject to be changed without noce. We will not be responsible for any
mistakes found in this user’s manual and any system damage that may be caused by wrong-sengs.
1. Main Menu | 7
Z270GTN / B250GTN
1� Main Menu

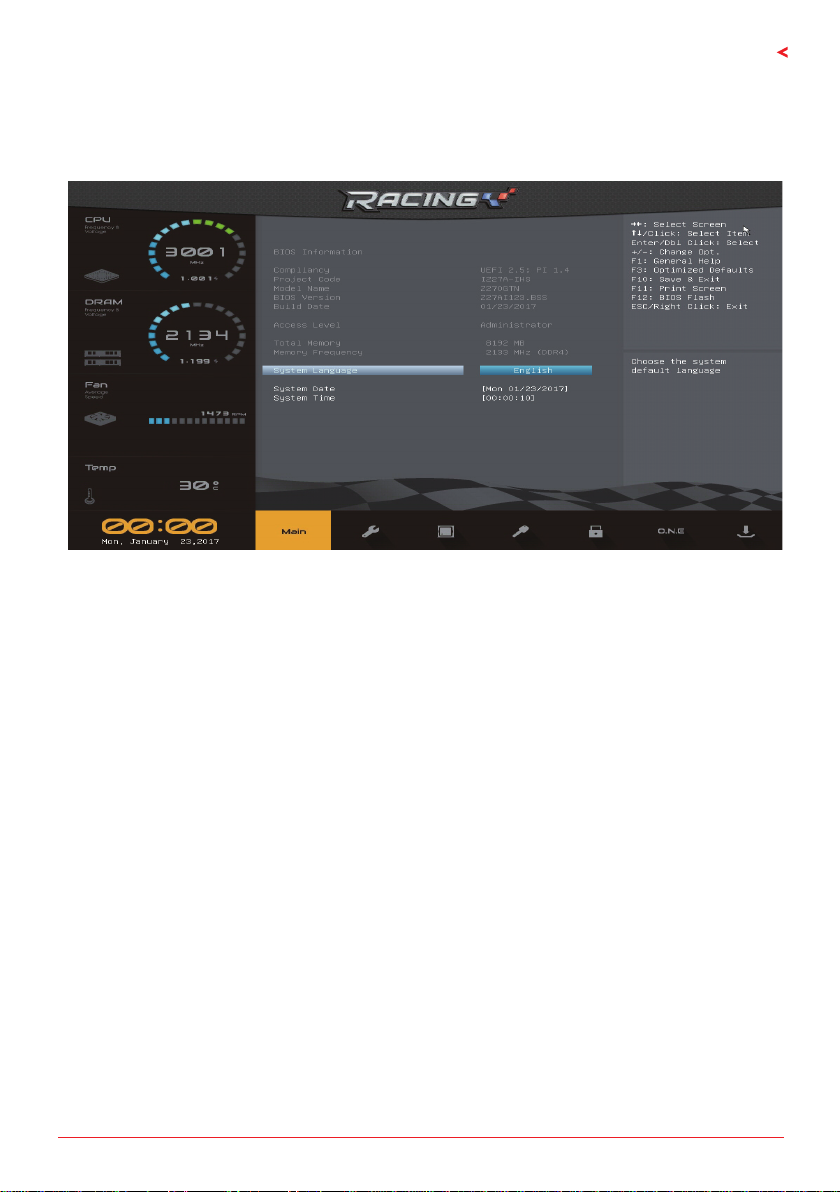

Once you enter AMI UEFI BIOS Setup Ulity, the Main Menu will appear on the screen providing
an overview of the basic system informaon.
BIOS Information
It shows system informaon including UEFI BIOS version, Project Code, Model Name, Build Date
and etc.
Total Memory
Shows system memory size, VGA shard memory will be excluded.
Memory Frequency
Shows the system memory frequency.
System Language
Choose the system default language.
System Date
Set the system date. Note that the ‘Day’ automacally changes when you set the date.
System Time
Set the system internal clock.
8 | 2. Advanced Menu
2� Advanced Menu
The Advanced Menu allows you to congure the sengs of CPU, Super I/O, and other system
devices.
Note
»Beware of that seng inappropriate values in items of this menu may cause system to malfuncon.
ACPI Settings
Enable ACPI Auto Conguraon
This item enables or disables BIOS ACPI auto conguraon funcon.
Opons: Disabled (Default) / Enabled
2. Advanced Menu | 9
Z270GTN / B250GTN
Enable Hibernaon
This item enables or disables system ability to hibernate (0S/S4 sleep state). This opon may not
be eecve with some 0Ss.
Opons: Enabled (Default) / Disabled
ACPI Sleep State
This item selects the highest ACPI sleep state the system will enter when the SUSPEND buon is
pressed.
Opons: S3 (Suspend to RAM) (Default) / Suspend Disabled
Lock Legacy Resources
The item enables or disables Lock of Legacy Resources.
Opons: Disabled (Default) / Enabled
S3 Video Repost
The item enables or disables S3 Video Repost. On enabling, Video Opon ROM will be dispatched
during S3 resume.
Opons: Disabled (Default) / Enabled
PS2 Keyboard PowerOn
This item allows you to control the keyboard power on funcon.
Opons: Disabled (Default) / Any Key / Stroke Key / Specic Key
Stroke Keys
This item will show only when Keyboard PowerOn is set “Stroke Key.”
Opons: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 / Ctrl +F4 / Ctrl+F5 / Ctrl+F6
Specic Key
This item will show only when Keyboard PowerOn is set “Specic Key.” Press Enter to set Specic
key.
PS2 Mouse PowerOn
This item allows you to control the mouse power on funcon.
Opons: Disabled (Default) / Enabled
Restore AC Power Loss
Specify what state to go to when power is re-applied aer a power failure.
Opons: Power O (Default) / Power On / Last State
PME Wake up from S5
The item enables the system to wake from S5 using PME event.
Opons: Disabled (Default) / Enabled
Wake system with Fixed Time
This item enables or disables the system to wake on alarm event. When this item is enabled, the
system will wake on the hr::min::sec specied.
Opons: Disabled (Default) / Enabled
Wake up date
You can choose which date the system will boot up.
Wake up hour / Wake up minute / Wake up second
You can choose the system boot up me, input hour, minute and second to specify.
10 | 2. Advanced Menu

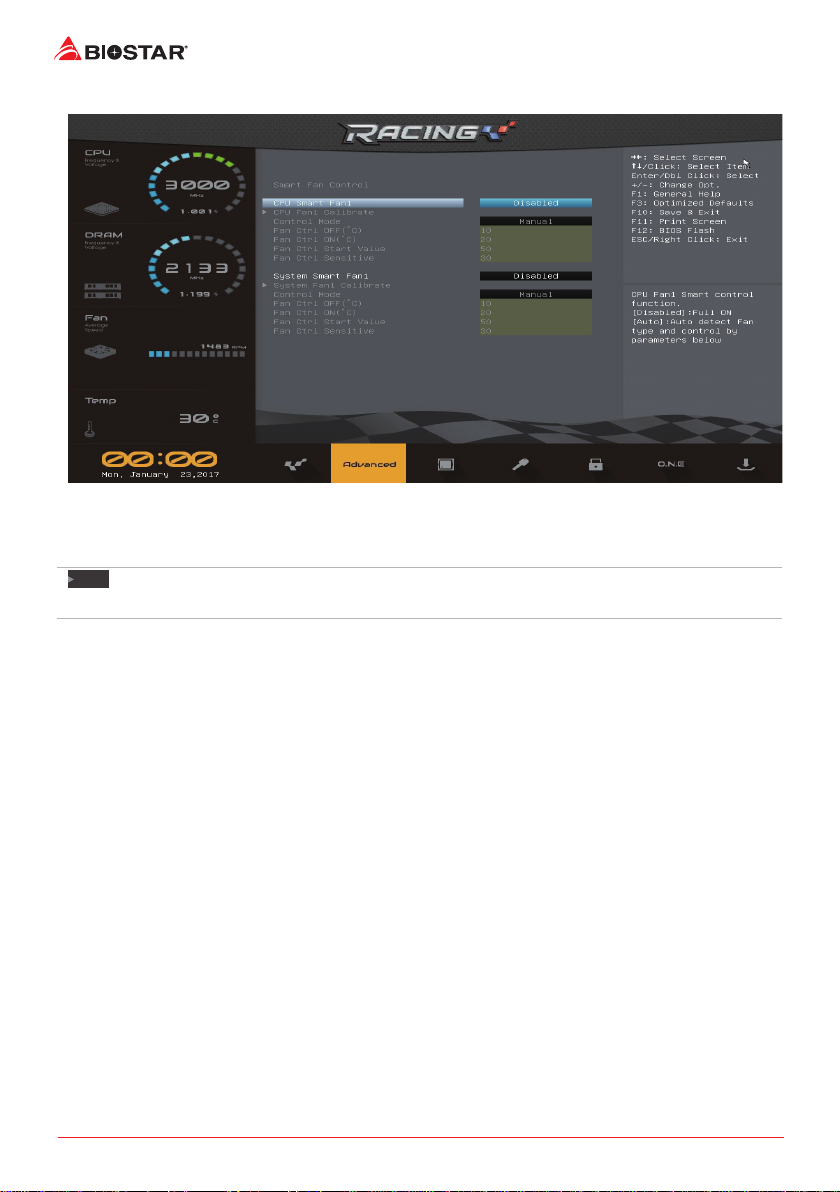

SMART FAN Control
CPU Smart FAN1 & System Smart FAN1
This item allows you to control the CPU/System Smart Fan funcon.
Opons: Disabled (Default) / Auto
Note
»The following items appear only when you set the Smart Fan funcon to [Auto].
CPU Fan Calibrate
Press [ENTER] to calibrate CPU Fan speed.
Control Mode
This item provides several operaon modes of the fan.
Opons: Manual / Quiet / Aggressive
Fan Ctrl OFF(°C)
When CPU temperature is lower than this value, the CPU fan will keep lowest RPM.
Opons: 10 (°C) (default)
Fan Ctrl On(°C)
When CPU temperature is higher than this value, the CPU fan controller will turn on.
Opons: 20 (°C) (Default)
Fan Ctrl Start Value
This item sets CPU FAN Start Speed Value.
Opons: 50 (Default)
Fan Ctrl Sensive
Themuneral is bigger, the Fan speed is higher.
Opons: 30 (Default)
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Biostar Carte mère
Biostar
Biostar NF520B A2G PLUS - BIOS SETUP Guide de l'utilisateur
Biostar
Biostar M7VIG Pro-D Manuel utilisateur
Biostar
Biostar M7VIB Manuel utilisateur
Biostar
Biostar TA770E3 Guide de l'utilisateur
Biostar
Biostar TPOWER I55 Guide de l'utilisateur
Biostar
Biostar I915P-A7 Manuel utilisateur
Biostar
Biostar P4SDQ Instructions d'utilisation et d'installation
Biostar
Biostar BVK2A Manuel utilisateur
Biostar
Biostar A690G-M2 Guide de l'utilisateur
Biostar
Biostar U8798 Pro Guide de l'utilisateur
Biostar
Biostar P4M900-M7 FE Guide de l'utilisateur
Biostar
Biostar Hi-Fi H77S Manuel utilisateur
Biostar
Biostar M7MKA Manuel utilisateur
Biostar
Biostar Hi-Fi A68U3P Guide de l'utilisateur
Biostar
Biostar A770E3 Guide de l'utilisateur
Biostar
Biostar P4VMA-M Instructions d'utilisation et d'installation
Biostar
Biostar VIOTECH 3100 PLUS - BIOS Guide de l'utilisateur
Biostar
Biostar TF560 A2 Guide de l'utilisateur
Biostar
Biostar GF7025-M2 TE - BIOS SETUP Guide de l'utilisateur
Biostar
Biostar TA75 Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
