Biostar P4TGT Manuel utilisateur

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a

particular installation.

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitness for any purpose. Further the vendor reserves the

right to revise this publication and to make changes to the contents here of

without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole is not allowed without

first obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

ENGLISH..................................................................................................... 1

P4TGT Features.................................................................................................................1

Package contents..............................................................................................................2

Layout of P4TGT................................................................................................................3

CPU Installation.................................................................................................................4

DDR DIMM Modules: DDR1-2 ...........................................................................................5

Jumpers, Headers, Connectors & Slots..........................................................................6

ESPAÑOL ................................................................................................. 12

Características del P4TGT..............................................................................................12

Contenido del Paquete.................................................................................................... 13

Disposición del P4TGT ...................................................................................................14

Instalación de la CPU......................................................................................................15

Módulos DDR DIMM: DDR1-2.........................................................................................16

Puentes, Cabezales, Conectores y Ranuras.................................................................17

WARPSPEEDER ...................................................................................... 23

Introduction......................................................................................................................23

System Requirement....................................................................................................... 24

Installation........................................................................................................................24

Usage................................................................................................................................26

TROUBLE SHOOTING............................................................................. 34

SOLUCIÓN DE PROBLEMAS ................................................................. 35

iip

iio

English

P4TGT Features

 Use Intel 845GE/ ICH4 Chipset, ITE IT8712.

 Contains on board I/O facilities, which include one serial port, one VGA port,

a parallel port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB

ports and a game port.

 Supports the Intel Pentium 4®(Socket 478) processor up to 2.8GHz.

 Supports Intel Pentium 4 processor with Hyper-Threading.

 Supports Ultra 100/66/33, DMA and PIO modes.

 Supports up to 2 DDR266/333 MHz devices, running at 400/533 MHz Front

Side Bus frequency.

 Supports a maximun memory size up to 2GB.

 Supports five 32-bit PCI Bus slots, one AGP Slot, and one CNR Slot (Type

A only) .

(If the function CODEC is onboard, then the CNR slot only support

slave card. But if the H/W Audio is onboard, then the CNR slot

support only primary card . )

 Supports USB1.1 and USB2.0.

 Complies with PC ATX form factor specifications.

 Supports popular operating systems such as Windows 98, Windows NT,

Windows 2000, Windows ME, Windows XP, LINUX and SCO UNIX.

 DIMM Power Selection by BIOS setup to adjust DDR DIMM voltage. (If you

meet the DDR DIMM compatible program, try to adjust the DDR Voltage to

fix the compatible program.)

 Intel®AC’97 2.2 compatible.

 High S/N ratio meets PC 99 requirements.

 6CH Audio Out, applicable for leading motherboard chipsets.

iip

iio

 Support SPDIF-Out.

 Supports Hardware Audio 6CH Audio (Optional).

 Line-in phone-jack share with rear out .

 Mic-in phone-jack share with Bass and Center.

Package contents

 HDD Cable X 1

 FDD Cable X 1

 Fully Setup Driver CD X 1

 USB Cable X 2 (Optional)

iip

iio

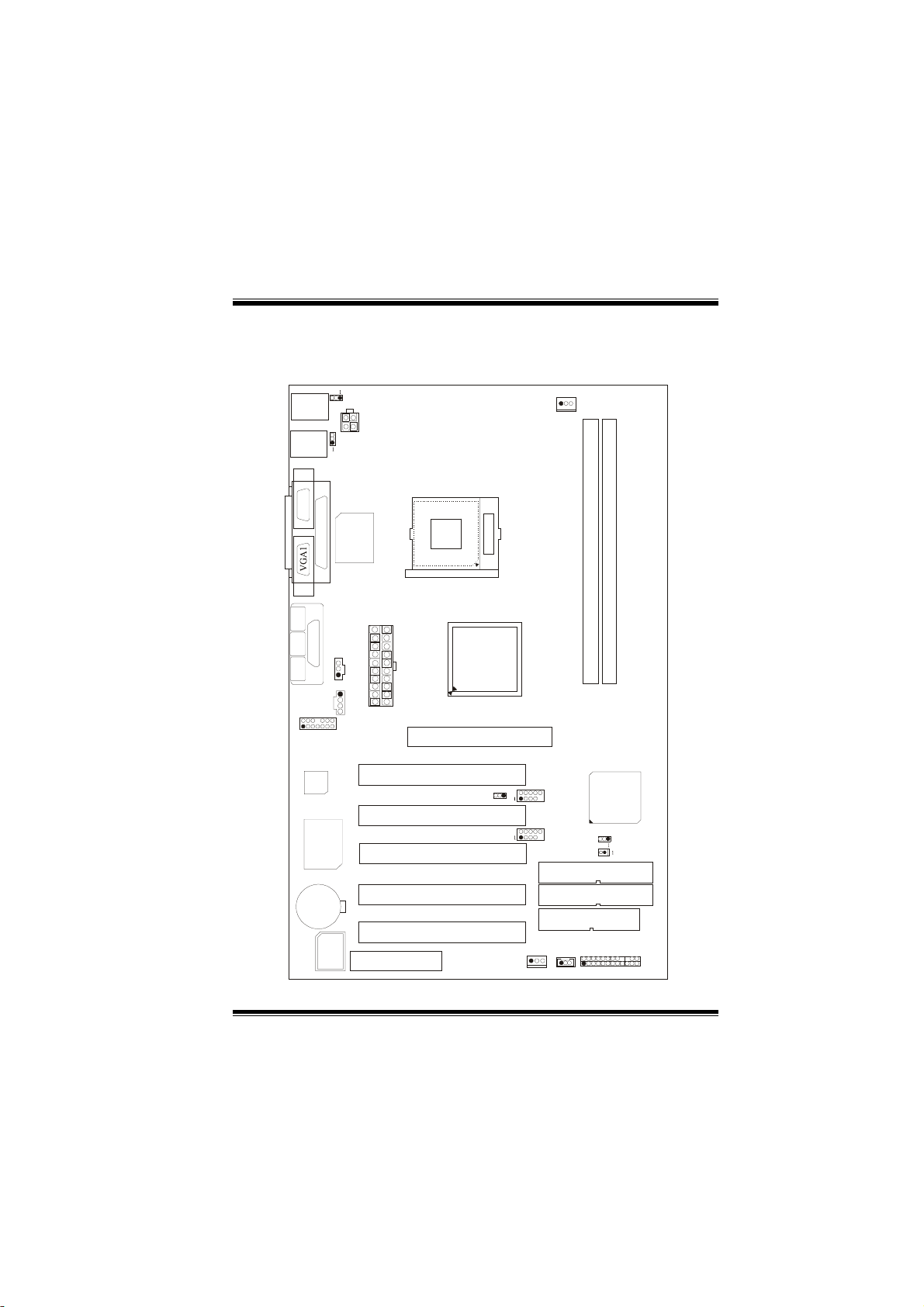

Layout of P4TGT

DDR 1

DDR 2

INTEL 845GE

Socket 478

K/B

Mouse

JKBMS1

JUSB1

JPRNT1

JCOM1

JVGA1

COM1

Parallel Port

PCI3

CNR1

BAT1

JATXPWR1

JCFAN1

JUSB3

AGP1

JUSBV1

JCDIN1

JGAME1

GAME Port

SP-OUT

LINE-IN

MIC-IN

JATXPWR2

PCI1

PCI2

PCI4

Codec

(optional)

H/W

AUDIO

Chip

(optional)

I/O

JKBV1

IDE1

JCMOS1

INTEL ICH4

PRIMARY IDE CONN.

JSFAN1

PCI5

1JPANEL1

FDD1

JWOL1

223

SECONDARY IDE CONN.

FLOPPY DISK CONN.

IDE2

JUSB2

BIOS

JUSBV2_3

JAUDIO1

213

JSPDIF_OUT

JCL1

iip

iio

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

CPU

JCFAN1 JSFAN1

Ground12V

Sense

Ground12V

Sense

iip

iio

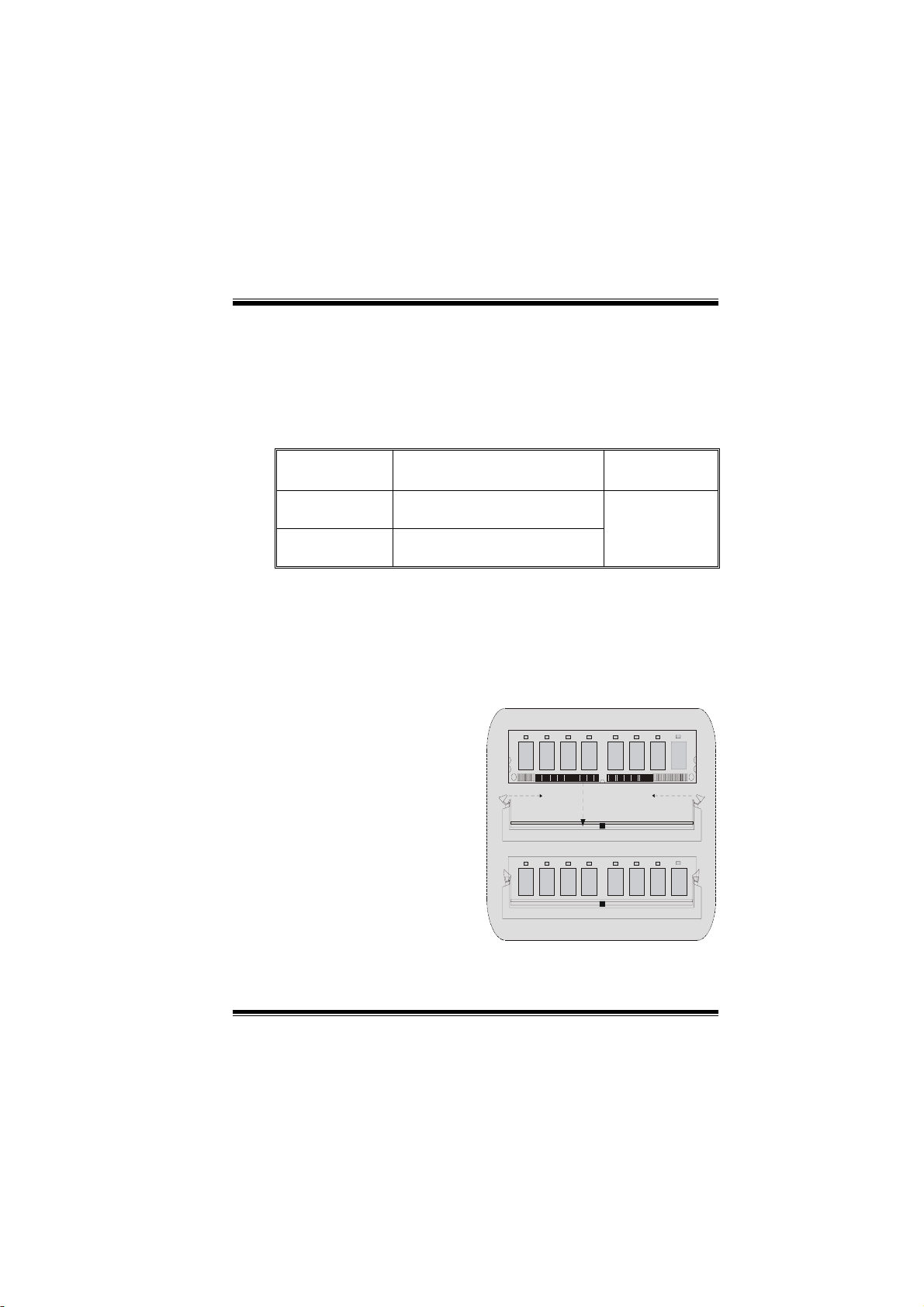

DDR DIMM Modules: DDR1-2

Supports DDR200/266/333 unregistered 184-pin non-ECC DDR

SDRAM DIMMs. Does not support double-size x16 DDR DIMMs.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB

DDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

* The list shown above for DRAM configuration is only for reference.

 If use FSB 400MHz CPU, the memory run only at DDR200/266.

 If use FSB 533MHz CPU, the memory run only at DDR266/333.

How to install a DIMM Module

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

iip

iio

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports audio,

network and modem only (slave card only) .

(If the function CODEC is onboard, then the CNR slot only support

slave card. But if the H/W Audio is onboard, then the CNR slot

support only primary card . )

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard

supports video cards for PCI slots, but it is also equipped with an

Accelerated Graphics Port (AGP/ only 1.5V and 4X AGP card can be

supported). An AGP card will take advantage of AGP technology for

improved video efficiency and performance, especially with 3D graphics.

Peripheral Component Interconnect Slots: PCI1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards, which has, supplanted the older ISA bus standard in

most ports. This PCI slot is designated as 32 bits.

iip

iio

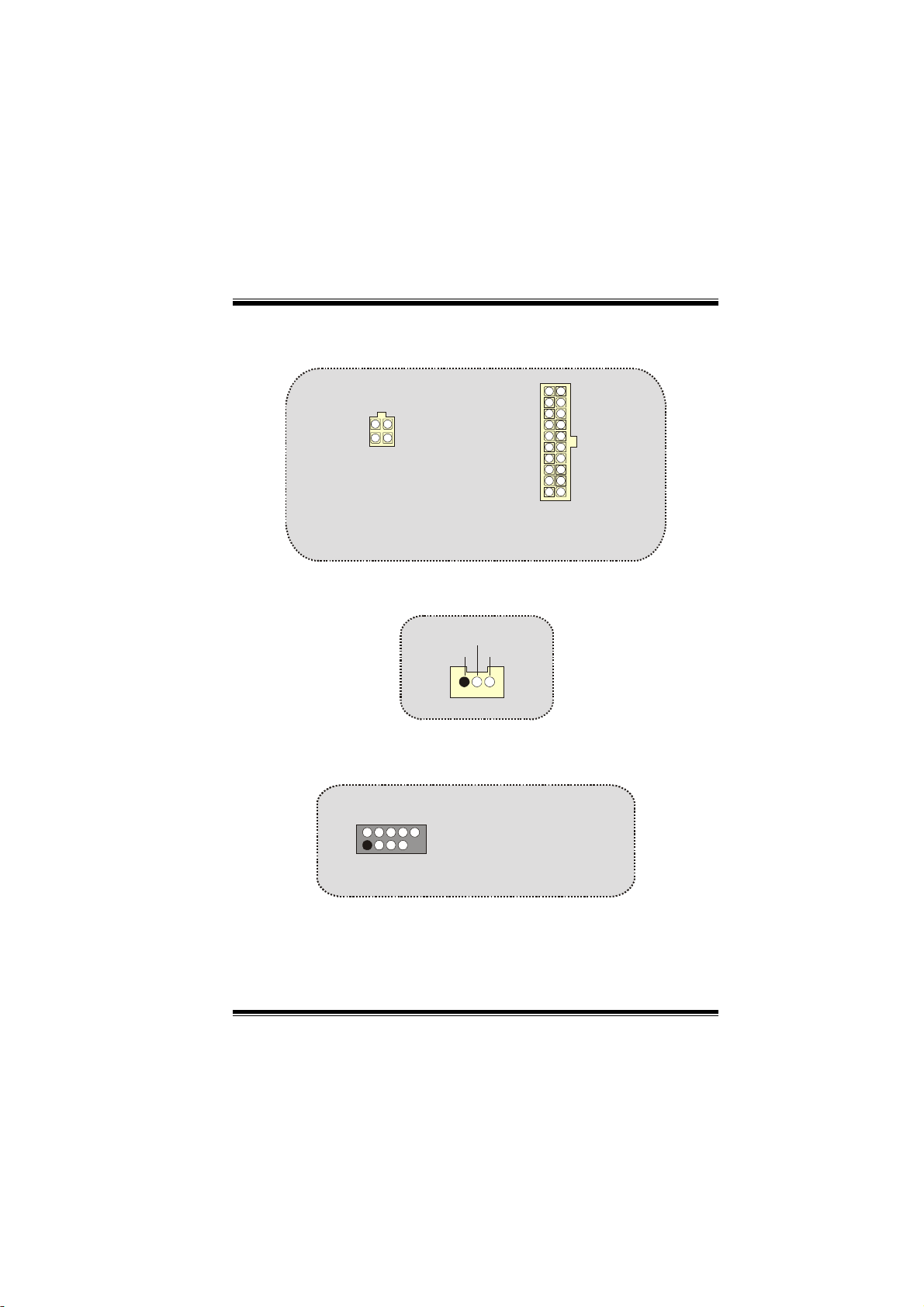

Power Connectors: JATXPWR1/ JATXPWR2

Wake On LAN Header: JWOL1

Front USB Header: JUSB2/ JUSB3

WOL1

5V_SB Wake up

Ground

JATXPWR1

(ATX Main Power Conn.)

JATXPWR1

(ATX Main Power Conn.)

JATXPWR2

(ATX 12V Power Conn.)

JUSB2/3

Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

iip

iio

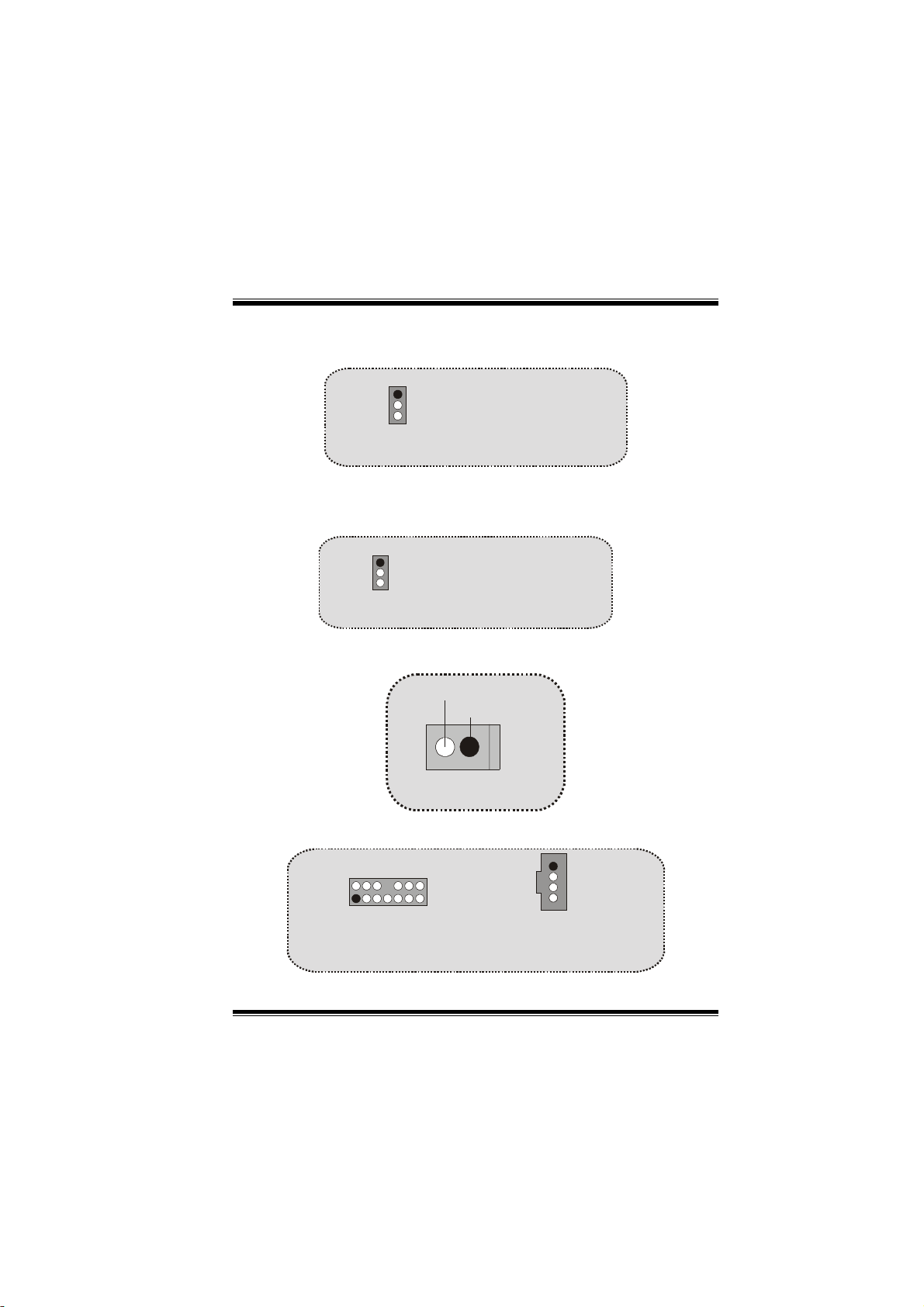

5V/ 5VSB Selection for USB: JUSBV1/2_3

5V/ 5VSB Selection for KB: JKBV1

Chassis Open Detection input: JCL1

Audio Subsystem: JAUDIO1/ JCDIN1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JKBV1

JUSBV1/2_3

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JAUDIO1

(Front Audio Header)

JCDIN1

(CD-ROM Audio-In Header)

JAUDIO1

(Front Audio Header)

JCDIN1

(CD-ROM Audio-In Header)

JCL1

Intruder

Ground
