Billy Goat F1301H Manuel utilisateur

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

Patent #6,253,416 and other patents pending

F901S, F901H, and F1301H

BILLY GOAT FORCE BLOWER

Owner's Manual

Accessories

PARKING BRAKE

Effective and Easy to

use to prevent blower

from rolling.

P/N 440140

HOLD DOWN KIT

To secure blower for

transportation on

trailer floors.

P/N 440120

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

ABOUT THIS MANUAL

THANK YOU for purchasing a BILLY GOAT ®FORCE Blower. Your new machine has been carefully designed and

manufactured to provide years of reliable and productive service. This manual provides complete operating and

maintenance instructions that will help to maintain your FORCE Blower in top running order. Read this manual

carefully before assembling, operating, or servicing your equipment.

CONTENTS

SERIAL PLATE DATA AND SPECIFICATIONS 3

GENERAL SAFETY 4-5

SOUND AND VIBRATION 6

INSTRUCTIONLABELS 7

PACKINGCHECKLIST 8

ASSEMBLY 9

OPERATION 10-11

MAINTENANCE 12

TROUBLESHOOTING AND WARRANTY PROCEDURE 13

ILLUSTRATED PARTS LIST 14

PARTSLIST 15

MAINTENANCE RECORD 16

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

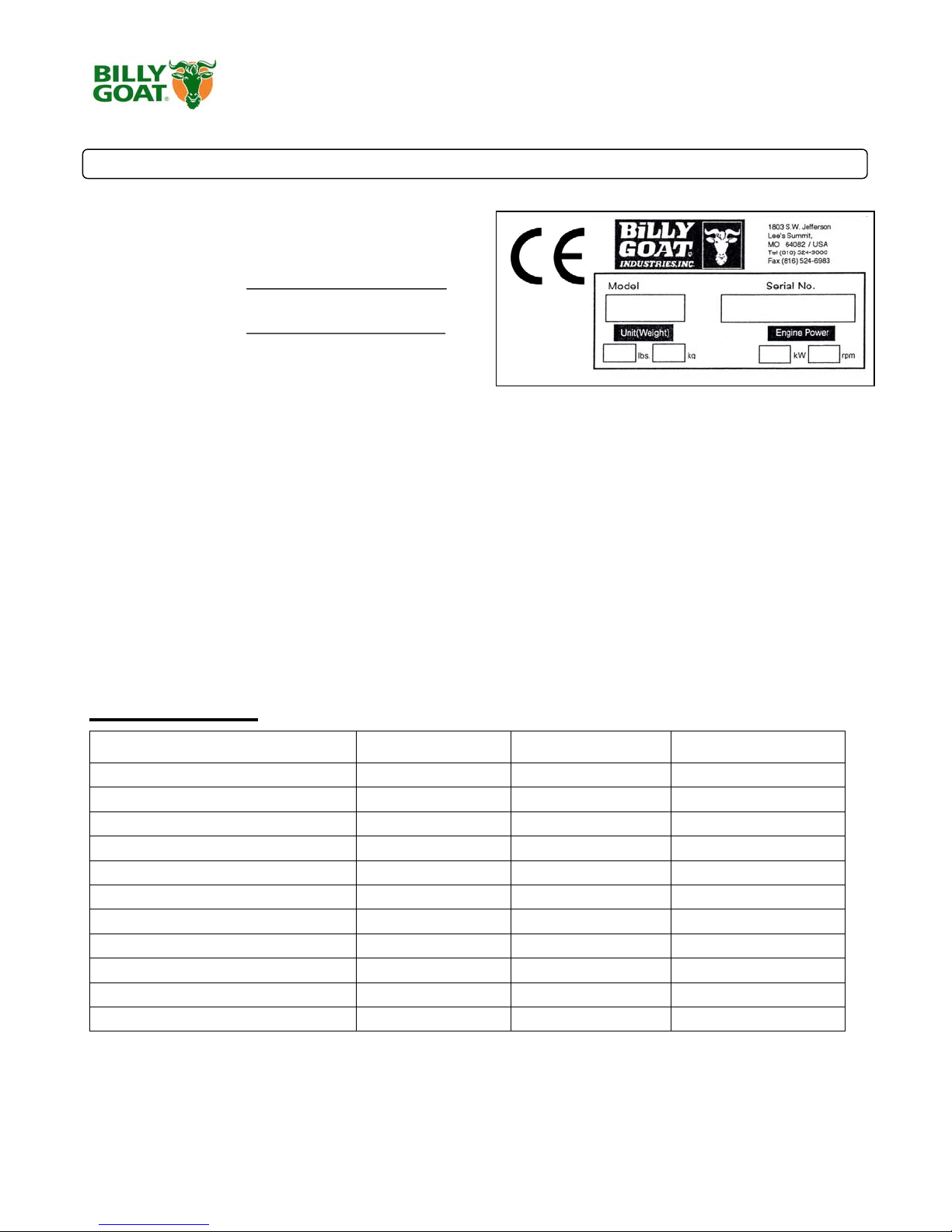

SERIAL PLATE DATA

Record the model number, serial number, date of

purchase, and where purchased.

Purchase Date:

Purchased From:

Specifications F901S F901H F1301H

Engine: HP 9.0 HP (6.6kW) 9.0 HP (6.6kW) 13.0 HP (9.6kW)

Engine: Model EX270D50021 GX270K1QA2 GX390K1QAA2

Engine: Type SUBARU OHC HONDA OHV HONDA OHV

Engine: Fuel Capacity 6.4 qt. (6.1L) 6.3 qt. (6.0L) 6.5 qt. (6.1L)

Engine: Oil Capacity 1.05 qt. (1.0L) 1.16 qt. (1.1L) 1.16 qt. (1.1L)

Total Unit Weight: 138 # (62.6Kg) 143 # (64.8Kg) 160 # (72.6Kg)

Overall Length: 58"(1.43m) 58"(1.43m) 58"(1.43m)

Overall Width 29.25” (0.74m) 29.25” (0.74m) 28" (0.71m)

Overall Height 45" (1.14m) 45" (1.14m) 45" (1.14m)

In compliance with 2000/14/EEC standards 107dB(a) @3340 rpm 109dB(a) @ 3660 rpm 110dB(a) @ 3640 rpm

Sound at Operator’s ears 87dB(a) @ 3340 rpm 89dB(a) @ 3660 rpm 90dB(a) @ 3640 rpm

Vibration at operator position .96 g (9.44 m/s2) 1.05 g (10.30 m/s2) .81 g (7.96 m/s2)

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

GENERAL SAFETY INSTRUCTIONS and SYMBOLS

The safety symbols shown below are used throughout this manual. You should become familiar with them before

assembling, operating, or servicing this equipment.

This symbol indicates important information that will prevent injury to yourself or others.

This symbol indicates ear protection is recommended when operating this equipment.

This symbol indicates eye protection is recommended when operating this equipment.

This symbol indicates gloves should be worn when servicing this equipment.

This symbol indicates that this manual and the engine manufacturer’s manual should be read

carefully before assembling, operation, or servicing this equipment.

This symbol indicates important information that will prevent damage to your BILLY GOAT ®

FORCE Blower.

This symbol indicates the engine oil level should be checked before operating this

equipment.

Read and make sure you thoroughly understand the following safety precautions before assembling, operating or

servicing this equipment:

READ this manual and the engine manufacturer’s manual carefully before assembling,

operating, or servicing this equipment.

EAR PROTECTION is recommended when operating this equipment.

EYE PROTECTION is recommended when operating this equipment.

BREATHING PROTECTION is recommended when operating this equipment.

EXHAUST from this product contains chemicals known to the State of California to cause

cancer, birth defects or other reproductive harm.

DO NOT operate this equipment on any unimproved forested, brushy, or grass covered land

unless a spark arrester is installed on the muffler as required by Section 4442 of the

California Public Resources Code. The arrester must be maintained in good working order.

Other states may have similar laws. Federal laws apply on federal lands.

DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an

odorless and possibly fatal poison.

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is

recommended.

DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least

two minutes before refueling.

DO NOT store gasoline near an open flame.

DO NOT remove gas cap while engine is running.

DO NOT start or operate engine if strong odor of gasoline is present.

DO NOT start or operate engine if gasoline is spilled. Move equipment away from spill until

gasoline has completely evaporated.

DO NOT smoke while filling the fuel tank.

DO NOT check for spark with spark plug or spark plug wire removed. Use an approved spark

tester.

DO NOT operate engine without a muffler. Inspect muffler periodically and replace if

necessary. If equipped with muffler deflector, inspect deflector periodically and replace if

necessary.

DO NOT operate engine with grass, leaves or other combustible material near the muffler.

DO NOT touch muffler, cylinder, or cooling fins when hot. Contact with hot surfaces may

cause severe burns.

DO NOT leave equipment unattended while in operation.

DO NOT park equipment on a steep grade or slope.

DO NOT operate equipment with bystanders in or near the work area.

DO NOT allow children to operate this equipment.

DO NOT operate equipment with guards removed.

DO NOT operate equipment near hot or burning debris or any toxic or explosive materials.

DO NOT operate equipment on slopes greater than specified in Specifications section of this

manual.

ALWAYS remove spark plug wire when servicing equipment to prevent accidental starting.

ALWAYS check fuel lines and fittings frequently for cracks or leaks. Replace if necessary.

ALWAYS keep hands and feet away from moving or rotating parts.

ALWAYS store fuel in approved safety containers.

WARNING: Important

Do not run this machine without director cone attached or with improper air director cone.

DO NOT run this machine with a cracked or damaged impeller under any circumstances.

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

SOUND

SOUND LEVEL 90 Db(a) at Operators Position

Sound tests were conducted in accordance with 2000/14/EC, as well as ISO 11094, and were performed on 5-17-

2006 under the conditions listed below.

Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on

the unit for the sound power level for your model.

VIBRATION DATA

VIBRATION LEVEL 1.05g (10.30m/s2)

Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using

calibrated vibration test equipment. Tests were performed on 5-17-2006 under the conditions listed below.

INTENDED USE

This machine is designed for cleaning outdoor surfaces, where the debris can be effectively blown into a

consolidated area for convenient pickup and removal.

DO NOT OPERATE IF EXCESSIVE VIBRATION OCCURS. If excessive vibration occurs,

shut engine off immediately and check for damaged or worn impeller, loose impeller bolt, loose

impeller key, loose engine or debris stuck in fan or housing. To remove debris from impeller see

the trouble shooting section on page 13. Note: See parts list for proper impeller bolt torque

specifications.

General Conditions: Sunny

Temperature: 79.7oF (26.5oC)

Wind Speed: 1.7 mph (2.8kph)

Wind Direction: South Southwest

Humidity: 31.2%

Barometric Pressure: 29.9Hg (101.25kpa)

General Conditions: Sunny

Temperature: 86.5oF (30.3oC)

Wind Speed: 2.5 mph (4.1kph)

Wind Direction: South Southwest

Humidity: 56.4%

Barometric Pressure: 29.9Hg (101.25kpa)

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

INSTRUCTION LABELS

The labels shown below were installed on your BILLY GOAT ®FORCE Blower. If any labels are damaged or

missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part

numbers are provided for convenience in ordering replacement labels. The correct position for each label may be

determined by referring to the Figure and Item numbers shown.

LABEL READ OWNERS MANUAL LABEL EAR EYE BREATHING DANGER FLYING DEBRIS

ITEM #44 P/N890301 ITEM# 45 P/N890254 ITEM # 46 P/N 810736

LABEL EXPLOSIVE FUEL LABEL THROTTLE CONTROL

ITEM # 43 P/N 400268 ITEM # 42 P/N 810656

ENGINE LABELS

HONDA MOTOR CO. , LTD. MADE IN JAPAN

READ OWNER’S MANUAL BEFORE OPERATION.

LIRE LE MANUEL D UTILISATEURAVANT USAGE.

VOR INBETRIEBNAHME UNBEDINGHT BEDIENUNGSANLEITUNG DURCHLESEN.

NO UTILIZAR SINANTES NO HABER LEIDO EL MANUAL

WHEN OIL LEVELLOW,

ENGINE STOPS IMMEDIATELY.

OIL ALERT

HONDA SUBARU

STOP

START

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

PACKING CHECKLIST

These items should be included in your carton. If any of these parts are missing, contact your dealer.

Your BILLY GOAT ®FORCE Blower was shipped in one carton, completely assembled except for the Upper Handle

Assembly and Front Diverter. Mounting hardware for the Upper Handle Assembly can be found in the parts bag.

READ all safety instructions before assembling unit.

TAKE CAUTION when removing the unit from the box the Handle Assembly is attached to the

unit by cables.

PUT OIL IN ENGINE BEFORE STARTING

Boxing Parts Checklist

Front Air Diverter

Item#38 P/N-440045

Handle Upper Assembly

Item #30 P/N-440035

Parts Bag & Literature Assy

P/N-440020

Honda 9 or 13 hp

Subaru 9 hp

PARTS BAG &

LITERATURE ASSY

Warranty card P/N- 400972, Owner’s Manual P/N-440021, Declaration of Conformity P/N-440022, Handle

-I

#36

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

ASSEMBLY

Figure A Figure B

1.Follow the steps in figures A and B, then securely tighten all hardware shown.

2.Connect spark plug wire.

The hardware for attaching the upper handle to the lower

is in the parts bag. Install upper handle (item 30), to

preassembled lower handle (item 28) by sliding the upper

over and down the outside of the lower handle. Using bolt

(item #36), washers (item #10) & lock nut (item #11) to

install upper handle to lower handle. Finish installing the

other side of the upper handle assembly using screw and

lock nut provided.

The throttle control and will be attached to the throttle arm

on the engine and wrapped around the engine for

shipping. Unwrap and secure throttle control (item #31) to

upper handle with screws (item #17). Screws will already

be mounted in handle, simply remove and use to mount

the throttle control securing the cable with two Ty-wraps.

The Aim-and-Shoot TM is not attached, you will need to

unroll the cable and attach the ball end to the lever and

seat the cable end into the hole on the saddle clamp, with

the cable running through the slot. To keep the cable

from being damaged use three ty-wraps (item 74) to

secure it to the handle as shown making sure that the

cable is not rubbing against the tire.

Two ½” open ended wrenches

One 5/16 open ended wrench

Part No 440021 Form No F071307B

FORCE BLOWER Owner’s Manual

OPERATION

Like all mechanical tools, reasonable care must be used when operating machine.

Inspect machine work area and machine before operating. Make sure that all operators of this

equipment are trained in general machine use and safety.

PUT OIL IN ENGINE BEFORE STARTING

STARTING

ENGINE: See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine must be

level when checking and filling oil and gasoline.

FUEL VALVE: Move fuel valve to "ON" position (when provided on engine).

STOP SWITCH: Located on the engine. "ON" position.

CHOKE: Operated with choke lever on side of engine.

THROTTLE: Controlled by throttle lever on the handle. Move remote throttle control to fast position. Pull starting

rope to start engine.

ENGINE SPEED: Under normal conditions, operate at minimum throttle to accomplish your current cleaning task.

IF YOUR UNIT FAILS TO START:

See Troubleshooting on page 13.

HANDLING & TRANSPORTING:

Using two people to lift machine is recommended. Lift holding the handle and handle brace. Secure in place during

transportation. See F901 and F1301 series specifications on page 3 for unit weight.

Do not use the front grill as an anchor point when securing the unit for transport.

Never lift the machine while the engine is running.

BLOWING OPERATION

Your Billy Goat Force blower is equipped with an air director cone and the patented Aim-N-Shoot TM control lever to

allow the operator to direct the air stream up or down as required to assist in moving debris. This feature is

extremely useful when debris has piled up to the point that it cannot be blown any farther. The air stream can be

directed upward to blow the top of the debris pile over and allow the operator to continue moving more debris

farther.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Billy Goat Ventilateur

Billy Goat

Billy Goat Hurricane Z3000 Manuel utilisateur

Billy Goat

Billy Goat F601S Manuel utilisateur

Billy Goat

Billy Goat EX17D50012 Manuel utilisateur

Billy Goat

Billy Goat F601S Manuel utilisateur

Billy Goat

Billy Goat FORCE F601V Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB1100HPN Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB1004 Instructions d'installation

Billy Goat

Billy Goat QUIET BLOW QB554HC Instructions d'installation

Billy Goat

Billy Goat QUIET BLOW QB554HC Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB551 Manuel utilisateur

Billy Goat

Billy Goat F902S Manuel utilisateur

Billy Goat

Billy Goat Force Blower Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB1601 Instructions d'installation

Billy Goat

Billy Goat F902SPS Manuel utilisateur

Billy Goat

Billy Goat Z-FORCE BLOWER Manuel utilisateur

Billy Goat

Billy Goat FORCE 601XEU Manuel utilisateur

Billy Goat

Billy Goat MV VACUUM PUSH EU MV601EU Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB553 Instructions d'installation

Billy Goat

Billy Goat F902S Manuel utilisateur

Billy Goat

Billy Goat F1302H Manuel utilisateur

Billy Goat

Billy Goat QB883, QB883H, QB1103, QB1103H Instructions d'installation

Billy Goat

Billy Goat F1801V Manuel utilisateur

Billy Goat

Billy Goat DL1302H Manuel utilisateur

Billy Goat

Billy Goat FORCE 601V Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

Weed Eater

Weed Eater VS2000BV Manuel utilisateur

KRAUSMANN

KRAUSMANN U37020-00 Manuel utilisateur

Bosch

Bosch ALB 36 LI Manuel utilisateur

Cub Cadet

Cub Cadet HB425 Manuel utilisateur

GreenWorks Pro

GreenWorks Pro BLB482 Manuel utilisateur

ARIETE

ARIETE 2768 Manuel utilisateur

NuTone

NuTone 331H Manuel utilisateur

GÜDE

GÜDE GLB 200 18 Li-Ion Manuel utilisateur

I.VA.CO.

I.VA.CO. SC Series Mode d'emploi

DeWalt

DeWalt DCE100 Manuel utilisateur

Becker

Becker SV 7.330 Manuel utilisateur

Metabo

Metabo AG 18 Pro Manuel utilisateur

Desa

Desa GA3650TB Manuel utilisateur

Echo

Echo Power Blower PB-230LN Manuel utilisateur

Echo

Echo PB-413H Manuel utilisateur

Black & Decker

Black & Decker BV3100 Manuel utilisateur

Ryobi

Ryobi RY08570 Manuel utilisateur

Haaga

Haaga 355 Manuel utilisateur
