FORCE SP BLOWER Owner’s Manual

Part No 440314 1Form No F110215B

Patent #6,253,416 and other patents pending

FORCE BLOWER Owner's Manual

F902SPS, F902SPH, F1302SPH, F1802SPV

Beginning Serial #: 110215001

Accessories

Original Instructions

IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE

HOLD DOWN KIT

To secure blower for

transportation on trailer

floors.

P/N 440120

SOLID FRONT TIRE

Solid flat-free front tire.

P/N 440279

PARKING BRAKE

P/N 440140

CASTER KIT

For greater maneuverability

on hard surfaces.

P/N 440293

Effective and easy to use to

prevent blower from rolling.

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

CONTENTS

SPECIFICATIONS AND SOUND/VIBRATION 3

INSTRUCTION LABELS 4

PACKING CHECKLIST 5

ASSEMBLY 6

OPERATION 7

MAINTENANCE 8-9

TROUBLESHOOTING 10

MAINTENANCE RECORD 11

ILLUSTRATED PARTS AND PARTS LIST 12-14

DECLARATION OF CONFORMITY 15-17

Go to http://www.billygoat.com for French-Canadian translations of the product manuals.

Visitez http://www.billygoat.com pour la version canadienne-française des manuels de

produits.

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

SPECIFICATIONS

F902SPS F902SPH F1302SPH F1802SPV

Engine HP

9.0 HP (6.6kW)

13.0 HP (9.6kW)

18 HP (13.42kW)

Engine Model

EX270D50021

GX270K1QA2

GX390K1QAA2

3564420224E9

Engine Type

SUBARU OHC

HONDA OHV

B & S VANGUARD

Engine Fuel Capacity

6.4 qt. (6.1L)

6.3 qt. (6.0L)

6.5 qt. (6.1L)

9 qt. (8.52L)

Engine Oil Capacity

1.05 qt. (1.0L)

1.16 qt. (1.1L)

1.75 qt. (1.66L)

Total Unit Weight

141 # (64 Kg)

152 # (68.9 Kg)

167 # (75.7 Kg)

182 # (82.6 Kg)

Overall Length

58"(1.43m)

Overall Width

29.25” (0.74m)

Overall Weight

45" (1.14m)

Max Operating Angle

20o

25o

In Compliance with 2000/14/EEC

Standards

107dB(a) @ 3340

rpm

109dB(a) @ 3660

rpm

110dB(a) @ 3640 rpm

117dB(a)

Sound at Operator’s Ears

87dB(a) @ 3340 rpm

89dB(a) @ 3660 rpm

90dB(a) @ 3640 rpm

97dB(a)

Vibration at Operator Position

.96 g (9.44 m/s2)

1.05 g (10.30 m/s2)

.81 g (7.96 m/s2)

1.2 g (11.9 m/s2)

SOUND

SOUND LEVEL 97 Db(a) at Operator’s Position

Sound tests were conducted in accordance with 2000/14/EC, as well as ISO 11094, and were performed on 12-12-2006 under

the conditions listed below.

Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit for

the sound power level for your model.

VIBRATION DATA

VIBRATION LEVEL 1.2g (11.9m/s2)

Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using calibrated

vibration test equipment. Tests were performed on 12-13-2006 under the conditions listed below.

General Conditions: Sunny

Temperature: 40.4oF (4.7oC)

Wind Speed: 6.1 mph (9.9kph)

Wind Direction: Southwest

Humidity: 93.6%

Barometric Pressure: 30Hg (101.85kpa)

General Conditions: Sunny

Temperature: 57.2oF (14.3oC)

Wind Speed: 11.8 mph (19.1kph)

Wind Direction: South

Humidity: 46.4%

Barometric Pressure: 30.1Hg (101.96kpa)

117 dB

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

INSTRUCTION LABELS

The labels shown below were installed on your BILLY GOAT®FORCETM Blower. If any labels are damaged or missing, replace

them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the

Illustrated Parts List. The correct position for each label may be determined by referring to the Figure and Item numbers shown.

LABEL READ OWNERS MANUAL LABEL SAFETY PROTECT DANGER FLYING DEBRIS

ITEM #44 P/N890301 ITEM# 45 P/N 100346 ITEM # 46 P/N 810736

LABEL EXPLOSIVE FUEL LABEL THROTTLE CONTROL

ITEM # 43 P/N 400268 ITEM # 42 P/N 810656

ENGINE LABELS

HONDA MOTOR CO. , LTD. MADE IN JAPAN

READ OWNER’S MANUALBEFORE OPERATION.

LIRE LE MANUELD UTILISATEURAVANT USAGE.

VOR INBETRIEBNAHME UNBEDINGHT BEDIENUNGSANLEITUNG DURCHLESEN.

NO UTILIZAR SINANTES NO HABER LEIDO ELMANUAL

WHEN OIL LEVELLOW,

ENGINE STOPS IMMEDIATELY.

OIL ALERT

HONDA SUBARU

STOP

START

BRIGGS AND STRATTON VANGUARD

LABEL CLUTCH ENGAGE

P/N 500176

LABEL SPARK ARRESTOR

P/N 100252

LABEL OIL CHAIN

ITEM #119 P/N 830502

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

PACKING CHECKLIST

These items should be included in your carton. If any of these parts are missing, contact your dealer.

Your BILLY GOAT®FORCE Blower was shipped in one carton, completely assembled except for the Upper Handle Assembly

and Front Diverter. Mounting hardware for the Upper Handle Assembly can be found in the parts bag.

READ all safety instructions before assembling unit.

TAKE CAUTION when removing the unit from the box as the Handle Assembly is attached to the unit by

cables.

PUT OIL IN ENGINE BEFORE STARTING.

Boxing Parts Checklist

Front Air Diverter

(For F902S, F902H, and F1302H

models only)

Item#38

F9 MODELS P/N-440045-4

F13 MODELS P/N-440045-5

Handle Upper Assembly

Item #30 P/N-440035

Parts Bag & Literature Assy

P/N-440267

Honda 9 or 13 hp

Subaru 9 hp

B & S Vanguard 18 hp

PARTS BAG & LITERATURE ASSY

Warranty card P/N- 400972, Owner’s Manual P/N-440314, General Safety and Warnings Manual P/N-100294, Declaration of

Conformity P/N-440331, Handle Hardware-Items #10, #11, #74, #36, and #123.

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

ASSEMBLY

1. The hardware for attaching the upper handle to the lower is in

the parts bag. Install lthe upper handle (item 30), to

preassembled lower handle (item 28) by sliding the upper

handle over and down the outside of the lower handle. Using

the bolts (items #36 and #123), washers (item #10) & lock nut

(item #11) to install upper handle to lower handle. NOTE: The

Pigtail bolt should go on the side that the pull start is on and the

open end should be facing down. Finish installing the other side

of the upper handle assembly using screw and lock nut

provided. (See Fig. 1)

2. The throttle control will be attached to the throttle arm on the

engine and wrapped around the engine for shipping. Unwrap

and secure throttle control (item #31) to upper handle with

screws (item #39). Screws will already be mounted in handle.

Simply remove and use to mount the throttle control. Secure the

throttle cable and clutch cable with two Ty-wraps. The Aim-and-

ShootTM is not attached. You will need to unroll the cable and

attach the ball end to the lever and seat the cable end into the

hole on the saddle clamp, with the cable running through the

slot. The clutch cable will also be wrapped up under the

machine. Route the cable under the axle and attach it by

removing the hitch pin and clevis pin and attaching it to the

clutch control lever. After it is attached pull on the cable and

slide it into the hole on the bracket so that it clicks into place. To

keep the cable from being damaged use three ty-wraps (item

#74) to secure it to the handle as shown, making sure that the

cable is not rubbing against the tire. NOTE: the cable should

be seated properly in the saddle and should follow the

contours of the handle. (See Fig. 2 and 3)

3. Connect spark plug wire.

Good routing

Bad routing

Fig. 1

Fig. 2

Fig. 3

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

OPERATION

Front

diverter

Squeeze

and fold

here

DRIVE LEVER:

To engage the clutch for forward motion, simply hold down the clutch

lever with your left hand while the engine is running; this will cause the

drive to engage and the machine will proceed to move forward.

Caution: It is not recommended to “feather” the drive. The drive lever

should be either fully engaged or fully disengaged. Failure to do so can

cause premature failure of the cone clutch in the transmission. This type

of failure will void the manufacturer’s warranty.

BLOWING OPERATION

Your Billy Goat Force blower is equipped with an air director cone and

the patented Aim-N-Shoot TM control lever to allow the operator to direct

the air stream up or down as required to assist in moving debris. This

feature is extremely useful when debris has piled up to the point that it

cannot be blown any farther. The air stream can be directed upward to

blow the top of the debris pile over and allow the operator to continue

moving more debris farther.

ADJUSTING AIR DIRECTOR

To adjust air direction, squeeze the Aim-N-Shoot control lever. When

you want to blow debris at the same angle for an extended period,

choose a suitable position and use the finger controlled push button lock

to lock the cone in position. For operations that do not require the use of

the Aim-N-Shootfeature the manual adjustment knob, pictured below,

can be used to permanently lock the cone into position.

CAUTION: Be sure to release the knob when returning to using the

Aim-N-Shoot.

DO NOT position director cone to where it will blow debris towards

people, vehicles or other objects in vicinity. Flying debris may damage,

harm, or cause injury to people or objects in air flow range.

FRONT DIVERTER POSITIONING (F9 and F13 models only)

The removable front diverter adapter can be slipped inside the cone to

direct the air stream forward. First turn off engine, and then simply

collapse and fold it into the larger opening of the diverter and slide inside

the cone allowing it to expand. Then position to the desired angle by

rotating the diverter. This option is extremely useful for cleaning out long

cracks in pavement or for cleaning under bushes, building overhangs or

along curbs. (See Fig. 4 and 5)

WARNING: Unit will be more difficult to control due to the air exiting

the unit. Keep hands on the unit at all times when using the front

diverter. Please note that the Aim-N-Shoot feature will not function when

the front diverter is installed.

Fig. 4

Manual

adjustment

knob

Fig. 5

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

MAINTENANCE

PERIODIC MAINTENANCE

Periodic maintenance should be performed at the following intervals:

Maintenance Operation

Every Use

Daily or Every 5 Hours

Every 100-150 Hours

Inspect for worn or damaged parts



Check for excessive vibration



Check belt/chain tightness



Oil drive chain



Inspect impeller for cracks or damage



Inspect for loose parts



IMPELLER REMOVAL

1. Wait for engine to cool and disconnect spark plug.

2. Remove housing front cover by removing eleven bolts and nuts (items #13 & #14) around outside of front

cover.

3. Remove impeller bolt (item #35), lock washer (item #71) and washer (item #34).

4. DO NOT pry on impeller. Pull on center hub area of impeller only. Using a penetrating oil can help loosen a

stuck impeller.

5. Reinstall new impeller in reverse order of removal.

6. Tighten impeller bolt. Torque impeller bolt (see Parts List on page 13 for proper impeller bolt torque

specifications).

TIRE AIR PRESSURE

Check at regular intervals and maintain.

Front Tires - 24 Psi (165 kPa).

Rear Tires - 20 Psi (137 kPa).

BELT TENSION ADJUSTMENT

DO NOT adjust while the machine is running!

1. Wait for engine to cool and disconnect spark plug.

2. Loosen the nut (item #92) on the Idler pulley (item #93) but do not remove it. This should allow the pulley to slide left or

right. Once the pulley is at the proper distance to apply tension to the belt, tighten the nut. NOTE: Do not place too much

tension on the belt, as it will cause premature failure.

3. Reattach the spark plug.

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

DRIVE CHAIN REPLACEMENT

1. Wait for engine to cool and disconnect spark plug.

2. Place a block of wood, or another object that will support and

steady the unit under the axle on the side of the machine you will

be working on.

3. Remove the two screws (item #103) holding the chain guard (item

#104) and then remove the chain guard.

4. Loosen the two nuts (item #98) holding the bearing (item #97).

(See Fig. 7)

5. Remove the retaining ring holding the wheel on and then slide the

wheel off.

6. Replace the chain (item #105). Remove the old chain by walking it

off the sprockets.

7. Position the bearing so that it applies the proper tension to the

chain and tighten the nuts holding the bearing NOTE: DO NOT

over tighten the chain, as this will cause premature failure.

Likewise, if the chain is too loose it will come off when the drive is

engaged.

8. Reassemble the machine using steps 1-4 in reverse order.

BELT REPLACEMENT

1. Wait for engine to cool and disconnect spark plug.

2. Follow the impeller removal steps (2-5 on page 8).

3. Remove the four bolts (item #8) holding the back plate (item 4) to

the back housing (item #6).

4. Loosen the nut on the idler pulley and slide it to the right to

relieve tension on the belt. (See Fig. 6)

5. Slip the belt (item #86) off the engine pulley and the transmission.

6 Replace the belt with a new one and slide the idler pulley to put

proper tension on the belt. NOTE: Do not place too much tension

on the belt, as it will cause premature failure.

7. Reassemble the machine in reverse order. NOTE: You will need

to replace the impeller bolt and torque to the proper specifications

see page 12. DO NOT use the old impeller bolt.

8. Reconnect spark plug wire.

CLUTCH CABLE ADJUSTMENT

1. With the machine off, loosen the two nuts on the end of the clutch cable (item #111) going in to the transmission.

2. By moving the position up or down on the threads it will change the tension on the clutch lever (item #113). NOTE: Do

not position it too high on the threads as this could cause the drive not to engage. Likewise, if it is placed too low the

drive may stay permanently engaged. The optimum setting is to remove any slack in the clutch cable when disengaged.

The travel of the clutch control will apply the correct spring force on the cone clutch. Once the desired position is in

place, tighten the nuts securely.

3. Start the machine and check the operation. If the drive cable is not engaging properly, shut the machine off and

reposition the nuts on the cable to tighten the drive cable.

Idler Pulley

Loosen nuts

Fig. 6

Fig. 7

FORCE SP BLOWER Owner’s Manual

Part No 440314 Form No F110215B

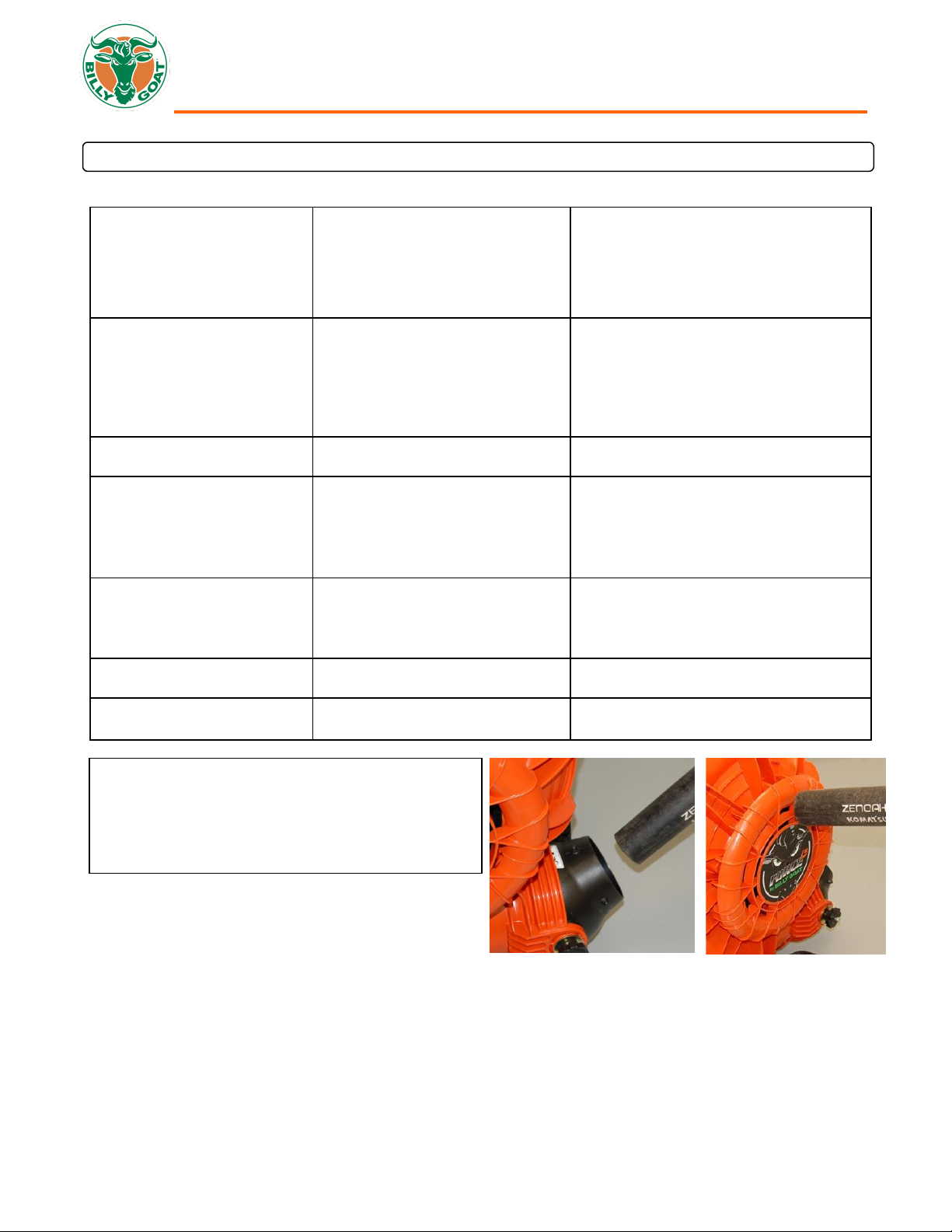

TROUBLESHOOTING

*Using compressed air, or a backpack blower, you can

loosen or free debris easily from the impeller and housing,

which can cause wear and tear on the machine. You can

manually remove debris by taking off the front housing.

Note: Always disconnect the spark plug when servicing.

(See Fig. 8 and 9)

Fig. 8

Fig. 9

Problem Possible Cause Solution

Abnormal vibration Loose or out of balance impeller. Check impeller and replace if required.

Debris in impeller.

Clear debris with compressed air or a

backpack blower (see Fig. 8 and 9 below).*

Loose engine. Check engine.

Engine will not start Engine not in full choke position. Check choke position.

Out of gasoline or bad, old gasoline. Check gasoline.

Spark plug wire disconnected. Connect spark plug wire.

Gas valve off. Turn on gas valve.

Dirty air cleaner.

Clean or replace air cleaner. Contact a

qualified service person.

Engine is locked, will not pull

over

Engine problem.

Contact an engine servicing dealer for

engine problems.

Aim-N-ShootTM lever sticking Debris stuck around cone. Clean debis.

Cone adjustment knob too tight.

Apply silicone based lubricant to

Adaptor mount nut (item #38) too

pivot points.

tight. Loosen manual adjustment knob.

Loosen nut.

No self propelling Drive lever not engaged. Engage drive lever.

Drive belt worn or broken. Check drive belt.

Drive chain off the sprockets. Check drive chain.

Drive cable is out of adjustment. Check drive cable (see page 9).

Self-propelled drive will not

release

Improper drive cable adjustment, or

cable is kinked.

Check the drive cable (see page 9).

Noisy or broken chain No chain or lubrication. Lubricate chain.

Chain tension. Check drive chain (see page 9).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Billy Goat Ventilateur

Billy Goat

Billy Goat QUIET BLOW QB1100HPN Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB554HC Manuel utilisateur

Billy Goat

Billy Goat FORCE 601V Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB554HC Instructions d'installation

Billy Goat

Billy Goat F1801V Manuel utilisateur

Billy Goat

Billy Goat BLOWER QB882 Instructions d'installation

Billy Goat

Billy Goat F1302H Manuel utilisateur

Billy Goat

Billy Goat F1002SPV Manuel utilisateur

Billy Goat

Billy Goat Force Blower Manuel utilisateur

Billy Goat

Billy Goat MV VACUUM PUSH EU MV601EU Manuel utilisateur

Billy Goat

Billy Goat F902S Manuel utilisateur

Billy Goat

Billy Goat KV600SP Manuel utilisateur

Billy Goat

Billy Goat Hurricane Z3000 Manuel utilisateur

Billy Goat

Billy Goat KV600SP Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB881 Manuel utilisateur

Billy Goat

Billy Goat MV650H PUSH Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB553 Instructions d'installation

Billy Goat

Billy Goat QB883, QB883H, QB1103, QB1103H Instructions d'installation

Billy Goat

Billy Goat P / N 440120 Manuel utilisateur

Billy Goat

Billy Goat QUIET BLOW QB1004 Instructions d'installation

Billy Goat

Billy Goat FORCE F601V Manuel utilisateur

Billy Goat

Billy Goat 440021 Manuel utilisateur

Billy Goat

Billy Goat FORCE 602V Manuel utilisateur

Billy Goat

Billy Goat F902S Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

Weed Eater

Weed Eater VS2000BV Manuel utilisateur

KRAUSMANN

KRAUSMANN U37020-00 Manuel utilisateur

Bosch

Bosch ALB 36 LI Manuel utilisateur

Cub Cadet

Cub Cadet HB425 Manuel utilisateur

GreenWorks Pro

GreenWorks Pro BLB482 Manuel utilisateur

ARIETE

ARIETE 2768 Manuel utilisateur

NuTone

NuTone 331H Manuel utilisateur

GÜDE

GÜDE GLB 200 18 Li-Ion Manuel utilisateur

I.VA.CO.

I.VA.CO. SC Series Mode d'emploi

DeWalt

DeWalt DCE100 Manuel utilisateur

Becker

Becker SV 7.330 Manuel utilisateur

Metabo

Metabo AG 18 Pro Manuel utilisateur

Desa

Desa GA3650TB Manuel utilisateur

Echo

Echo Power Blower PB-230LN Manuel utilisateur

Echo

Echo PB-413H Manuel utilisateur

Black & Decker

Black & Decker BV3100 Manuel utilisateur

Ryobi

Ryobi RY08570 Manuel utilisateur

Haaga

Haaga 355 Manuel utilisateur
