Billion BIPAC 7100G Manuel utilisateur

BIPAC 7100SG/7100G

802.11g ADSL Router

Quick Start Guide

Billion BIPAC 7100SG/7100G 802.11g ADSL Router

Package Contents

Billion BIPAC 7100SG/7100GADSL Router

CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

AC-DC power adapter (12VDC, 1A)

This Quick Start Guide

 Do not use the BIPAC 7100SG/7100G in high humidity or high

temperatures.

 Do not use the same power source for the BIPAC

7100SG/7100G as other equipment.

 Do not open or repair the case yourself. If the BIPAC

7100SG/7100G is too hot, turn off the power immediately and

have it repaired at a qualified service center.

 Avoid using this product and all accessories outdoors.

Warning

 Place the BIPAC 7100SG/7100G on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

ttention

For more detailed instructions on configuring and using

the 802.11g ADSL Router, please refer to the on-line

manual.

Quick Start Guide

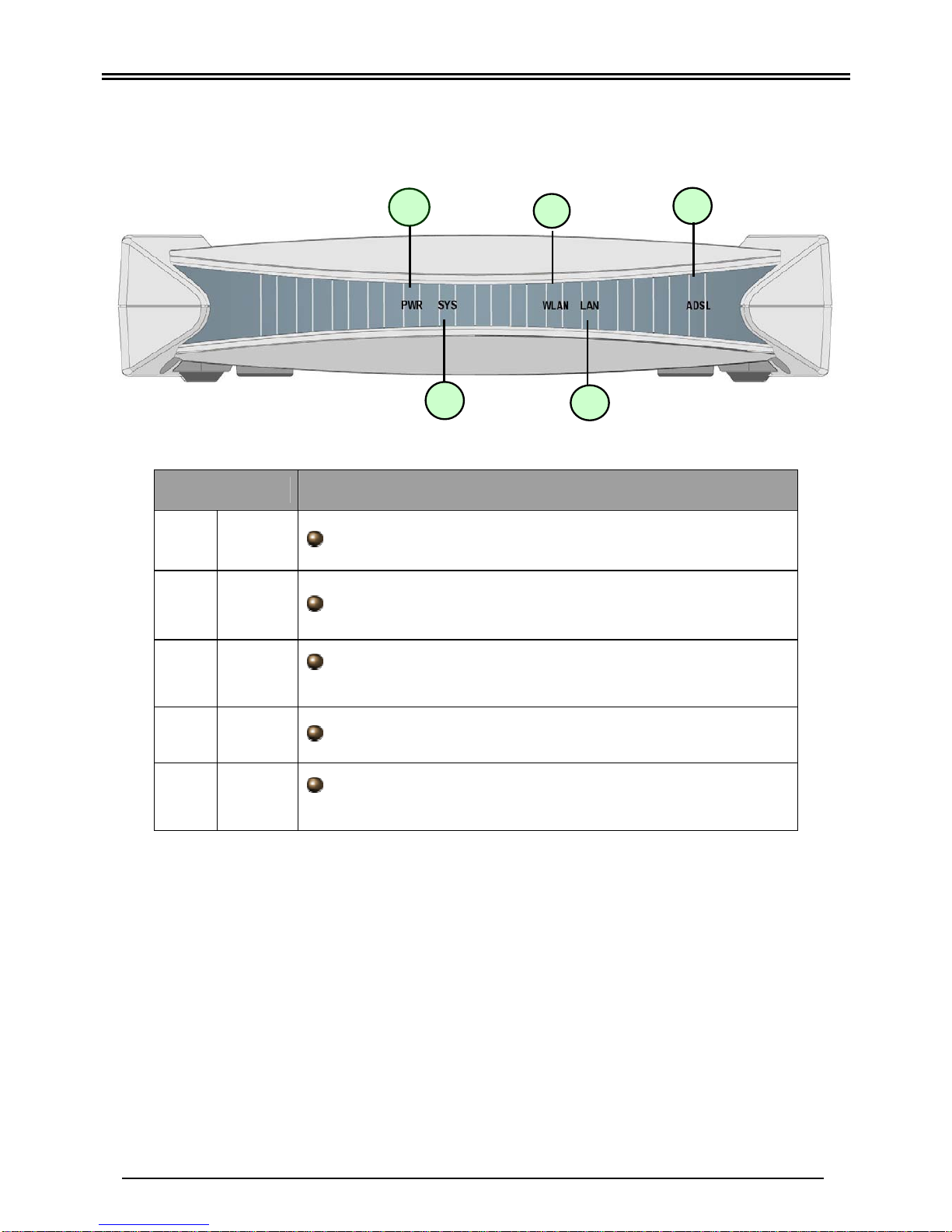

The Front LEDs

 7100SG

LED Meaning

1 PWR Lit green when power adapter is connected.

2 SYS When lit, it indicates that the device is working properly.

3 WLAN Lit green when the wireless connection is established.

Flashes when sending/receiving data.

4 LAN Lit green when the LAN link is connected.

5 ADSL When lit, it indicates that the ADSL (Line) port is connected

to the DSLAM and working properly.

Billion BIPAC 7100SG/7100G 802.11g ADSL Router

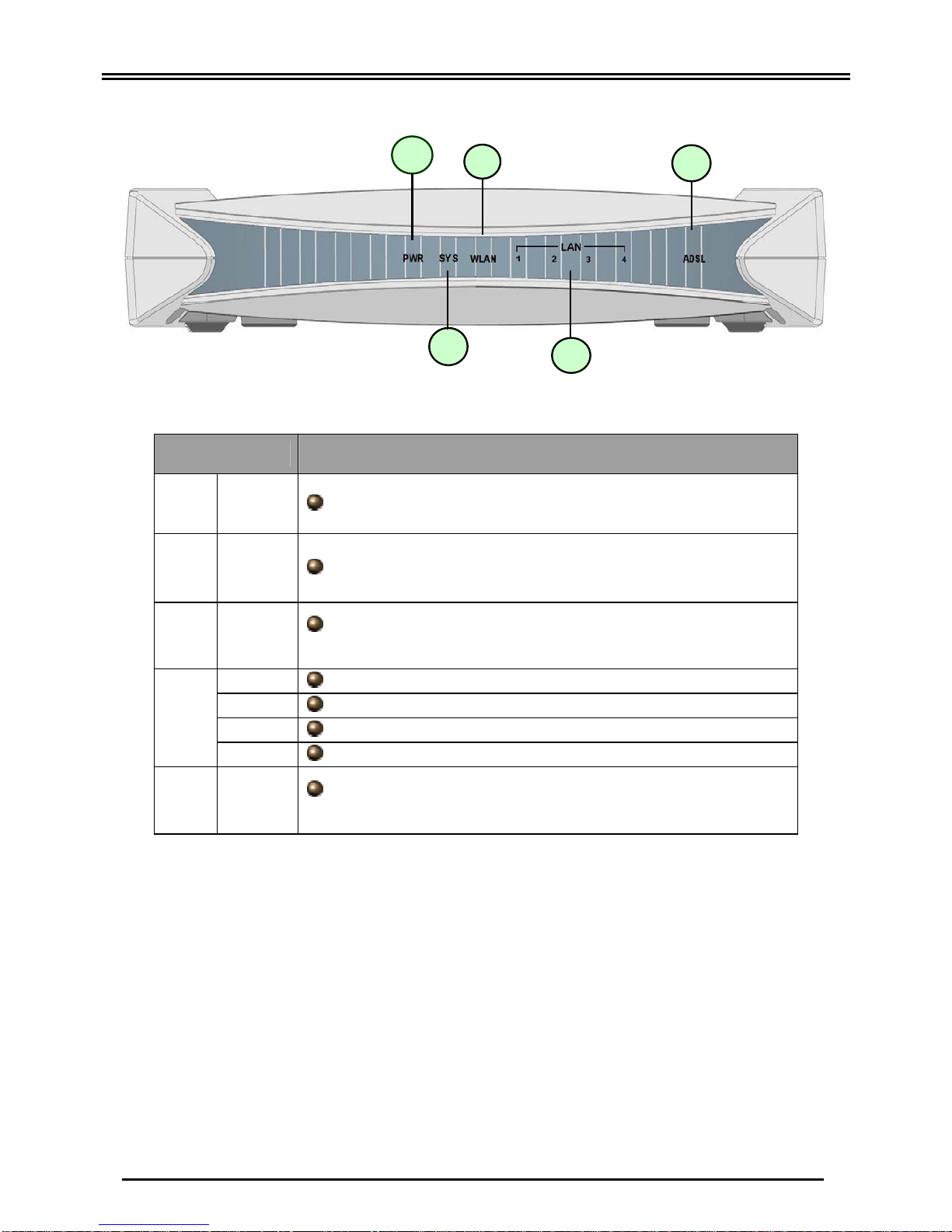

 7100G

LED Meaning

1 PWR Lit green when power adapter is connected.

2 SYS When lit, it indicates that the device is working properly.

3 WLAN Lit green when the wireless connection is established.

Flashes when sending/receiving data.

LAN1 Lit green when the LAN1 link is connected.

LAN2 Lit green when the LAN2 link is connected.

LAN3 Lit green when the LAN3 link is connected.

LAN4 Lit green when the LAN4 link is connected.

5 ADSL When lit, it indicates that the ADSL (Line) port is connected

to the DSLAM and working properly.

Quick Start Guide

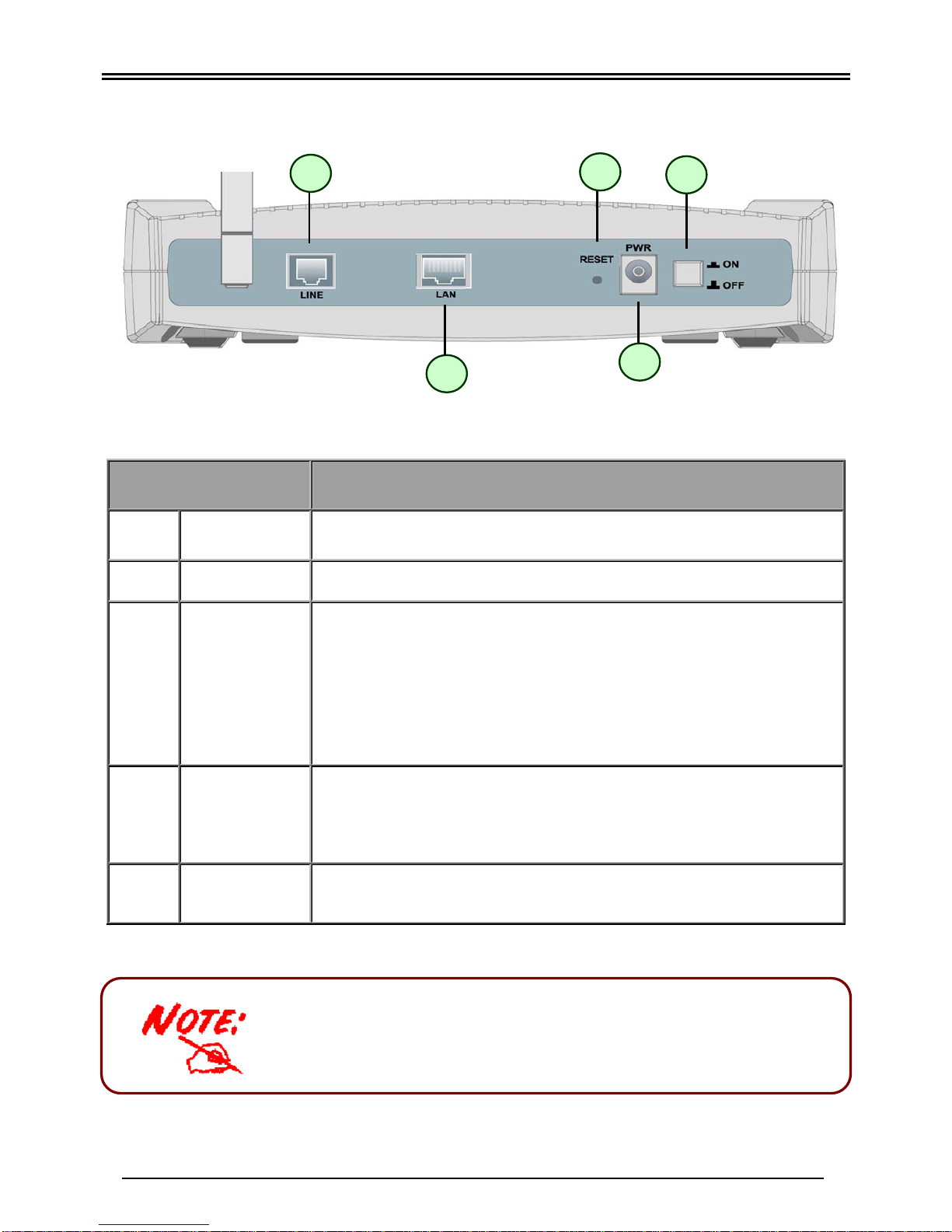

The Rear Ports

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

3 RESET

After the device is powered on, press it to reset the device or

restore to factory default settings.

0-3 seconds: reset the device

6 seconds above: restore to factory default settings (this is used

when you can not login to the router, e.g. forgot the password)

4 LAN Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to the LAN ports

when connecting to a PC or an office/home network of 10Mbps or

100Mbps.

5 LINE Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

BIPAC 7100G has 4 LAN ports, and each of them has the

same function as that of 7100SG.

Billion BIPAC 7100SG/7100G 802.11g ADSL Router

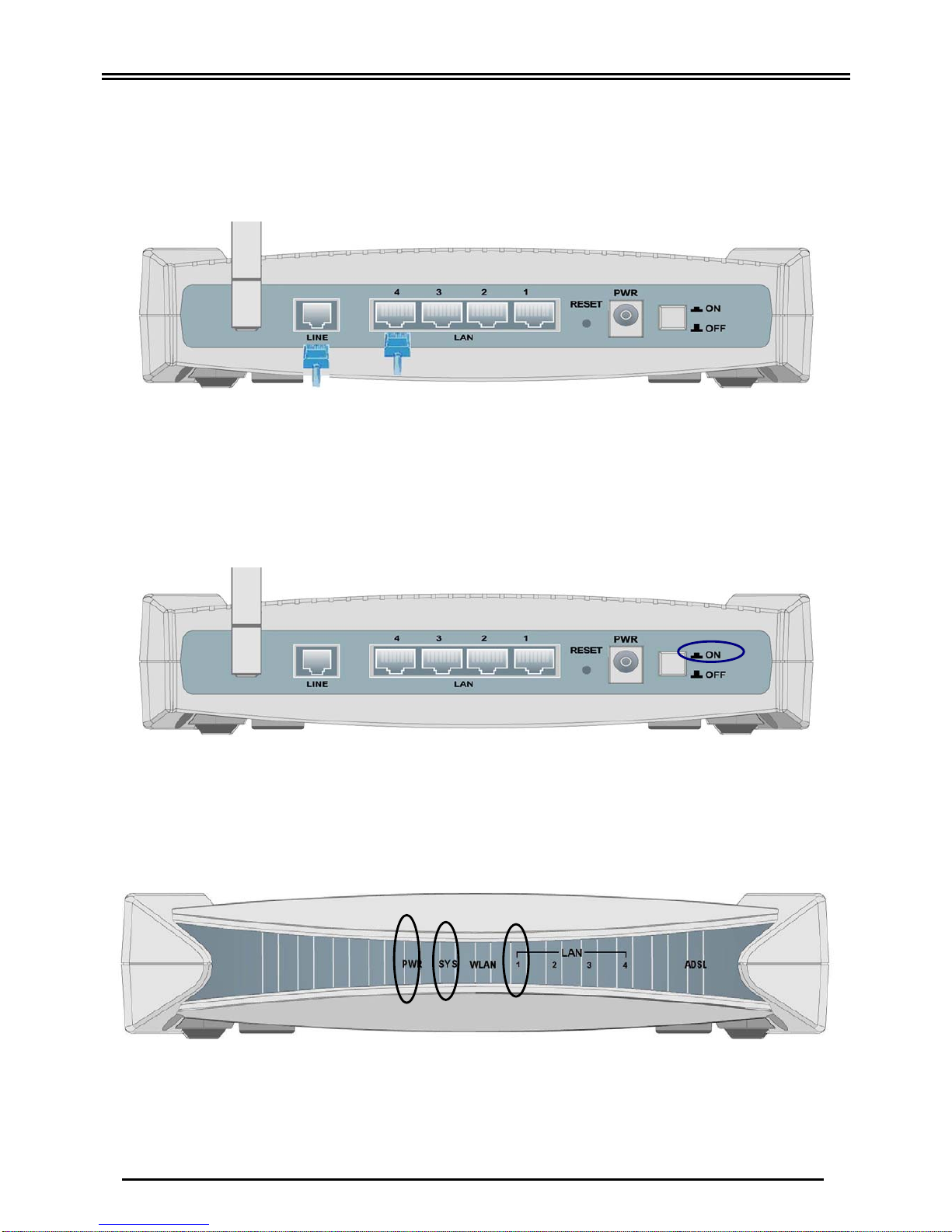

Connecting Your ADSL Router

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.

Quick Start Guide

 7100SG

 7100G

Billion BIPAC 7100SG/7100G 802.11g ADSL Router

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.
