Art. 8482

Ball Joint Tool for BMW 3 Series

A professional quality tool designed for easy removal and insertion of press fit control arm ball joints

Suitable for use on BMW 3 series (E36) models

1. Press Frame Assembly

2. Removal Shell

3. Installation Shell

4. Drive Screw with Thrust Bearing

5. Spindle Support

6. Support

7. Removal Bush

8. Installation Bush

WARNING

Before starting work under a car always ensure that it is adequately supported by axle stands or

ramps.

Chock wheels and ensure that the hand brake is firmly applied.

Always work in a well ventilated area.

Always use approved eye protection especially when working under vehicles.

Ensure that tools are correctly mounted.

Always use workshop manual for detailed instructions.

Do not over tighten or use undue force as this can cause damage to both tool and component.

Always lubricate screw thread.

Do not use an impact wrench with this tool

SW-Stahl und Werkzeugvertriebs GmbH Tel. +49 (0) 2191 / 46438-0

F56essartSresukreveL ax +49 (0) 2191 / 46438-40

ed.lhatsws@ofni:liaM-EdiehcsmeR79824-D

Instruction Manual

BGS technic KG

Bandwirkerstr. 3

42929 Wermelskirchen

Tel.: 02196 720480

Fax.: 02196 7204820

[email protected]

www.bgstechnic.com

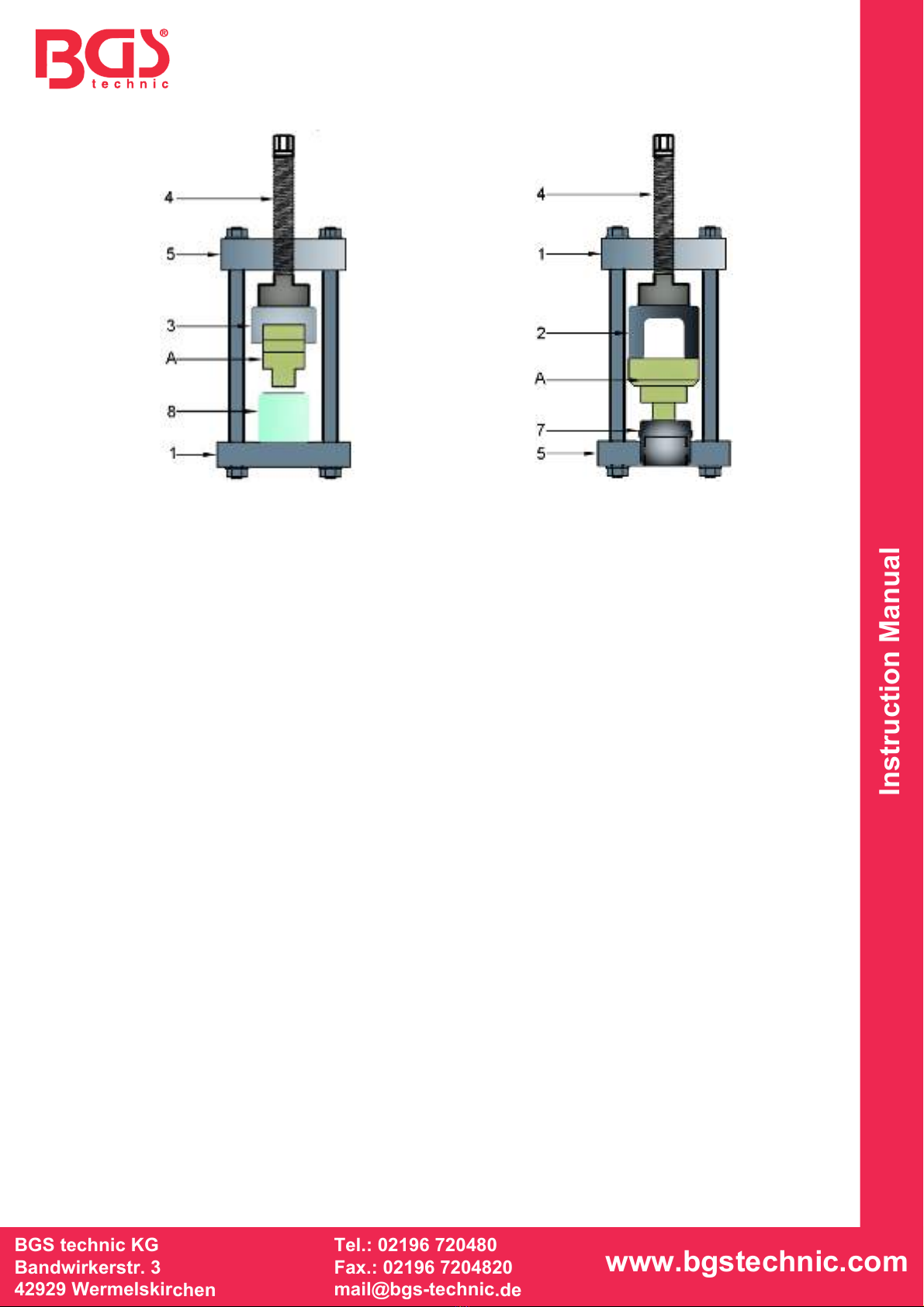

Extraction Insertion

A = Bush

1. Securely support the vehicle and follow workshop manual instructions to access the ball joint.

Mark the position of the ball joint to ensure the new ball joint is correctly installed.

2. Ensure that the screw threads (4) are clean, in good condition and freely lubricated each time

before use.

3. To remove the old ball joint assemble the tool as shown, using the bright plated shells (2) &

(7). Note ensure the tool is correctly aligned. Use a 16 mm ring spanner / socket & ratchet to

slowly turn the drive screw (4) to extract the ball joint from the control arm.

4. Clean the lower face & bore of the control arm using a wire brush to remove any rust. Do not

apply any grease to the bore or the ball joint taper.

5. To install the new ball joint assemble the tool as shown, using the shells (8) & (3). Note:

ensure the tool is correctly aligned. Use a 16 mm ring spanner / socket & ratchet to slowly turn

the drive screw (4) to insert the ball joint into the control arm. Always lubricate the screw

threads before using the tool.
