BestScope BS-6004 Series Manuel utilisateur

This instruction manual is for the Inverted Metallurgical microscope BS-6004 series. To ensure

the safety and obtain optimum performance and to familiarize yourself fully with use of this

microscope, we recommend that you study this manual thoroughly before operating the

microscope. Retain this instruction manual in an easily accessible place near the work desk for

future reference.

The instruction is according to industry standard JB/T10077-1999.

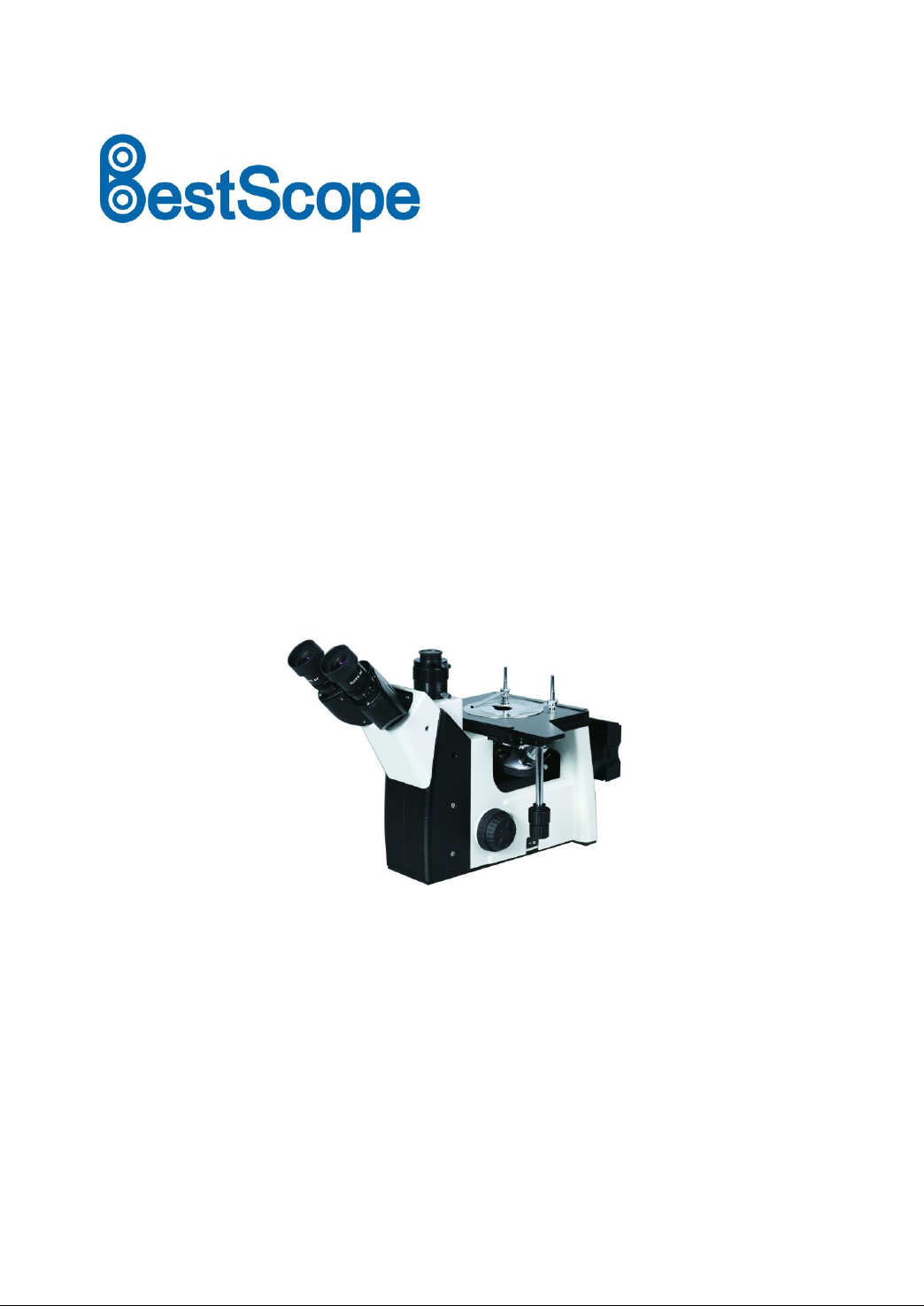

BS-6004 SERIES

INVERTED METALLURGICAL

MICROSCOPE INSTRUCTION

BestScope International Limited

Contents

BS-6004 series

Before using

1. Nomenclature ...................................................................................................................4

2. Assemblage .......................................................................................................................6

2-1 Assemblage scheme..........................................................................................................6

2-2 Assemblage step...............................................................................................................7

3. Operation...........................................................................................................................10

3-1 Illumination......................................................................................................................10

3-2 Focusing...........................................................................................................................10

3-3 Adjust tension of focus.....................................................................................................10

3-4 Adjust diopter....................................................................................................................11

3-5 Adjust inter-pupillary distance...........................................................................................11

3-6 Use filter.............................................................................................................................11

3-7 Adjust field diaphragm.......................................................................................................12

3-8 Adjust aperture diaphragm................................................................................................12

3-9 Use simple polarizing kit....................................................................................................13

3-10 Replace fuse.....................................................................................................................13

3-11 Mount and use TV device.................................................................................................13

3-12 Mount and use photo device...........................................................................................14

4. Technical Parameter...........................................................................................................15

5. Troubleshooting .................................................................................................................16

BestScope International Limited

Before using BS-6004 series

Inverted metallurgical microscope is used to discern and analyze organizational structure from kinds of metal. It is

very important in the work of quality research for foundry, smelt, heat treatment and inspection for raw material

and analysis for metallurgical structure of material after processing. It is also the important tool of research work

for metal physics, which is wildly used in enterprise, university and R&D.

1. Attention:

1.1 As the microscope is precision instruments, it should be

taken carefully and avoid impact during transportation.

1.2 Do not expose the microscope in the sun directly,

either not in the high temperature, damp, dusty or

acute shake place. Make sure the worktable is

horizontal. Following environment is required: Indoor

temperature: 5℃～40℃, Max relative humidity:80%.

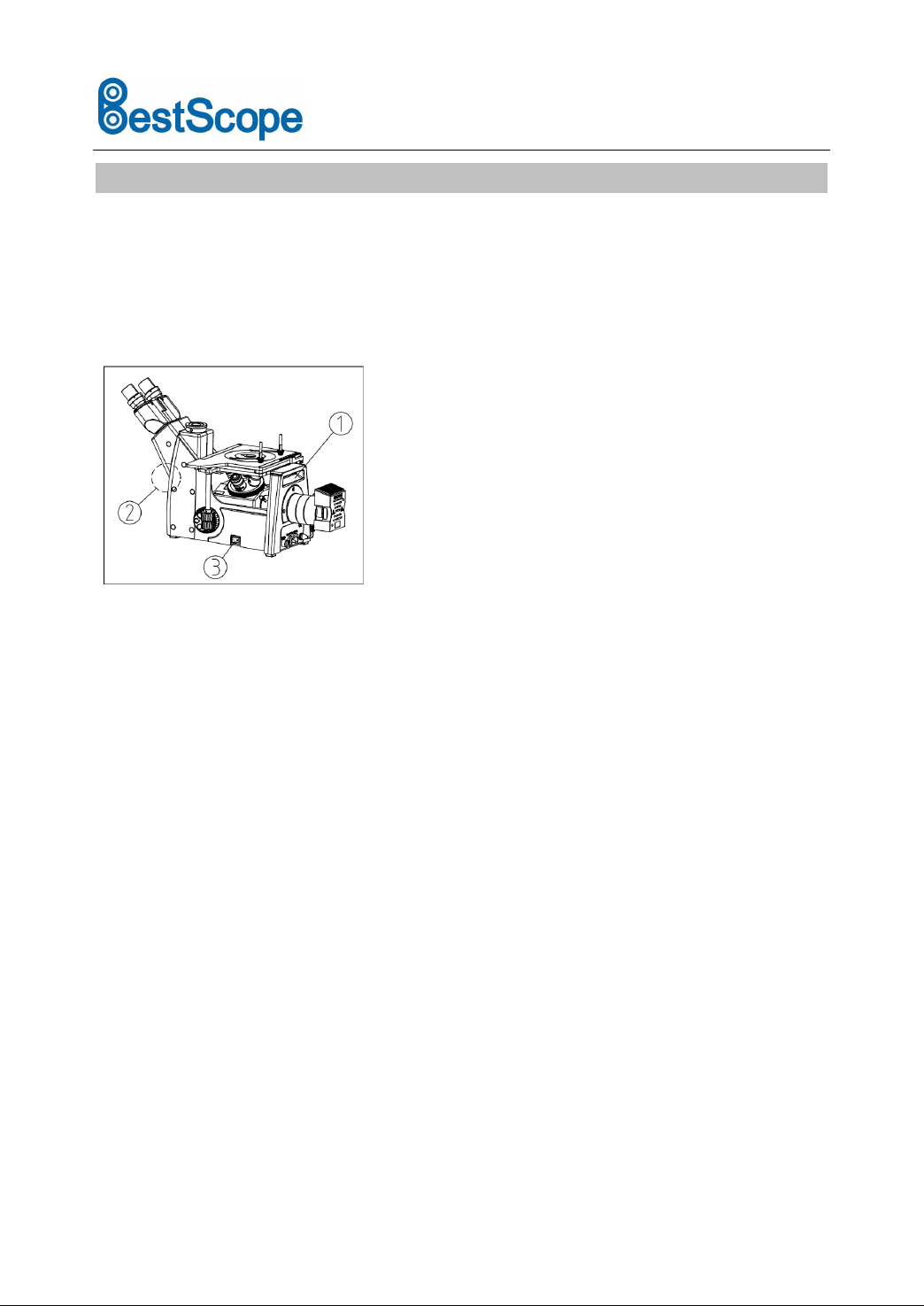

1.3 To move the microscope, please hold groove ①

behind and tube position ② and lay it carefully. (Fig. 1)

★It will be damaged by holding the stage, focusing knobs, tube or illuminator.

1.4 The lamp will be very hot during working, please make sure there is enough space around for dissipating.

1.5 Please connect the microscope with ground to avoid lighting strike.

1.6 Please make sure the power switch is “0”(Off)(See the left Fig) and the bulb cool down before replace the

bulb or fuse.

★Bulb: 3W LED bulb (Standard)

12V/30W halogen bulb (Philips 5761) (Optional)

1.7 It adopt wildly voltage 90~240V, and do not need any transformer. Please make sure the power supply before

using.

1.8 Please use special wires supplier by our company.

Fig.1

BestScope International Limited

BS-6004 series

2. Maintenance

2.1 Clean the lenses gently with a soft lens tissue. Carefully wipe off oil or fingerprints on the lens surfaces with

tissue moistened with 3:7 mixture of ethanol and aether or dimethylbenzene.

★Ethanol and Aether are both flammable. Please leave them away from fire or fire source, especially during

the power switch turn on and turn off.

2.2 Don’t use organic solution to clean the surfaces of the microscope, especially for plastic parts. Please use the

neutral detergent if necessary.

2.3 If the microscope damped by the liquid during working, please cut off the power immediately and make it

dry.

2.4 Do not disassemble or assemble the microscope to avoid damaging the capability.

2.5 After using, put on dust cover to protect microscope.

3. Safety sign

Sign

Signification

It shows the surface gets hot and don’t touch with bare hand.

Read the introduction before using. Unsuitable operation would lead person

hurt or instrument faulty.

Power switch ON

Power switch OFF

BestScope International Limited

1. Nomenclature BS-6004 series

Mechanical stage

Eyepiece

Knob for adjustment

tension

Coarse knob

Fine knob

Analyser

Knob for

brightness

Pole for field

diaphragm

Pole for aperture

diaphragm

Polarizer slide

Filter slide

Metal stage

BestScope International Limited

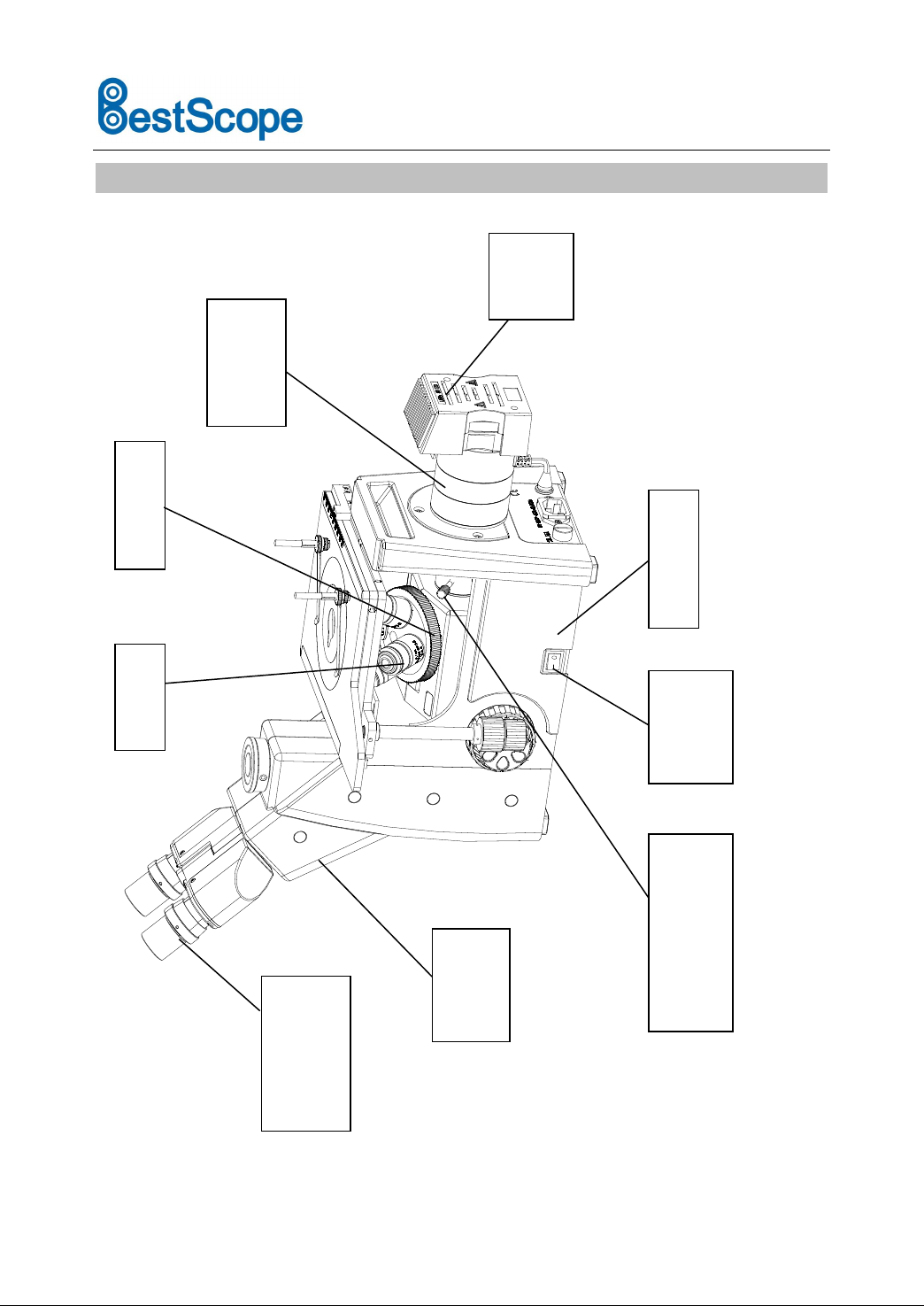

BS-6004 series

Objective

BS-6004 stand

Power

switch

Trinocular

head

Centering screw for

field diaphragm

Diopter

adjustment ring

Reflected

illuminator

Nosepiece

Lamp

holder

BestScope International Limited

．

Assemblage

BS-6004 series

2-1 Assemblage scheme

The below numbers shows the assemblage order.

★Before assemblage, please make sure all parts are without any dust or dirt..

★Be careful during assemblage and do not scrap or touch the optical lens.

Plug

Lamp

holder

Objective

Metal stage

Clips

Eyepiece

analyser

Polarizer

slide/filter slide

BestScope International Limited

BS-6004 series

2-2 Assemblage step

2-2-1 Set lamp holder

b Make sure the pin ① and ③ facing to the hole ② and ④,

then lock. (Fig. 2)

★LED bulb: 3W

★Halogen bulb: 6V30W (Philips 5761)

2-2-2 Set or replace bulb

Use clean glove or gauze to hold the bulb and make sure the

bulb pin ① facing to hole ③ and lock. Please make sure the

bulb should be vertical. (Fig. 3)

★Do not touch the bulb by finger directly.

Clean by gauze if there is finger print on bulb.

★Whenever replace the bulb, please cut off the power first

and wait the illuminator part cool down.

2-2-3 Set objectives

Turn the coarse knob to make the nosepiece to lowest.

Through the hole on stage to set the objectives ① on

nosepiece from low magnification to high magnification with

the direction. (Fig. 4)

★Clean the objectives regularly. It is very sensitive of dust

for objective of Inverted microscope.

★Please use low magnification objective, such as 5X or 10X

to find image, then use high one for observation.

★Make sure to hear click when turning to show the

objective on correct position.

Fig.3

Fig.4

Fig.2

BestScope International Limited

BS-6004 series

2-2-4 Set the metal stage

⑴Set the metal stage ① on mechanical stage as the

direction showed. (Fig. 5)

⑵Turn the metal stage to make the V hole ② direct to the

user.

2-2-5 Set clips

⑴Take out clips ① from pole ②. (Fig. 6)

⑵Screw pole ② into hole ③ on mechanical stage, then lock

by screw nut ④.

⑶Set the clips ① into pole ② and make it direct to center

of stage.

2-2-6 Set eyepiece

⑴Take off eyepiece cap ①. (Fig. 7)

⑵Insert the eyepiece ② to tube.

Fig.5

Fig.7

Fig.6

BestScope International Limited

BS-6004 series

2-2-7 Set Analyzer

Insert the analyzer ① into hole ② on microscope stand with

its face up to hear click. (Fig.8)

2-2-8 Set polarizer and filter

Insert the polarizer or filter ① into hole ② on connector

between microscope stand and illuminator with its face up to

hear click. (Fig.9)

2-2-9 Connect power supply

⑴Make sure the main power switch is at “O” (OFF) position.

⑵Insert one side of power plug ① into microscope socket

② and the other side connecting to power supply. (Fig. 10)

★Don’t over exert with the wires when it is bendy or

voluble.

★Use the wire supplied by our company only. If it is lost or

damaged, choose another suitable one.

★Connect all wires correctly, make sure the microscope is

connected with ground.

Fig.8

Fig.10

Fig.9
