BERNSTEIN 805S Manuel utilisateur

ASSEMBLY INSTRUCTIONS - III / 2019

CONCEALED SYSTEM 805S

for wall-mounted toilets

with touchless sensor operation

Concealed system 805S

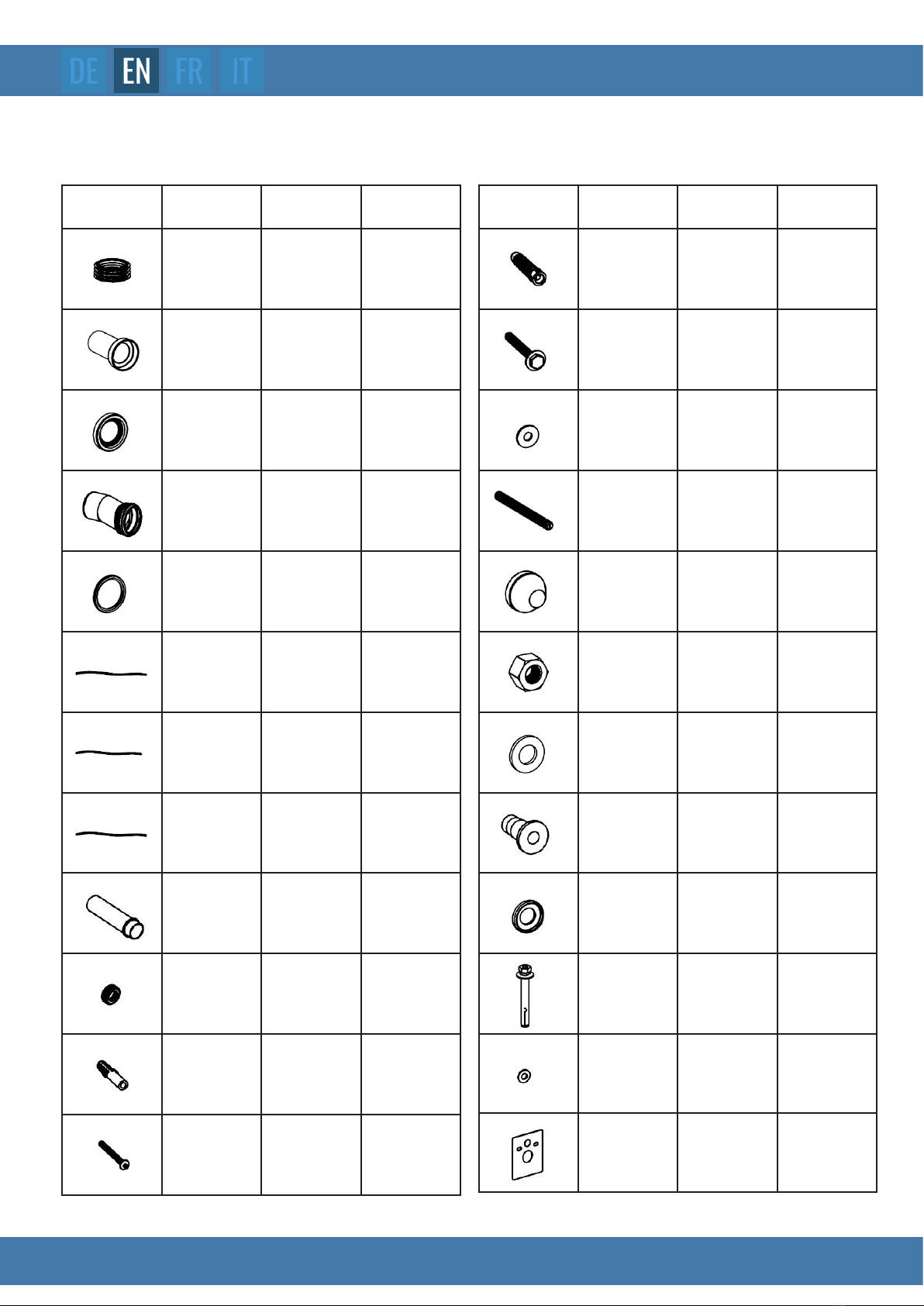

Item list

Item List Names Specication Quantity

rubber seal Ø 110 1

straight ush

pipe 1

ush pipe 1

eccentric pipe 1

rubber seal 1

transparent

air hose L: 350 mm 1

blue air hose L: 300 mm 1

transparent

air hose L: 650 mm 1

ush pipe 1

rubber seal

above pipe Ø 60 1

expansion nut 8 x 40 2

screw ST4,8 x 45 2

Item List Names Specication Quantity

expansion nut SX10 Ø 6-8 2

screw ST6,8 x 67 2

washer Ø 22 x 2,0 2

M12 bolt 2

decorative

cap 2

M12 nut 2

big washer Ø 32,5 x 2,5 2

rubber sleeve 2

decorative

cap base 2

steel

expansion

bolts

washer Ø 11 x 1,2 2

Absorbing

panel 1

Item list

aluminum frame

lever

cistern body

manual button

half frame

plastic cover assembly

drainage eccentric pipe

cover assembly plastic sensor screw set

glass panel ush valve inlet valve

Concealed system 805S

Name: CONCEALED SYSTEM 805S for wall-mounted toilets with touchless sensor operation

Model: 22257

ambient temperature: 3 – 50° C

rated voltage: 6 Volt - 4 x Typ „LR6“ (AA) 1,5 V batteries, not included

water supply pressure: 0,3 – 10,5 Bar

water supply temperature: 4 – 35° C

waterproof rating: IPX4

dimensions: 1003,5 mm x 483 mm x 108 mm

TECHNICAL SPECIFICATION

Technical drawing, inlet system & drainage system suggestion

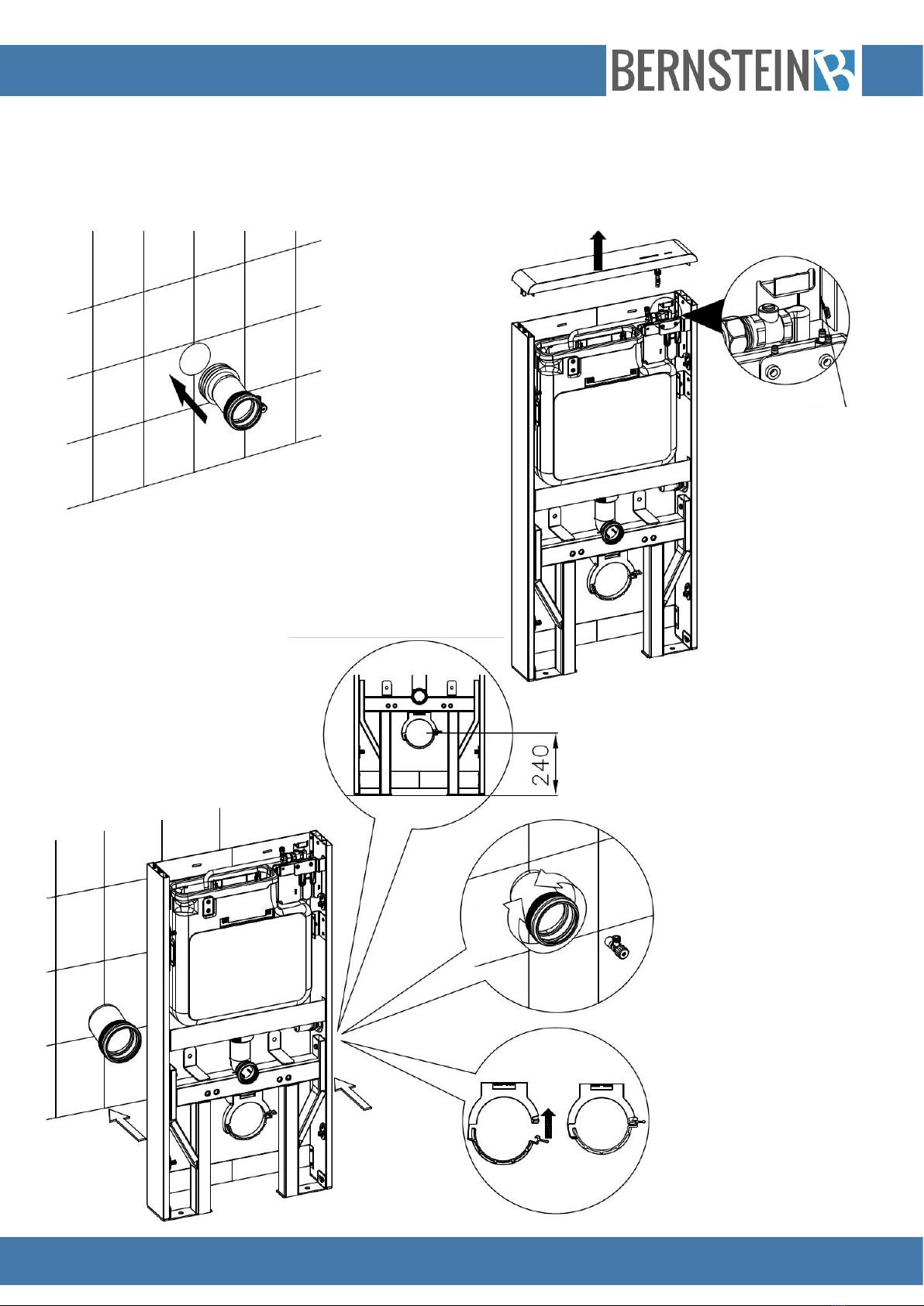

CISTERN INSTALLATION

1. Insert the drainage pipe into the

drainage hole on the wall.

2. Remove the upper cover, pull up the braided

tube until it got off the hanger.

Hang on template

3. Lean the whole cistern to the wall and align

the ush pipe position with the buckle.

Concealed system 805S

4. As indicated by the arrow, mark 4 spots on the wall

and 2 spots on the ground accordingly.

5. Open the clip and remove the sanitary module

from the wall.



6. Drill the holes to the marked spots

(Note: the depth of the drill must be larger than

the length of expansion nut, the diameter shown

as the picture) and press the corresponding

expansion nut into the hole.

7. Lean the whole frame into the right

position of the wall.





Concealed system 805S

8. Lock the corresponding size of the screws into

the expansion nut in the wall and steel expansion

bolt on the oor.

9. The ground screws can be tightened with a ratchet.





4. Open the stop valve on the hose

to see whether it is in good condition.

1. Place the closed shut-off valve

in the upper holder.

2. Screw the pressure hose

with the angle valve.

3. Open the angle valve.

ANSCHLUSS DES SANITÄRMODULS 805S:

Concealed system 805S

CONNECTION SENSOR OF SANITARY MODULE 805S

1. Take the sensor electronics unit upwards out of the holder.

2. Open the battery compartment as shown.

Insert 4 new type „LR6“ (AA) 1.5V batteries as specied.

Please note polarity! Close the housing again.

• Batteries must be disposed of in an environmentally

friendly manner after use, if possible, for battery recycling.

3. Replace the sensor electronics unit.
