BenQ Ceiling Mount-CM00G2 Manuel utilisateur

Doc NO.:

BenQ.com

Digital Projector Ceiling Mount Guide

4J.J4N02.001

1. Before installation please read and follow the instructions in this guide carefully

and retain it for future reference.

2. The BenQ Corporation is not liable for any damage or injury resulting from

incorrect installation.

3. The ceiling mount is designed for easy installation and removal. The BenQ

corporation is not liable for any damage or injuries due to human action or natural

hazards, such as earthquakes or typhoons.

4. The projector mount must only be installed by service professionals.

5. At least two persons are required to install or remove this mount to avoid any

personal injury or material damage resulting from heavy falling objects.

6. Before installing the mount check the surroundings of the selected location:

Avoid installing in places with high temperature, humidity or moisture.

Do not install near air conditioner vents or in excessively dusty or oily places.

This product must only be installed on a horizontal ceiling.

Do not install in places where there is vibration or a chance of shock.

7. Allow sufficient clearance around the projector to ensure proper ventilation.

8. To ensure safety, check the ceiling structure and select a strong solid place for

installation to avoid accidents.

9. The ceiling must support 4 times the total weight of the projector and the mount

or more, as well as being of sufficient strength to bear the vibrations and force

from earthquakes or other events.

10.Do not replace any parts or use damaged ones. Please contact your retailer if

you have questions.

11.Fix the screws firmly, but do not over-tighten them to avoid breaking or damage

to the threads.

12.The mount can support the weight of the projector (15kg or 33lbs) or less.

13.No other objects in addition to the projector should be attached to the mount.

No one should be allowed to hang anything on the mount.

14.The holes used for fixing the mount will remain in the ceiling after it has been

removed. After a long time there may also be other marks left on the ceiling.

15.The projector mount has a 5-year warranty but the quality of the mounting

surface and structure, as well as the installation work, is beyond the control of

the manufacturer.

16.Should there be a discrepancy between the English and Chinese

English

Warning

1 Warning

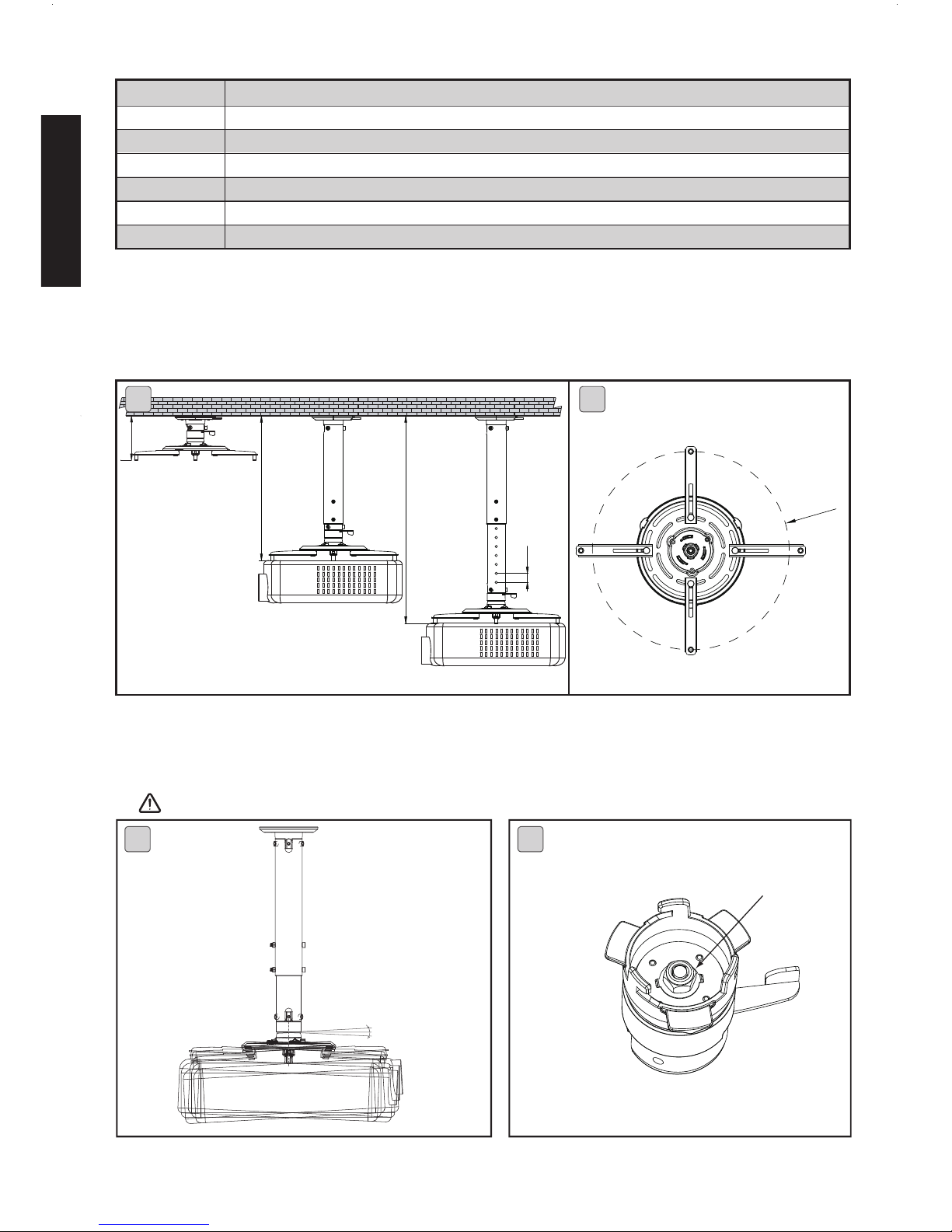

Specifications

Size

Angle Adjustment

Steel/Aluminum alloy

+/-25˚

360˚

Rotation angle

15kg(33lbs)

M3,M4,M5,M6

127.7 mm~577.7mm (each spaced 25mm apart)

Material

Weight

Length

Load

Screw

Tilt angle

2.07kg(4.56lbs)

1. Length can be adjusted; the shortest length is 127.7mm

and the longest is 577.7mm (each 25mm apart).

1. Angles can be adjusted by +/- 25 degrees.

2. Nuts can be used to control the tightness of the projector angles.

Nut adjustments should be performed by service professionals

2. Projectors with mounting hole of diameter within 380mm are suitable.

+25

。

Nut

English

2 Specifications/Size/ Angle Adjustment

577.7

402.7

Ø380

1 2

127.7

English

A B C D E

F G

L M N O

H I J K

Packaging Parts

Required Tools

Plastic plug__4pcs Self-tapping

Screw__4pcs

Ceiling mount bracket__1pc

Arm bracket__4pcs Hex key (5mm)__1pcHex bolts

(M6xL12)__7pcs

1. Drill 2. Drill bit 3. Hammer 4. Spanner:

8mm/ 10 mm

5. Cross screwdriver 6. Pencil

Bolts with fixed

washer__4pcs

Fixed washers

__4pcs

Nuts__6pcs

Bolt__2pcs

External pipe__1pc Internal pipe__1pc

Hinge module__1pcHinge module__1pc Hinge module cover__1pc

3 Packaging Parts/Required Tools

Installation Steps

A A

A. Pull out the plastic caps from both sides. Make sure the

ceiling mount bracket (A) is placed on the correct position on

the ceiling. Place the bracket (A) close to the ceiling and mark

on the wall against the bracket holes with a pencil.

Drill holes on the marked points.

The holes on a concrete wall should be 10mm (0.39”) in

diameter and 55mm deep (2.17”) while the holes on a

wooden wall should be 4.5mm (0.17”) in diameter and 55mm

deep (2.17”).

Use a hammer to fix the plastic plugs (L) on the wall.

Fix the self-tapping screws (M) on the wall. Replace the plastic

caps.

A. Place the hinge module (B) on the arm bracket (F).

Lock them tightly with the fixed washers (J) and nuts (K).

B. Place the hinge module cover (C) on the hinge

module (B). Align the hinge module (D) with the

holes on the hinge module cover (C) and tighten it

by inserting into the holes.

C. Use the hex key 5mm (H) to insert and fix the hex

bolts (M6xL12) (G) into the holes of the hinge

module (B) and the hinge module cover (C).

1. Installing mount bracket on the ceiling

2. Installing arm bracket on the projector

3. Installing hinge module on the projector

A. After passing the power cord through the internal

pipe (O), fix the internal pipe (O) and the projector

with the locked hinge module with the hex bolts

(M6xL12) (G).

B. Pull out the power cord from behind the external

pipe (N) and plug the power cord into the projector.

Assemble the external pipe device (O+projector)

and the external pipe (N) with the bolts

(E) and the nuts (K) at an appropriate length.

4. Installing internal and external pipe devices

1. 2.

English

A. Place the arm bracket (F) on the projector.

Use the fix bolts with fixed washer (I) to lock the

projector tightly.

4 Installation Steps

English

Installation Steps

7. Adjusting the required angle

A. Adjust the required angle of the hinge module by

loosening the knob. After adjustment, push back

and tighten the knob.

+25

。

LOCK

A. Fix the internal and external pipes (O+N) and the

ceiling mount bracket (A) with the hex bolts

(M6xL12)(G).

5. Installing internal and external pipe devices on

the ceiling mount bracket

6. Cable Management

A. Pull out the power cord from the top of the external pipe

(N) and fix it on the ceiling mount bracket (A).

5 Installation Steps
