BenQ LX810STD Manuel utilisateur

LX810STD

Digital Projector

User Manual

Table of contents2

Ta b l e o f c o n t e n t s

Important safety

instructions ........................... 3

Introduction.......................... 7

Projector features.....................................7

Shipping contents ......................................8

Projector exterior view...........................9

Controls and functions ..........................10

Positioning your

projector..............................14

Choosing a location................................14

Obtaining a preferred projected image

size..............................................................15

Connection .........................16

Connecting video source devices........17

Operation............................18

Starting up the projector ......................18

Adjusting the projected image .............19

Using the menus......................................21

Securing the projector...........................22

Switching input signal .............................25

Magnifying and searching for details ...26

Selecting the aspect ratio ......................26

Optimizing the image .............................28

Setting the presentation timer.............31

Remote paging operations ....................32

Freezing the image ..................................32

Hiding the image......................................33

Locking control keys ..............................33

Operating in a high altitude

environment.............................................33

Adjusting the sound................................34

Shutting down the projector................34

Direct power off..................................... 34

Menu operation ...................................... 35

Maintenance........................ 45

Care of the projector............................ 45

Light source information ...................... 48

Troubleshooting ................ 51

Specifications ...................... 52

Projector specifications......................... 52

Dimensions .............................................. 53

Wall mount installation......................... 54

Timing chart............................................. 56

Warranty and Copyright

information ......................... 60

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that

you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before

you operate your projector. Save

it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage

your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter (if

any) or remove the lens cap (if

any) when the projector light

source is on.

5. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of 10 volts occur. In

areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply

(UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the light source,

press ECO BLANK on the

projector or remote control.

Important safety instructions4

Safety Instructions (Continued)

7. Do not operate light sources beyond

the rated light source life. Excessive

operation of light sources beyond the

rated life could cause them to fail on

rare occasions.

8. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

9. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death

if you should come into contact with

live parts.

Under no circumstances should you

ever undo or remove any cover. Refer

servicing only to suitably qualified

professional service personnel.

10. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

11. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm

clearance from walls and free flow of

air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled

up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shorten the projector's life span and

darken the image.

- Locations near fire alarms

- Locations with an ambient

temperature above 40°C / 104°F

- Locations where the altitudes are

higher than 3000 m (10000 feet).

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions 5

Safety Instructions (Continued)

12. Do not block the ventilation holes.

- Do not place this projector on a

blanket, bedding or any other soft

surface.

- Do not cover this projector with a cloth

or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

13. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

14. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector, doing

so may result in accidents and possible

injury.

15. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power supply's

power outlet and call BenQ to have

the projector serviced.

16. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it is

securely installed.

17. This apparatus must be earthed.

Important safety instructions6

Safety Instructions (Continued)

Ceiling mounting the projector

We want you to have a pleasant experience using your BenQ projector, so we need

to bring this safety matter to your attention to prevent possible damage to person

and property.

If you intend to mount your projector on the ceiling, we strongly recommend that

you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is

securely and safely installed.

If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that

the projector may fall from the ceiling due to an improper attachment through the

use of the wrong gauge or length screws. Also, maintain a minimum distance of 15

mm between the vent on the bottom of the projector and the mounting plate. This is

crucial for proper air circulation and cooling of the unit.

You can purchase a BenQ projector ceiling mount kit from the place you purchased

your BenQ projector. BenQ recommends that you also purchase a separate

Kensington lock compatible security cable and attach it securely to both the

Kensington lock slot on the projector and the base of the ceiling mount bracket. This

will perform the secondary role of restraining the projector should its attachment to

the mounting bracket become loose.

Vent (air inlet)

Introduction 7

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features.

• ECO BLANK - With technology, the Eco Blank function will save up to 70% of your

light source power at the same time your image is hiding

• Network Settings allowing management of projector status from a computer using a

web browser

• 3D function to enjoy the 3D movies, videos, and sporting events in a more realistic way

by presenting the depth of the images

• Brilliant color to provide truer, more vibrant colors in picture

• Closed captioning to display the dialogue, narration, and sound effects of TV programs

and videos

• Variable audio output

• Wall color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Selectable password protected function

• 3D color management allowing color adjustments to your liking

• Presentation timer for better control of time during presentations

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• Ability to display 1.07 billion colors

• Multi-language On-Screen Display (OSD) menus

• Switchable light source modes to adjust to your desired light source output

• Built-in speakers providing mixed mono audio when an audio input is connected

• Component HDTV compatibility (YPbPr)

• The apparent brightness of the projected image will vary depending on the ambient lighting conditions,

selected input signal contrast/brightness settings, and is directly proportional to projection distance.

• The light source brightness will decline over time and may vary within the light source manufacturers

specifications. This is normal and expected behavior.

Introduction8

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for detailed

information.

Optional accessories

Projector with dust filter Power cord VGA cable

Quick start guide User manual CD Warranty card*

Remote control with batteries

1. Wall mount kit

2. RS232 cable

3. Soft carry bag

Introduction 9

Projector exterior view

1. External control panel

(See "Controls and functions" on page

10 for details.)

2. Vent (air exhaust)

3. Lens cover

4. Focus ring

5. Vent (air inlet)

6. Front IR remote sensor

7. Projection lens

8. AC power jack

9. Rear IR remote sensor

10. RJ45 LAN input jack

11. HDMI-input port 1

12. HDMI/MHL-input port 2

13. USB Type-A port

14. USB Mini-B port

15. RGB (PC)/Component Video (YPbPr/

YCbCr) signal input jacks

16. RS232 control port

17. RGB signal output jack

18. Video input jack

19. S-Video input jack

20. Audio (L/R) input jacks

21. Audio input jack

22. 12V DC output terminal

Used to trigger external devices such

as an electric screen or light control,

etc. Consult your dealer for how to

connect these devices.

23. Audio output jack

24. Ceiling mount holes

25. Kensington anti-theft lock slot

26. Vent (air inlet)

Front/upper side

911 12 13 14 15 17 1916 18

20 21 22 23

Rear/lower side

Introduction10

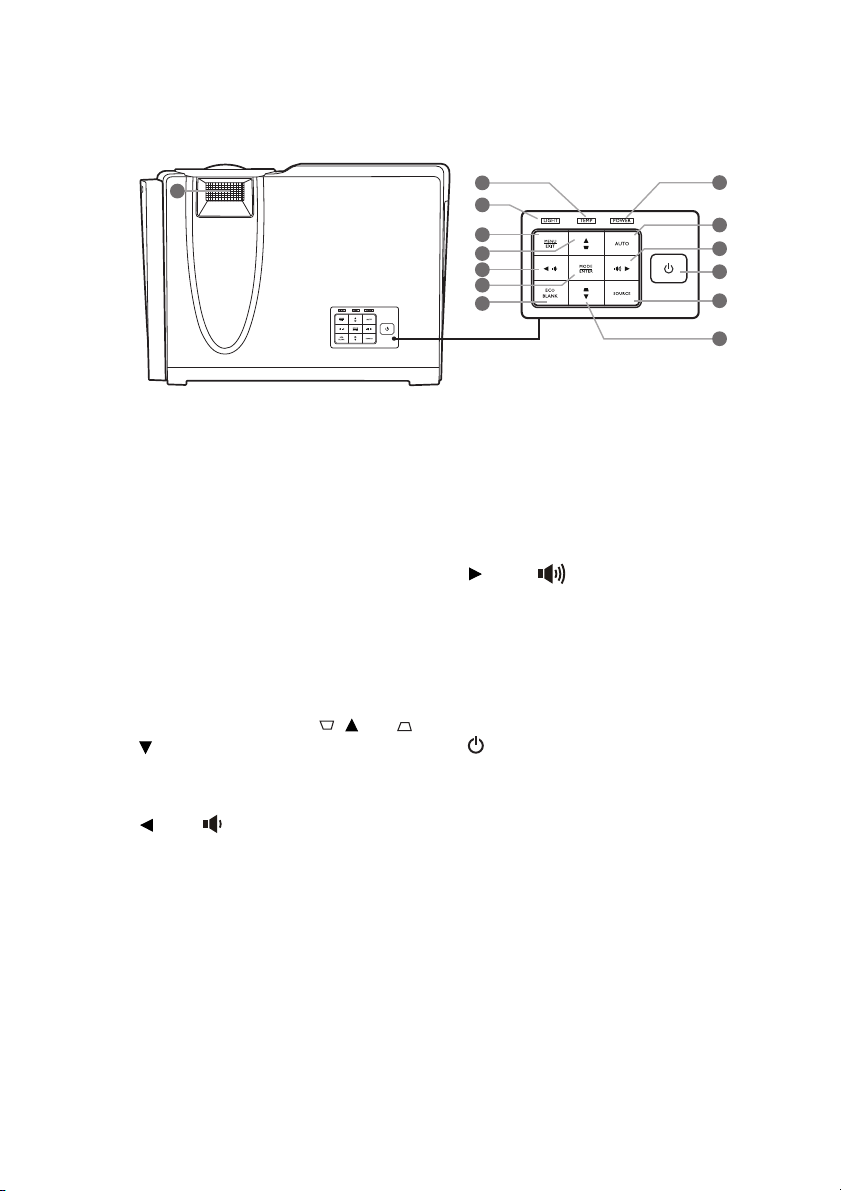

Controls and functions

Projector

1. Focus ring

Adjusts the focus of the projected image.

2. TEMPerature warning light

Lights up red if the projector's

temperature becomes too high.

3. LIGHT indicator light

Indicates the status of the light source.

Lights up or flashes when the light source

has developed a problem.

4. MENU/EXIT

Turns on the On-Screen Display (OSD)

menu. Goes back to previous OSD menu,

exits and saves menu settings.

5. Keystone/Arrow keys ( / Up, /

Down)

Manually corrects distorted images

resulting from an angled projection.

6. Left/

Decreases the projector volume.

7. MODE/ENTER

Selects an available picture setup mode.

Activates the selected On-Screen Display

(OSD) menu item.

8. ECO BLANK

Used to hide the screen picture.

9. POWER indicator light

Lights up or flashes when the projector is

under operation.

10. AUTO

Automatically determines the best picture

timings for the displayed image.

11. Right/

Increases the projector volume.

When the On-Screen Display (OSD)

menu is activated, the #6, #5, and #11

keys are used as directional arrows to

select the desired menu items and to

make adjustments.

12. POWER

Toggles the projector between standby

mode and on.

13. SOURCE

Displays the source selection bar.

Table des matières

Autres manuels BenQ Projecteur

BenQ

BenQ MW855UST+ Manuel utilisateur

BenQ

BenQ W1100 Manuel utilisateur

BenQ

BenQ MX618ST Manuel d'utilisation et d'entretien

BenQ

BenQ L720D Series Manuel utilisateur

BenQ

BenQ SH910 Manuel utilisateur

BenQ

BenQ MX720 Manuel utilisateur

BenQ

BenQ LW720 Manuel d'exploitation et d'entretien

BenQ

BenQ LU935ST Manuel utilisateur

BenQ

BenQ MH856UST Manuel utilisateur

BenQ

BenQ DX825ST Manuel utilisateur

BenQ

BenQ SH910 Manuel utilisateur

BenQ

BenQ PE8700 - DLP Projector - HD Manuel utilisateur

BenQ

BenQ HT2050 Manuel utilisateur

BenQ

BenQ TX762 ST Manuel utilisateur

BenQ

BenQ MS500+ Manuel utilisateur

BenQ

BenQ MP623 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ MX763 Instructions d'installation et d'utilisation

BenQ

BenQ LU9255 Manuel utilisateur

BenQ

BenQ Portable Series Manuel utilisateur

BenQ

BenQ W1700 Manuel utilisateur

BenQ

BenQ PX9210 Manuel utilisateur

BenQ

BenQ MP670 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ 9H.J2S77.F3A - DLP Projector SVGA 2700 Manuel utilisateur

BenQ

BenQ MW821ST Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
